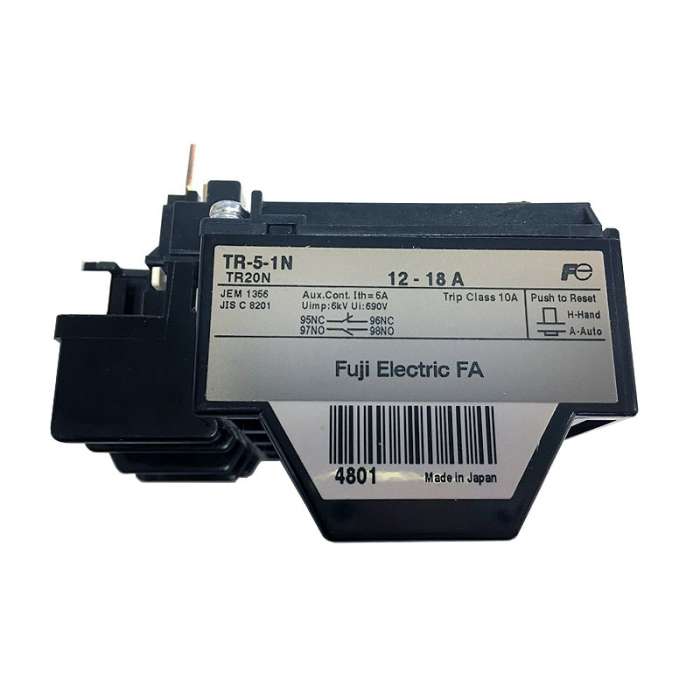

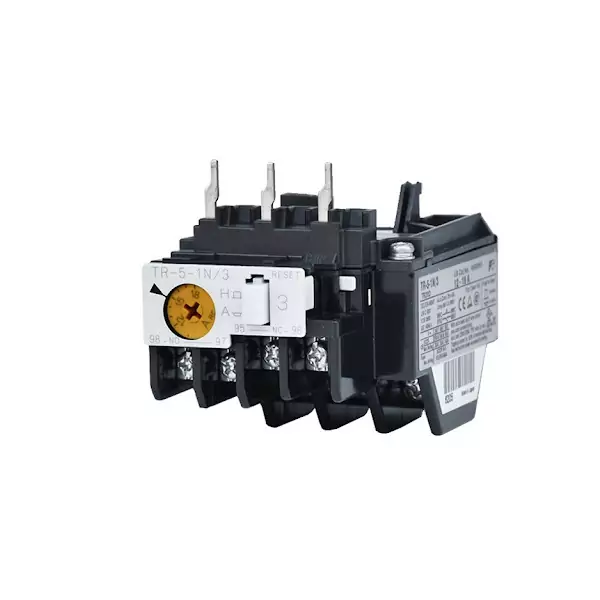

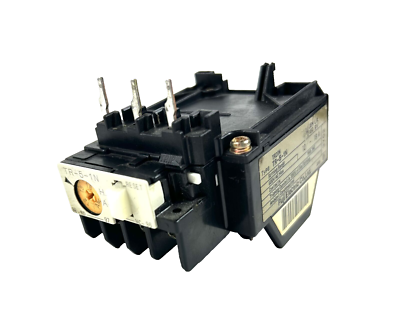

Fuji TR-5-1N Thermal Overload Relay 4–6A, 2.8–4.2A, 9–13A, 12–18A, or 25A

The Fuji TR-5-1N Thermal Overload Relay is a relay for protecting industrial motors that works well and keeps automation systems secure.

Details about the product:

Model: TR-5-1N

Current Range: There are many adjustable settings available, such as 4–6A, 2.8–4.2A, 9–13A, 12–18A, or 25A, depending on the model. Always choose the version that meets the motor’s needs. ​

Type of protection: thermal. It uses a bimetallic strip to detect too much current and trip the relay when there is an overload. ​

Reset Option: You can reset the device manually or automatically. ​

Contacts: It has one Normally Open (NO) and one Normally Closed (NC) auxiliary contact that can be used for signaling motor starters and tripping circuits. ​

Trip Indicator: There is a mechanical trip indicator to make it easy to fix problems. ​

Mounting: Made to work with Fuji contactors by being mounted on a panel or directly. ​

Depending on the model, the weight is from 140 to 190 grams.

Application: Used in control panels for industrial motors (such conveyors, pumps, compressors, CNC machines, maritime systems, and more) to save them from getting damaged by overloads or locked-rotor events. ​

Main Features:

1. A very dependable thermal sensor system for finding overloads with great accuracy.
2. The wide adjustment range lets you use it with motors of different sizes.
3. Industry-standard design makes it easy to replace or upgrade and works with most major motor starter manufacturers.
4. Auxiliary contacts that meet ANSI/IEC standards can be easily added to control and signaling circuits. ​
