Gast 8AM-FRV-2B 5HP Air Motor 5hp, 7bar – Refurbished & tested
Refurbished & tested
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions

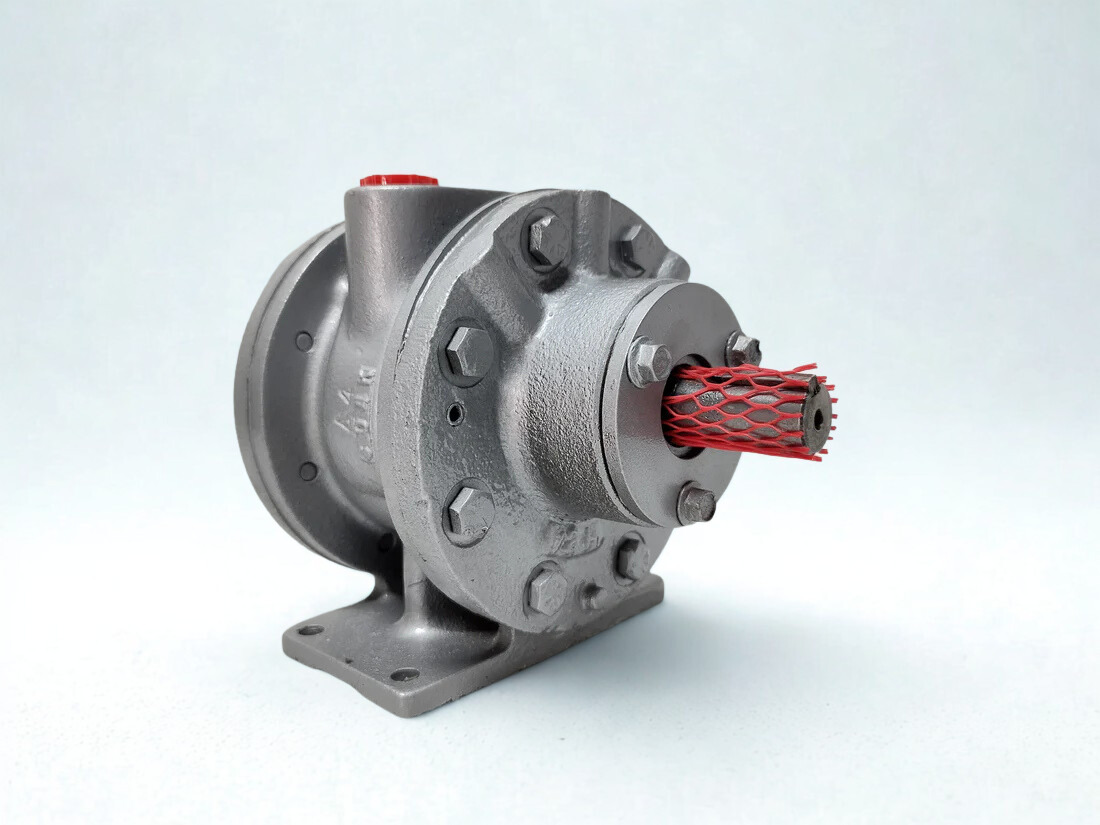

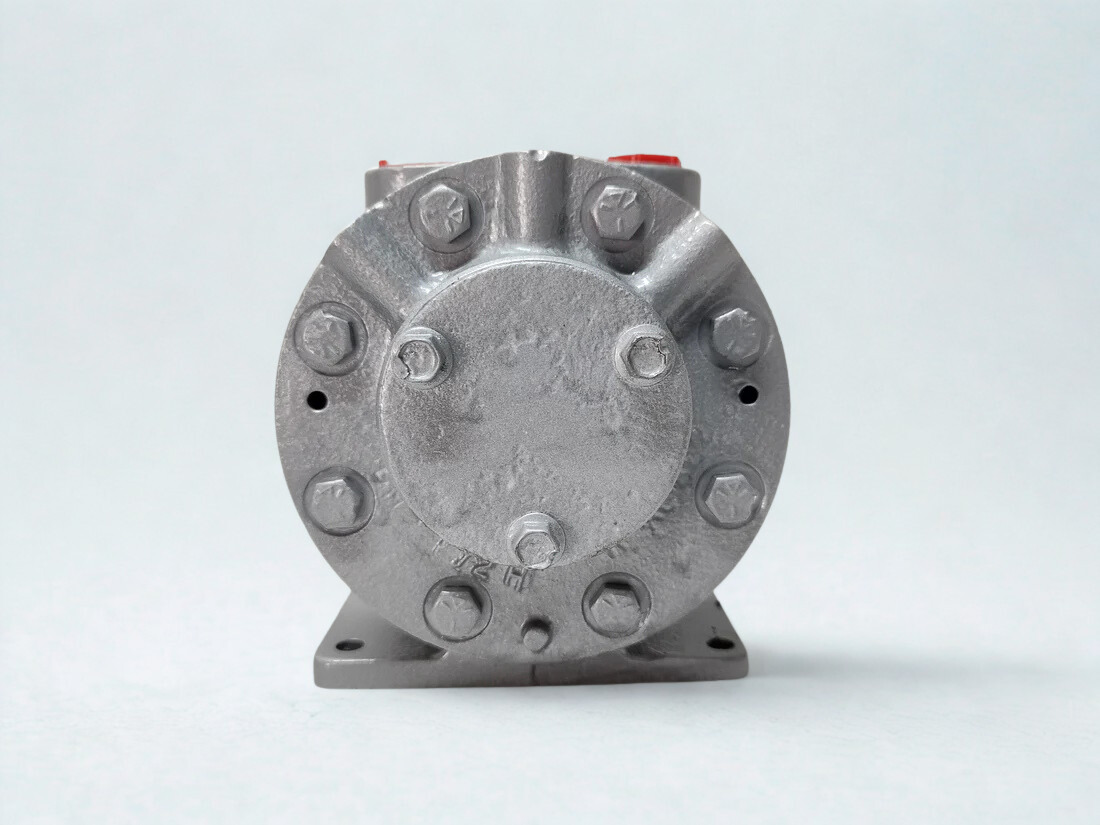

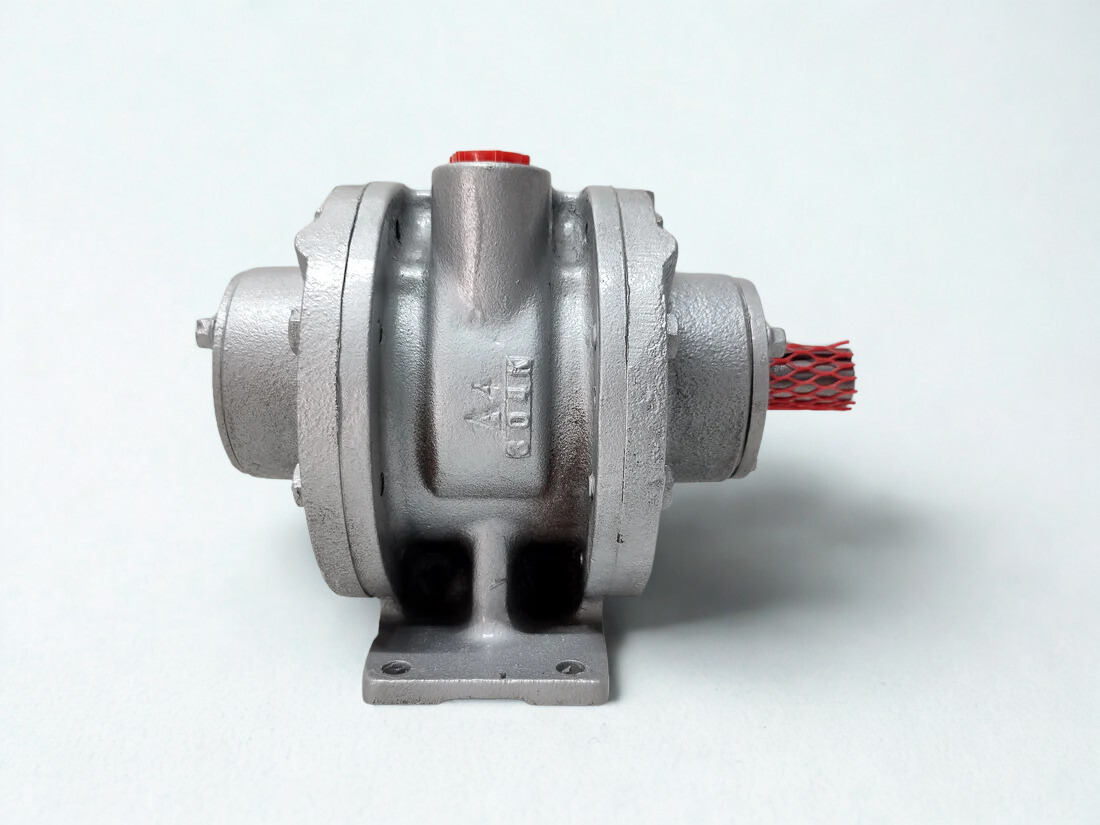

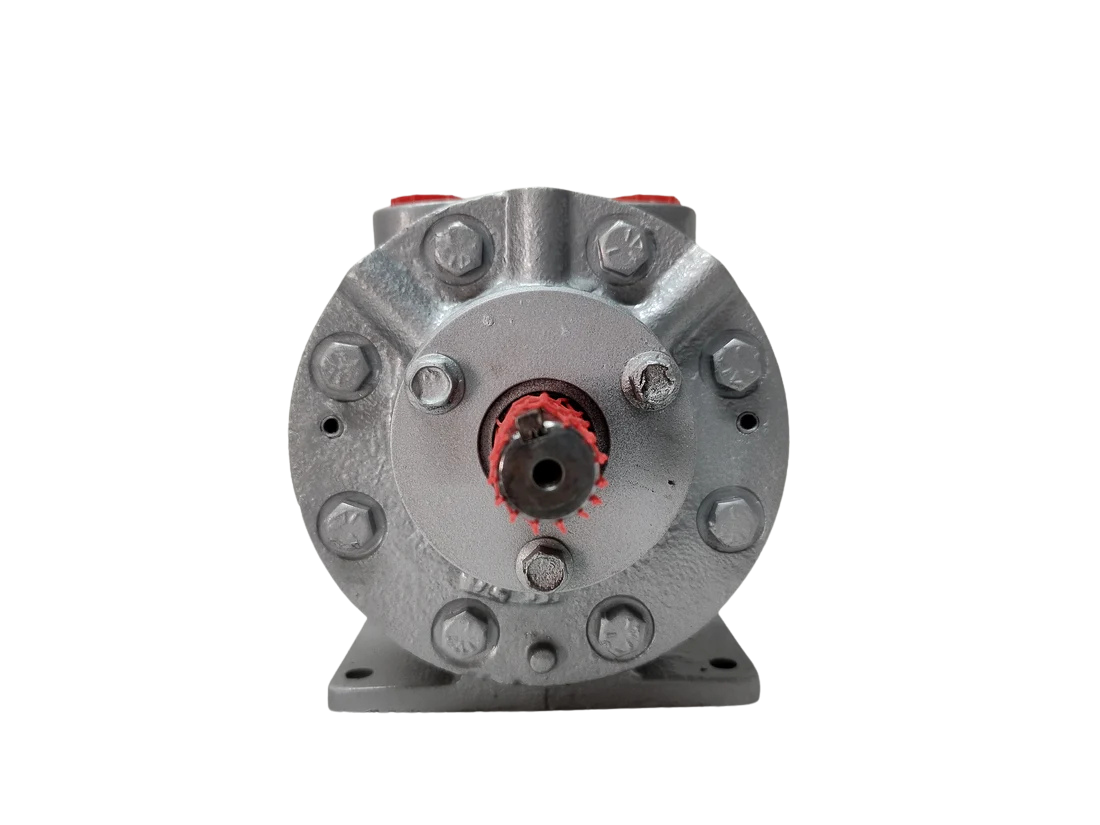

The Gast 8AM-FRV-2B air motor can turn both ways and has 5 HP of power at pressures up to 7 bar. This makes it useful for many different industrial applications. This vane-type motor runs cool and spark-free, making it great for dangerous places.
The Gast 8AM-FRV-2B is a strong pneumatic motor made for high-torque jobs in tough environments including the maritime, chemical, and food processing industries. It has a 5 HP output, can change speed up to 2500 RPM, and can stall without breaking, which makes it better than electric motors in wet or explosive conditions.
This reversible type only weighs 27 pounds and can be mounted on the foot. It can work in any position, making it easy to add to mixers, pumps, conveyors, and hoists. It works well with little maintenance using regular 10W detergent oil and is optimized for SEO with keywords like “Gast 8AM-FRV-2B air motor.
| Description | Value |
|---|---|
| Power Output | 5 HP (3.73 kW)Â |
| Maximum Pressure | 7 bar (100 PSI)Â |
| Maximum Speed | 2500 RPMÂ |
| Maximum Torque | 185 in-lb (20.91 Nm)Â |
| Torque at Max Speed | 132 in-lb (14.92 Nm)Â |
| Speed at Max Torque | 300 RPMÂ |
| Air Consumption (Max) | 175 CFMÂ |
| Shaft Diameter | 0.75 in (19.05 mm), Keyed |
| Ports | 1/2″ NPT ​ |
| Weight | 27 lbs (12.25 kg)Â |
| Sound Level | 105 dB(A)Â |
| Vanes | 4 ​ |
| Operating Temperature | 0°F to 250°F |
| Mounting | Foot, Any Position |
| Approvals | CE, ATEX |
Gast 8am frv 2bFeatures:
1) Reversible rotation for two-way operation lets you start, stop, and change directions right away without wearing out the machine.
2) The design runs cool and doesn’t ignite, making it perfect for conditions that are dangerous, explosive, or very hot (up to 250°F).
3) Variable speed and torque by air throttling, which gives you more accurate control at a lower cost than electric motors.
4) The cast iron casing is strong and has a 4-vane rotor that protects against overload without breaking.
5) The compact foot-mount design makes it easy to install in mixers, conveyors, and maritime equipment.
Usage guide:
-> Within 20 inches, connect to a compressed air source (20–100 PSI) with a filter-regulator-lubricator (FRL) unit. For every 50 CFM, add 1 drop of 10W oil.
-> Mount the device with a foot bracket in any direction, line up the keyed 0.75″ shaft with the load, and use the air valve to change the speed and direction for reversible operation.
-> Check regularly for lubrication and use repair kit K210 for maintenance to keep things running smoothly in industrial settings.
