Magnetron MG5424 X-Band Marine Radar Description:

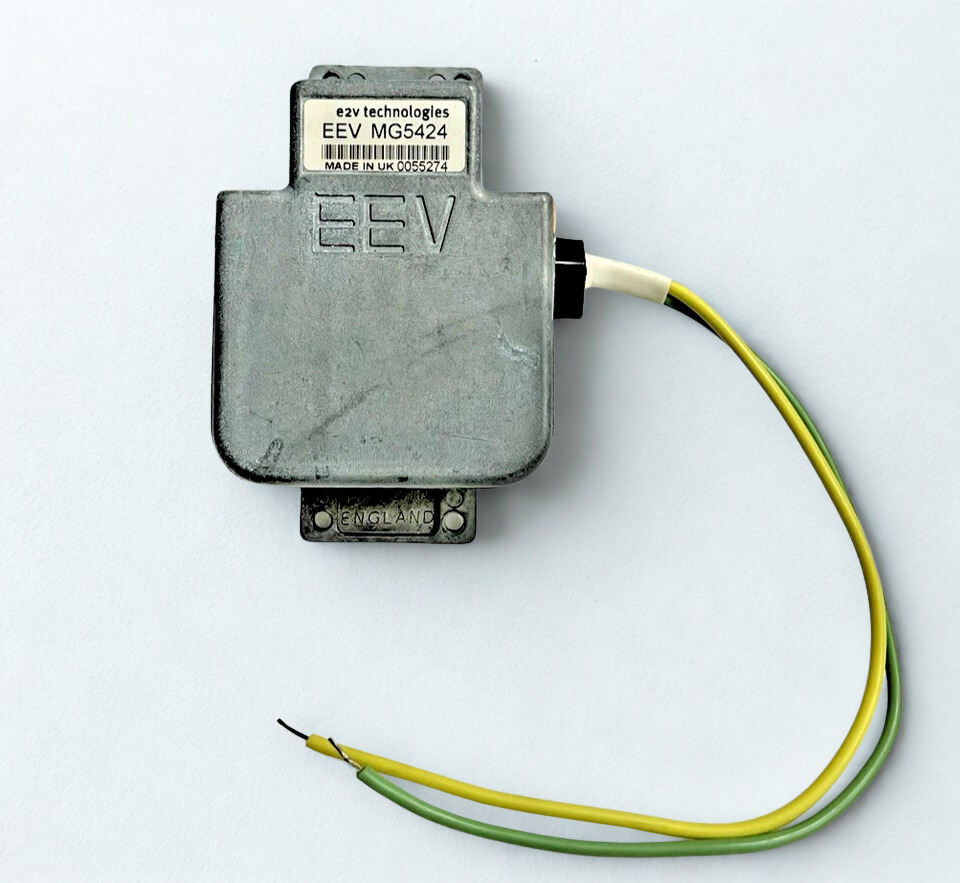

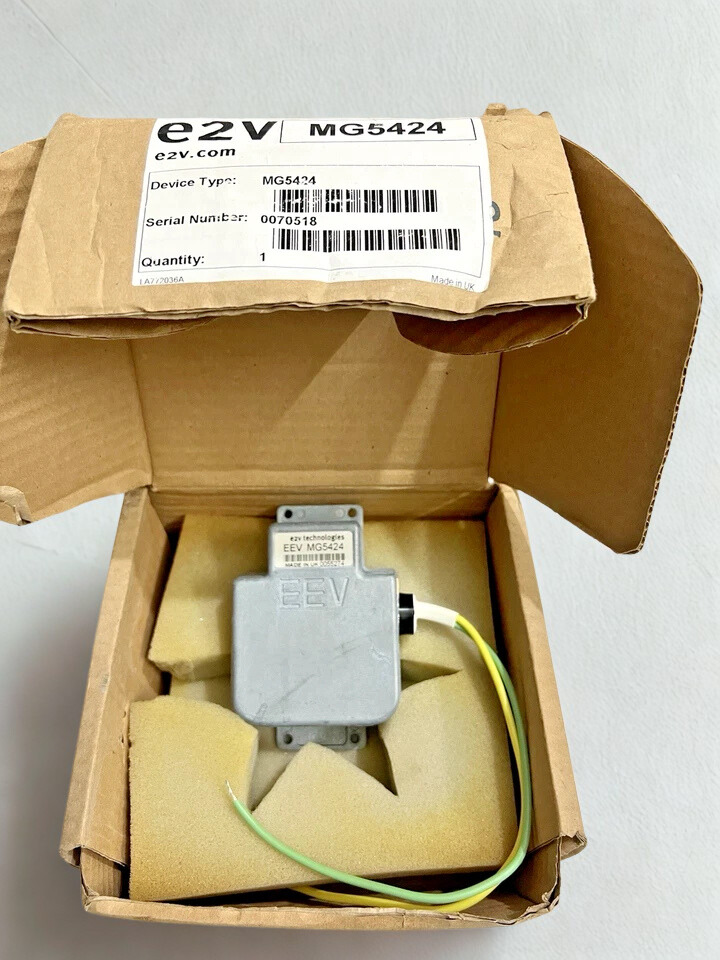

The e2v Technologies EEV MG5424 is a compact, durable, and lightweight fixed-frequency pulse magnetron engineered for X-band marine radar systems, providing dependable high-power RF output.

The MG5424 X-band magnetron produces 9410 ±30 MHz pulses at a peak power of up to 25kW for marine radar transmitters, employing an indirectly heated cathode and an integral magnet for stable performance. It accommodates pulse widths of up to 2.0μs and repetition rates of 900pps, featuring natural cooling and a WG16 waveguide output (IEC UBR100 coupler). Thoroughly evaluated for anode voltage (7.5-8.5kV), output (minimum mean of 20W), and frequency stability, it is compatible with radar systems from Anritsu, Decca, Kelvin-Hughes, Raytheon, Simrad, and Sperry.

Specifications

Advantages:

1. Small and light (0.7 kg), making it easier to install radar in tight spaces on ships.
2. The tough construction can handle marine shock, vibration, and humidity for a long time.
3. A high peak power of 25 kW and stability make sure that radar echoes are clear over long distances.
4. For reliable tuning, it has a low input capacitance (9pF max) and a wide pulling range (±23MHz).
5. Safe to handle (no X-ray risks if shielded), and it starts up quickly after 60 seconds of preheating.
6. A cheap replacement that works with most major radar brands.

Where to Use:

• Marine navigation radars on commercial ships, yachts, and fishing vessels.

• Offshore platforms and naval vessels for collision avoidance and search.​

• Coastal surveillance and port monitoring radars.​

• Replacement part in legacy X-band marine radar transmitters.
