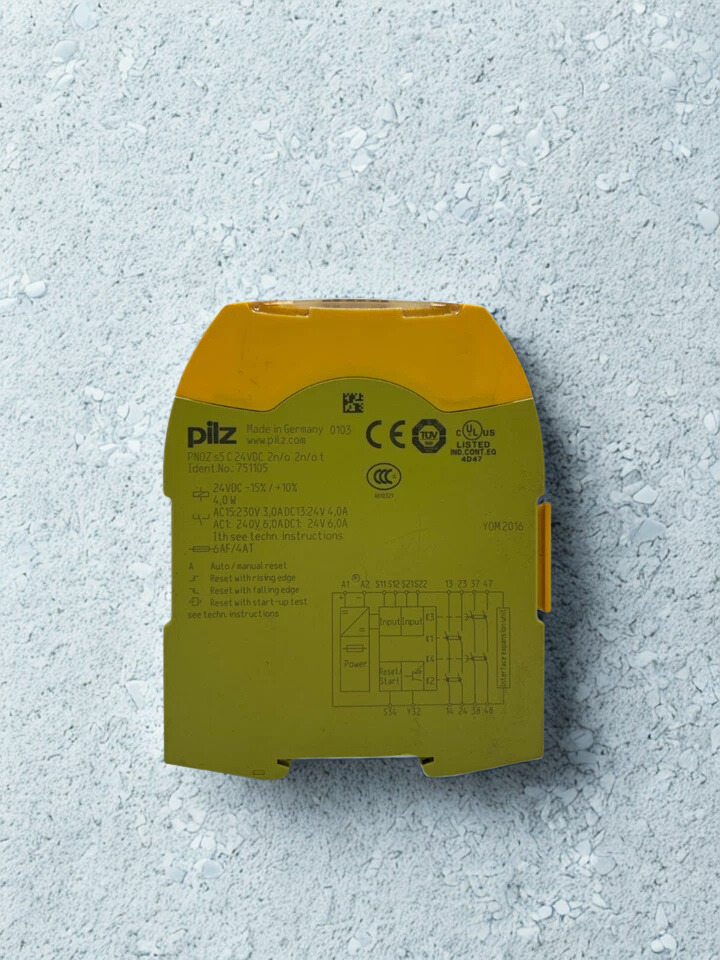

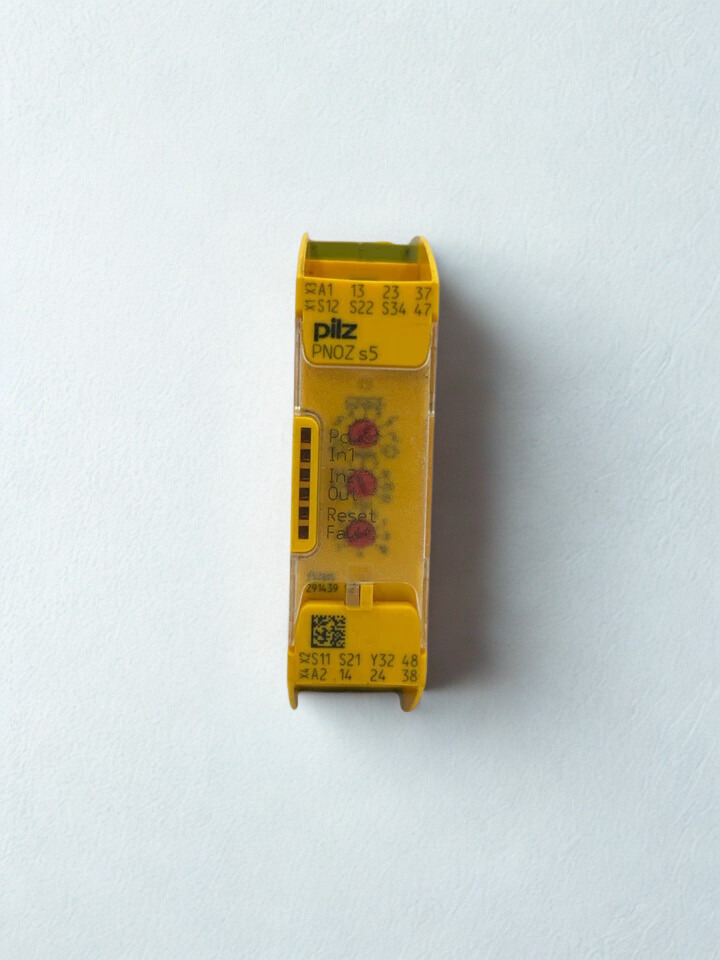

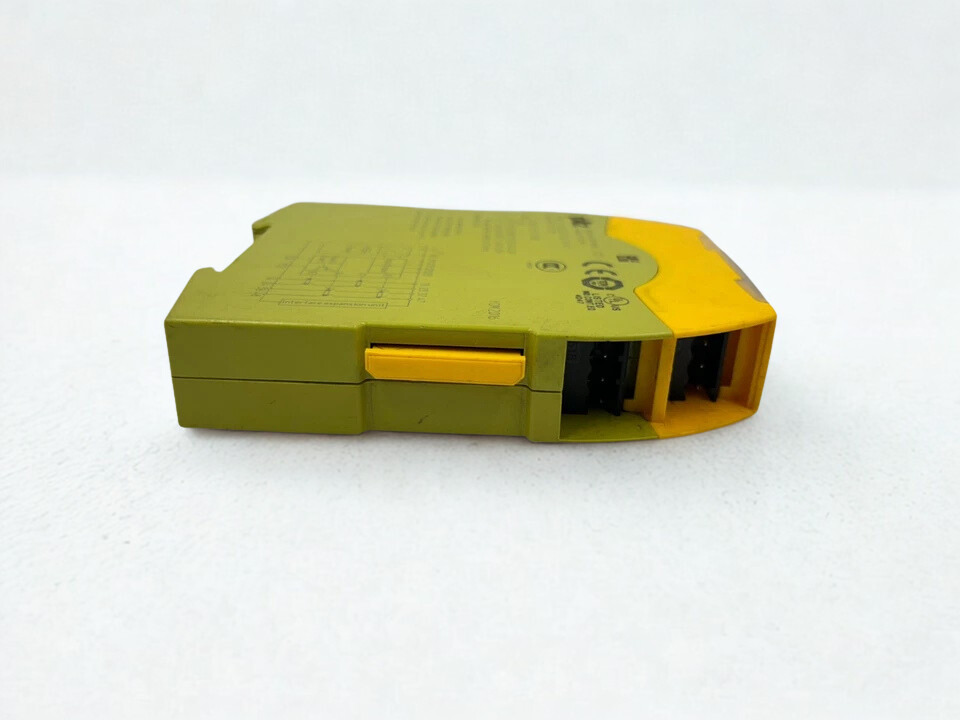

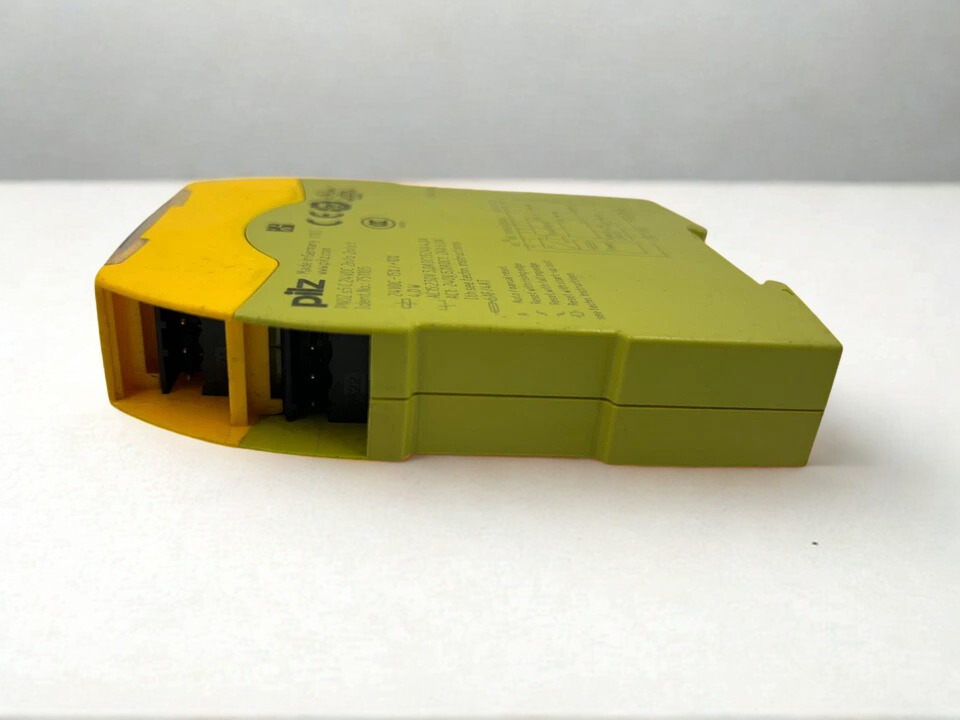

PILZ 751105 PNOZ s5 C 24VDC Safety Relay

751105 Pilz Safety Relay Details:

The PILZ 751105 PNOZ s5 C safety relay is a reliable way to keep an eye on emergency stops, safety gates, and light curtains in industrial automation. It has a 24VDC supply and two instantaneous N/O contacts and two delayed N/O contacts. This small PNOZ s5 C 24VDC unit has extra circuits and automatic self-testing to make sure it works even if something goes wrong. It’s perfect for making sure machinery is safe.

The PILZ 751105 (PNOZ s5 C) is made to work on its own and can take one or two channels of input. It also has the option to detect short circuits across contacts and reset manually or automatically. It has a narrow 22.5 mm width that fits tight panels and can send timed delay outputs (0.04–300 s) to control shutdowns in presses, conveyors, and robotic cells. The PNOZ s5 C 24VDC 2 N/O 2 N/O t meets international standards like EN 60947-5-1 and has plug-in screw terminals for easy installation.

Technical Specifications – Pilz 751105

Pilz 751105 Functions:

1) Provides dual-channel input options for E-stop, gates, or curtains, as well as cross-monitoring to find problems early.

2) Has two normally open contacts that let you choose a delay time between 0.04 and 300 seconds for safe machine coast-down.

3) Includes automatic relay testing for each cycle and built-in redundancy to make sure the safety function works all the time.

4) Has LED lights that show the status of the supply, inputs, switch, start circuit, and errors to speed up diagnostics.

5) Supports both manual and automatic start modes, and has positive-guided outputs that can handle high usage categories.

6) Has a design that can handle vibrations and fits on a small DIN rail, making it perfect for factory floors.

Industrial Applications:

-> Monitors emergency stops on packaging lines to stop work right away when there is a danger.

-> Secures safety gates on robotic assembly cells with delayed outputs to make sure that tool changes are safe.

-> Keeps light curtain zones safe on material handling conveyors, which keeps workers safe.

-> Allows stamping presses to shut down on a schedule for controlled slowing down and blade stops.
​
