Rosemount 400/11 Contacting Conductivity Sensor 9200275
Condition: New
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions

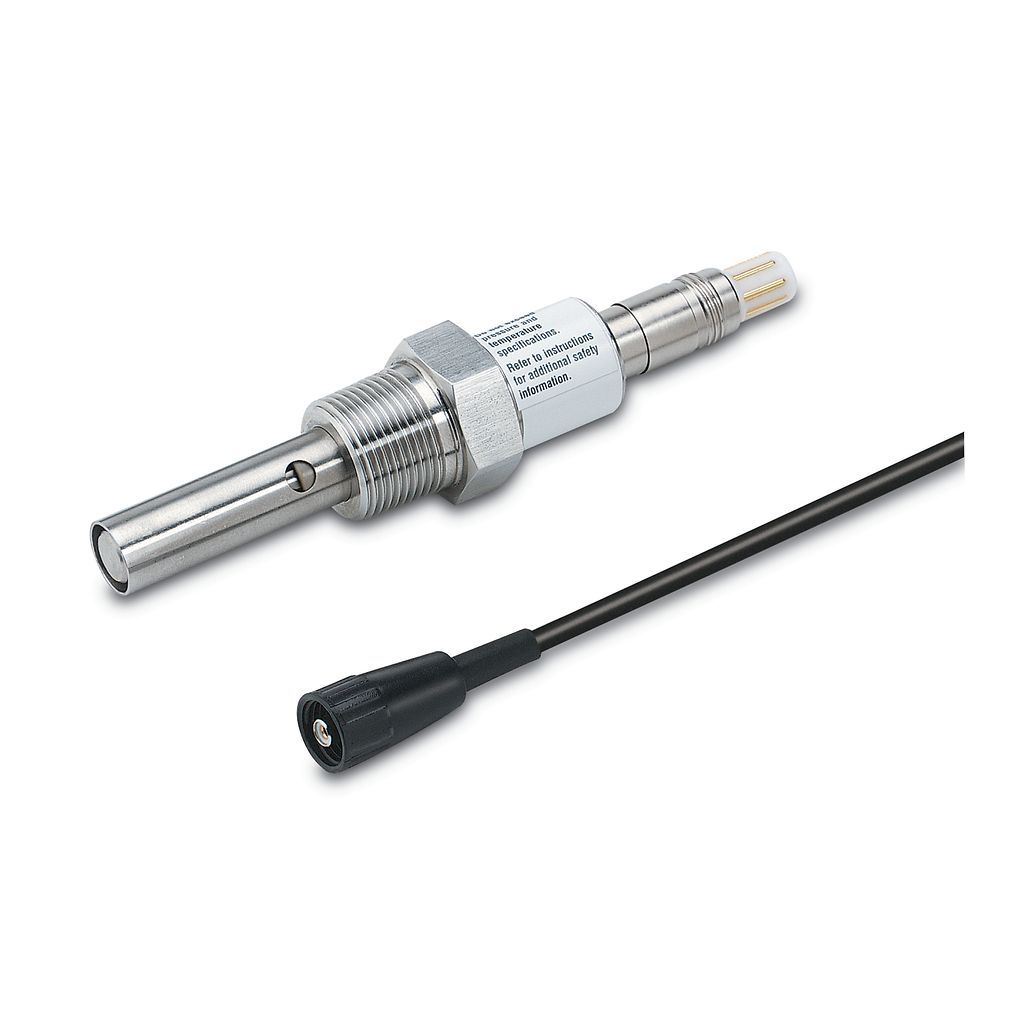

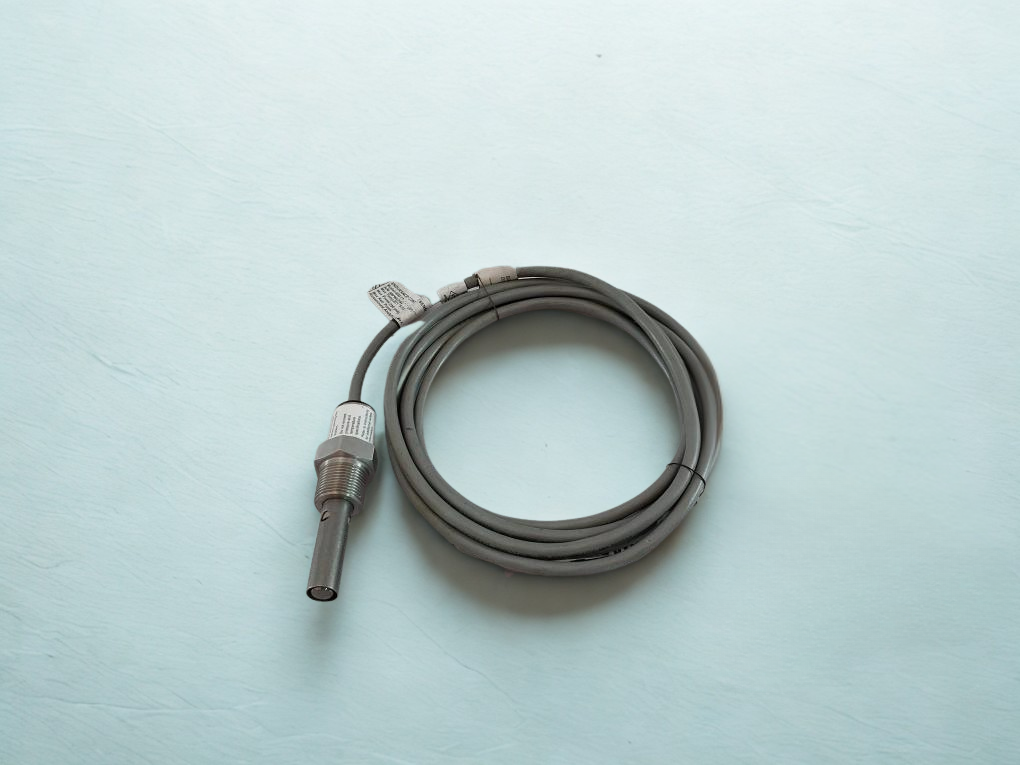

The Rosemount 400/11 is a contacting conductivity sensor that can accurately and reliably measure electrolytic conductivity in clean, non-corrosive liquids including high-purity water and pure cooling water. This sensor has a strong two-electrode construction with concentric titanium electrodes and a polyether ether ketone (PEEK) insulator.
It is built to last and stay stable in tough industrial settings. The 400/11 variation has a cell constant of 0.01/cm, which makes it perfect for applications with poor conductivity. A Pt1000 RTD is built in to automatically adjust for temperature changes, and the device is designed to be installed directly with a ¾ in. male national pipe thread (MNPT) fitting.
You may choose the sensor with either a normal or high-temperature option. Its Viton O-ring makes sure that process liquids can’t get through. The Rosemount 400/11 is easy to set up and works well in many process monitoring and control situations. It has factory-measured cell constants and doesn’t need to be calibrated at first.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor type | Two‑electrode contacting conductivity sensor |
| Cell constant | 0.01/cm (code “11”; actual cell constant ≈ 0.0098–0.01/cm) |
| Measurement range | Suitable for clean, non‑corrosive liquids up to 20,000 µS/cm |
| Temperature element | Pt1000 RTD (integral temperature compensation) |
| Process connection | 3/4 inch MNPT, direct screw‑in insertion |
| Wetted electrode material | Titanium (concentric electrodes) |
| Insulator material | PEEK (polyether ether ketone) |
| O‑ring / seal material | Viton |
| Body / hex nut material | 316 stainless steel (process wetted metal parts) |
| Standard temperature range | 32 to 221 °F (0 to 105 °C) |
| High‑temp option (‑60) | 32 to 392 °F (0 to 200 °C) with appropriate junction box |
| Max pressure | 250 psig (≈1825 kPa abs) across full standard temp range |
| Vacuum rating | Down to 1.6 in Hg (≈5.2 kPa), leakage < 0.005 SCFM |
| Compatible transmitters | Rosemount 56, 1056, 1066‑C, 5081‑C and similar Pt1000‑based units |
| Typical cable length | 10 ft (3.1 m) standard; extended lengths (e.g., 50 ft) optional |
| Typical marking (nameplate) | Max temp 221 °F / 105 °C; Max press 250 psig; K = 0.01; RTD Pt1000 |
Rosemount 400/11 Product details:
- Design: Two titanium electrodes that are concentric and separated by a PEEK insulator
- There are three options for cell constant: 0.01/cm, 0.1/cm, and 1.0/cm
- The standard version can handle temperatures up to 105°C (221°F), and the high-temperature version can handle temperatures up to 200°C (392°F)
- Materials: PEEK insulator, titanium electrodes, and a Viton O-ring seal
- You can connect the cable with either an integrated cable or a Variopol quick disconnect fitting
- Calibration: Factory-calibrated; hence, no initial calibration is needed
- Maximum Pressure: 1825 kPa (250 psig)
- Materials that get wet: titanium electrodes, PEEK insulation, and a Viton seal
- Use: Measuring electrolytic conductivity in everything from high-purity water to cooling water
Features:
- Strong construction for long-term dependability
- Good for liquids that are clean and won’t corrode
- Easy to set up with factory calibration right out of the box
- Optional high-temperature variant for tough conditions
- Has a built-in platinum RTD for temperature correction
Additional info:
- Temperature Compensation: Pt-1000 (standard)
- Standard or extended insertion length (5.5 inches above the bottom of the thread)
- The standard cable length is 10 feet (3.1 m), but you may get longer cables that are up to 50 feet (15 m) long.
This sensor is perfect for measuring the conductivity of process water, cooling water, and other liquids that need to be very accurate in industrial settings.
