SF Control LD 80S And 100S Leveldatic Multipoint Transmitter

The SF Control LD 80S and LD 100S Leveldatic Multipoint Transmitters are high-tech tools for measuring levels that are commonly used in nautical and industrial settings to accurately keep an eye on tank levels and draughts.

SF Control LD 80S Leveldatic Multipoint Transmitter

• The LD 80S is an electro-pneumatic multipoint transmitter that can accurately measure the levels of liquids and draught data in different tanks.
• It has 10 electro-pneumatic measurement channels in each cabinet, and you may add more cabinets to get more measuring points.
• It has a constant air flow speed controller for stability and quick test access, as well as built-in shut-off and non-return valves.

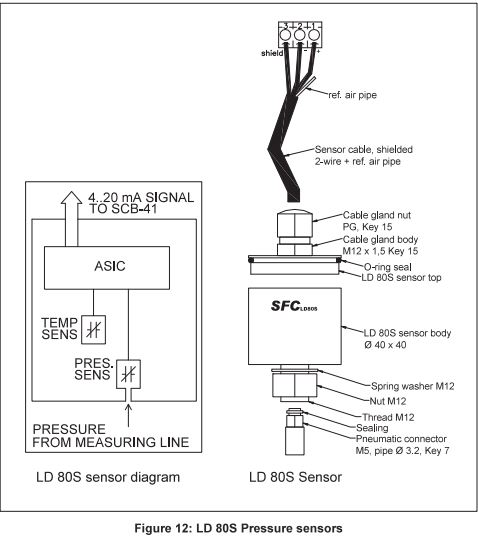

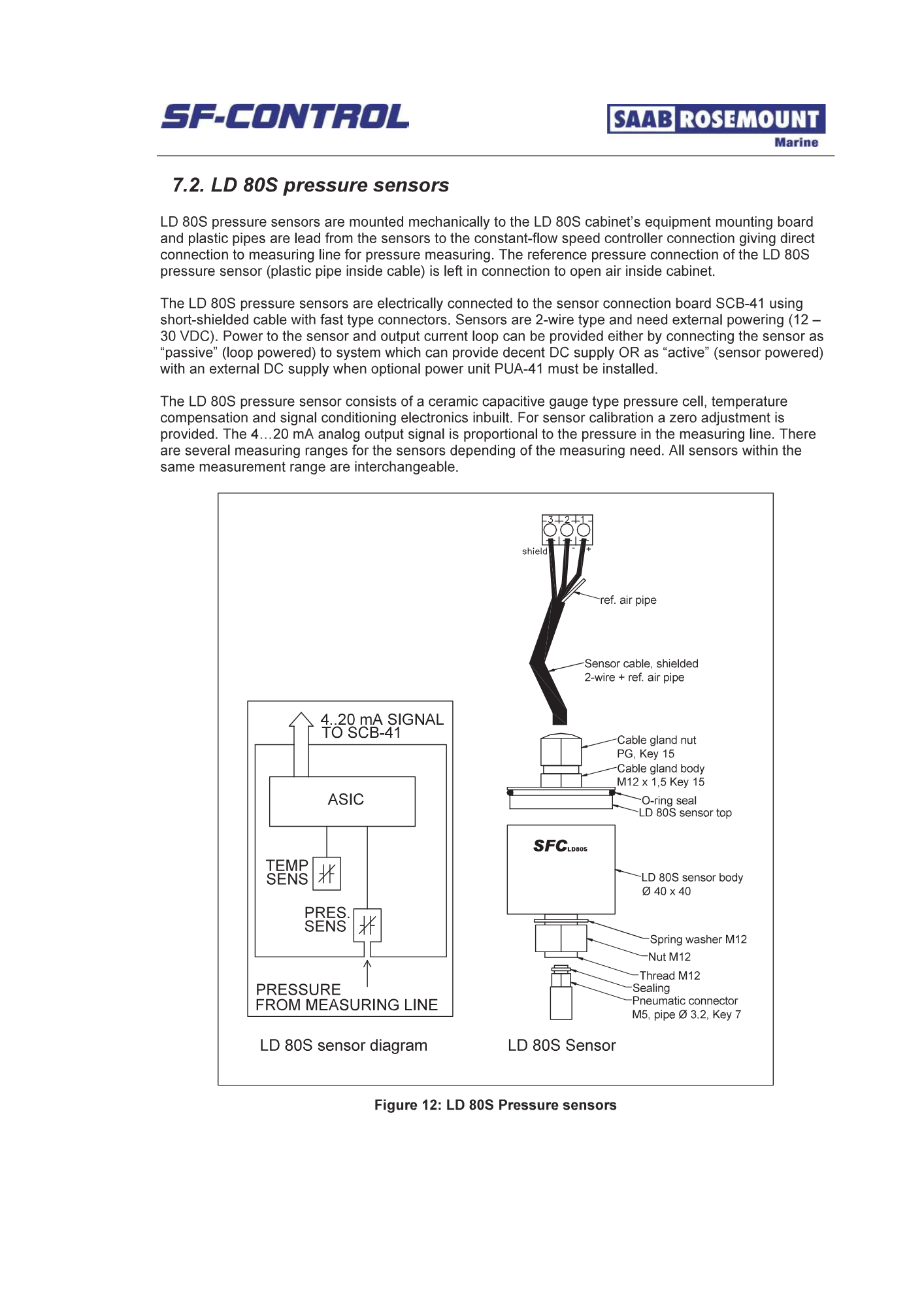

• It detects hydrostatic pressure by bubbling air or converting pneumatic pressure. It works in both safe and dangerous tank situations.
• The system sends a 4-20 mA signal from each measuring site to display or alarm modules.
• Major marine classification societies like DNV, BV, LR, ABS, and CCS have all given their approval.
• The temperature range for operating is +5 to +70°C, and for storage it is -25 to +70°C. The housing is made of epoxy powder-coated steel with IP56 sealing.
• The weight is about 25 kg for each cabinet. It needs instrument air that is dry and clean and has a pressure of 5 to 8 bar.
• Provides continuous, dependable, and precise online level data, water infiltration detection, and draft monitoring without sensors within the tank, making it safer and easier to maintain. ​

SF Control LD 100S Leveldatic Multipoint Transmitter

• The LD 100S does many of the same things as the LD 80S, but its design and capacity are different, as is the case with SF Control’s Leveldatic series.
• It runs on 230/115 Vac at 50 to 60 Hz and uses roughly 13W of power.
• The unit itself weighs roughly 1.040 kg (the cabinet is probably heavier).
• It usually comes with the MDU 100S Multipoint Display and Alarm Unit, which can handle up to 99 channels and has alarms and visual and aural indicators that can be changed.
• Used to keep an eye on levels in tanks or ballast areas all the time. It can connect to many measurement locations and has built-in valves and air flow controls to make sure the system is reliable.
• You can get them new, secondhand, or refurbished, and they are widely available in the marine and industrial markets.

Both transmitters use electro-pneumatic technology to make sure that level monitoring is safe, accurate, and ongoing. This makes them good for use on ships and in industrial tanks where exact measurement and safety are very important. The LD 80S has more extensive technical specifications and approvals, whereas the LD 100S is focused on modular multipoint level transmission with display integration.
