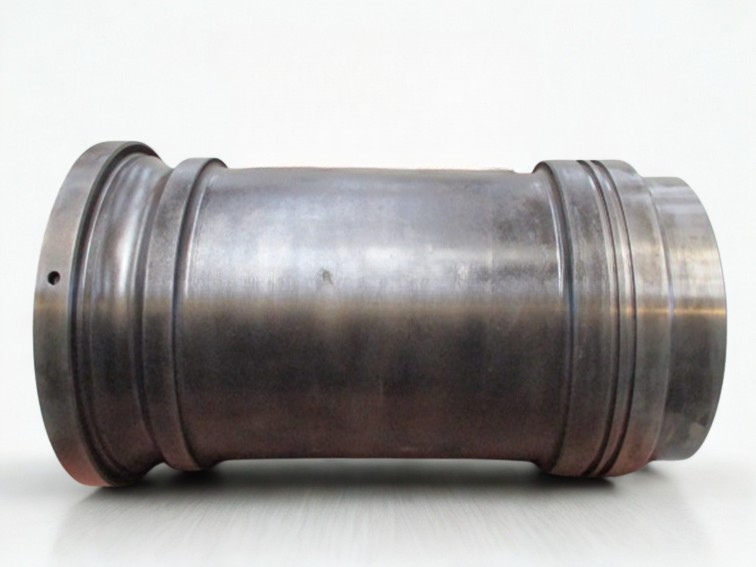

Wartsila W26 Cylinder Liner
-
Engine Series: Wärtsilä 26 (4-stroke, medium-speed diesel engines for marine propulsion and power generation)​
-
Bore Size: 260 mm nominal cylinder bore (precisely machined for optimal piston fit and compression)​
-
Stroke Length:Â 320 mm, enabling piston speeds of 9.6-10.7 m/s at 900-1000 rpm
-
Cylinder Configurations:Â Inline variants (6L26, 8L26, 9L26) and V-configurations (12V26, 16V26); power per cylinder 910 kW at 1000 rpm
-
Part Number Reference:Â Common OEM codes like 1050-001, 262601302ZT122, or 100325 equivalents for spares
-
Material & Construction: High-strength centrifugally cast grey iron with flanged top, tangential cooling bores, and integrated anti-polishing ring​
-
Wear Limits & Maintenance:Â Ovality max 0.25 mm; inspect at 12,000-24,000 hours; compatible with modular block for quick replacement
-
Fuel & Compliance: Optimized for HFO (730 cSt/50°C), MDO; SFOC 186-192 g/kWh; meets IMO NOx Tier II standards
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions
Overview
The Wartsila W26 liner is a high-quality flanged cylinder liner made for the Wartsila 26 series medium-speed diesel engines, which are known for powering ships and generating electricity. It has tangential water flow for better cooling and an anti-polishing ring that scrapes carbon off the top surface of the piston. This cuts cylinder wear by up to 50% and uses less lubricating oil. This strong part makes sure that combustion is at its best, emissions are low, and the service life is long in tough offshore and vessel operations.
Technical Specifications
| Specification | Details |
|---|---|
| Cylinder Bore | 260 mm ​ |
| Compatible Stroke | 320 mm ​ |
| Material Variant | e.g., 262601302ZT122 ​ |
| Cooling Type | Tangential water flow ​ |
| Anti-Polishing Ring | Integrated for carbon removal ​ |
| Max Cylinder Pressure | 180 bar ​ |
| Engine Speed Range | 900-1000 rpm |
| Piston Speed | 9.6-10.7 m/s |
Marine Applications:
- Marine propulsion for military ships, fishing boats, dredgers, and cargo ships.
- Extra power production on semi-submersibles and offshore platforms.
- Heavy-duty work in tough conditions using HFO or MDO fuels.
- High-reliability systems need to have low pollution and longer overhauls.
