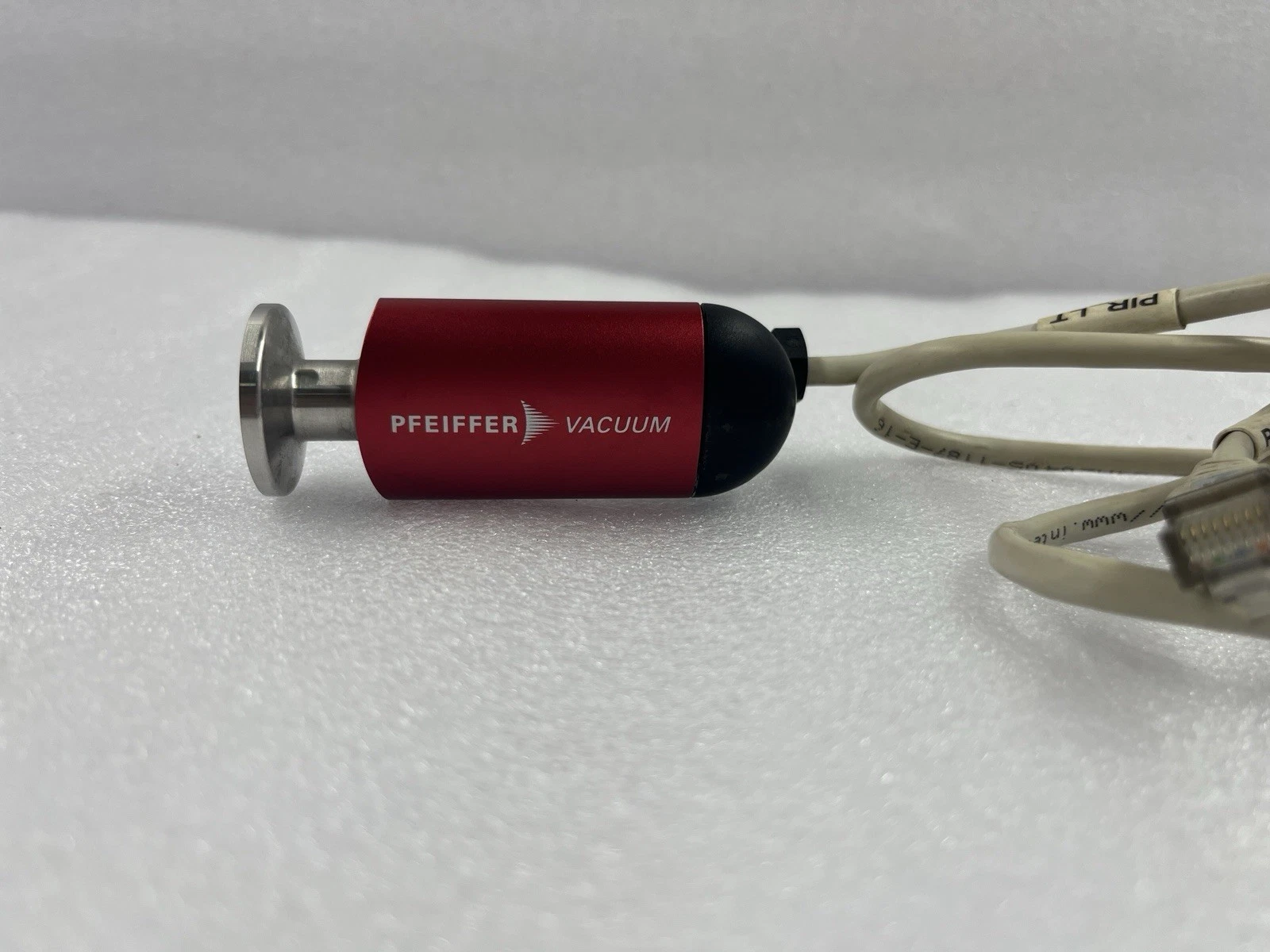

D-35614 Asslar Pfeiffer Vacuum TPR 280 PTR26950A Pirani Gauge
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions
The D-35614 Asslar Pfeiffer Vacuum TPR 280 PTR26950A is a small, active Pirani transmitter that is made in Germany and is used to monitor vacuum pressure very accurately. This gadget is excellent at monitoring gases over a wide range, which makes it a must-have for industrial vacuum systems. Its strong build makes sure it works well in tough conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Measurement Range | 5 × 10⁻⁴ – 1000 hPa |
| Accuracy (1 × 10⁻³ – 100 hPa) | ±15% |
| Repeatability (1 × 10⁻³ – 100 hPa) | ±2% |
| Resolution | 1% of reading |
| Response Time | 80 ms |
| Nominal Diameter / Flange | DN 16 ISO-KF, stainless steel |
| Filament | Tungsten |
| Feedthrough | Glass |
| Seal | Metal |
| Supply Voltage | 14 – 30 V DC |
| Power Consumption (max) | ≤ 1 W |
| Output Signal (Measurement) | 2.2 – 8.5 V |
| Output Signal (Min Load) | 10 kΩ |
| Max Pressure | 10,000 hPa |
| Bakeout Temperature (Flange) | 80 °C |
| Operating Temperature | 5 – 60 °C |
| Storage Temperature | -20 – 65 °C |
| Protection Category | IP40 |
| Weight | 80 g |
| Volume | 1.5 cm³ |
| Max Sensor Cable Length | 200 m |
Main Features
-> The design is small and tough, with a stainless steel flange and metal-sealed construction for long-lasting use.
-> The tungsten filament and glass feedthrough make it possible to make reliable measurements based on thermal conductivity.
-> The analog output signal (2.2–8.5 V) makes it easy to connect to controllers like the TPG series.
-> IP40 protection and low power use (≤1 W) make it good for labs and factories that need to run all the time.
Usage:
The TPR 280 from D-35614 Semiconductor fabrication operators use Asslar to maintain the proper vacuum during wafer processing and thin-film deposition. Coating companies utilize it to monitor chamber pressures in PVD and CVD systems, thereby ensuring consistent layer quality. It is used in research facilities and analytical instruments to find leaks and test the functioning of pumps in mass spectrometry setups.
