HSD Rotax AT/MT 1073-120 Electrospindle Motor 3 kW 18,000 RPM Fan-Cooled

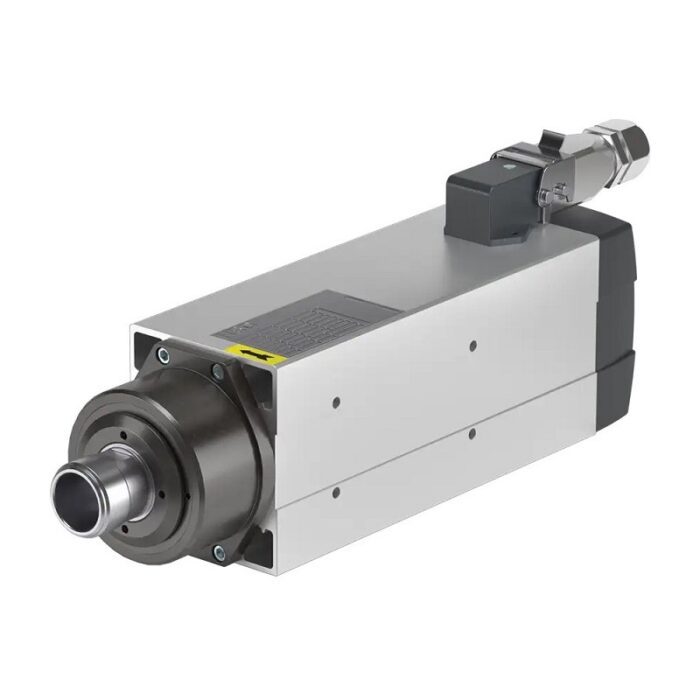

HSD Rotax MT 1073-120 Electrospindle Motor (3 kW | 18,000 RPM

The HSD Rotax MT 1073-120 is an industrial quality electrospindle for accuracy and high-speed machining. This 3 kW motor, designed by HSD S.p.A. in Italy, sets the industry standard for reliability in CNC routing, nesting, and boring applications. Thanks to its solid aluminum body and efficient fan cooling system, it is particularly suited for the processing of wood, plastics, and aluminum to a very good surface quality.

The model is MTC (Manual Tool Change) with an ER25 collet interface and is a versatile, cost-effective option for machine shops that require high power density in a compact footprint.

This electrospindle motor is a sturdy and high-performance option commonly employed in sophisticated industrial and CNC machinery automation.

Product Details:

Brand: HSD Rotax (HSD S.p.A., Italy)

Model: AT/MT 1073-120

Type: Electrospindle motor, asynchronous 3-phase, high-speed

Power Output:

Continuous (S1 duty) power: 3.0 kW (about 4 HP)

Intermittent (S6 duty 40%) power: 3.7 kW (about 5 HP)

Voltage: 220 V (some variants with 380 V)

Frequency: Up to 300 Hz (depending on inverter and spindle)

Technical Details:

Torque:

Continuous torque: Around 1.6 Nm

Peak torque: Around 1.9 Nm

Tool Interface: Commonly equipped with HSK C32 or ER 25 collet holders depending on version

Protection: Usually IP50 rating

Insulation class: Class F

Weight: Generally around 3 kilograms

Applications: Designed for CNC machining centers for milling, routing, engraving, and high-speed cutting across wood, plastics, metal, and composites

Compliance: IEC 60034-1 specifications for electric motors

Additional: Suitable for manual tool change (MTC) versions, provides fine spindle control with contemporary CNC inverters.

Tips from our Engineer Expert:

Expert Tip 1: Frequency Inverter Calibration:

Never connect this motor directly to the mains power. It must be operated via a VFD (Variable Frequency Drive). Ensure your VFD’s V/f curve is accurately programmed to match the HSD nameplate settings—failing to do so can lead to immediate stator burnout.

Expert Tip 2: Thermal Management in Slow Passes:

If you are running the spindle at lower RPMs for specific materials, be aware that shaft-driven fans lose efficiency at lower speeds. For operations consistently under 10,000 RPM, we recommend verifying the temperature of the housing frequently or upgrading to the E-Fan (Electric Fan) variant for constant cooling.

Expert Tip 3: Collet & Nut Maintenance:

Replace your ER25 collets every 500–700 hours of operation. Even if they look fine, microscopic wear causes runout, which leads to tool chatter and premature bearing failure. Always clean the internal taper with a felt cone before inserting a new tool.
