Danfoss 060N1217 Pressure Transmitter MBS5100 – New

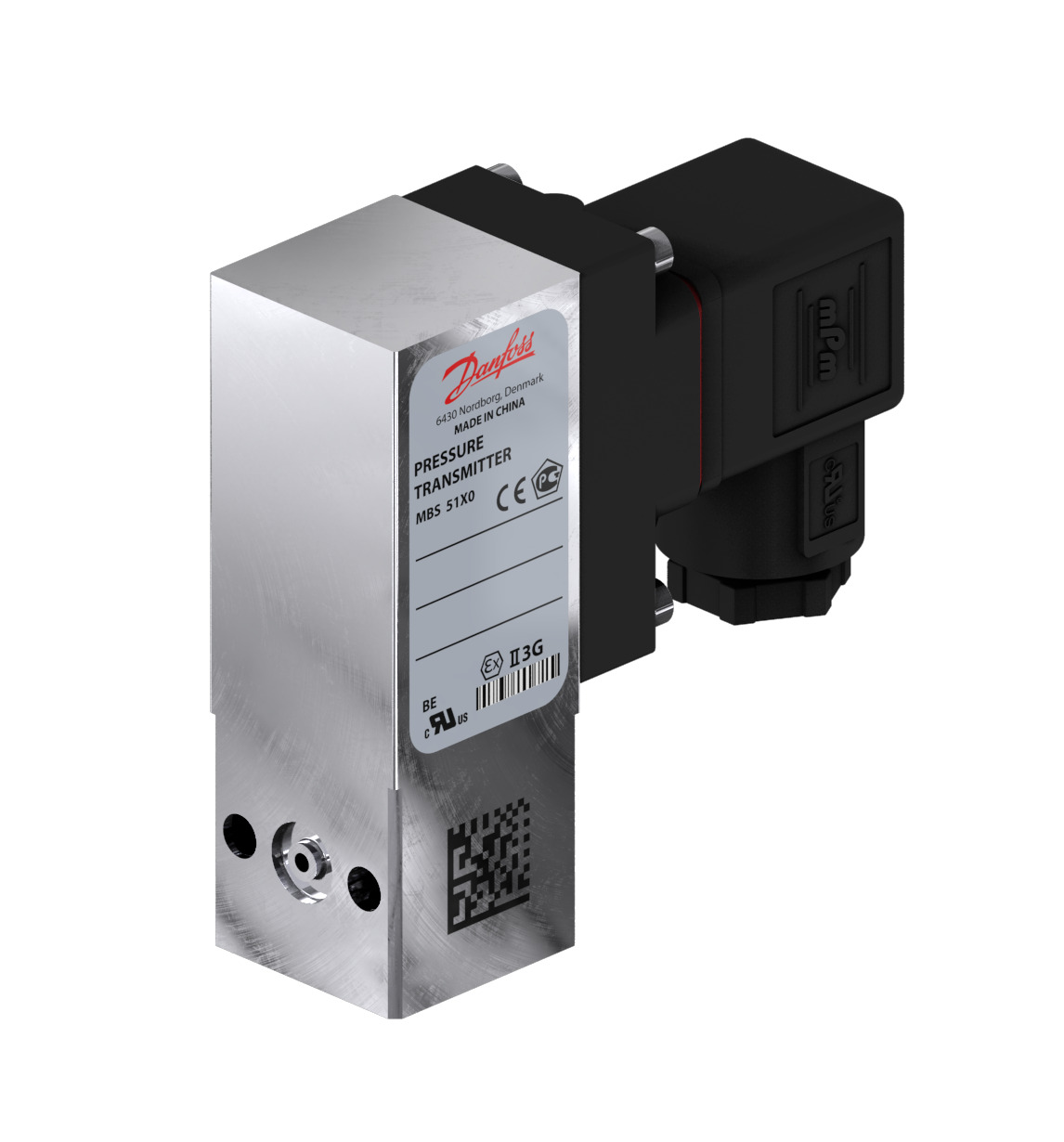

Danfoss MBS 5100 (060N1217)

The Danfoss MBS 5100 (060N1217) is a block-style pressure transmitter that is developed for use in marine and heavy industrial settings. It can be very accurate. This transmitter is built to work in the worst conditions. It has great vibration stability and a strong construction that makes sure it will work for a long time, even when regular sensors often fail. Its small, block-style enclosure makes it a powerful tool for monitoring engines and hydraulics while taking up little room. It may be mounted directly on Danfoss block valves.

Product Specifications:

Features:

Output: linear 4 to 20 mA for easy integration with PLCs and DCSs. ​

Built to last in harsh maritime conditions, resistant to stress, vibration, and rust. ​

Fully digitally adjusted for maximum accuracy and repeatability. ​

Reference for pressure: gauge (relative). ​

For stable factory calibration, there is no way to change the zero point or span. ​

Quick response time and strong EMI/EMC protection. ​

Multi-pack option for buying a lot of things for business. ​

Common Uses:

1) Control, automation, and safety systems for marine engines. ​

2) Water and hydraulic systems on ships and in factories. ​

3) Any place where you need to keep an eye on pressure that is both accurate and long-lasting.

Engineer’s Guide:

When installing the MBS 5100 series, the block design is its greatest asset. Unlike standard cylindrical transmitters, the 060N1217 is built to be mounted directly onto a test valve or manifold. If you are experiencing signal “drift” in engine-room environments, check the grounding of your DIN connector. This specific model is highly favored by our team for its low thermal shift—meaning the 4-20mA signal stays rock-solid even as the engine room temperature climbs. Always ensure the G 1/4 female connection is seated with a fresh copper washer to maintain the IP65 rating against fluid ingress.
