Mitsubishi S-N11 Magnetic Contactor – Reliable 20A Motor Control Solution

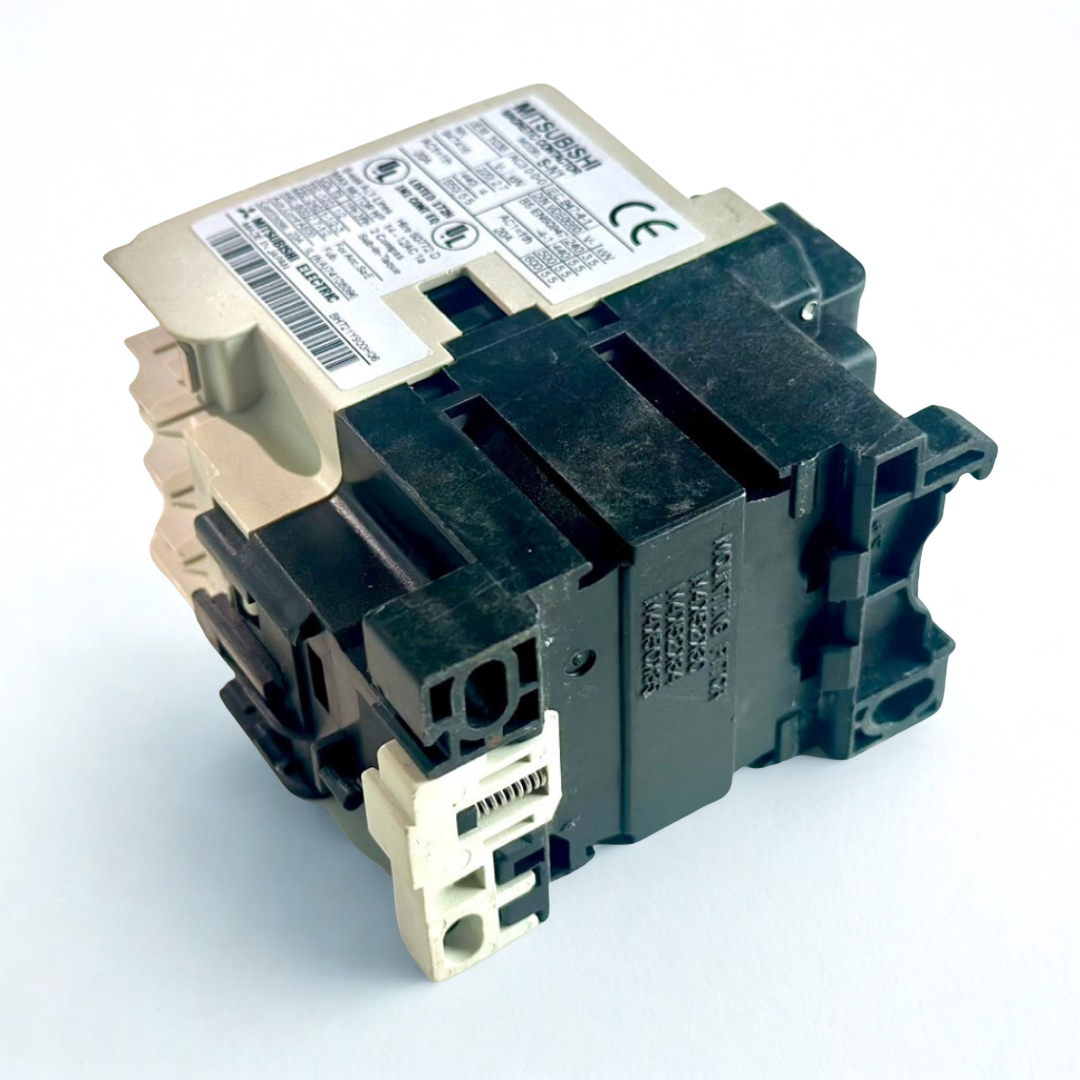

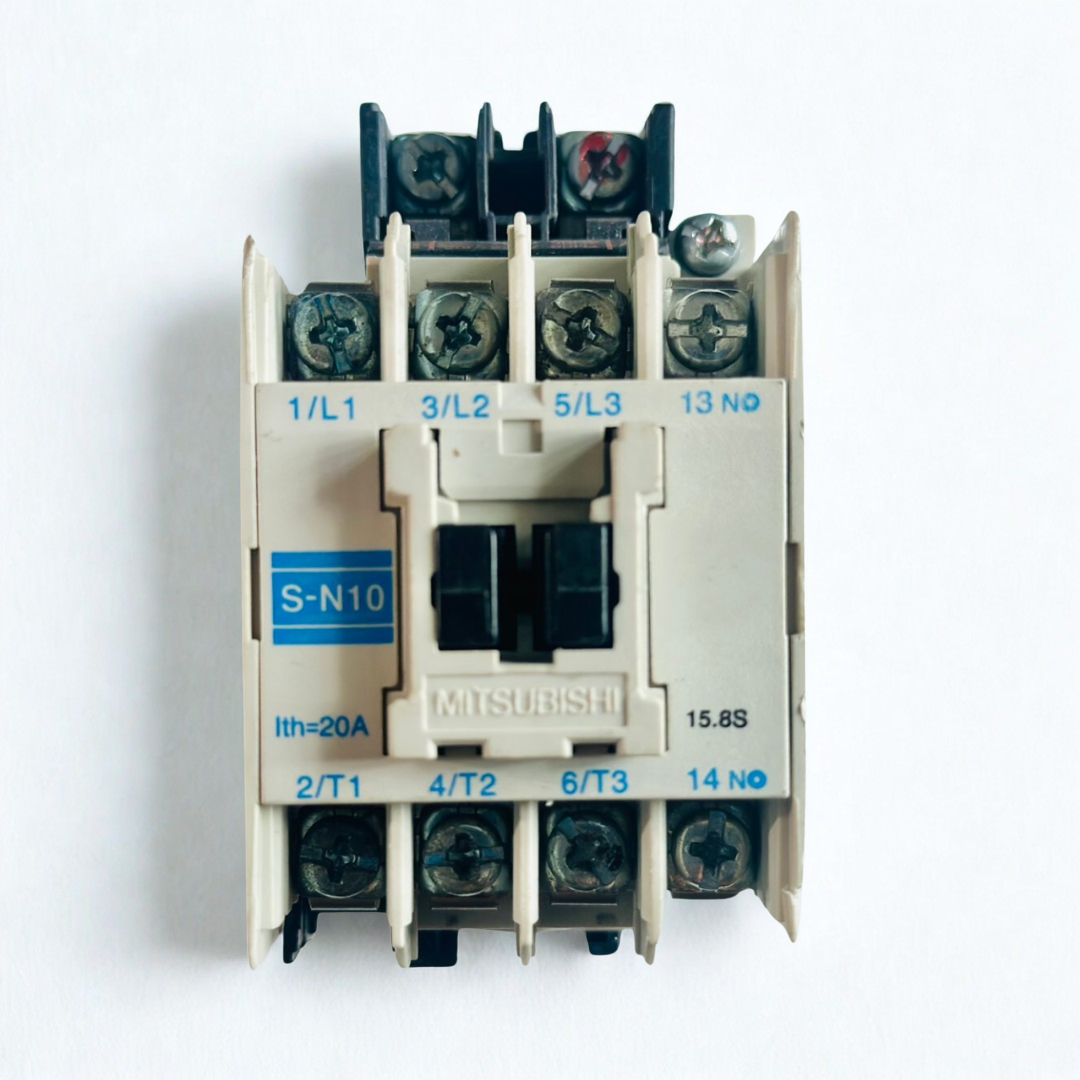

Mitsubishi S-N11 Magnetic Contactor

The Mitsubishi S-N11 Magnetic Contactor is a key part of the famous S-N Series. It was designed to switch between three-phase motors without any problems and keep them safe. The S-N11 is known for its famous Japanese reliability. It can endure tough industrial settings while still being small enough to fit in a cabinet.

The S-N11 has the electrical longevity and arc-extinguishing power you need to keep downtime to a minimum and safety at work to a maximum, whether you’re running a factory assembly line or keeping important machinery on a ship.

Technical Details:

Summary and Features:

-> Type: Electromagnetic Contactor

-> S-N11

-> Mitsubishi Electric is the maker.

-> Rated Operational Current: Usually 20A in the AC-1 category; good for switching motors and other inductive loads

-> Coil Voltage Options: You can get it with different coil voltages, like 110V or 120V AC at 50/60 Hz, which are usual.

-> AC Motor Ratings: At 230V, it can handle up to 4.5 HP, and at 460V, it can manage up to 7.5 HP.

-> Contact Configuration: Usually has one normally open auxiliary contact, however you can add extra contacts if you want to.

-> Insulation Voltage: Rated for high insulation to make sure it works safely at voltages up to about 600V or more.

-> Durability: Built to last in harsh industrial settings with strong mechanical and electrical resistance

-> Low coil noise because of DC excitation coil alternatives and internal suppressors

-> Installation: The compact form and standard coil mounting and terminal spacing make it easy to add and replace.

-> Safety and Certifications: UL-listed and meets all international safety standards

Functional Description:

The S-N11 contactor has a coil winding that is powered by a control voltage. This creates a magnetic field that pulls the movable contactor armature, shutting the power contacts and letting current flow in the load circuit. When the power is turned off, a spring mechanism moves the armature back to its resting position, which opens the contacts and disconnects the load. This system lets you switch electrical motors, heaters, and other electrical devices on and off from a distance and automatically.

Uses:

• Starting motors for squirrel-cage induction motors
• Circuits for controlling lights
• Systems for heating and cooling
• Control panels for industrial machines
• Production lines that run themselves

Advantages:

• Strong design that works well in tough industrial settings
• Reliable switching with a great ability to handle short circuits
• Less power used by coils makes control more efficient
• Modular alternatives like extra contacts and surge suppressors make things work better
• Works with a lot of different control and system voltages

The Mitsubishi S-N11 magnetic contactor exemplifies Mitsubishi’s commitment to quality, durability, and efficient motor control solutions essential for modern automation and electrical distribution systems.

Engineer Experts Guide and Useful Tips

As a marine engineer, I’ve seen the S-N11 work in engine rooms where heat, vibration, and humidity destroy other parts. Its strong structure is great for places with a lot of vibration.

Installation and longevity tips:

1. Look at the voltage of your coil: Check the coil voltage on the side of the item before you install it. If you connect a 220V source to a 110V coil, it will burn out right away.
2. The Audible Check: A healthy S-N11 should make a sharp, clear clack sound. A humming or buzzing sound (chattering) usually means that dust or carbon has built up on the pole faces or that the control voltage has dropped.
3. Terminal Torque: Terminal screws can come loose in places with a lot of vibration, like aboard ships. Always use a calibrated torque driver according to the manufacturers instructions, and put a little bit of torque seal paint on it to see whether it gets loose over time.
4. Pairing with Overloads: To safeguard the motor completely, use this with the Mitsubishi TH-N Series Thermal Overload Relay. This keeps your motor safe from losing power and getting too much current.
