Festo HEE-D-MINI-24 Electric On/Off Pneumatic Valve

Festo HEE-D-MINI-24: Precision On/Off Pneumatic Control

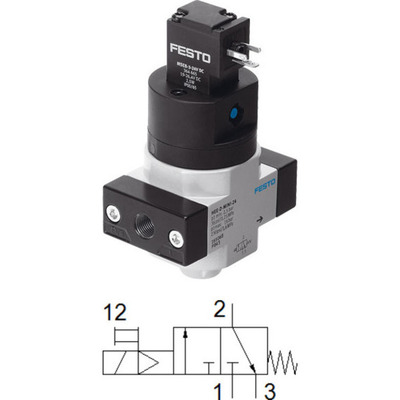

The Festo HEE-D-MINI-24 is a 3/2-way solenoid valve that is used to pressurise and release air from pneumatic systems. Its main job is to make sure that downstream parts are either fully powered or securely vented by giving a clear start/stop for the air supply. Because of its small MINI footprint, it is the best solution for tight control cabinets or shipboard apparatus locations where room is limited.

Main Features:

Type of valve: piston gate valve

Type of actuation: electric solenoid actuation (24 V DC)

Sealing: The soft sealing principle makes it easy to close tightly.

Exhaust Function: No choice for flow control

Manual Override: Yes

Grid Size: 40 mm for easy integration and modularity

Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4] and inert gases

Pressure range for operation: 2.5 to 16 bar

Coil power: 2.5 W at 24 V DC, with voltage changes of up to ±10% allowed.

Size of the port: 1/4 inch (G 1/4)

Flow Capacity: The flow rate is about 1500 L/min.

Durability: Built to last in industrial settings and perform reliably

Applications:

Controlling the pressure and exhaust of a pneumatic system

Controlling industrial processes and automating them

Getting ready for and using compressed air

Works well with inert gasses in a variety of industrial settings

Benefits:

It’s small and doesn’t take up much space, so it fits in confined locations.

Low power use and efficient electric actuation

A reliable seal keeps things safe and stops leaks.

Modular grid size makes it easy to integrate with other systems.

If the control system fails, the manual override lets you operate it by hand.

The Festo HEE-1/4-D-MINI-24 on/off valve is a reliable choice for industrial pneumatic systems. The electric actuation and piston gate design make it perfect for accurate control of pressurized air and inert gases. This makes automation operations in manufacturing and other industrial fields run smoothly.

Our Engineer’s Guide & Pro Tips:

The Expert’s Opinion: Moisture is your silent enemy when you install the HEE-D-MINI-24 in a marine setting. This valve is strong, but I always suggest that your upstream filter be rated for at least 40 microns. If you notice a small delay in the off cycle, look for salt crystals or oil sludge in the exhaust port. A brief blast of contact cleaner generally fixes the problem.

Tip: If you’re utilizing this in a circuit where safety is really important, use the manual override during commissioning to verify the downstream logic without having to cycle the PLC. But before you leave the site, make sure the override is always changed back to auto.
