DECKMA OMD-2005 Measuring Cell | Bilge Alarm Sensor with Calibration
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions
Product Details

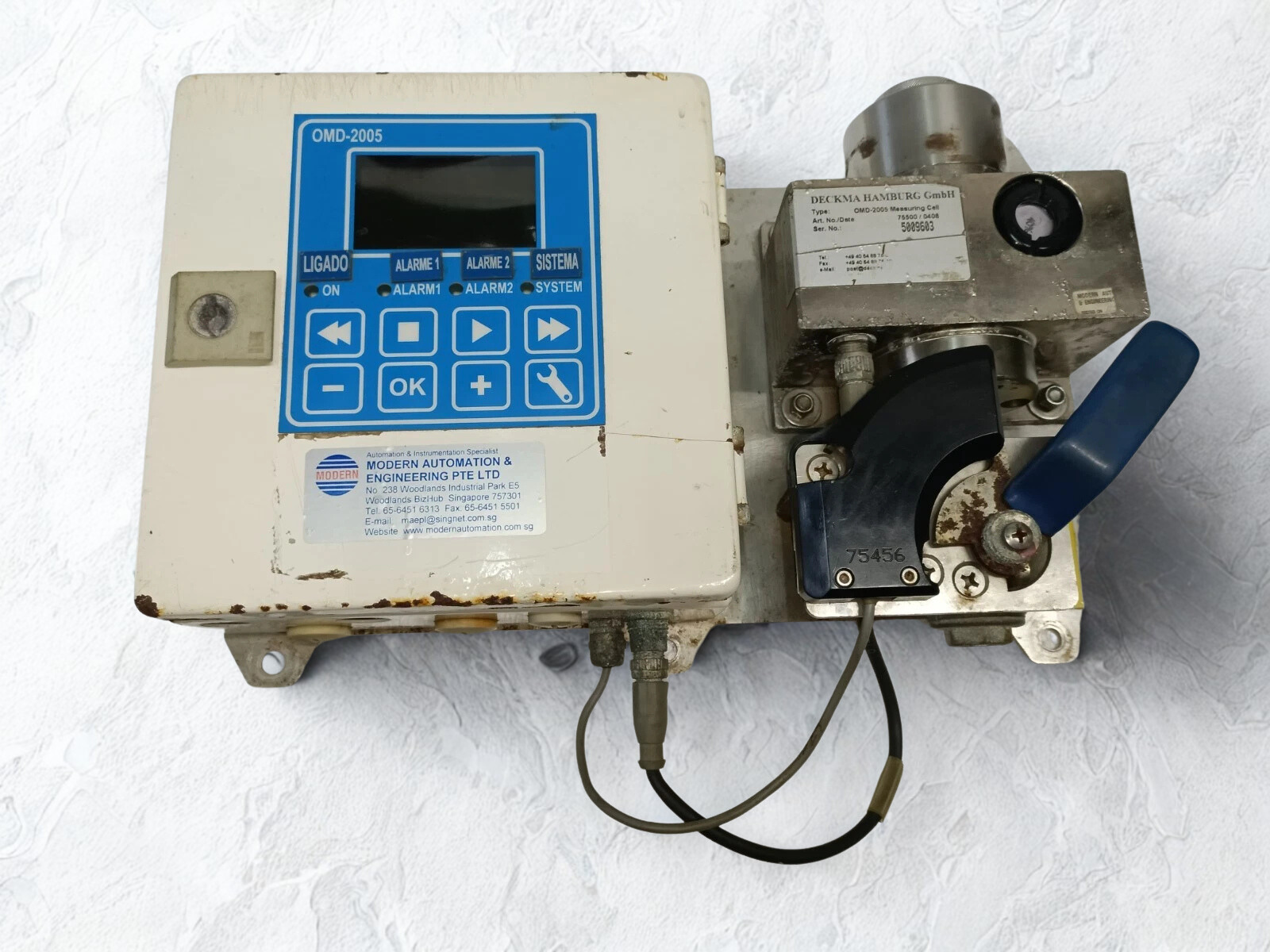

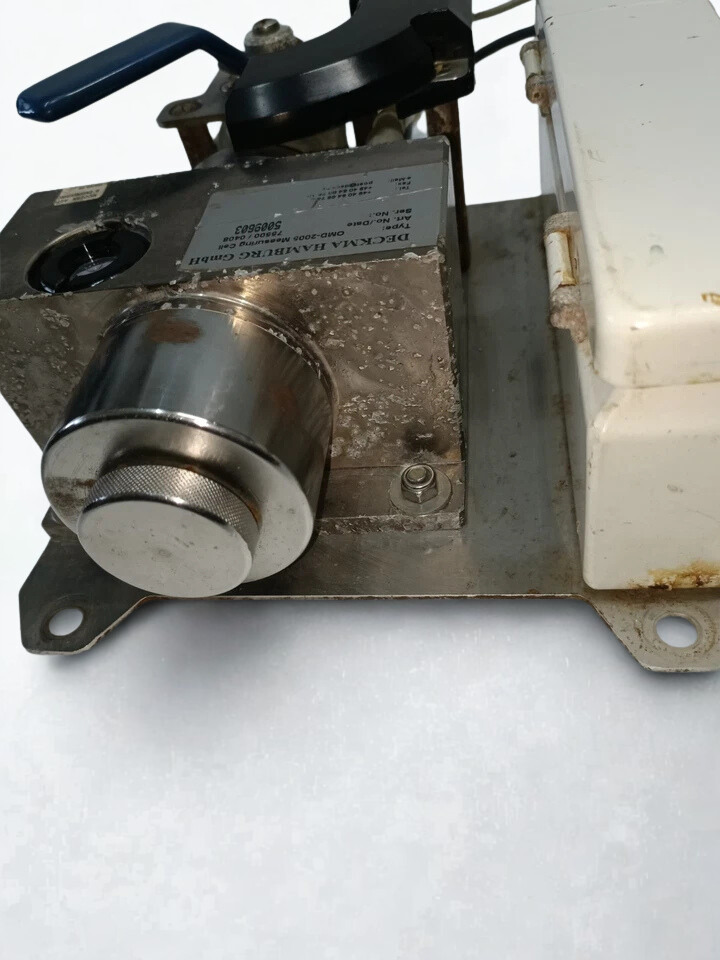

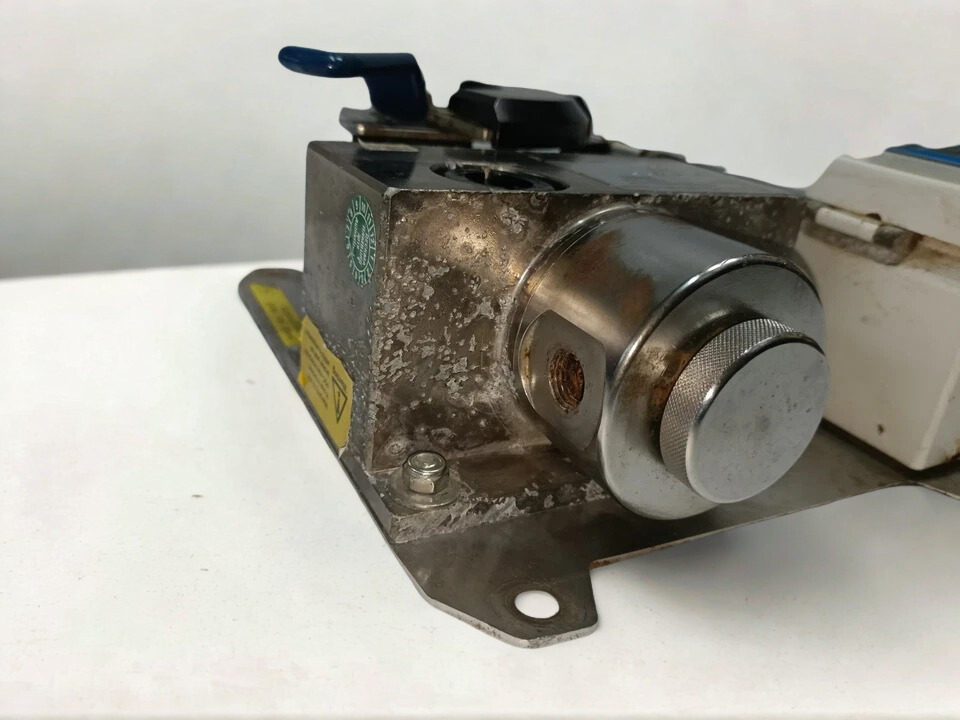

The DECKMA HAMBURG GmbH OMD-2005 Measuring Cell is an optical measuring unit made just for the OMD-2005 15 ppm bilge alarm oil content monitor. It comes with factory calibration and a certificate that shows it meets maritime pollution control standards.
The OMD-2005 Measuring Cell is a tough sensor module that has been factory-calibrated and uses a scattered light optical principle to find oil-in-water concentration. It is made to be a replaceable cell that has its own calibration data recorded on it. This way, the alarm system may be easily brought back into full compliance by changing simply the cell instead of the whole monitor. The cell is made of anodised aluminium and has stainless steel inlet and outlet blocks. It is designed to work well in tough marine situations and for continuous bilge water monitoring. When used with the OMD-2005 computer unit, it is the main part of a 15 ppm bilge alarm that meets IMO MEPC.107(49) standards.
Deckma omd 2005 Manual
Technical Specifications
| Parameter | Specification / Description |
|---|---|
| Measuring Range | 0–30 ppm, trend display up to approx. 50 ppm ​ |
| Measurement Principle | Optical scattered light / absorption method |
| Accuracy | In accordance with IMO MEPC.107(49) for 15 ppm bilge alarms |
| Application Medium | Bilge water / oily water separator discharge |
| Calibration | Factory calibrated; calibration stored in measuring cell, supplied with certificate |
| Housing Material | Anodized aluminium body |
| Wetted Components | Stainless-steel inlet/outlet blocks, glass tube sample chamber |
| Typical Connections | Inlet/Outlet: R1/4″ female (sample piping)Â |
| Operating Use | Continuous in-line monitoring with automatic / manual cleaning provisions |
| Typical Weight | Approx. 2.8 kg (measuring cell assembly) |
Applications:
- Bilge alarm systems are utilised to monitor oil content levels of 15 ppm on offshore vessels and ships.
- Oil discharge monitoring at the outlet of oily water separators (OWS) with a 15 ppm concentration.
- Replacement measuring cell for existing DECKMA OMD-2005 bilge alarm installations.
- Monitoring of the oil-in-water content in the bilge water treatment channels of the engine room.
- Spare parts for marine pollution prevention systems that adhere to MARPOL and IMO MEPC.107(49).
