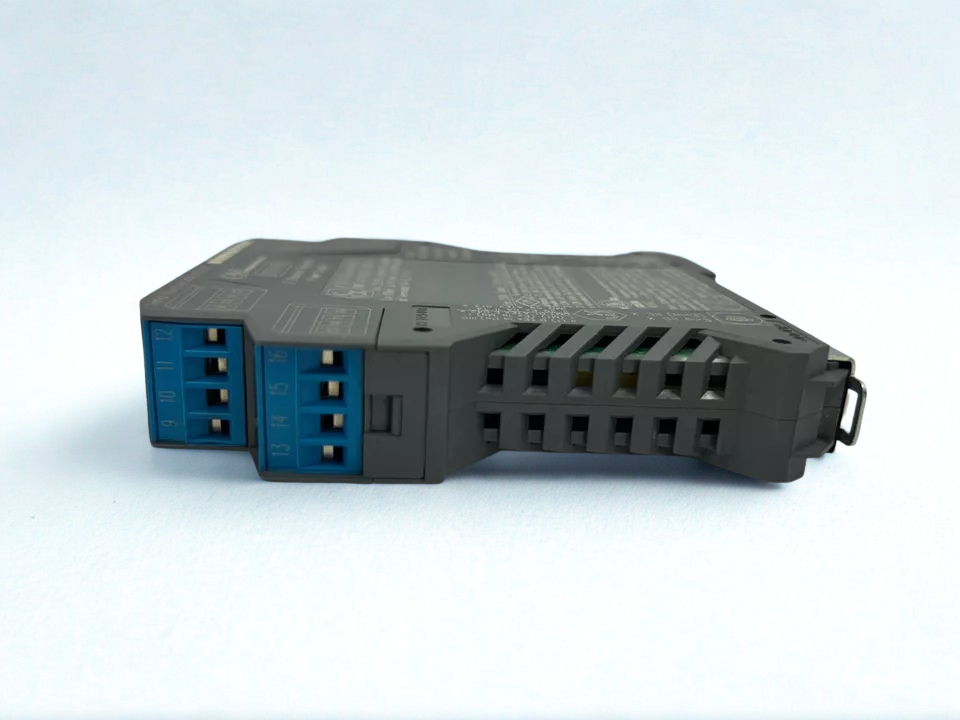

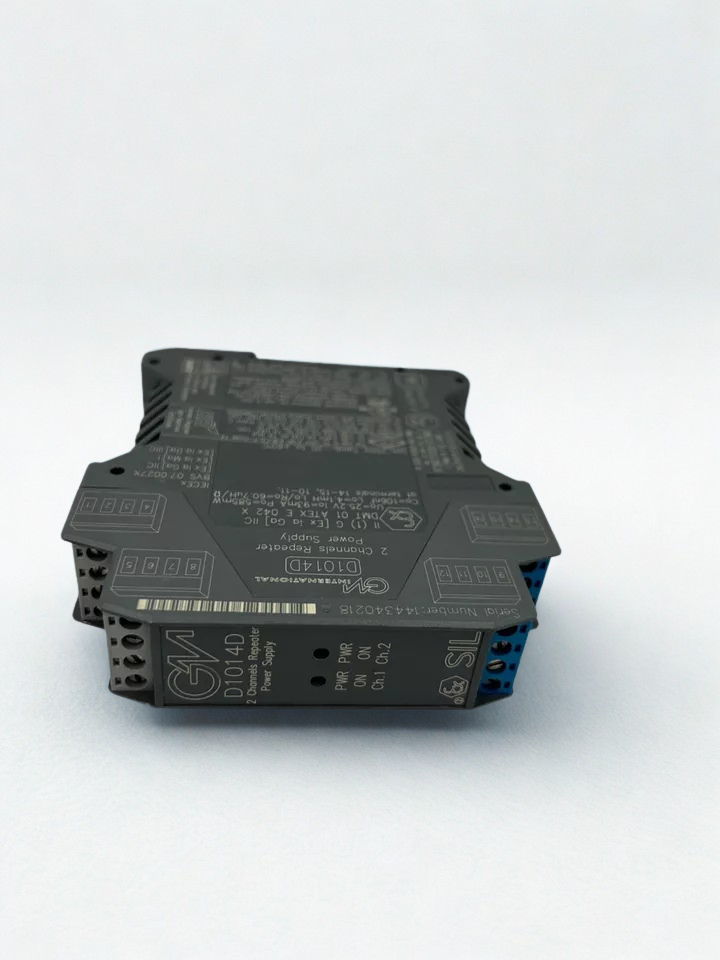

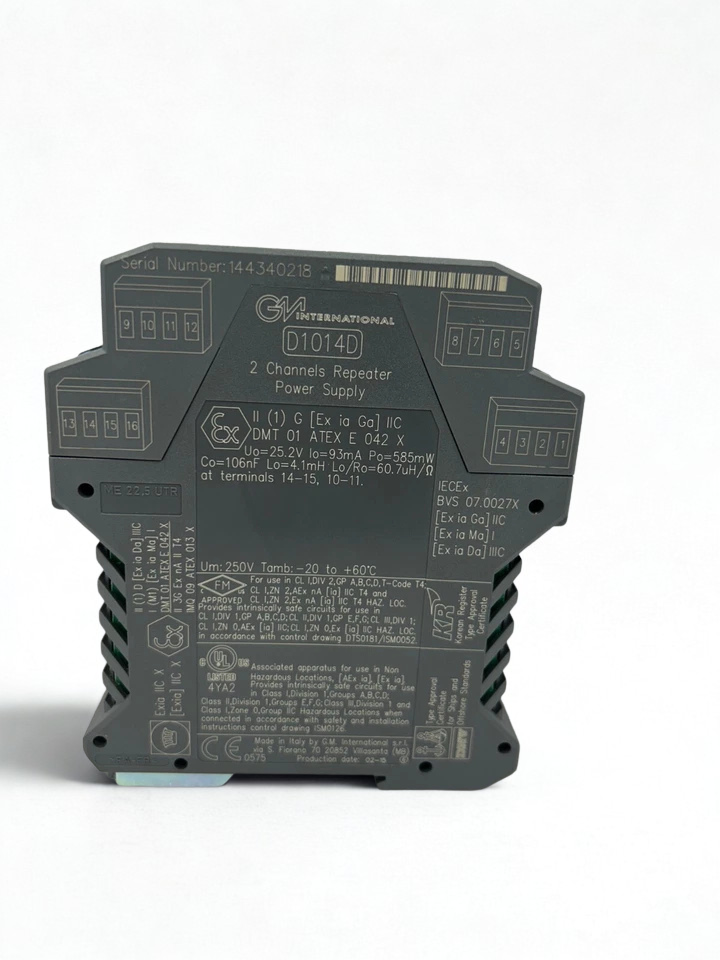

GM International D1014D 2 Channel SIL2 Repeater Power Supply

The GM International D1014D is a SIL 2 approved, two-channel repeater power supply made for analog input interfaces that need to be very reliable. It gives two 2-wire 4-20 mA conventional transmitters, which are often employed in dangerous regions, independent, fully floating DC power. The machine works with a supply voltage of 10 to 30 VDC, has a maximum power dissipation of 3.4 watts, and can communicate using HART protocols.

GM International D1014d Product Details:

-> IEC 61508:2010 Ed. 2 gives it SIL 2 safety level certification, which means it can be used in safety-related systems in high-risk businesses.

-> Two separate channels that can send or receive a current or voltage signal (source or sink).

-> Three-port isolation makes it safe from short circuits and lets it work without interference.

-> It uses 110 mA @ 24 V and puts out 20 mA per channel.

-> Gives a constant transmitter line voltage of at least 15 V at 20 mA with very little ripple in the HART frequency region (0.5 to 2.5 kHz).

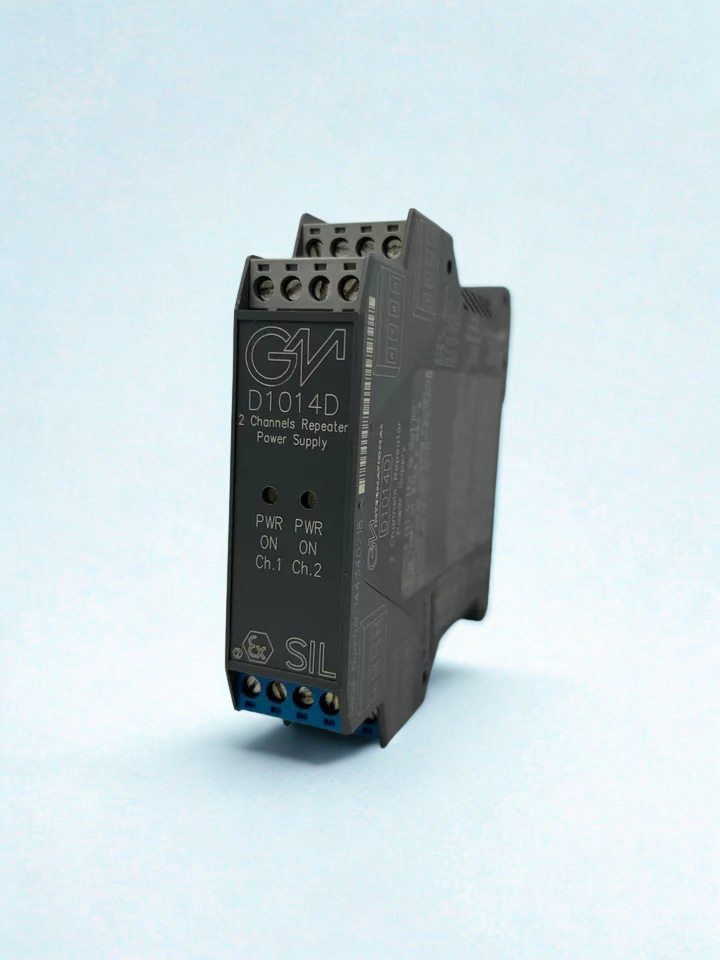

-> LED power indicator and a small DIN-rail mounting style.

-> The D1014D repeater takes the signals from transmitters, repeats them, and changes them. This makes it safe for process instrumentation and control systems that need SIL 2 certification and compliance with hazardous areas.
