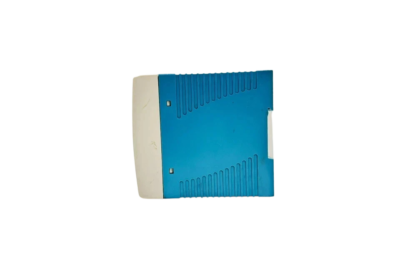

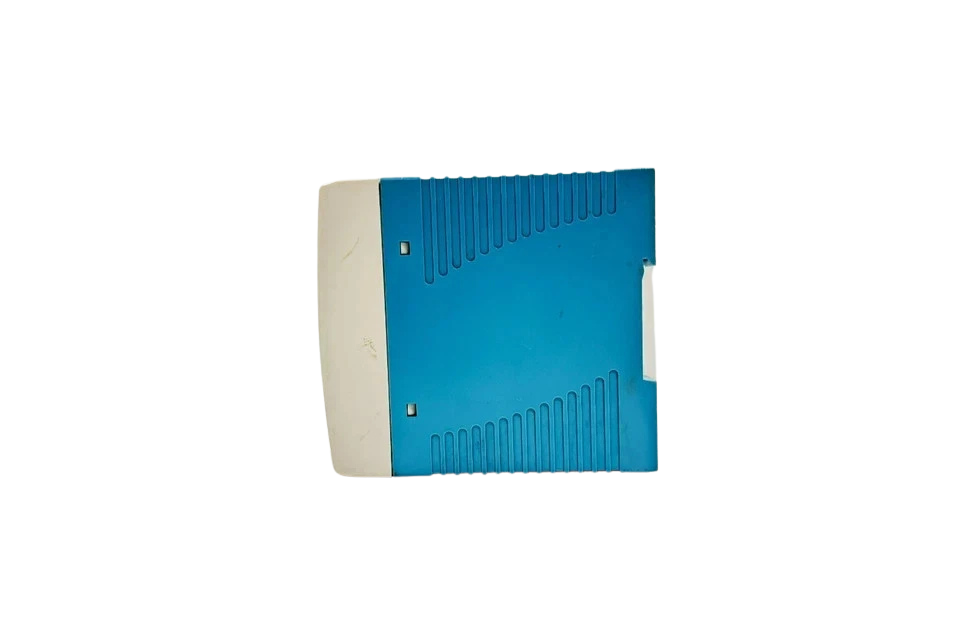

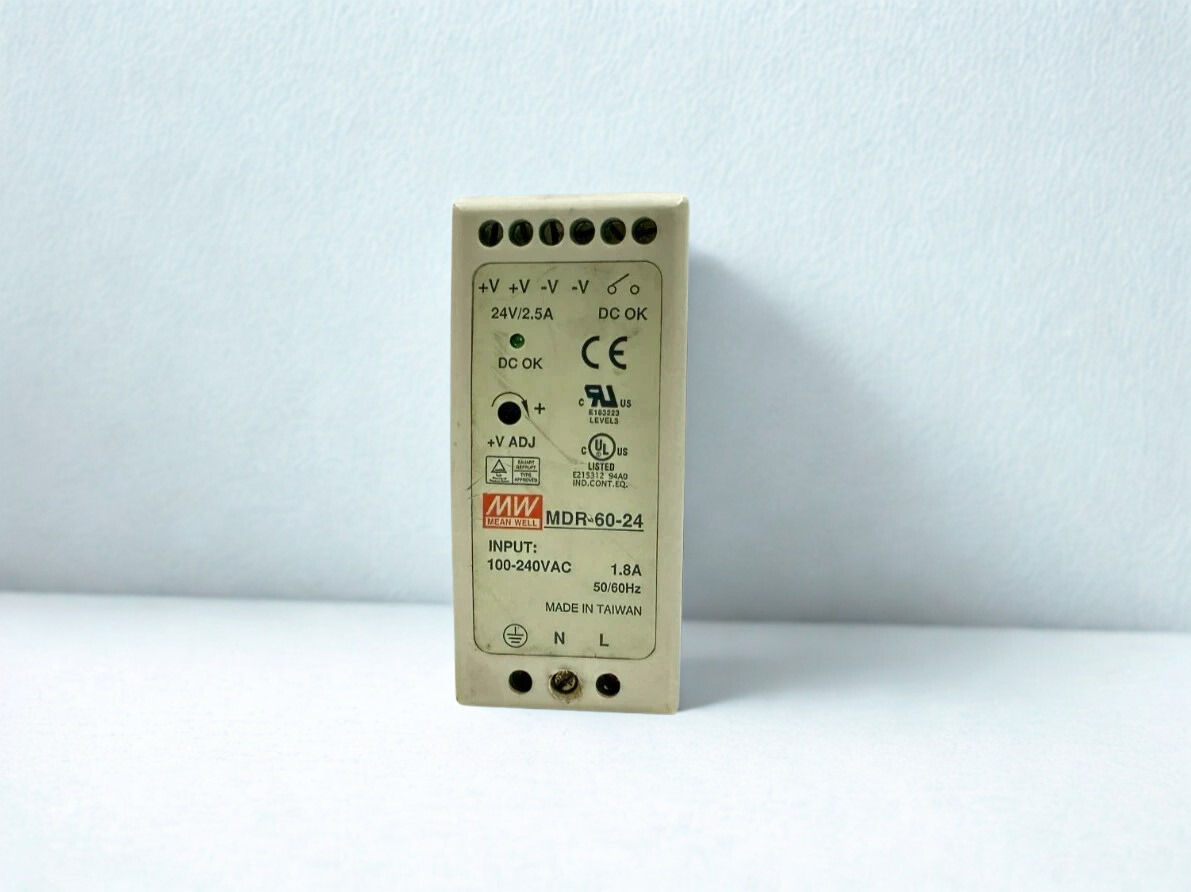

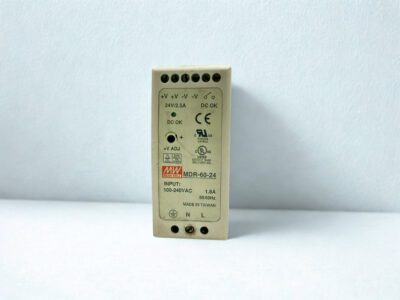

MEAN WELL MDR-60-24 60W 24V 2.5A DIN Rail Industrial Power Supply

Product Description:

The MEAN WELL MDR-60-24 is a 60W industrial DIN-rail power supply that gives control panels, automation systems, and building installations a steady 24V DC output at 2.5A. Its small Class II plastic case, ability to work with any AC input, and excellent efficiency make it a good choice for cabinets with limited space and severe industrial settings.

The MDR-60-24 is easy to snap onto TS-35 rails and has built-in protections, a DC OK relay contact, and an LED status indicator to provide reliable 24V bus operation in professional settings.

Model Details

• Model: MDR-60-24

• Brand: MEAN WELL

• Series: MDR-60 industrial DIN rail PSU

• Output Voltage: 24V DC adjustable 24–30V

• Rated Current: 2.5A

• Rated Power: 60W single output

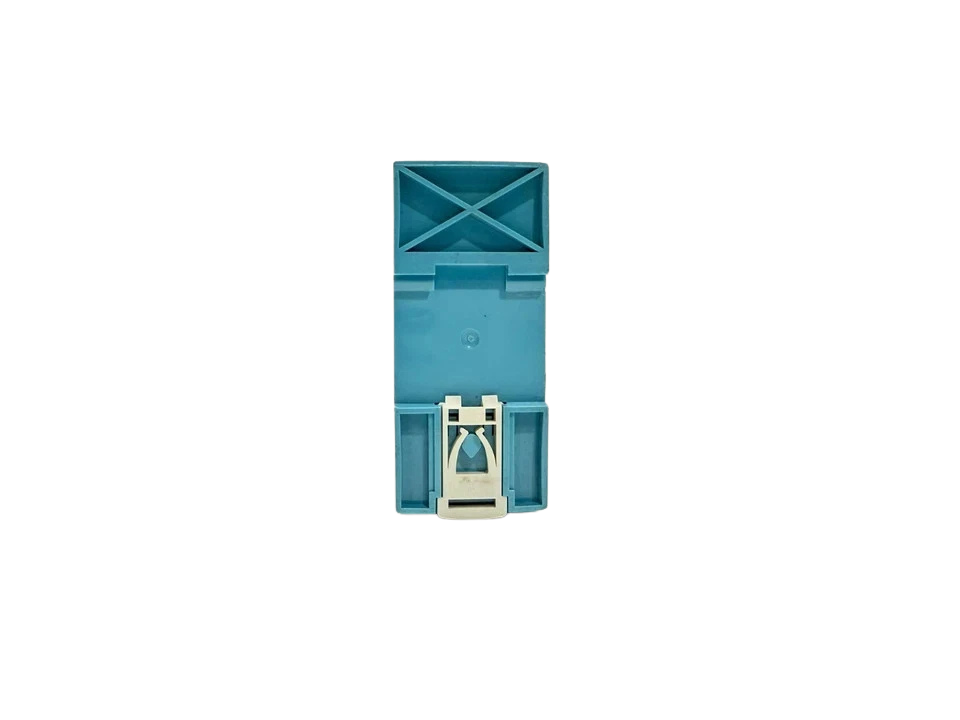

• Mounting: DIN rail TS-35/7.5 or TS-35/15

Key Features

• Universal AC input (85–264 VAC) and 120–370 VDC input capability for worldwide use and flexible system design.

• Compact DIN‑rail plastic housing with Class II isolation, ideal for slim control panels and safe, touch‑proof installations.

• High efficiency up to 88% with low no‑load power consumption, supporting energy‑saving industrial and building applications.

• Complete protection set including short circuit, overload, over‑voltage and over‑temperature (series level) for robust long‑term operation.

• DC OK relay contact and LED indicator for easy monitoring and integration into system diagnostics and alarm circuits.

Industry Usage:

• Industrial automation control panels and PLC/IO power supplies.
• Building automation includes HVAC controllers and BMS field devices.
• Machine control, packing, conveyors, and material handling systems.
• Security measures include access control, CCTV, and low-voltage communication technology.
• Process control, sensors, relays, and general 24-volt DC instrumentation.
