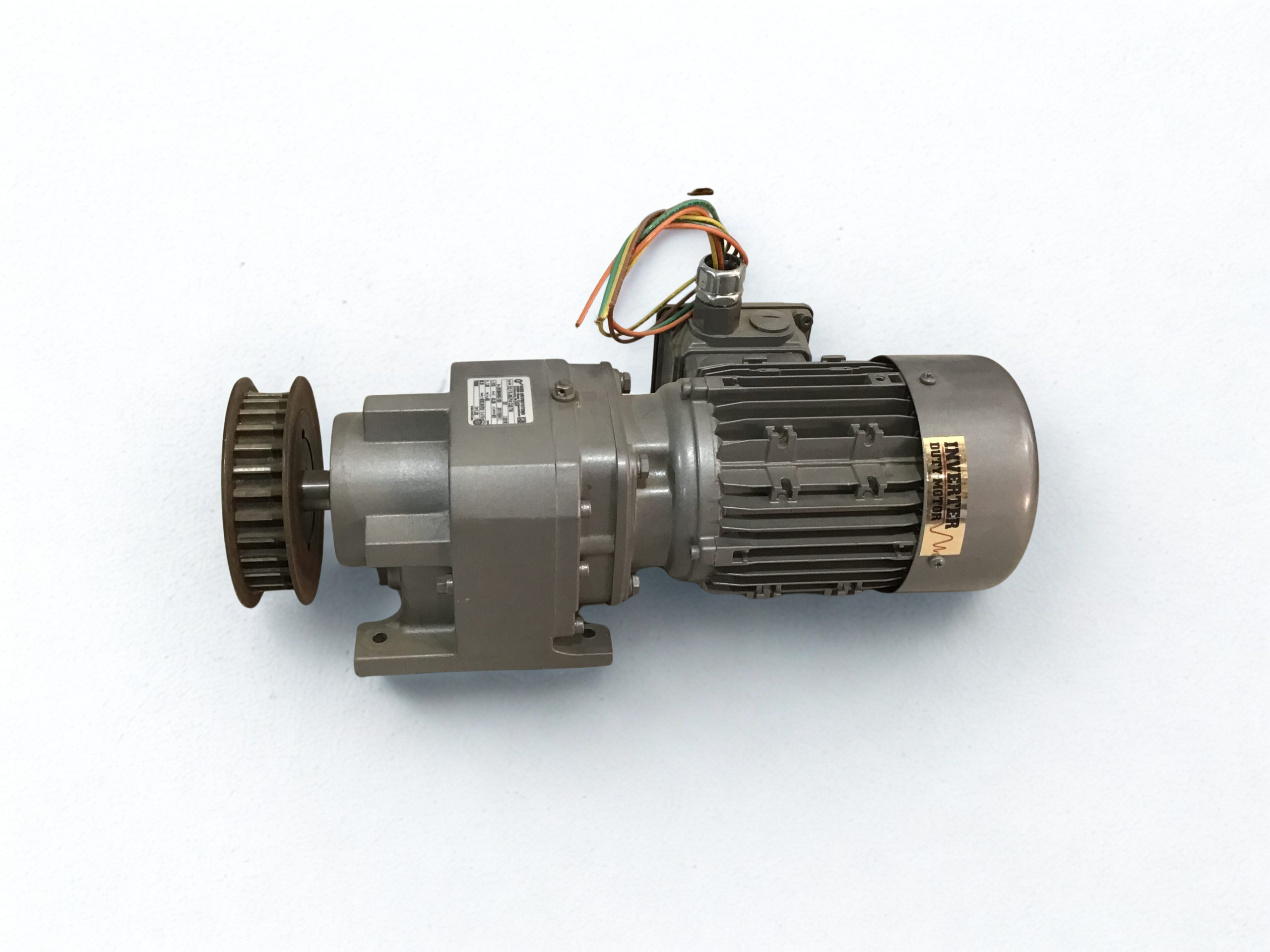

Nord SK 372.1 VL-80LP/4 CUS TW Industrial Gearmotor – Duty Motor Drive

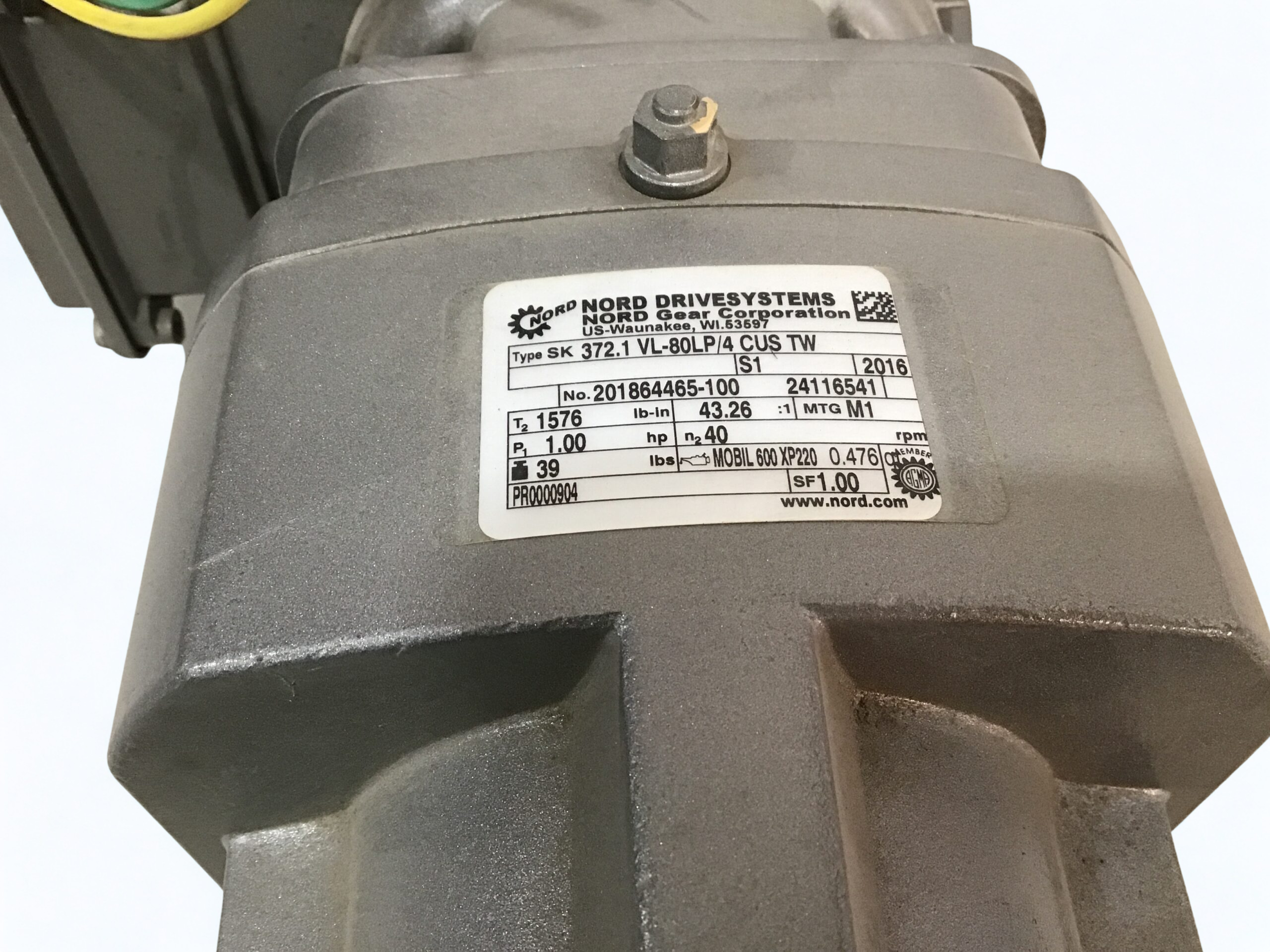

The 372.1 VL-80LP/4 CUS TW is an inverter-duty gearmotor, which means it was built from the bottom up to operate perfectly with variable frequency drives (VFDs) to give you efficient, adjustable-speed operation. In today’s factories, where saving energy, improving process control, and making systems more reliable are all very important, this kind of gearmotor is quite important. The “372.1” and “VL-80LP/4” codes tell you what size frame and mounting arrangement to use. These are common terms used by NORD to show that motors and gear reducers are physically and mechanically compatible.

This model has a bespoke configuration with corrosion-resistant coatings (CUS) and a design that makes it durable and long-lasting. It also has features that let it work in inverter-driven conditions (TW).

Mechanical Design and Construction

NORD’s NORDBLOC.1 gearmotors have die-cast aluminum housings that are very strong, resist corrosion, and are lightweight. The aluminum casing has a high-quality powder coating and extra protection against rust, so this gearmotor may be used in tough industrial settings including food processing, wastewater treatment, chemical plants, and outdoor installations.

The gearmotor has big ball bearings with staggered bearing technology, which makes it better able to withstand both radial and axial stresses and makes the bearings last longer. This is also important in situations where the equipment has to start and stop a lot and deal with changing torque levels, which is common when using inverter drives.

The modular architecture makes it easy to install, change, and keep up with. The gear units come with NEMA and IEC housing options to accommodate different motor mounting needs. This makes it easy to adapt or replace them without having to do a lot of mechanical redesign.

Features of the Motor and Gearbox

The motor in this gearmotor is an inverter duty motor that is made to work with VFDs. Some of its features are:

• Thermal protection: Many types have built-in thermal sensors that keep the motor from getting too hot, which is especially critical when the frequency changes.
• High efficiency: The motor usually meets IE3 efficiency class norms, which means it uses less energy and costs less to run.
• Speed range: The output speed can be changed over a wide range, depending on the gear ratio employed. This lets you manage conveyor belts, mixers, pumps, or compressors very precisely.
• Rated power: About 1.1 kW (1.5 horsepower), which is good for medium-power industrial applications.
• Inverter duty rating: The motor windings and insulation are designed to handle the voltage spikes and electrical strains that come from PWM signals from VFDs. This stops the insulation from breaking down too soon.

The gearbox part does the mechanical work needed to change the fast rotation of the motor (usually between 1400 and 1800 RPM) into a slower, high-torque output. The “80LP/4” component of the name alludes to the NEMA frame and maybe the way it is mounted, which shows that it can be used with certain industrial installations.

The gears in the gearing mechanism are made of high-quality steel that has been precisely machined and hardened to give it a high load capacity and quiet operation. Depending on the model, the unit can deliver single-stage or multiple-stage reductions, with gear ratios that are usually between 10:1 and 100:1 or greater. This feature lets you choose from a wide range of output speeds and torque values to meet the needs of different systems.

Installation and Mounting

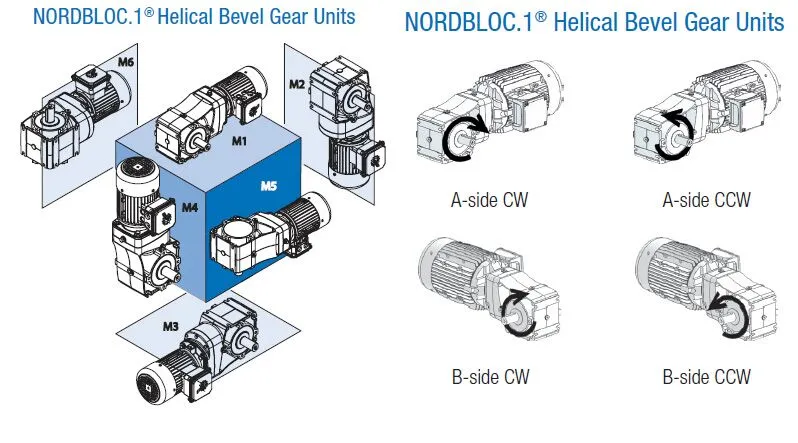

The gearmotor can be mounted in a variety of ways, such as on a foot, a flange, or a hollow shaft. This gives plants the most flexibility in how they are set up. The design of the housing allows it to be directly connected to conveyor systems, agitators, blowers, and other mechanical driving parts.

The small size and light weight of the structure make installation even easier, which saves money and space. Because NORD’s drive solutions are modular, users can set up their systems for the best performance, energy use, and ease of maintenance.

Uses in Industry:

Many industries employ the 372.1 VL-80LP/4 CUS TW gearmotor because it is versatile and has strong design features.

-> Material handling and conveyors: Keeps the speed and torque of belt conveyors, roller conveyors, and automated handling systems steady.

-> Food and drink processing: Coatings that resist corrosion can be used in places that get a lot of water or chemicals, including washdown areas.

-> Packaging machinery: It helps with quick starts and stops and has great torque control, which is necessary for keeping packaging lines in sync.

-> Water and wastewater treatment: Strong construction and protection against corrosion make it possible for reliable operation in difficult chemical conditions.

-> Mixers and agitators: They let you manage the speed and torque so you can work with thick or tough materials.

-> HVAC and fans: Allows for precise control of airflow rates with an inverter-driven motor that works well.

Benefits:

• Inverter duty design: Makes sure that the motor works reliably when the frequency changes, which saves energy and makes process management better.
• Corrosion resistance: The metal housing is powder-coated to make it last longer and provide better protection in severe industrial settings.
• High efficiency: Following energy efficiency standards lowers operational costs.
• Modular and flexible installation: Different motor and mounting options make it easier to add to systems that are already in place.
• Long service life: Better bearing design and a strong gearbox construction cut down on downtime and maintenance expenses.
• Quiet operation: Precision gearing and vibration damping cut down on noise, making the workplace better.
• Safety and standards compliance: Meets the appropriate international requirements for electrical and mechanical systems, such as safety ratings, efficiency, and insulation.

Required Maintenance

The architecture of NORD gearmotors makes them easy to care for. Because of its strong design, sealed bearings, and housing that won’t rust, it can run with no maintenance. Regular upgrades to the lubrication (if necessary) and visual inspections are usually enough. The modular design makes it easy to quickly replace worn-out parts or motors, which cuts down on downtime.

NORD also offers a full warranty and local support services for repairs, parts replacement, and technical help, making sure that users get the most out of their gearmotor throughout time.
