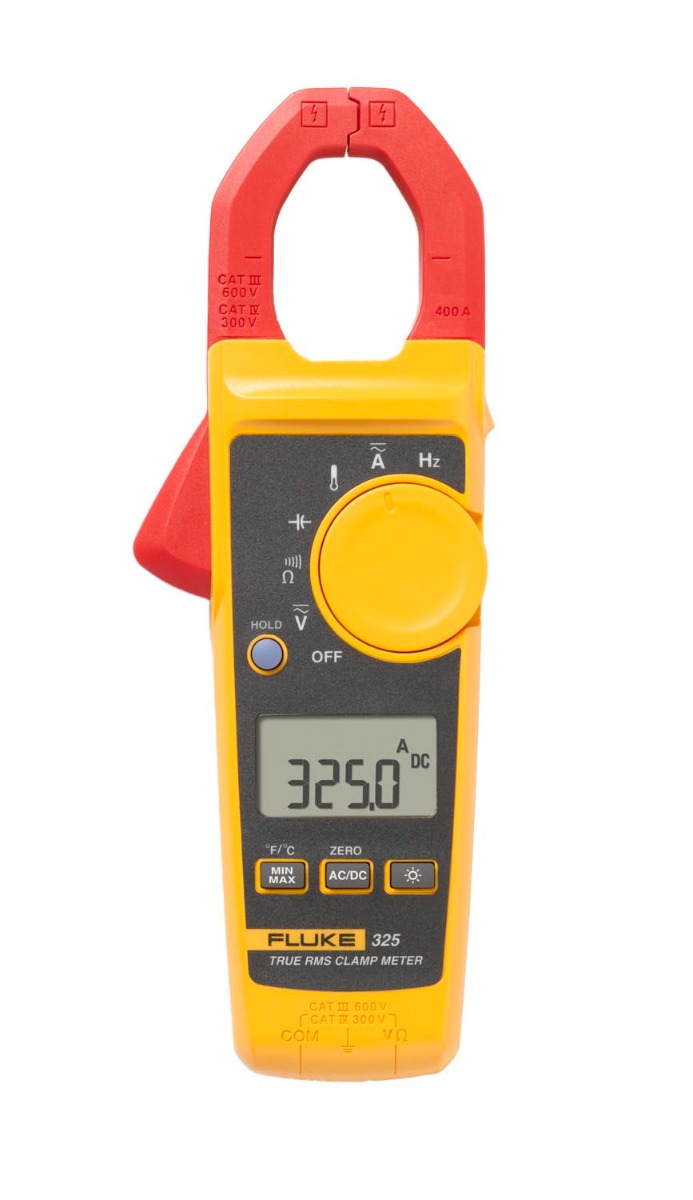

Fluke 325 True RMS Clamp Meter

Fluke 325 True-RMS Clamp Meter

The Fluke 325 True-RMS Clamp Meter is the flagship of the 320 Series, designed to work in the toughest electrical situations. Whether diagnosing a propulsion system on a vessel or managing an automated production line, the 325 offers the perfect combination of robustness, precision, and versatility.

The Fluke 325 measures true-RMS AC voltage and current, unlike ordinary meters, ensuring accurate readings even when measuring non-linear signals, commonly seen in modern marine electronics and VFDs. Due to its thin, ergonomic shape, it may easily be guided in tight electrical cabinets and engine room trunkings.

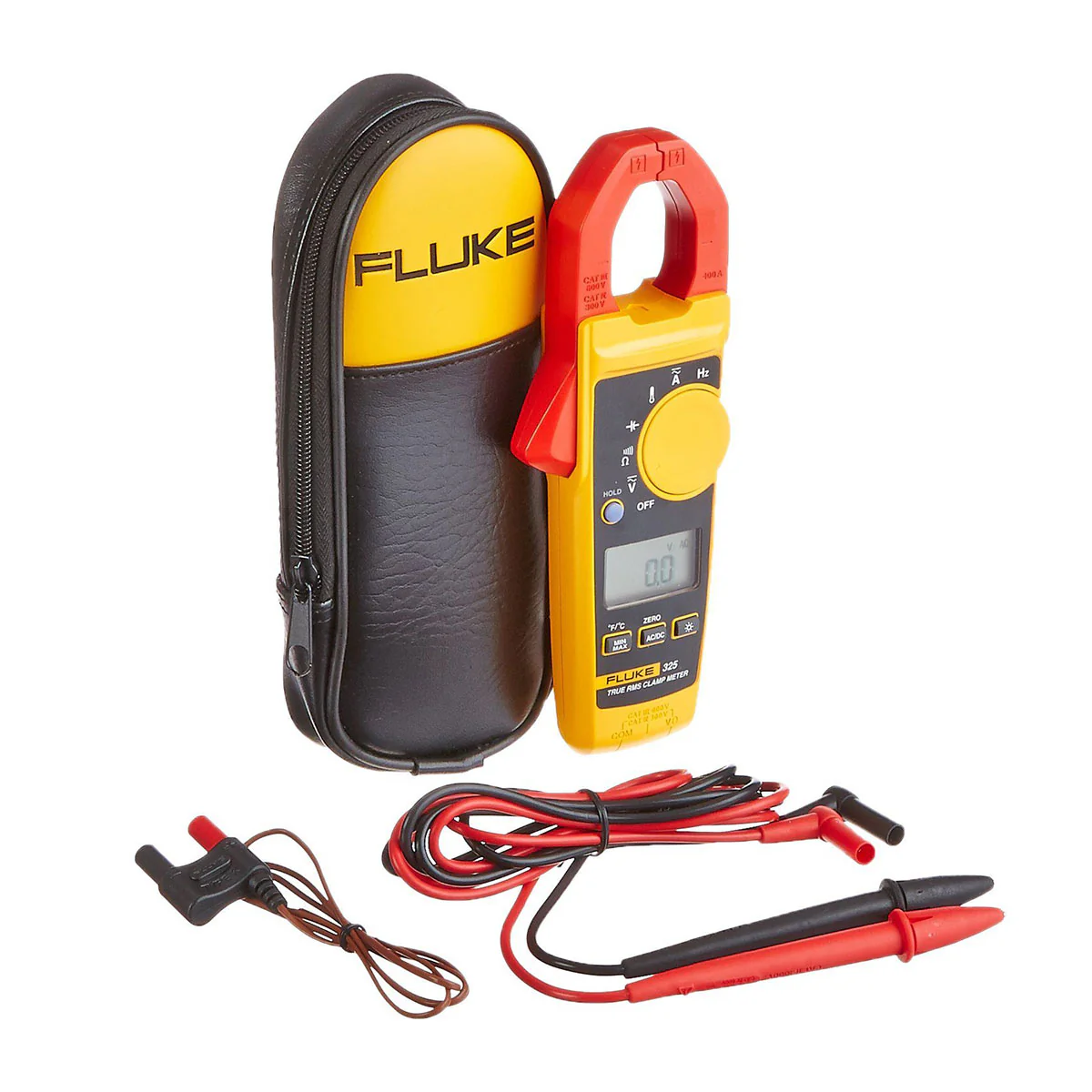

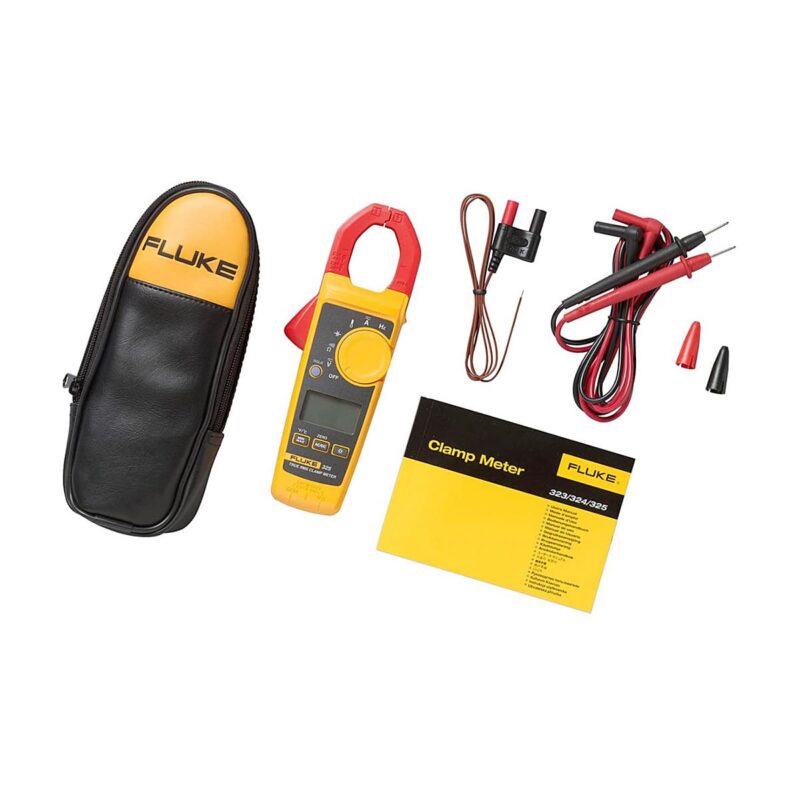

Included Accessories:

• Fluke 325 True-RMS Clamp Meter

• TL75 Test Leads

• Type K Thermocouple

• Two AAA Batteries (installed)

• Soft Case

Important Features:

Measurements of true RMS AC/DC current, voltage, temperature, and frequency.

The slim form makes it easy to carry, and the big screen makes it easier to fix problems.

Using test leads, it can measure AC and DC current up to 400 A and AC and DC voltage up to 600 V.

With the inbuilt K-type thermocouple, it can measure temperatures from -10°C to 400°C.

It can measure frequency from 5 Hz to 500 Hz, resistance up to 40 kΩ, and capacitance up to 1000 µF.

The Min/Max function lets you record critical numbers.

Backlight and data hold features make it easier to use.

CAT III 600 V and CAT IV 300 V safety ratings mean it is safe to use.

Warranty for two years.

Technical Details:

Expert Tip:

In the marine industry, ghost voltages and harmonic distortion from LED lighting and SCR-controlled winches can deceive a normal mean-responding meter. The Fluke 325’s True-RMS function is essential for obtaining a true reading on a ship’s grid.
