Hengstler AX71/1214EK.42DPX-F0:5604 | Ex-Proof PROFIBUS Encoder

Hengstler AX71 Absolute Encoder

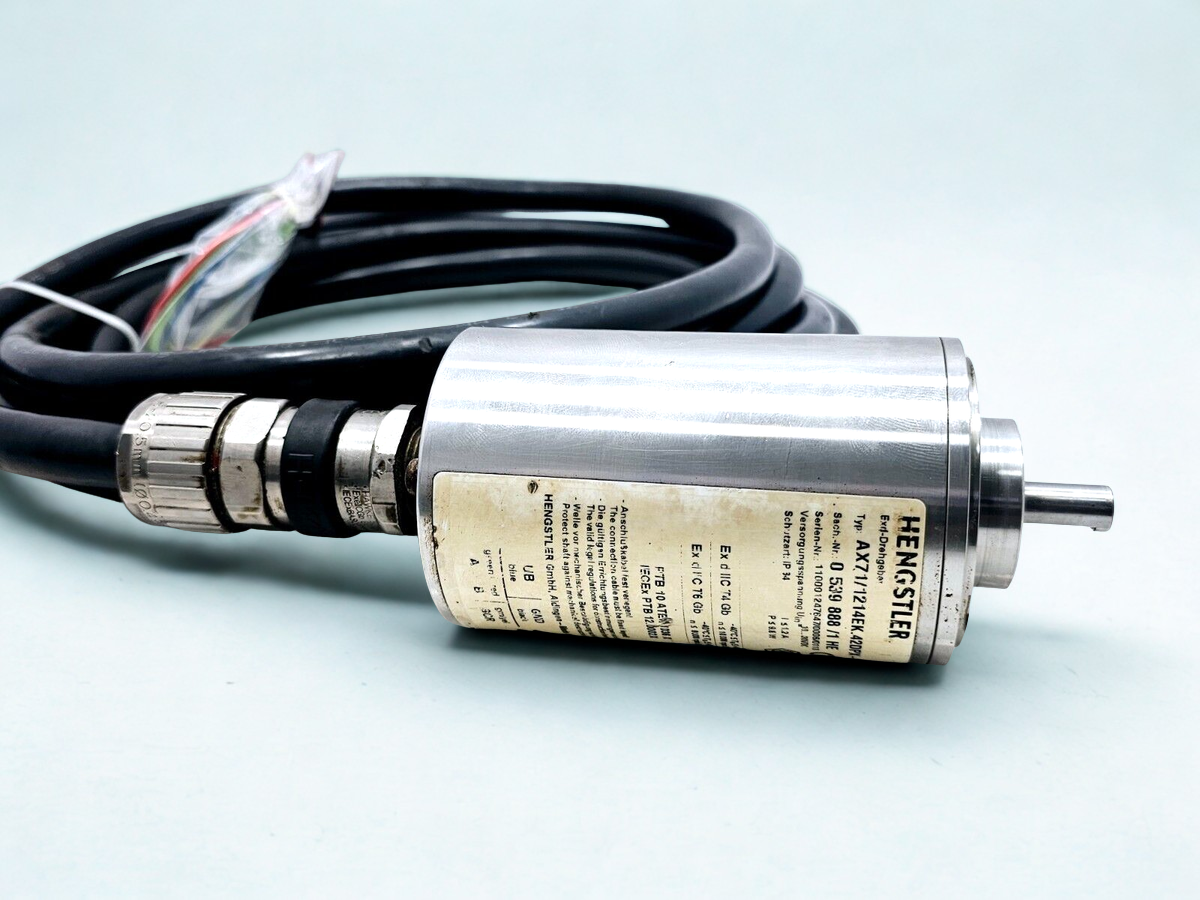

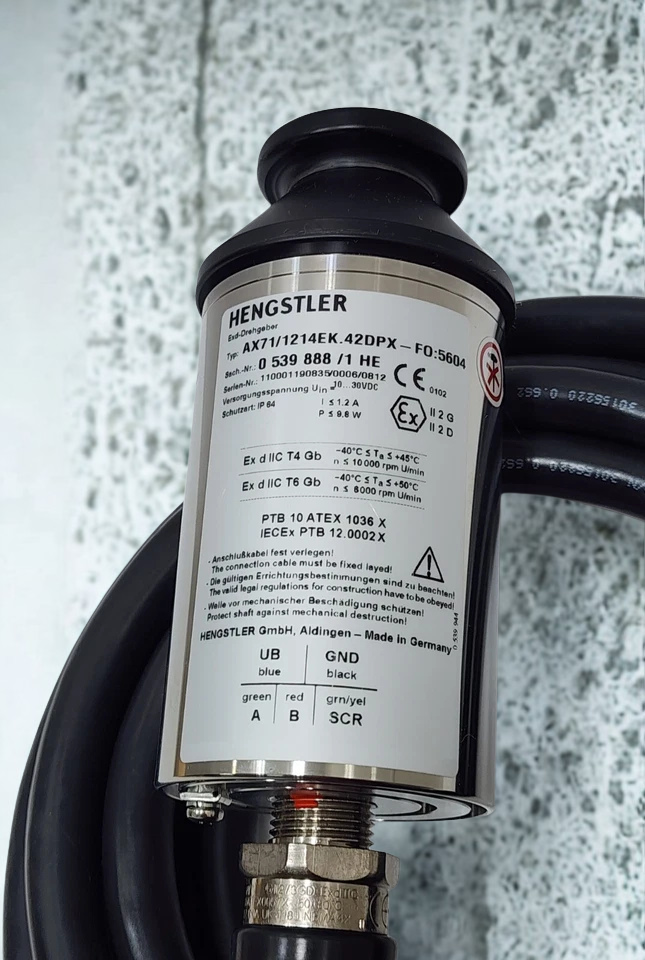

The Hengstler AX71/1214EK.42DPX-F0:5604 High-performance, explosion-proof absolute encoder for the most demanding industrial situations. The ATEX/IECEx-certified device is built for accuracy and safety and uses the PROFIBUS DP interface for dependable position feedback in hazardous area applications where flammable gases or dusts are present.

The industry standard for oil & gas, chemical processing, and heavy-duty offshore activities because to its rugged stainless steel housing and high resolution.

HENGSTLER AX71 Product Features:

• An absolute rotary encoder that can do both multi-turn and single-turn resolution, with 12-bit multi-turn and 14-bit single-turn resolution, giving you very accurate position feedback.
• The PROFIBUS DP communication protocol makes it possible for industrial automation to connect to fieldbus networks in a strong and real-time way.
• DC 10–30V is the operating voltage range, which works with a wide range of industrial power supply.
• The AX71 series has a stainless steel casing that is IP64/IP67 protected, making it strong and able to handle tough conditions.
• The shaft has a 10 mm diameter and a clamping flange for convenient installation.
• The operating temperature range is good for harsh situations, usually between -40°C and +60°C, depending on the temperature class.
• Based on the setup, the current use is about 220–250 mA.
• Built with safety certificates to defend against explosions in dangerous places.

Specifications

The encoder sends out binary-coded position data and lets you change settings for system-level integration. It is often used for accurate position control in factory automation, elevator systems, oil and gas exploration, and other industrial fields that need reliable feedback in risky places.

You may customize your installation needs with accessories, including different cable options, mounting flanges, and connections. The encoder is built to last a long time, have a high resolution, and work perfectly with PROFIBUS data networks so that the rotating position can always be monitored accurately.

Engineer’s Guide: Integration Tips

Prior to deploying the AX71 in a PROFIBUS network, verify that the GSD file is properly integrated into your TIA Portal or Step 7 environment. The bus termination should be closely monitored due to the 26-bit resolution. The terminal unit must be sealed in accordance with ATEX standards, as it is an Ex-rated device.

In order to preserve the integrity of the hazardous area classification, it is imperative that your cable glands adhere to the same Ex d or Ex e protection requirements as the encoder. To prevent signal noise on the DP line, it is recommended to use high-quality shielded twisted-pair cable for extended cable runs.
