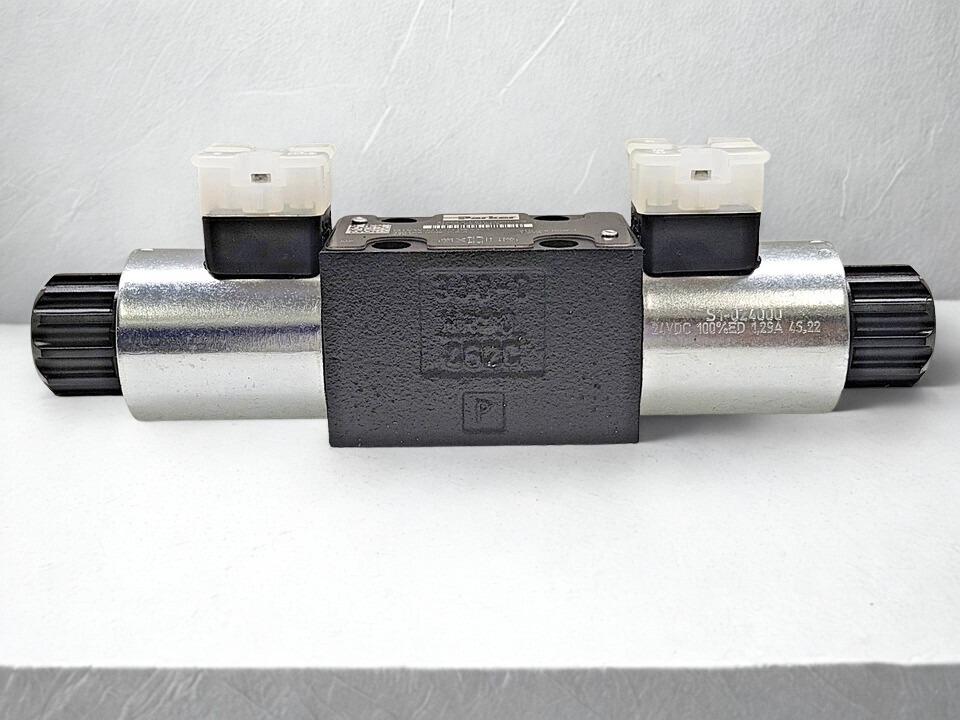

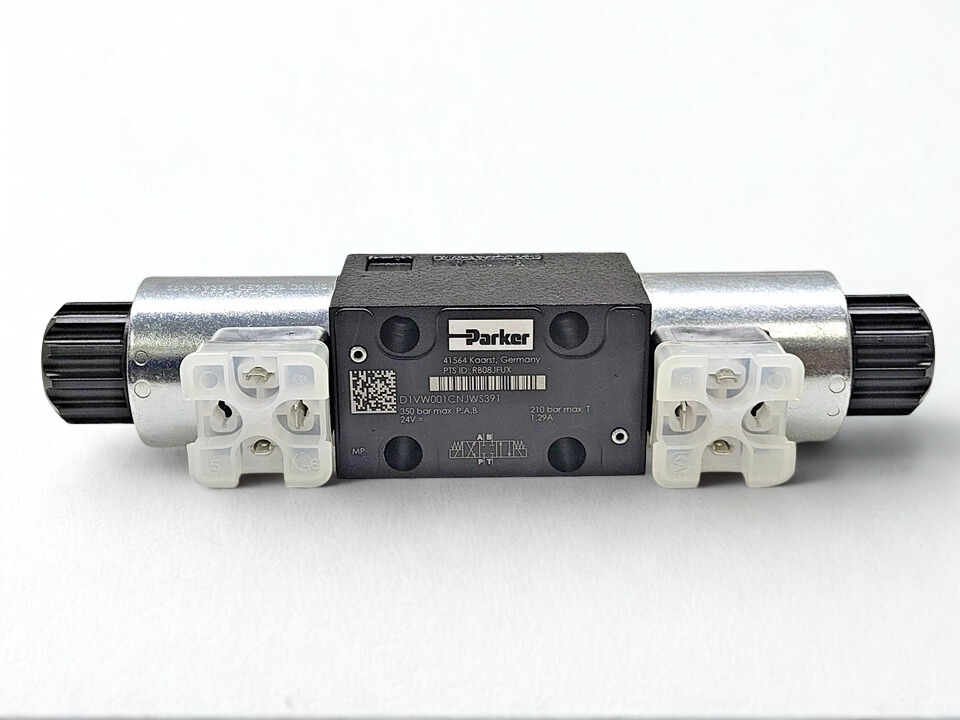

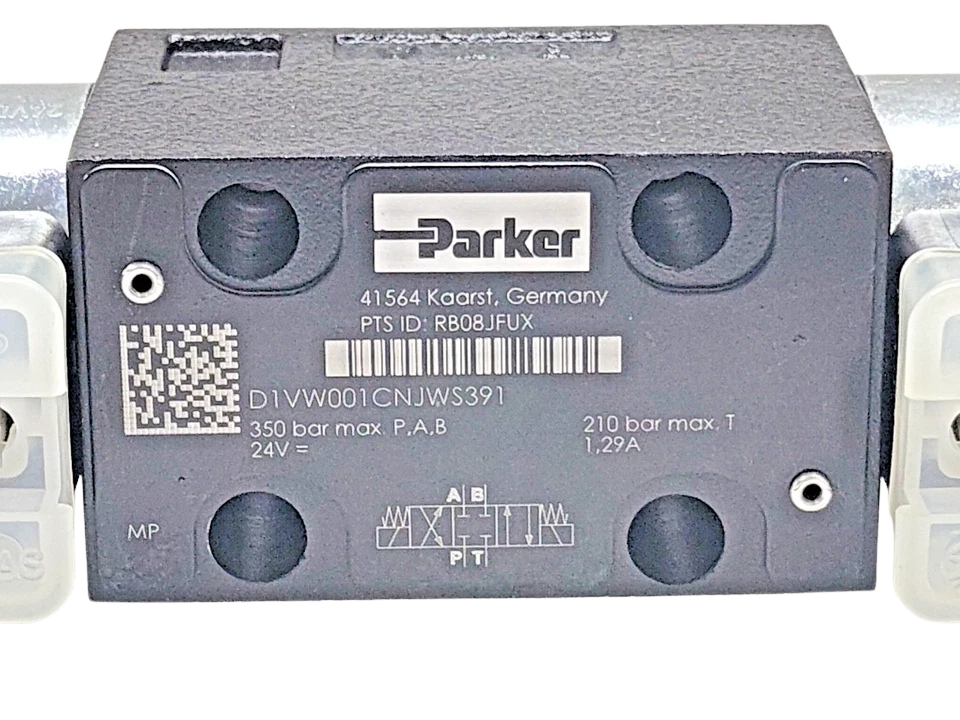

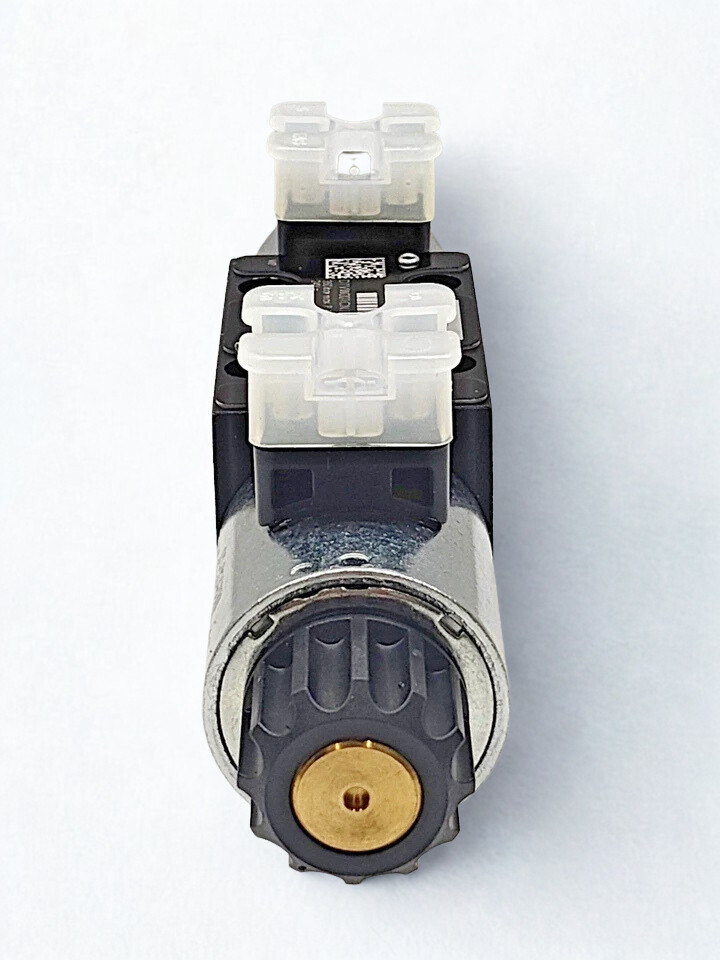

Parker D1VW001CNJWS391 Hydraulic Directional Valve 24V
Country of Origin: Germany
MPN: Parker D1VW 001 CN JW S 391
Condition: New
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions
Product Details:
The Parker D1VW001CNJWS391 is a high-performance solenoid-operated hydraulic directional control valve with a 24V DC, 1.29A rating. It has a maximum of 350 bar P/A/B ports and 210 bar T ports. This CETOP 03/NFPA D03 valve lets you control the flow of up to 80 liters per minute very precisely, making it perfect for tough industrial and marine hydraulic systems.
The D1VW001CNJWS391 is built to be reliable. It has a direct-acting wet armature design and optimized flow routes that keep pressure loss to a minimum. Its spool code 001 lets it work with a closed center in NG06 size, which is great for machines that need to manage direction in a way that saves energy. It meets ISO 4401 standards and can handle pressures of up to 350 bar on P/A/B ports and 210 bar on T ports. This makes it great for heavy-duty uses like presses and maritime equipment.
Technical Specifications: D1VW001CNJWS39
| Specification | Details |
|---|---|
| Model Number | D1VW001CNJWS391 ​ |
| Type | Directional Control Valve <span class=”inline-flex” aria-label=”Parker D1VW001CNJW Directional Control Valve – Hyspeco” data-state=”closed”>​ |
| Voltage/Current | 24V DC, 1.29AÂ |
| Max Pressure (P/A/B) | 350 bar |
| Max Pressure (T) | 210 bar ​ |
| Max Flow | 80 l/min |
| Spool Code | 001 (Closed Center) ​ |
| Ports/Ways/Positions | 4-way/3-position ​ |

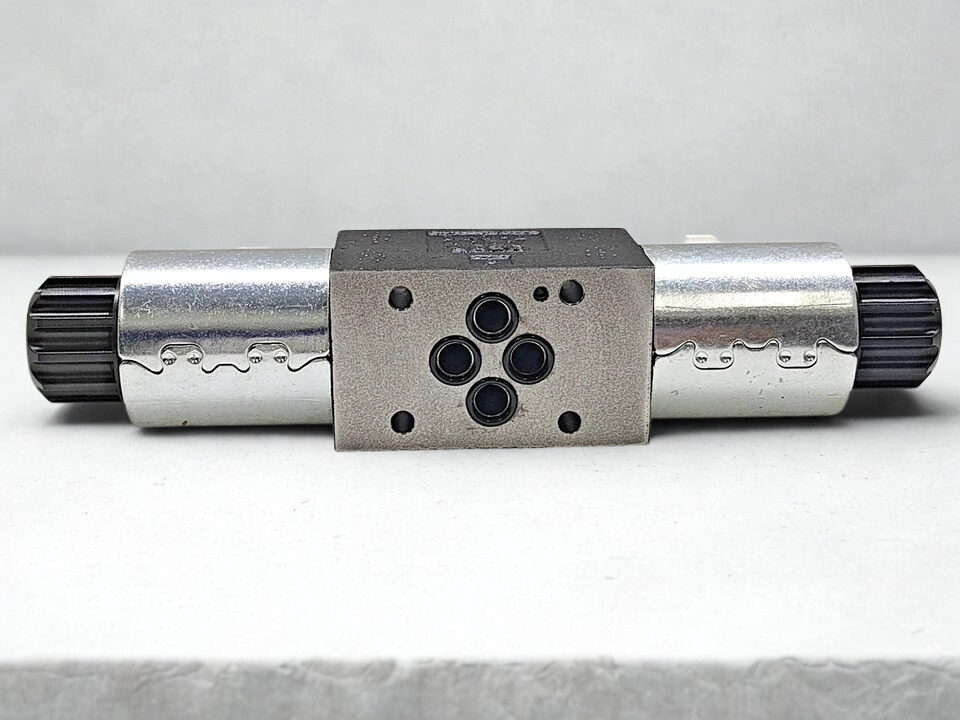

| Mounting Pattern | CETOP 03 / NFPA D03 / NG06 ​ |
| Material | Cast Iron Body ​ |
| Seals | Nitrile (NBR)Â |
| Operating Temp Range | -25°C to +60°C ​ |
| Weight | 2.1 kg ​ |
| Standards | ISO 4401 |
Parker D1VW001CNJWS39
1) High-Pressure Capability: Can handle 350 bar on main ports, which gives it strong hydraulic performance in industrial settings.
2) Design that saves energy: A minimal pressure drop makes flow up to 80 l/min more efficient, which uses less energy.
3) Wet Armature Solenoid: Uses 24V DC and 1.29A of low power to work smoothly and directly.
4) Closed Center Spool: Keeps the spool from moving while it’s not activated, making ensuring there is no flow.
5) Compact CETOP Mounting: Simple to add to conventional manifolds for use in boats and machines.
Usage Guide:
-> Mount on the CETOP 03 subplate in any direction, but horizontal is best; torque should be according to ISO standards.
-> Use DIN/EN 175301-803 to connect solenoids. Before using the system, let the air out to avoid cavitation.
-> Turn on the solenoids to move the spool, check the flow direction using the P-to-A/B routes, and keep an eye on the pressure limitations.
-> To do maintenance, change the coils without taking the whole thing apart. Use clean ISO VG 32-68 hydraulic oil.
Ideal Applications
-
Hydraulic presses, injection molding machines, and marine winches requiring precise control.​
-
Industrial automation, test rigs, and offshore equipment under high-pressure demands.
