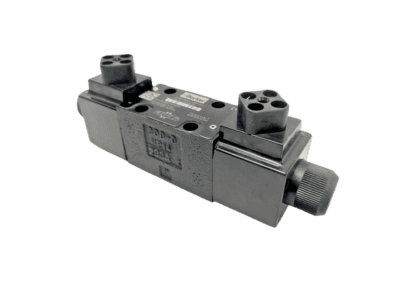

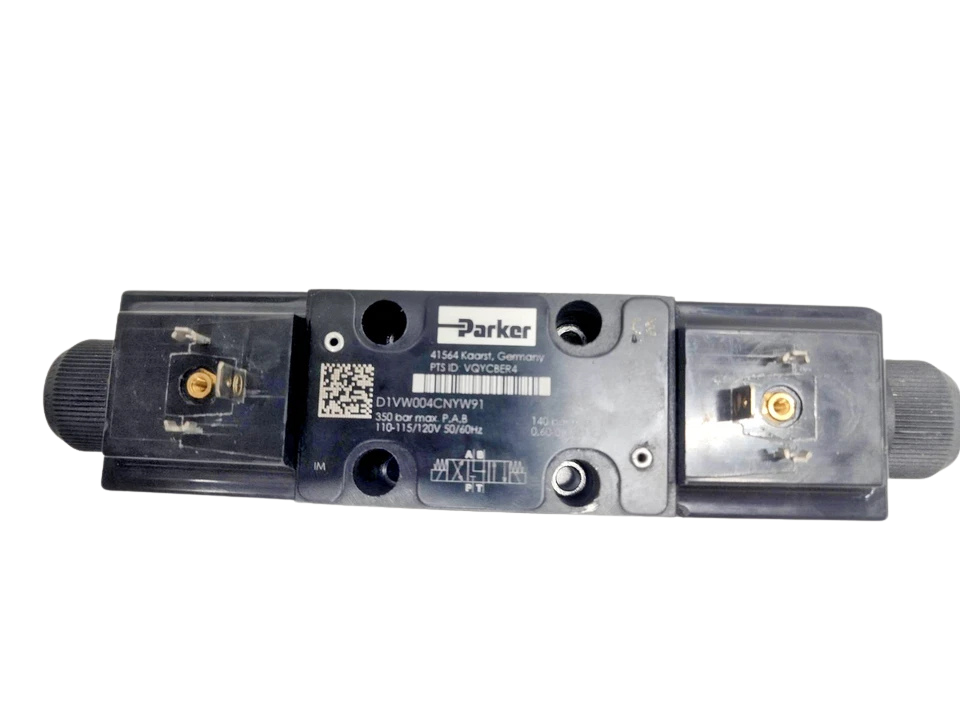

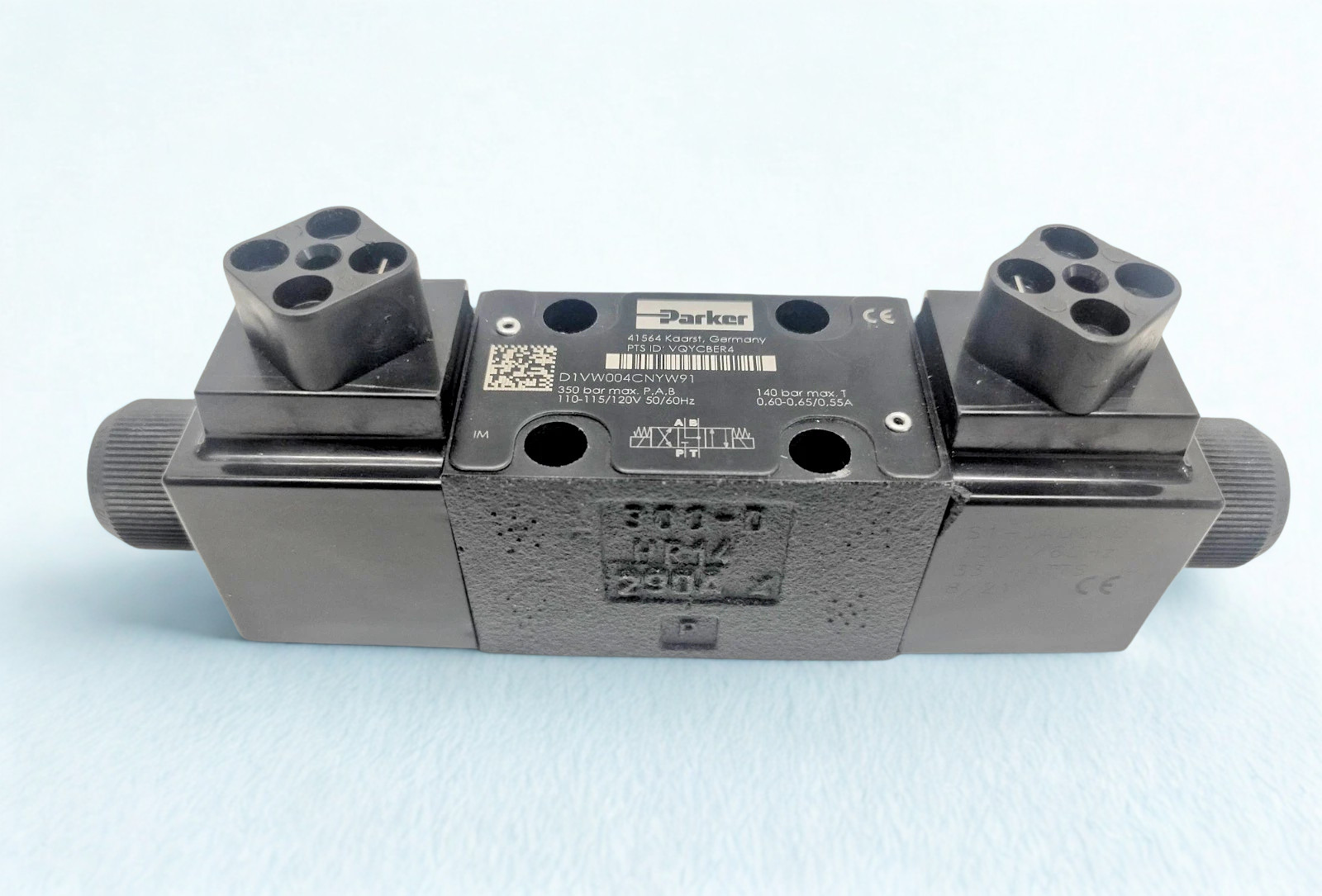

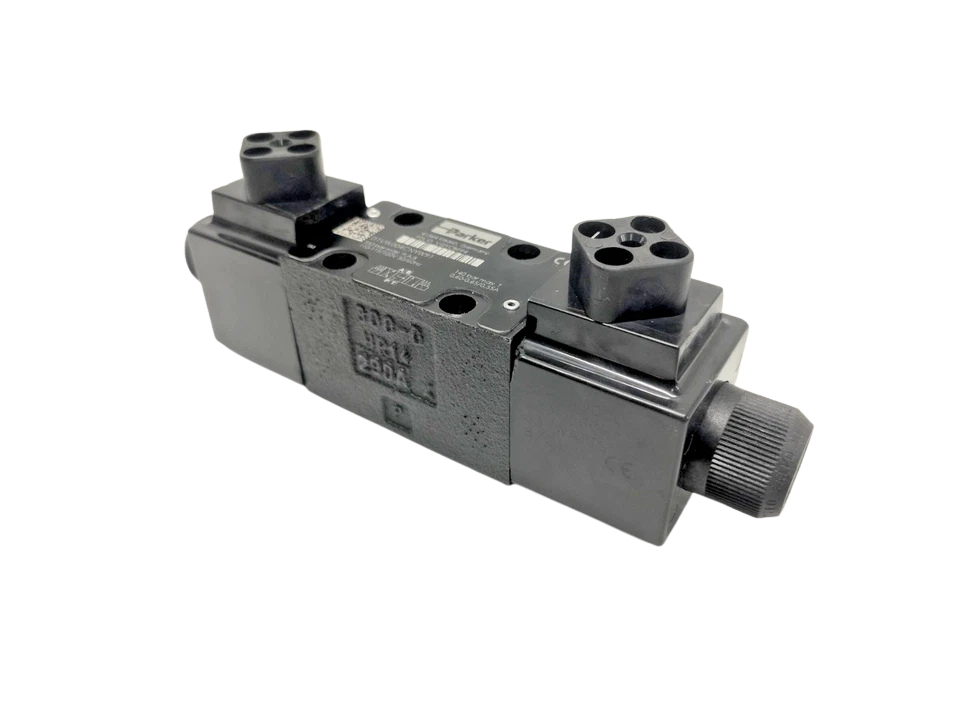

Parker D1VW004CNYW91 Directional Control Valve

Parker D1VW004CNYW91 Directional Control Valve – New

The Parker D1VW004CNYW91 is a high-performance hydraulic directional control valve that works directly. It is part of the D1VW series and has a 4-chamber body that gives it great functional limits and a low pressure drop, which makes it work more efficiently. This model has a 3-position spool setup (Code 004) that blocks the P-port in the middle position.

Key Features:

1) High Performance: It can handle flow rates of up to 80 litres per minute (21 gallons per minute) with very little drop in pressure.

2) It works with the standard NG06, CETOP 03, and NFPA D03 mounting designs.

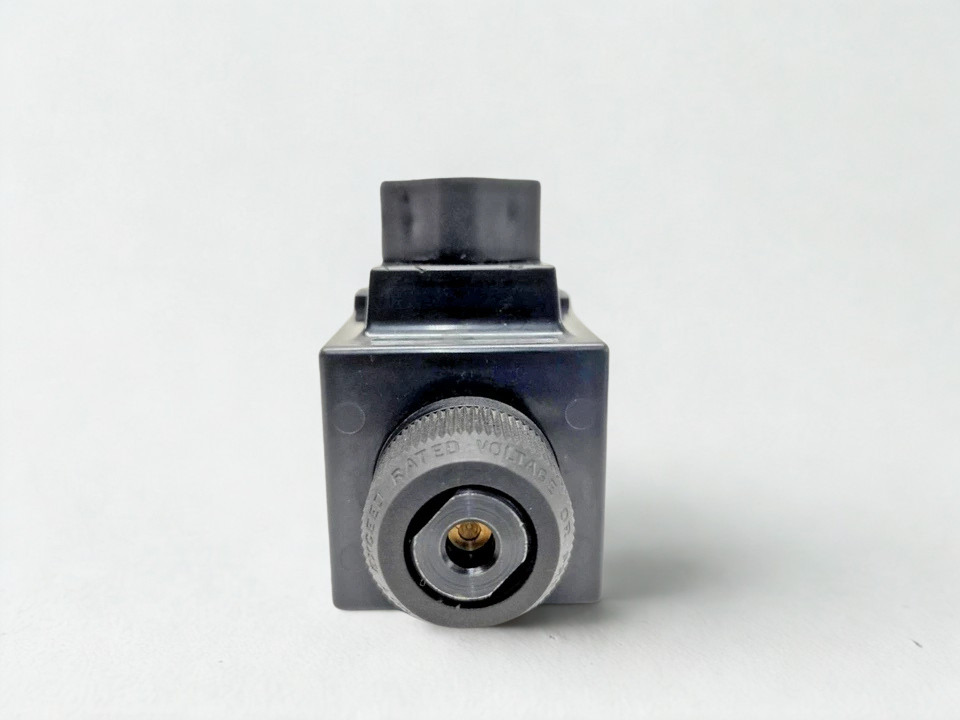

3) Wet Pin Solenoids: The solenoids are screwed directly into the tube, which makes them perform better.

4) If something goes wrong, you can either set things up or use the manual override.

5) Strong Build: The body is made of ductile iron, and the seals are made of Nitrile (NBR), which makes it last longer in industrial settings.

Specifications

Brand: Parker Hannifin

Manufacturer: The Parker

Model Number: D1VW004CNYW91

Series: D1VW

Type of Valve: 4-Way, 3-Position Directional Control Valve

Spool Code: 004 (Center P-Port Blocked)

Input Voltage: 110/120 VAC (50/60 Hz)

Maximum Pressure: 350 Bar (5,000 PSI)

Nitrile (NBR) is the material used for the seal.

DIN 24340 A6, ISO 4401, and NFPA D03 are the mounting interfaces.

Weight: 1.6 kilograms (3.5 lbs) for double solenoid variants
