RED LION G306A000 5.7″ HMI Operator Interface Control Panel

The RED LION G306A000 Operator Interface is a durable 5.7-inch TFT touchscreen that provides industrial automation control. It integrates high-performance graphics with versatile connectivity. This G3 Series HMI is well-suited for the monitoring of processes in manufacturing environments, as it facilitates the integration of PLCs through Ethernet and serial interfaces.

The G306A000 is designed to be dependable, and it boasts a 320×240 QVGA color display with 256 colors and an LED illumination to ensure that its visuals are clear even in the most challenging environments. It guarantees efficient performance in panel-mounted applications with fronts rated IP66/NEMA 4X, operating on 24V DC with a maximum capacity of 10W. User interaction is improved by the compact design, which includes a 5-button keypad that complements touch input.

Model Details

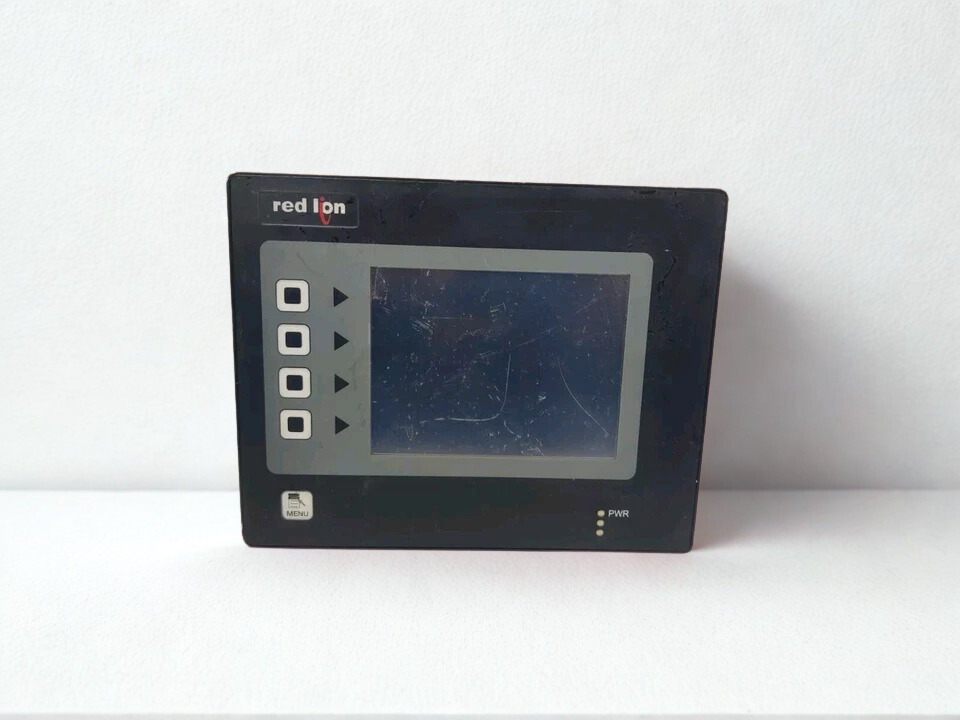

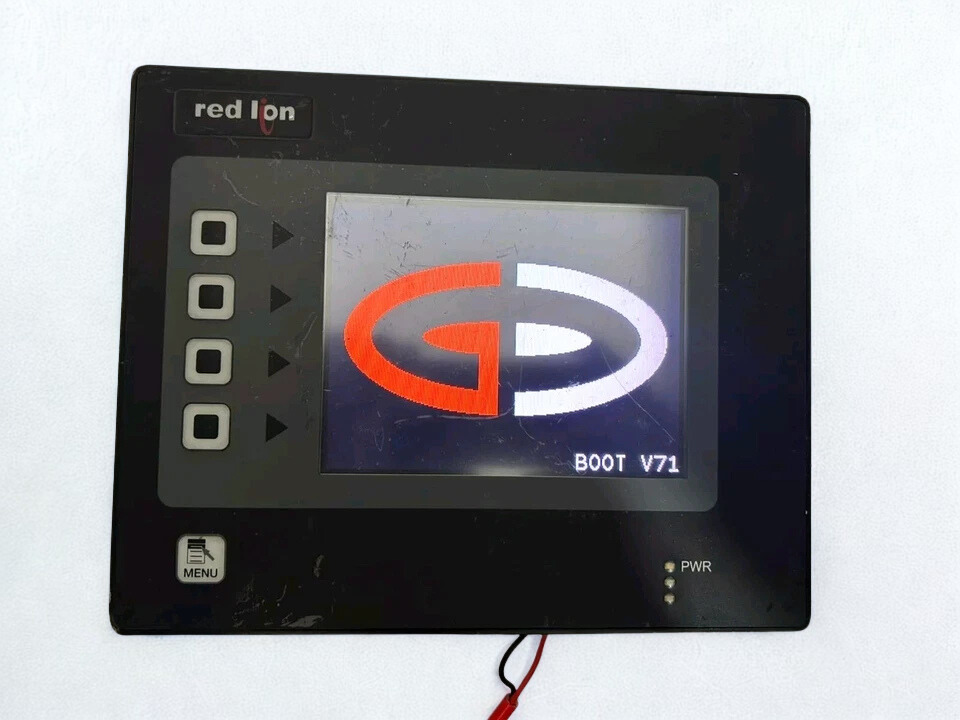

• Display: 5.7-inch color TFT LCD, 320×240 resolution, 256 colors, 380 cd/m² brightness.

• Input: Analog touchscreen plus 5 embossed function keys for menu navigation.

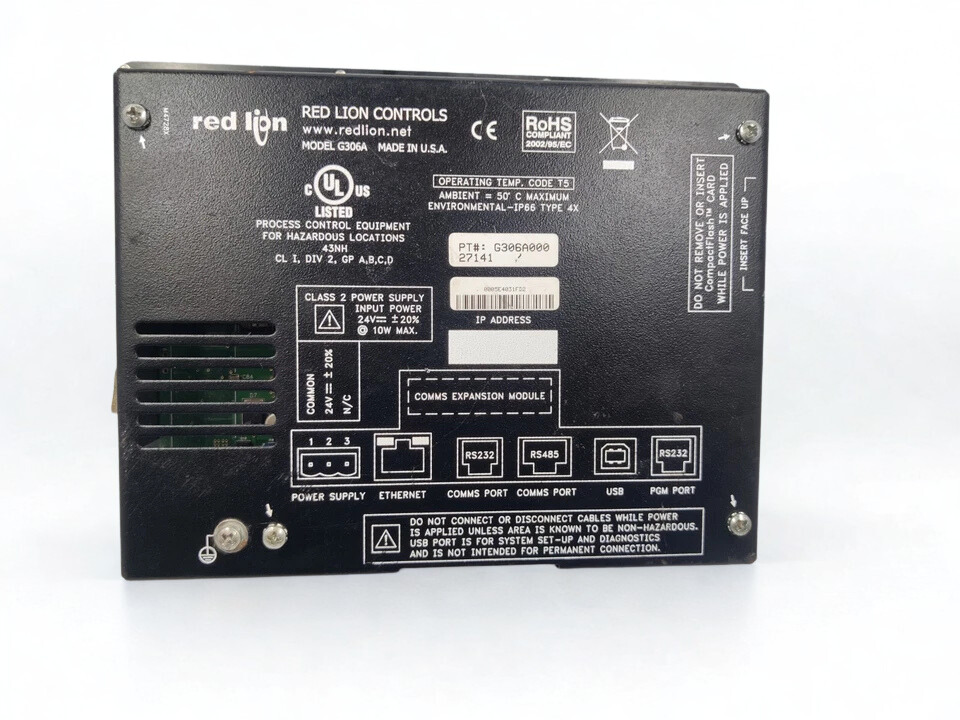

• Power: 24V DC ±20%, 8W typical/10W max, removable terminal block connection.​

• Dimensions: 7.42″ H x 8.83″ W x 2.3″ D, panel cutout for chassis mount.

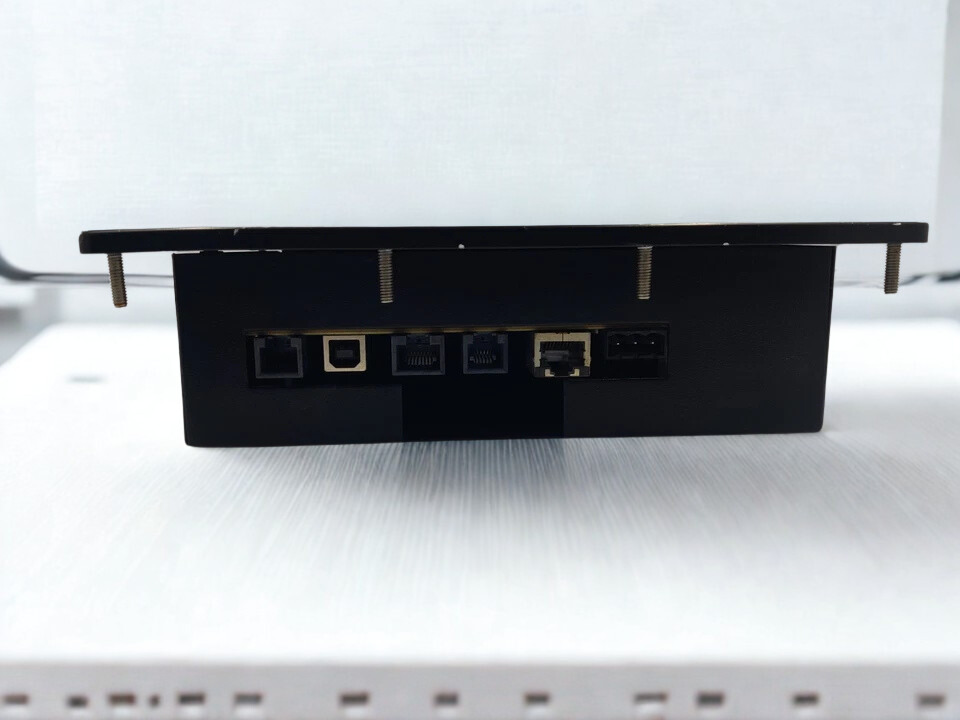

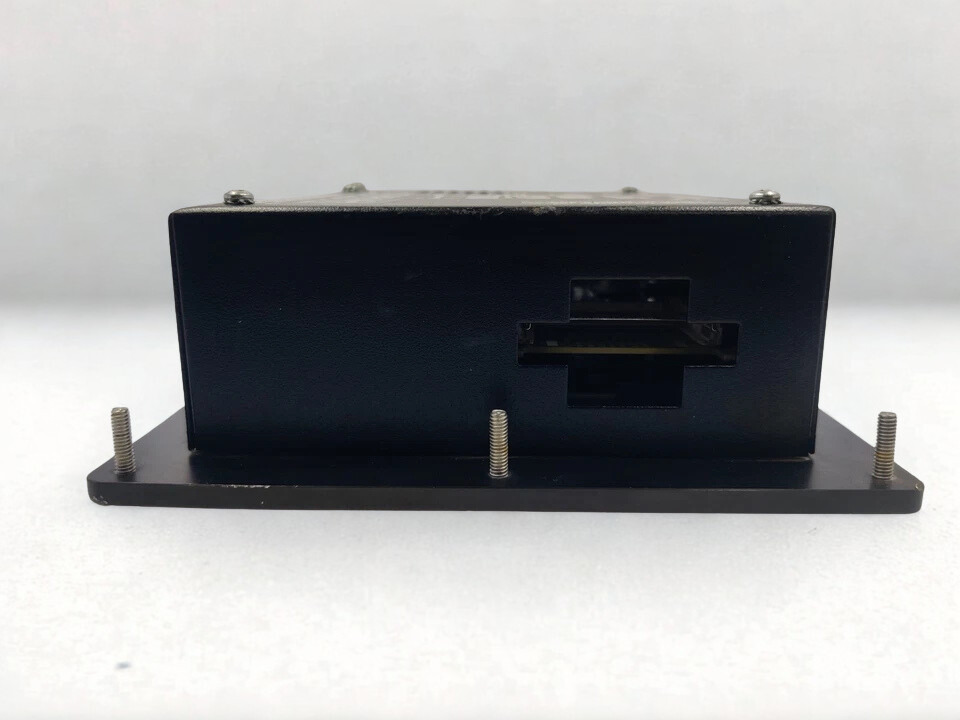

• Connectivity: (2) RS-232, (1) RS-422/485, 10/100 Ethernet, USB, CompactFlash slot.

Technical Specifications

Applications in Industry:

1) Real-time surveillance and control of PLCs through factory automation.

2) Process control in water/wastewater and oil/gas systems.

3) Material handling with data logging and trending displays.

4) Remote site operations are made possible through Ethernet web access.
