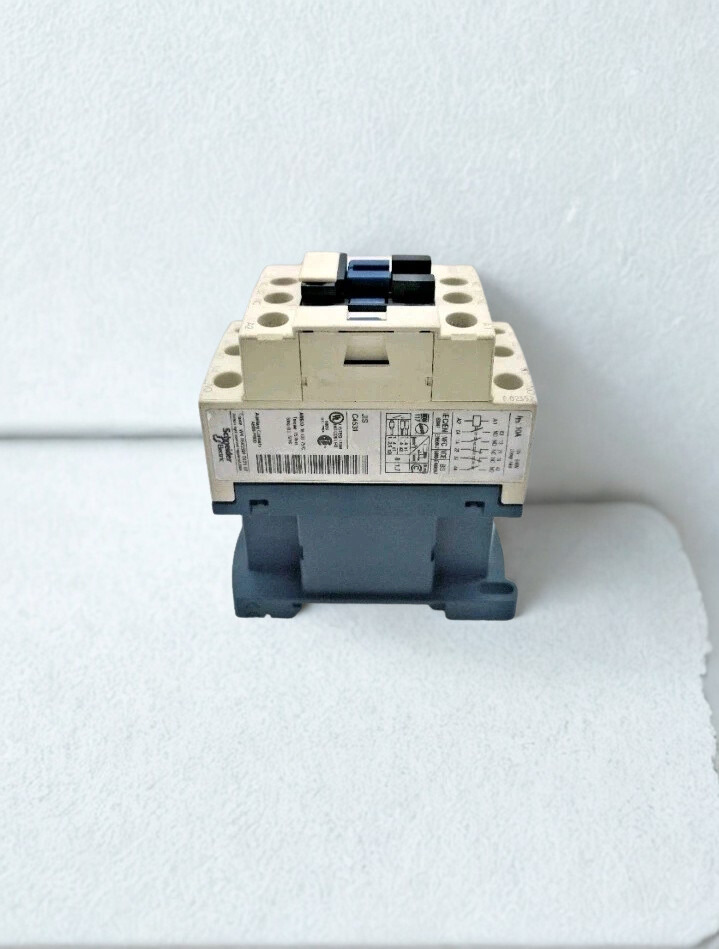

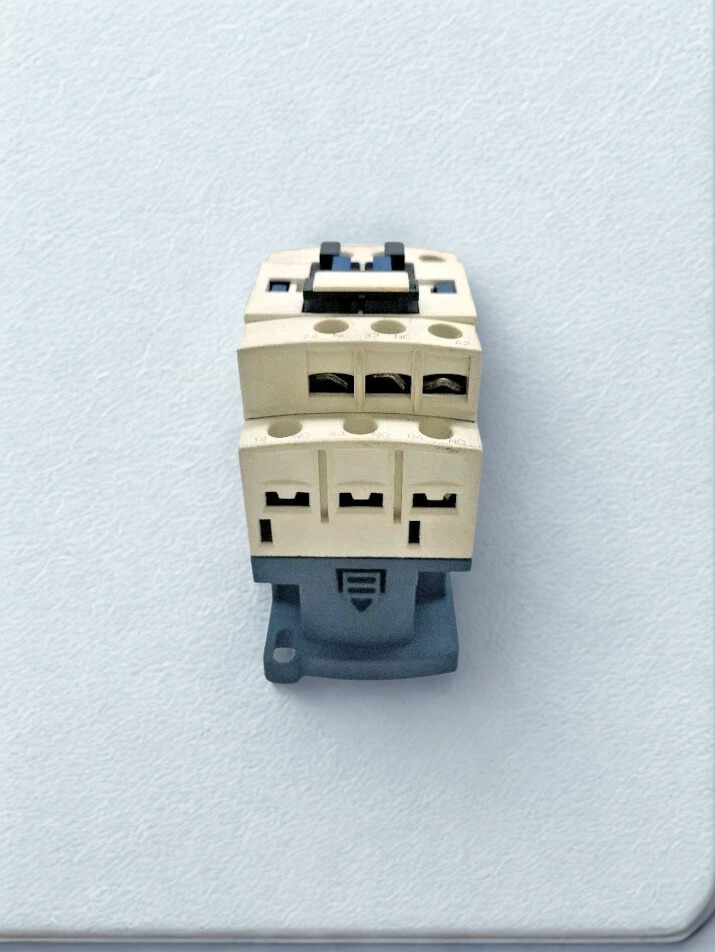

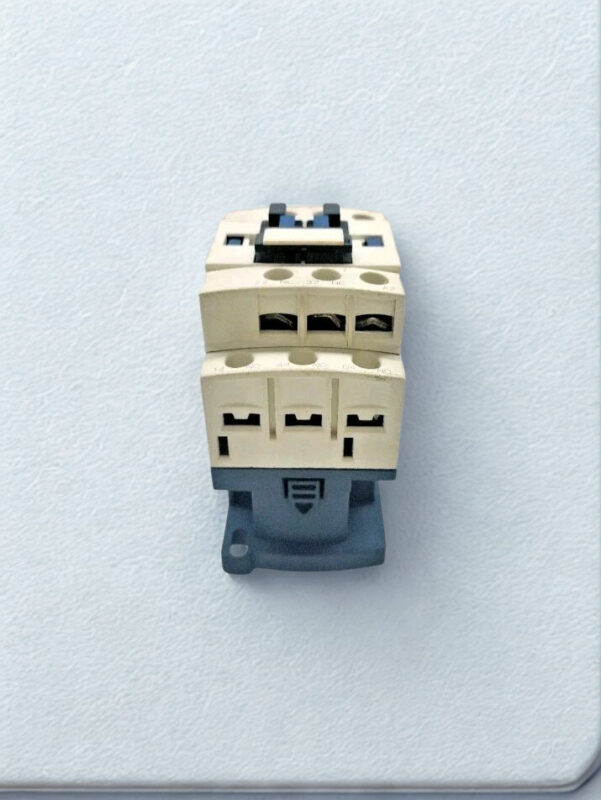

Schneider Electric CAD32 Contactor 110V 50/60Hz Coil

The Schneider Electric CAD32 Contactor with a 110V 50/60Hz coil is a reliable way to operate motor and industrial automation circuits. This TeSys Deca series relay can switch reliably up to 10A at 690V AC, making it perfect for OEM panels and maritime systems.

The CAD32 is made for controlling electromagnetic loads (AC-15/DC-13). It has 3 ordinarily open (NO) and 2 normally closed (NC) contacts and may be mounted on a DIN rail. Its worldwide AC coil lets it work well with all frequencies throughout the world without getting too hot. It works with TeSys D contactors and is easy to add on to with accessories for more complicated control logic.

Cad32 Schneider Technical Specifications

• Model: CAD32 (TeSys Deca Series)​

• Coil Voltage/Frequency: 110V AC, 50/60Hz​

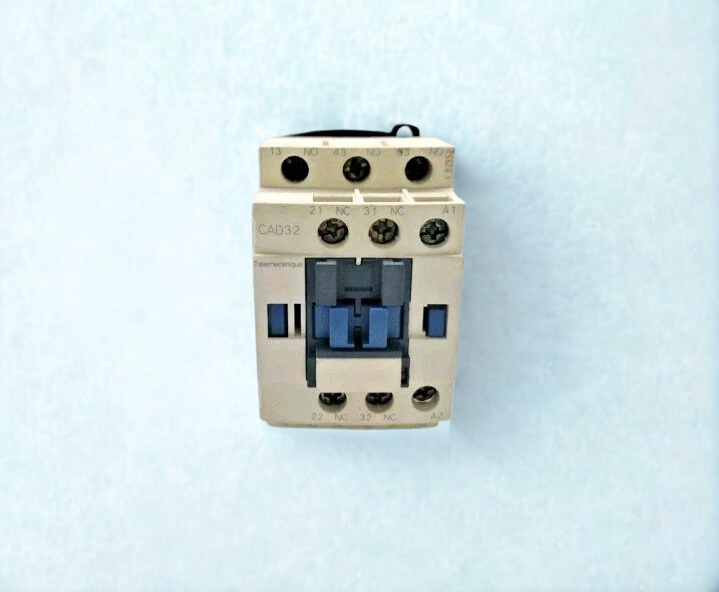

• Poles/Contacts: 3 NO + 2 NC (5-pole total)​

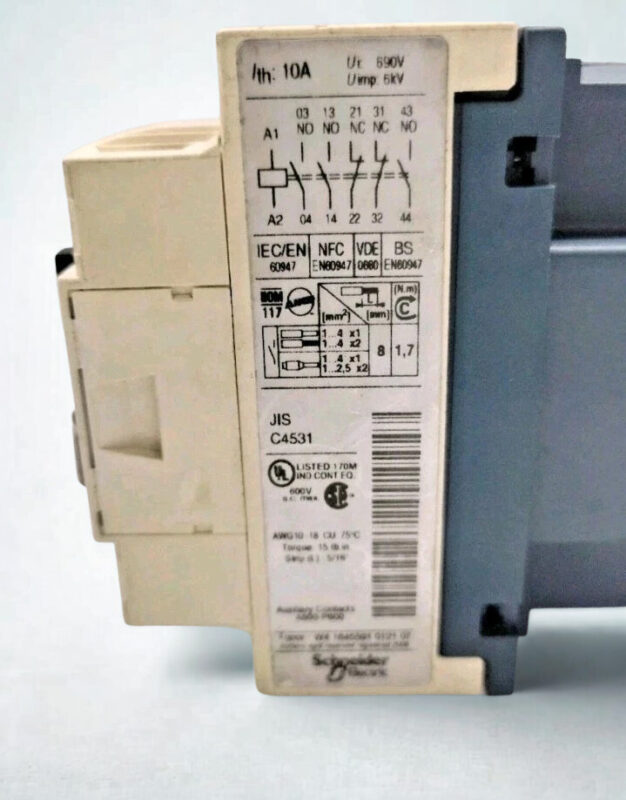

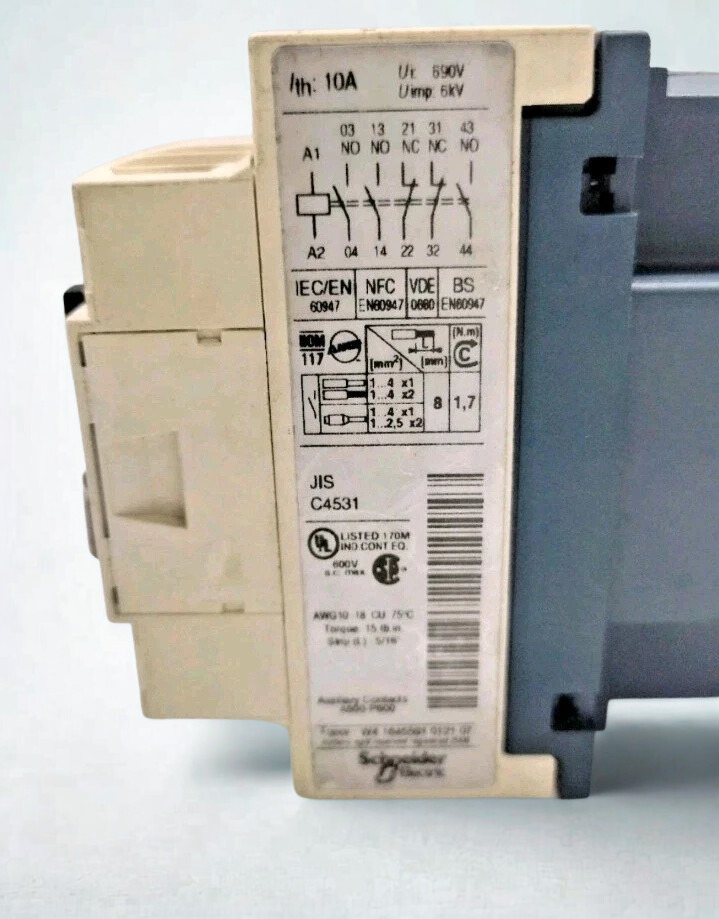

• Rated Operational Voltage (Ue): ≤690V AC​

• Conventional Thermal Current (Ith): 10A at 60°C​

• Rated Impulse Withstand (Uimp): 6kV (IEC 60947)​

• Making Capacity: 140A AC / 250A DC​

• Short-Time Withstand (Icw): 100A (1s) / 140A (100ms)​

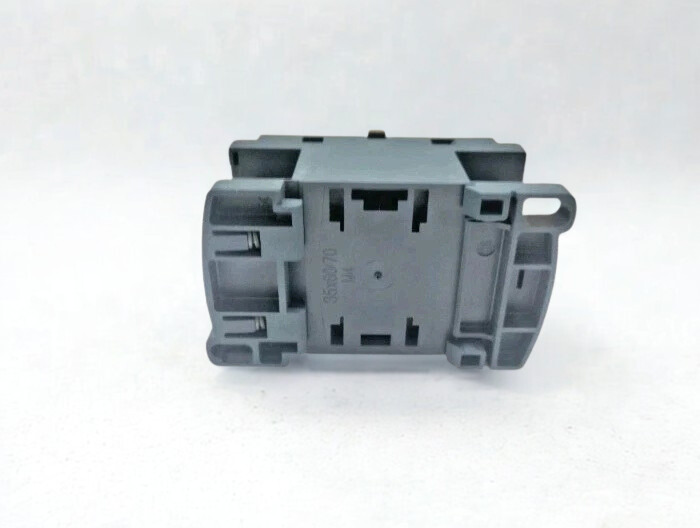

• Mounting: 35mm DIN rail or panel​

• Dimensions (H x W x D): 77 x 45 x 93 mm​

• Weight: 0.58 kg​

Key Functions of cad32 Schneider Contactor:

1) The 110V AC coil is flexible and has a low inrush power of 5.4W, so it can be connected directly to a PLC or timer without surges.

2) There is a 1.5ms non-overlap delay between NC and NO contacts, which keeps short circuits from happening when you switch.

3) It can handle 30 million cycles of mechanical stress and 180 cycles per minute of continuous industrial duty.

4) Screw clamp terminals can hold wires that are 1 to 4 mm² thick, which makes installations quick and easy with 1.2 Nm of torque.

5) Can be expanded to 11 poles with snap-on extras like timers, locks, or poles for custom automation.

.
