Schneider Electric LSS100200 SpaceLogic KNX Logic Controller Gateway

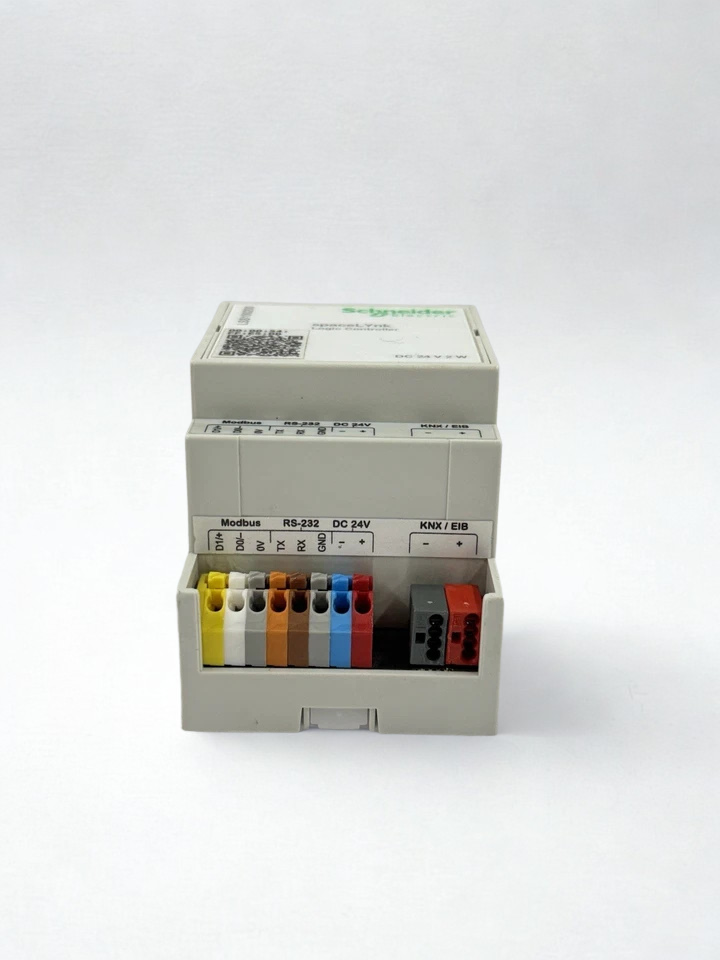

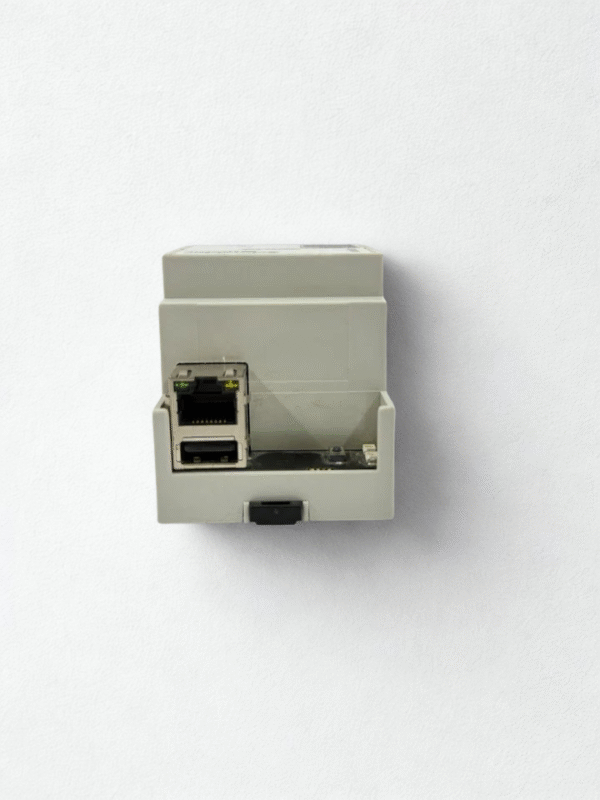

The Schneider Electric SpaceLogic KNX spaceLYnk logic controller, model LSS100200, is a tiny central controller and gateway for building automation projects of small to medium size. It connects KNX, Modbus, BACnet, DALI, and IP networks so that you can control, visualize, manage energy, and access it from anywhere with one DIN-rail device. ​

Description of LSS100200 spaceLYnk:

The LSS100200 spaceLYnk is the heart of a building management system. It enables you to control lighting, heating and cooling, shading, metering, and other KNX-based operations through web visualizations that can be accessed from PCs, tablets, and smartphones.

It has scripting, time schedules, trends, alarm management, and user-defined dashboards, so integrators may set up extensive automation scenarios and save energy without needing a separate BMS server. ​

The controller lets you securely access it from anywhere using HTTPS and VPN. It can handle up to 50 users and works with cloud and IoT services for remote monitoring and maintenance.

It is mounted on a DIN rail in the electrical panel and runs on 24 VDC. It has LED status lights and can be used in commercial, residential, and light industrial settings up to 2000 m high. ​

Specifications:

• SpaceLogic KNX and spaceLYnk logic controller LSS100200 are two of the products in this line
• Function: Logic controller, gateway, and web server for automating buildings (KNX, Modbus, BACnet, DALI, IP). ​
• Supply voltage: 24 V DC, usually from a REG/24 V DC/0.4 A power supply (MTN693003) or something like it

Linking:

• KNX TP bus connection
• Ethernet with IP LAN speeds of 10/100 Mbit
• USB 2.0 (for storage, 3G/4G modem, and EnOcean)
• Serial port RS-232
• For meters and field equipment, use Modbus (RS-485)

What the protocol can do:

• KNX server/gateway and visualization
• Modbus master provides a graphical interface for configuring numerous devices
• BACnet server that can export up to 150 items (more possible with recommended restrictions)

Users and objects:

• Up to 50 web users can access the site based on their roles (lower is usually better for performance)
• Trend logs that can store and show values for up to ten years

Web and visualizing:

• Web server that works with HTTPS
• Touch visualization and Touch Config environments with pages and widgets

Safety:

• Support for VPNs and encrypted communication over HTTPS
• Advice on how to split up your network and keep your public IP address hidden

Mounting and the environment:

• DIN-rail mounting, usually 3 modules wide, and IP20 for panel installation
• The normal height of a structure is up to 2000 m
