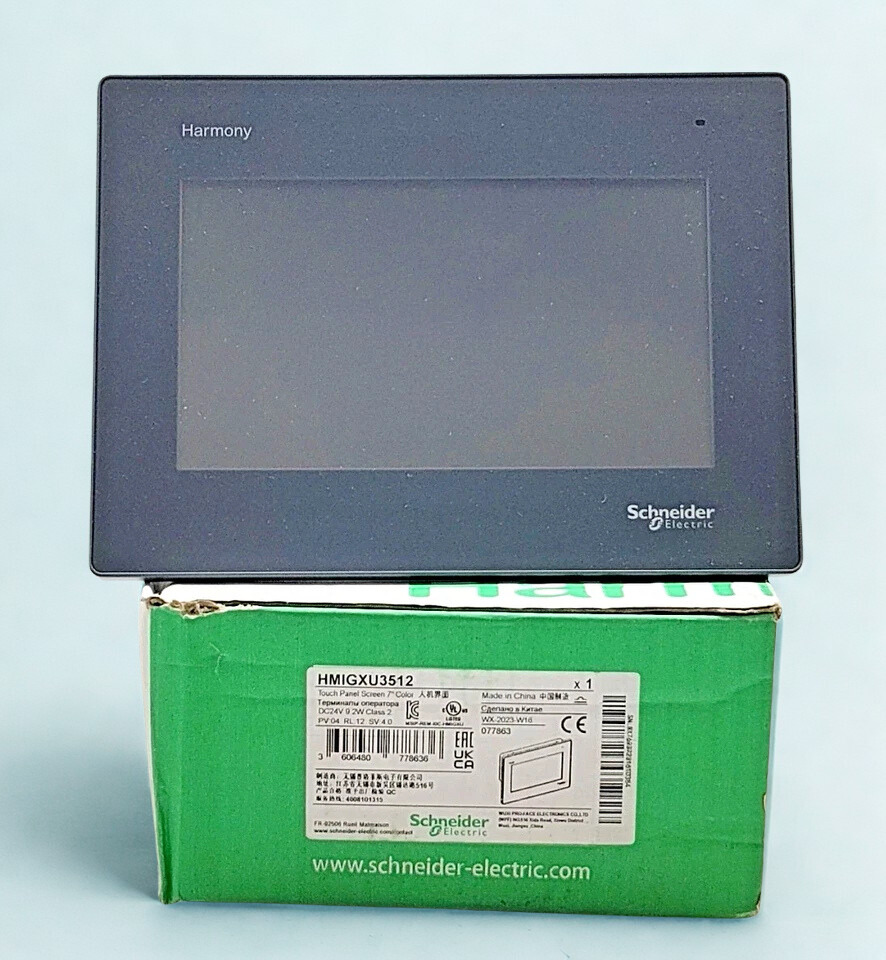

Schneider HMIGXU3512 7-Inch Touch Screen HMI Panel

The Schneider HMIGXU3512 is a 7-inch advanced touchscreen HMI panel from the Magelis Easy GXU series. It is reliable and works well for controlling machines and automating industrial processes. This universal model has sharp visuals and a wide range of connectivity options, making it perfect for keeping an eye on and running complicated systems in manufacturing settings.

The Schneider HMIGXU3512 touch screen has a bright 7-inch LCD display with 65536 colours and 800 x 480 WVGA resolution, so you can see things clearly and in great detail. It runs on 24 V DC and can be set up using Vijeo Designer Basic software. It has a built-in real-time clock (RTC) for accurate time-stamped actions. This HMI is great for tough environments because it has IP65 front panel protection, two serial ports, Ethernet, and USB connectivity. It can support application memory up to 48 MB. It was withdrawn in December 2024, and service will end in 2025. So make sure you have enough for reliable use in PLC integrations and SCADA systems.

Technical Specifications: HMIGXU3512 Touch Screen

Schneider HMIGXU3512 Features:

• A 7-inch WVGA touchscreen with 65536 colours that is easy to use and shows processes clearly in industrial environments.

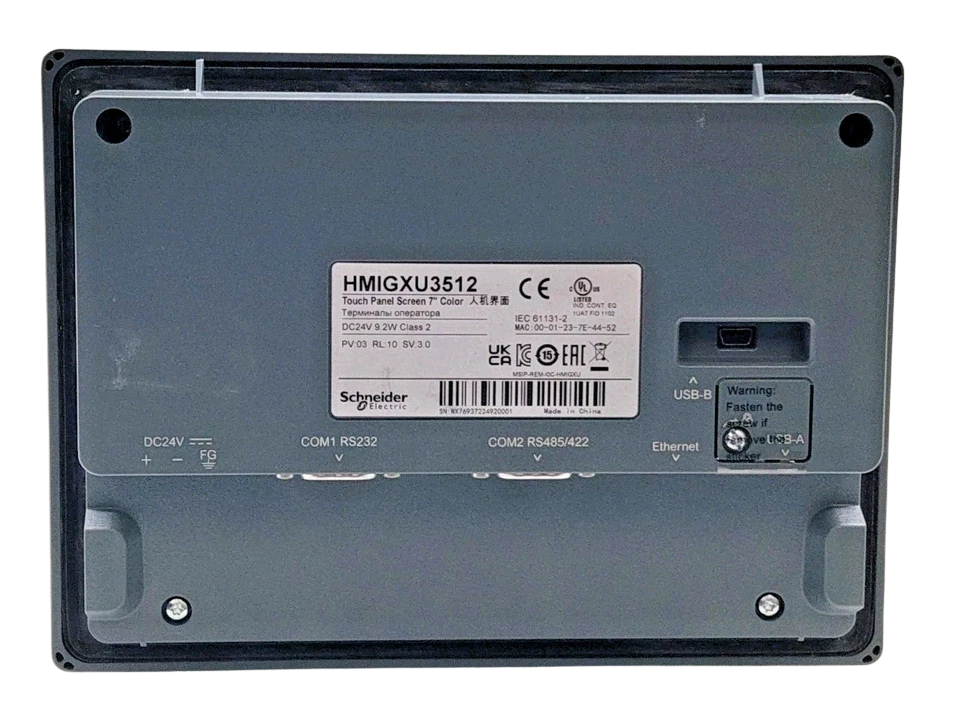

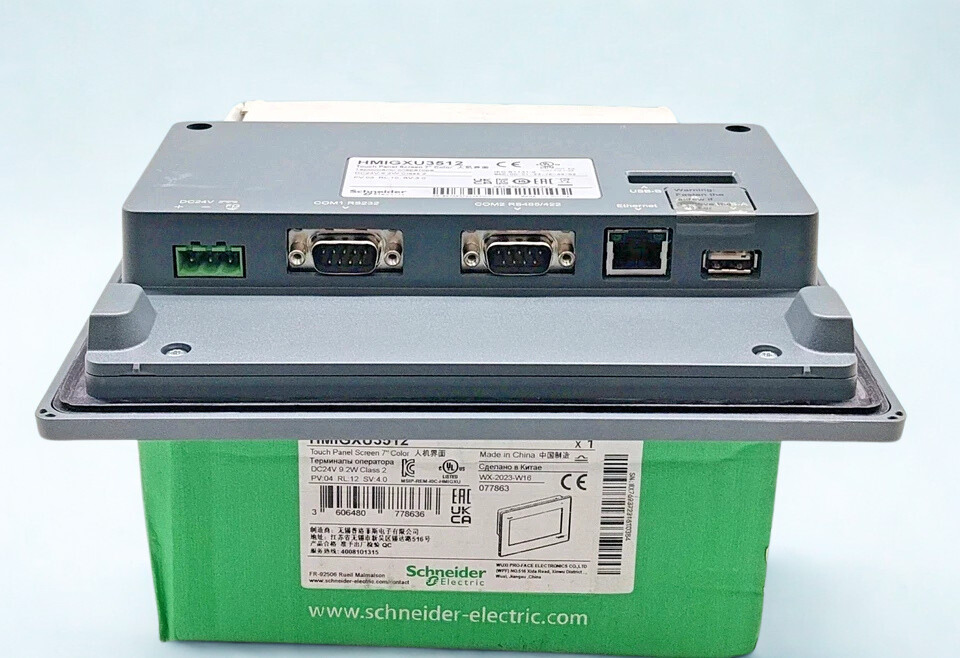

• It has Ethernet, two serial ports (RS232/RS485), and USB, so it can easily interface to PLCs, sensors, and networks
• The strong IP65-rated front panel can handle dust, water splashes, and tough industrial conditions for a long time.
• The built-in RTC and plenty of memory (48 MB for apps and 128 MB for DDR) let you log data that has to be done quickly and run complicated HMI apps without lag.
• ​The 24 V DC design is energy-efficient and has a backlight that lasts for 20,000 hours, making it possible for automation panels to run sustainably.

Schneider HMIGXU3512 Manual Guide

Download manual file

Applications:

-> Put the panel in a cut-out of 190 x 135 mm on control cabinets and use the included fasteners to make sure it stays in place.

-> Connect to a power source (24 V DC), Ethernet for network access, and serial ports to PLCs or other devices for data interchange in real time.

-> Use Vijeo Designer Basic on a PC to make and submit your own scripts, alerts, and interfaces using a USB flash drive.

-> During everyday operations, you may keep an eye on processes, send commands using touch gestures, and look at trends on the high-res display.
