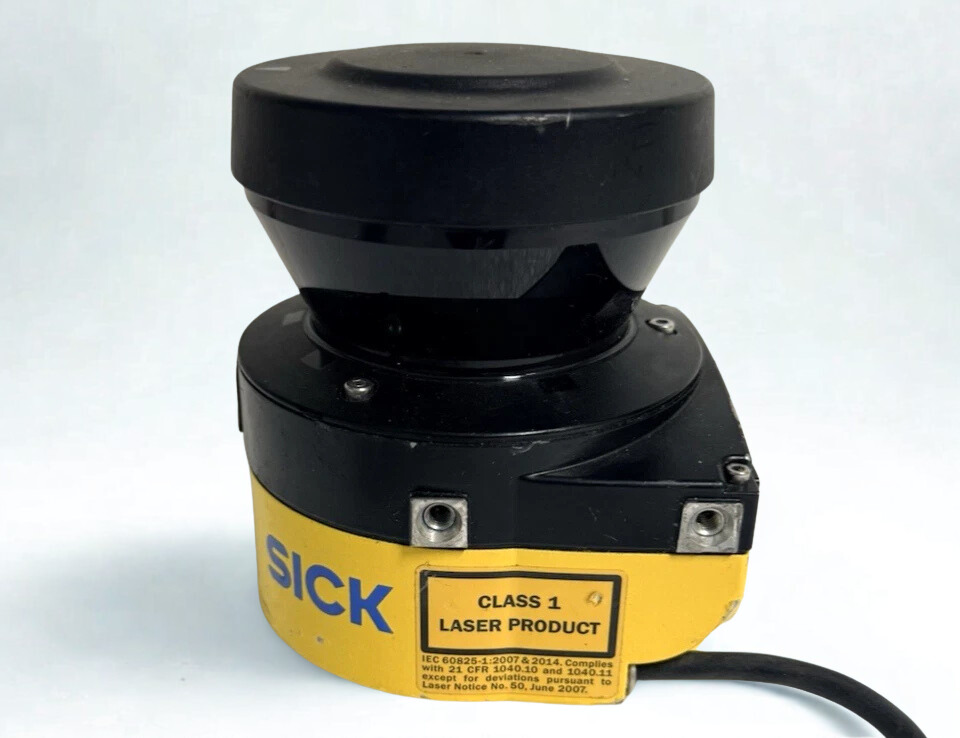

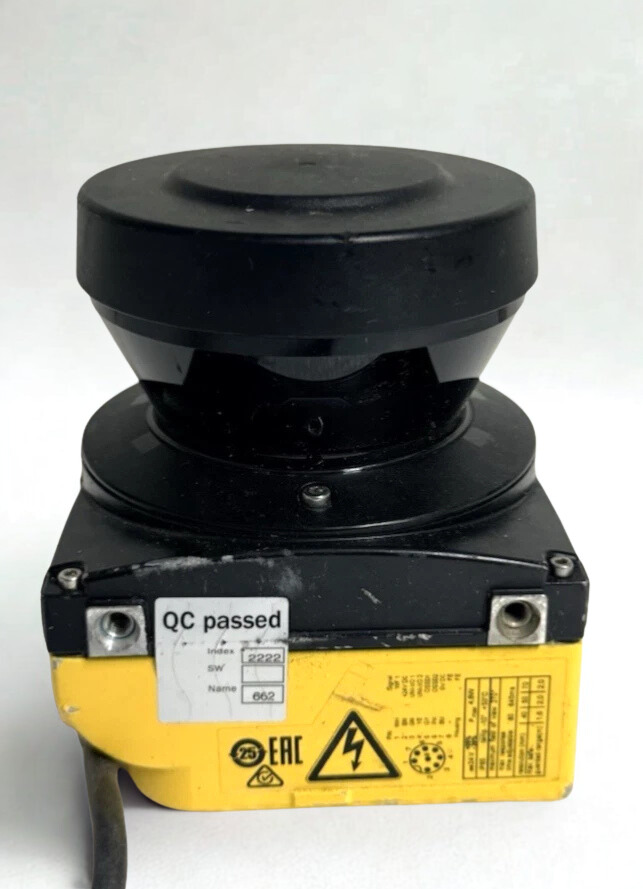

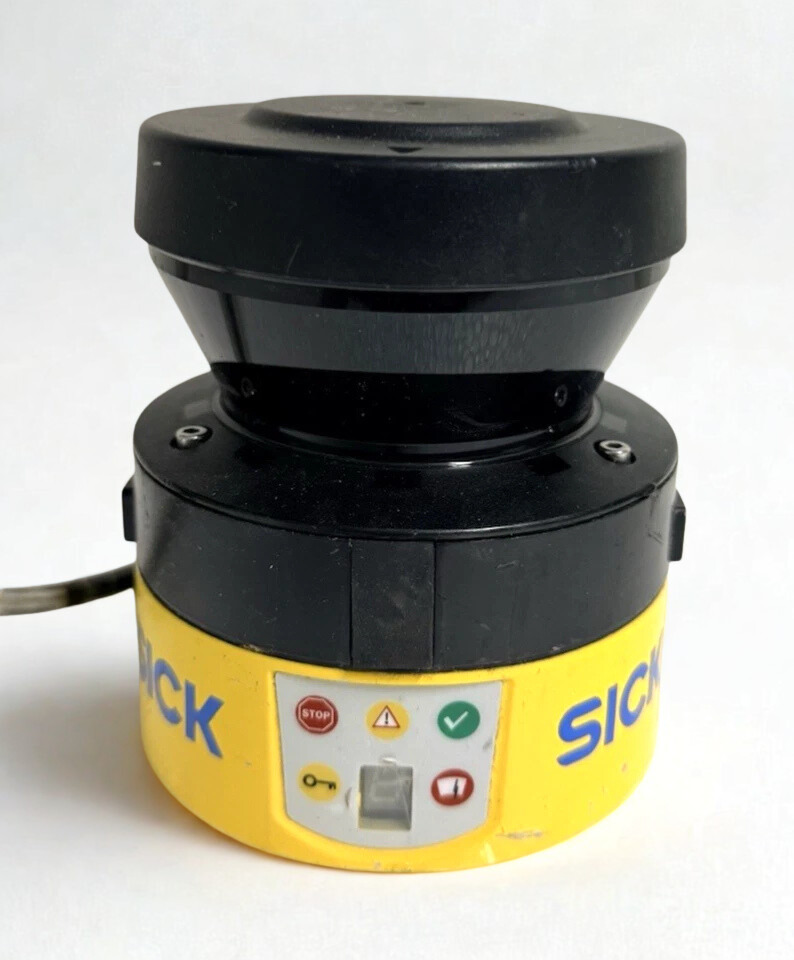

SICK S32B-2011BA Safety Laser Scanner – S300 Mini Standard

SICK S32B-2011BA Safety Laser Scanner – S300 Mini Standard Details:

The SICK S32B-2011BA safety laser scanner from the S300 Mini Standard series can help make the workplace safer by reliably finding hazards in industrial settings. It has a 2 m protective field, an 8 m warning field, and a 30 m measuring range across a 270° scan angle. It meets Type 3/SIL2 standards and has a PL d safety level. With configurable resolutions from 30 to 70 mm and an 80 ms response time, you can be sure of accurate monitoring.

Other features include external device monitoring (EDM), restart interlock, and contour reference. It has an IP65 enclosure, an aluminum housing, and can work in temperatures from -10°C to +50°C. It runs on 24 V DC and connects with an M12 cable for easy integration. This small unit (102x116x105 mm) weighs only 0.8 kg and is perfect for protecting machinery, AGVs, and access points. It has the least amount of cables and the most coverage, making it great for automation, manufacturing, and logistics.

Key Specifications

What are the advantages of SICK S32B-2011BA Safety Laser Scanner

1. Compact design effortlessly accommodates confined spaces.
2. A 270° scan encompasses the entire area with two units.
3. Adjustable resolution ranging from 30 to 70 mm for versatility.
4. Rapid 80 ms response guarantees prompt hazard identification.
5. The IP65 rating endures dust and moisture in severe conditions.
6. Minimal power consumption and SIL2 safety enhance reliability.

Usage in Industry:

• Protects entry points to machines in a horizontal or vertical orientation.
• Safeguards automated guided vehicles (AGVs) used in automated manufacturing and storage facilities.
• Ensures the safety of personnel by monitoring robotic cells.
• Protects the boundaries of indoor hazardous areas.
• Protects assembly line equipment from unauthorized access.
