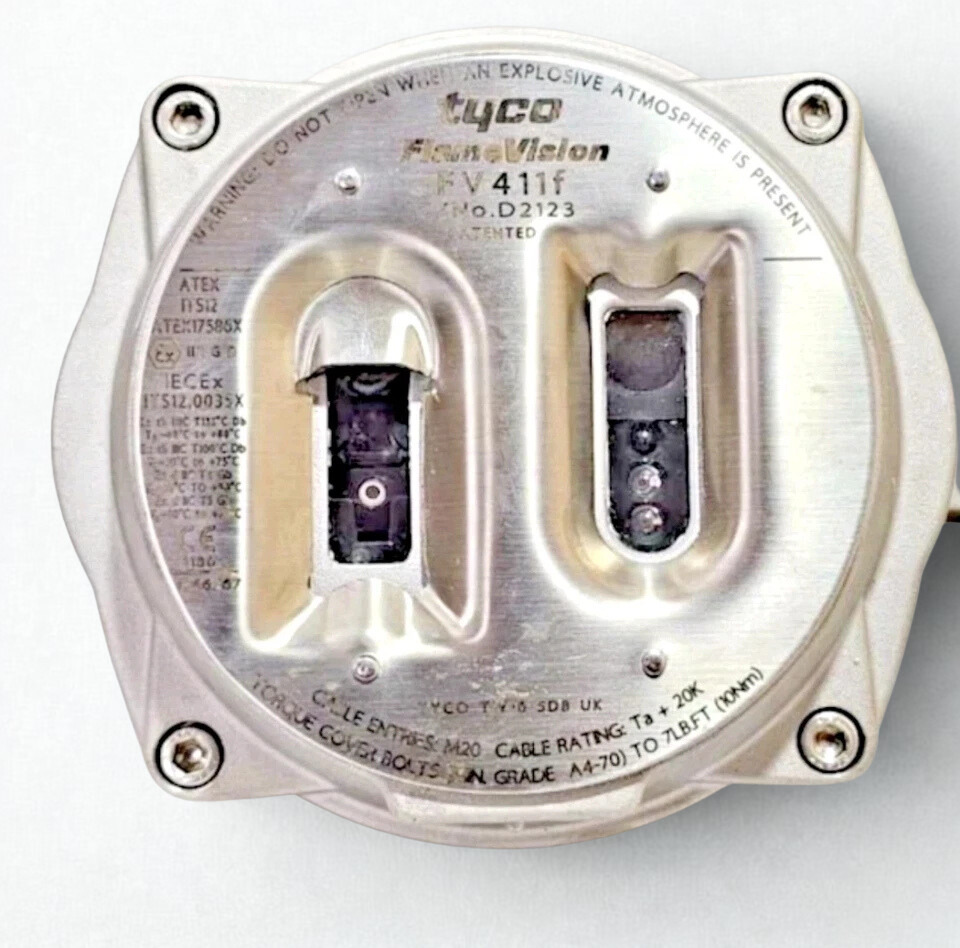

Tyco Flame Vision FV411F Triple IR Flame Detector (Nuovo Senza Scatola)

The Tyco Flame Vision FV411F (Nuovo Senza Scatola) is a flame detector that works well for finding hydrocarbon fires, especially in industrial and marine settings. It is part of the FV400 series and refers to the model without a built-in camera (FV411f). This model is best for situations where visual confirmation is not needed.

Technical Specification:

Tyco Flame Vision Fv411F Key Features

-> Triple IR sun blind sensing system for reliable and highly sensitive flame detection. ​

-> For a 0.1 m² n-heptane pan fire, the detection range is up to 65 meters. ​

-> Automatic monitoring of the optical route and built-in flame simulation to lower maintenance expenses. ​

-> A wide field of view: 90° horizontally and 85° vertically. ​

-> Immunity to false alarms and the capacity to see fires through thick clouds of solvent fumes and black smoke. ​

-> There are four field interfaces: a 4–20 mA current loop, an MX loop, a MODBUS (RS485) loop, fire and fault relays, and a standard interface. ​

-> Optional video verification with a built-in flameproof camera (not included in the FV411f variant).

Where to Use?

• Designed for environments with high risk of hydrocarbon fires, such as petrochemical plants, refineries, and marine installations.​

• The FV411f model does not include an integrated camera, making it suitable for applications where only flame detection is required, without the need for visual confirmation.​

• The detector is highly configurable, with options set via DIP switches and advanced settings via FV Consys software.
