Siemens XDLC CARD S54430-B8-A1 Interface Card X Series | Fire Alarm Loop Card

The Siemens XDLC INTERFACE CARD X SERIES – S54430-B8-A1 is a smart device loop card made for fire safety systems. It is meant to connect addressable, smart devices in modular fire alarm systems like the Cerberus PRO and Desigo Fire Safety Modular systems.

SIEMENS XDLC S54430-B8-A1 Product Overview:

• Model: XDLC (S54430-B8-A1)
• Company that makes it: Siemens Industry, Inc.
• Type of product: device loop card, interface card
• X Series (Class X)
• Use: Fire alarms and safety systems, modular control panels ​

Specifications

-> Can handle up to four (4) Class A or eight (8) Class B addressable circuits

-> Each card can connect to up to 252 devices, such as detectors, manual stations, relays, audible bases, remote lamps, duct-detector housings, and more.

-> SureWire technology makes it easy to install and set up because it doesn’t care about polarity.

-> One card slot needed (works with CC-2 or CC-5 card cages)

-> Based on a microprocessor, it can isolate zones and find ground faults.

-> The front panel has 16 LEDs for diagnostics, one reset switch, and three HNET address switches.

-> Power use: 100mA in standby and 1.4mA per device; device loop max is 500mA at 30VDC (power-limited) ​

Functions and Features

• Works with Siemens addressable, smart X and H-series devices
• Sends device and event information (Alarm, Trouble, Supervisory) to the control panel
• Oversees device loop circuits and makes sure they work poorly if communication fails.
• Programming with the Zeus-C tool for the Cerberus PRO Modular system
• Allows for remote setup and troubleshooting
• Can only be fitted in one direction; screws that stay in place for secure mounting ​

Details about the physical and operational aspects

-> Weight: about 5 pounds

-> Status of Production: Active

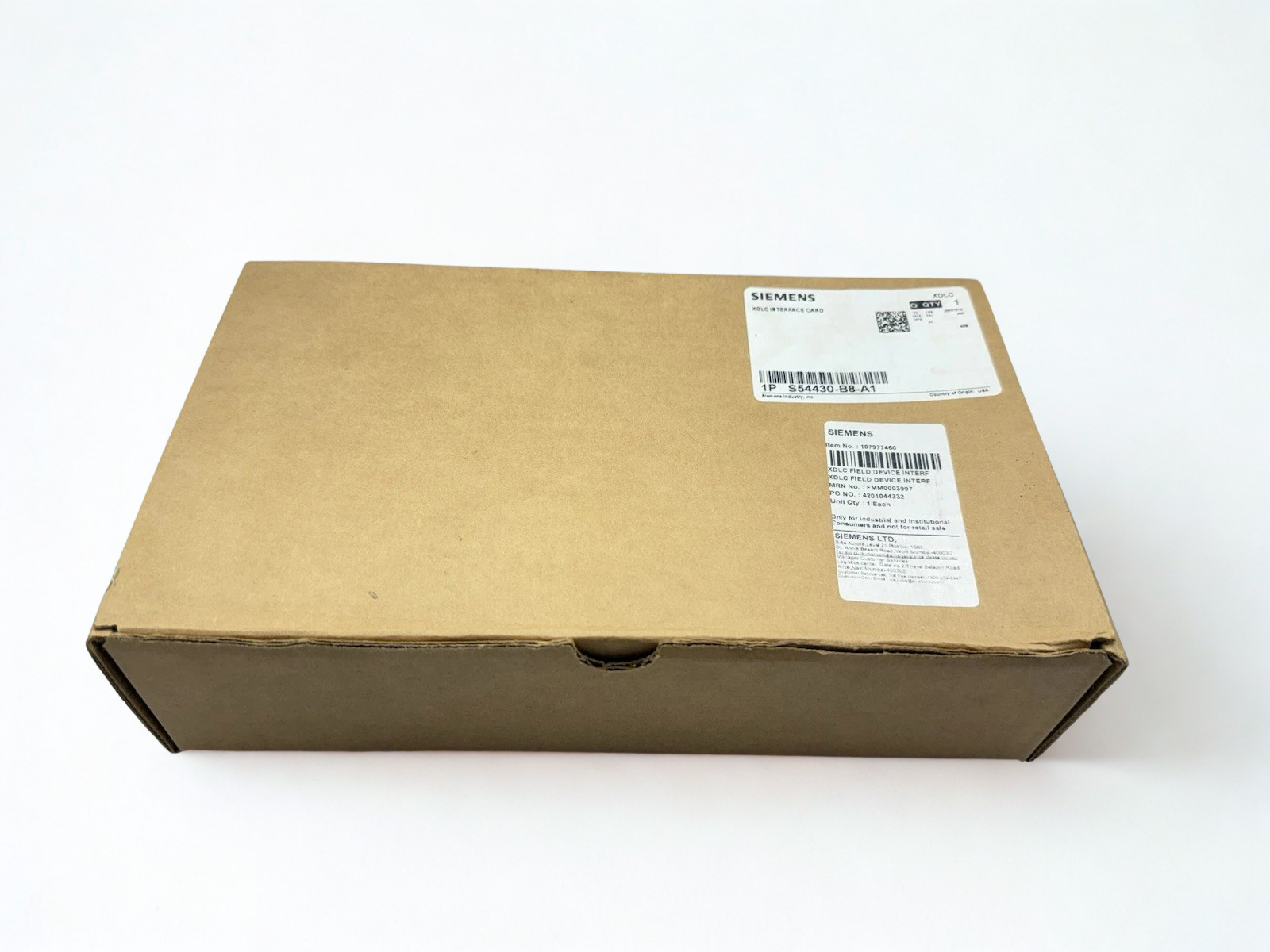

-> Size of the packaging: 27.94 x 16.51 x (height not given)

-> AL: N / ECCN: 3A991X for export control ​
