Allen Bradley 2711-K6C9 PanelView 600 Color Keypad HMI | Series B

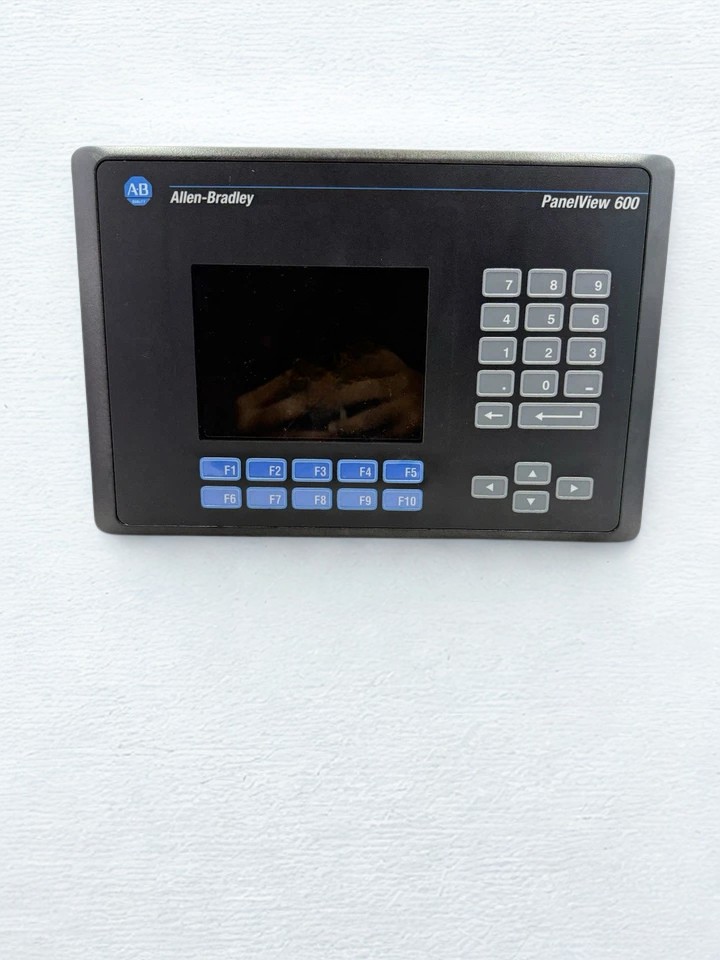

Allen Bradley 2711-K6C9 PanelView 600 Color Terminal

The Allen Bradley 2711-K6C9 serves as the primary human-machine interface for local control in marine power distribution and auxiliary systems. It facilitates real-time data visualization and parameter adjustment for SLC 5/04 controllers via the RS-232 (DH-485 protocol) communication port. This unit integrates directly with Honeywell Safety Manager architectures and Schneider Acti9 distribution boards to monitor 4-20mA sensor loops and breaker statuses across the vessel’s automation network.

Operational reliability is defined by the hardware’s resistance to 60Hz grid harmonics and transient voltage spikes common in isolated marine power plants. The Series B internal power supply is designed to filter electrical noise from heavy inductive loads like bow thrusters or large compressor motors. The IP65 rated front bezel prevents ingress from 95% non-condensing humidity and oil mist typically found in lower engine room plates. The physical keypad provides tactile feedback for operators wearing standard Class 0 electrical safety gloves during heavy sea states.

Technical Specifications

Scheduled Maintenance Protocol

• To clean the 5-inch active matrix TFT display, use a cloth that doesn’t leave lint and is anti-static. This will keep the salt from building up in one place and getting hot there.

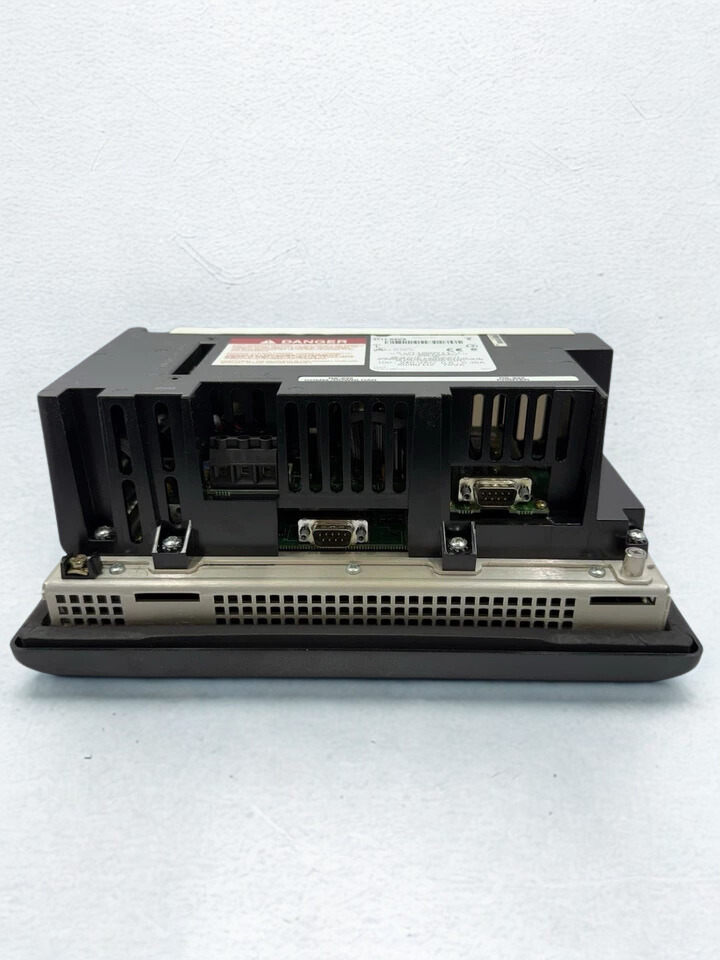

• Check the RS-232 (9-pin D-shell) connector for pin oxidation with a 10x jeweler’s loupe. This will make sure that the signal is clear.
• To retain the NEMA 4X seal against the console, use a calibrated torque driver to tighten the rear mounting clamps to 1.5Nm.
• Use a Fluke 87V True-RMS multimeter to check the 24VDC supply voltage at the terminal block to see whether there is any ripple voltage.
• Use the PanelBuilder32 software to save the current PVA runtime application file to a drive outside of your computer.
• Use an insulator that can handle 500V.

Our Engineer’s Insights:

Addressing Latent Failure: Ribbon Cable Fretting

Vibration from medium-speed diesel engines at specific RPM ranges causes microscopic movement in the internal ribbon cables. This leads to “fretting corrosion” at the contact points between the logic board and the display driver. You will see this manifest as intermittent “ghosting” or vertical lines on the 5-inch screen. To mitigate this, apply a thin layer of DeoxIT Gold to the cable headers during the five-year survey. This prevents the formation of non-conductive oxides caused by constant engine harmonics.
