Honeywell CC-PDIL01 | 51405040-175 Digital Input 24V Module

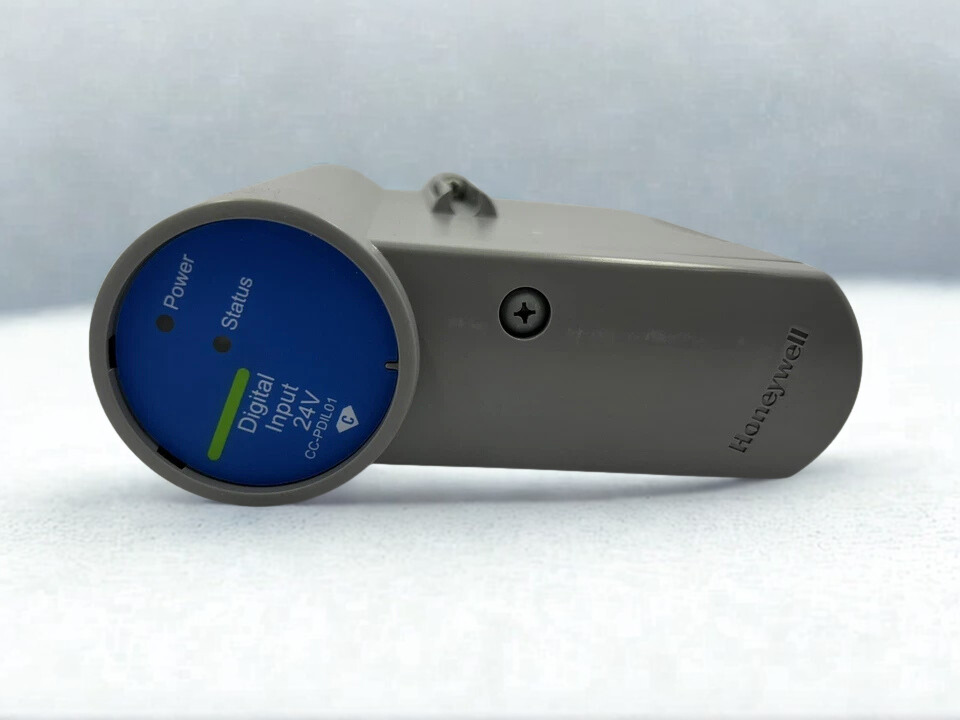

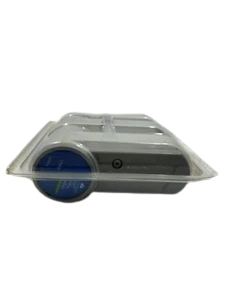

Honeywell CC-PDIL01 Digital Input Module (24V DC)

The Honeywell CC-PDIL01 (Part Number: 51405040-175) is a digital input module that runs on 24V DC and has a lot of density. It was built only for the Honeywell Experion PKS (Process Knowledge System) Series C I/O architecture. This module, which is not differential, allows discrete field-level sensors such as limit switches, pushbuttons, and relay contacts to connect to the C300 Controller. It should sit on an Input Output Termination Assembly (IOTA), which makes it easy to collect data for important marine and industrial control loops.

The CC-PDIL01 is the main way that marine power and control systems (PMS) can pick up on things in the engine room. It connects directly to Honeywell Safety Manager and distributed control networks so that it can keep an eye on the state of the emergency stop circuits, valves, and breakers. It turns 24V field signals into digital logic so that the vessel’s central processing unit can get real-time telemetry from Schneider Acti9 distribution boards and other machines without any delays or loss of signal quality.

Technical Specifications

Key Industrial Applications

• Power Generation: Status monitoring for breakers and turbine trip signals.
• Chemical Processing: Integration with level switches and discrete pressure sensors in hazardous zones.
• Water & Wastewater: Monitoring flow switches and pump start/stop feedback signals.
• Safety Systems: Interfacing separate safety signals for Emergency Shutdown (ESD) within the larger control system.
