Wilden M4 Diaphragm Pump T4/AAMAB/NES/NE/NE/0014 Aluminum
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions

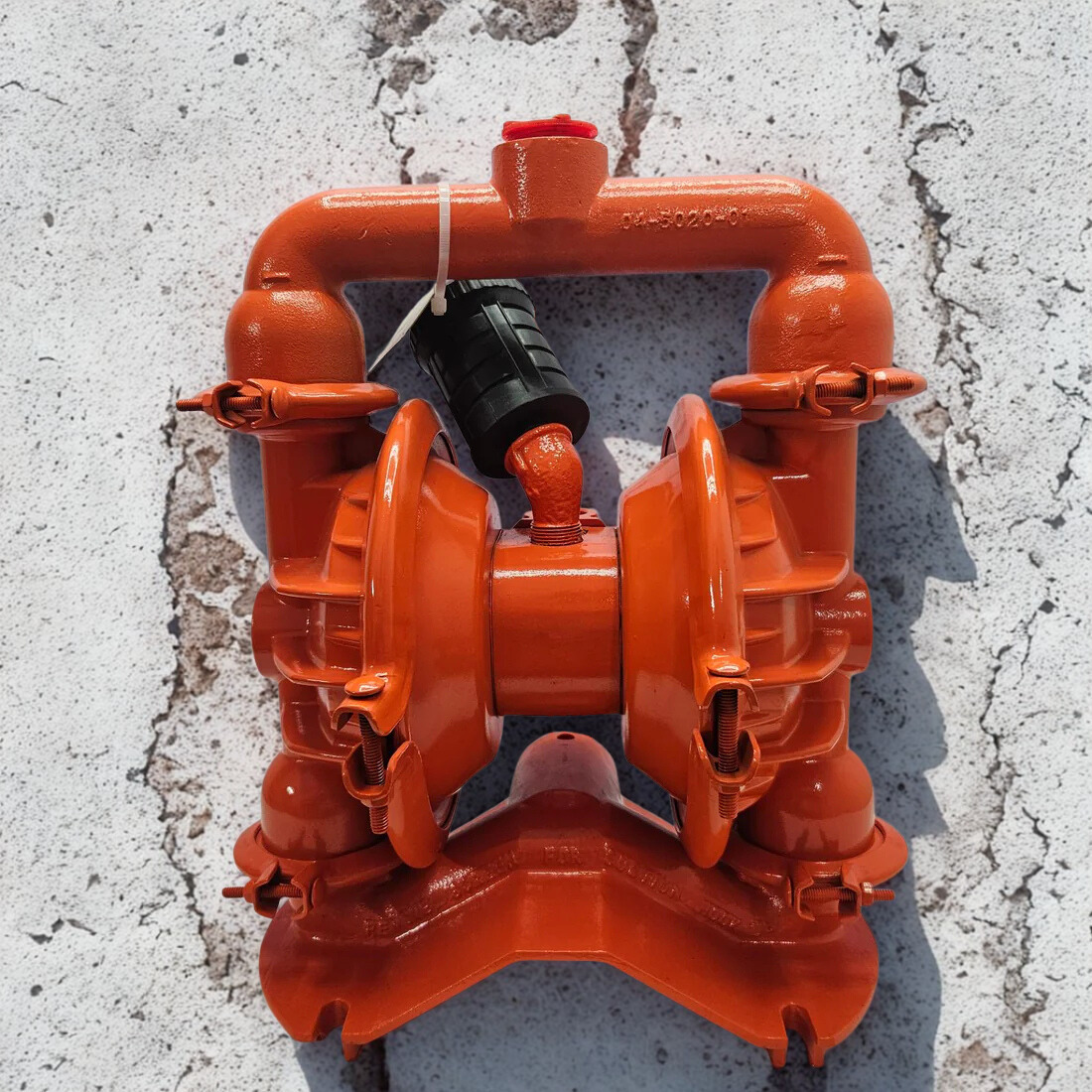

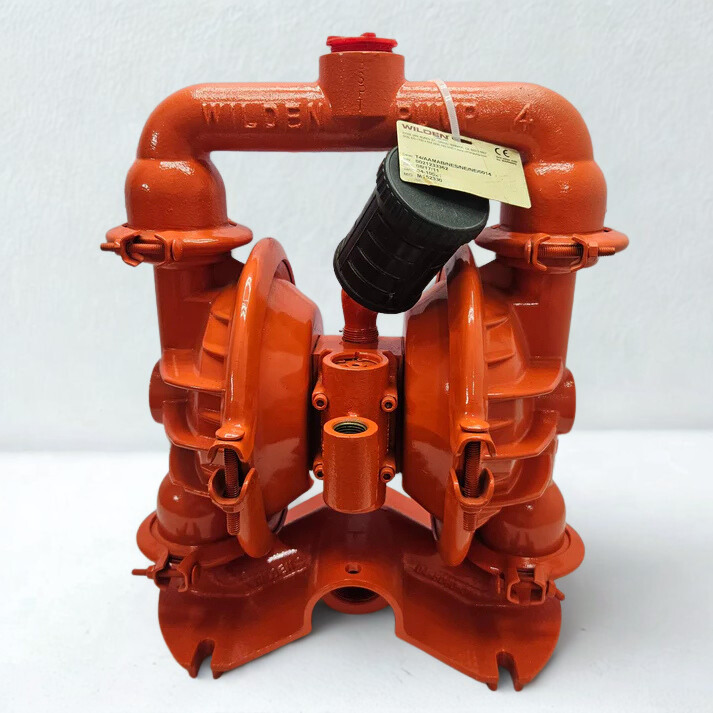

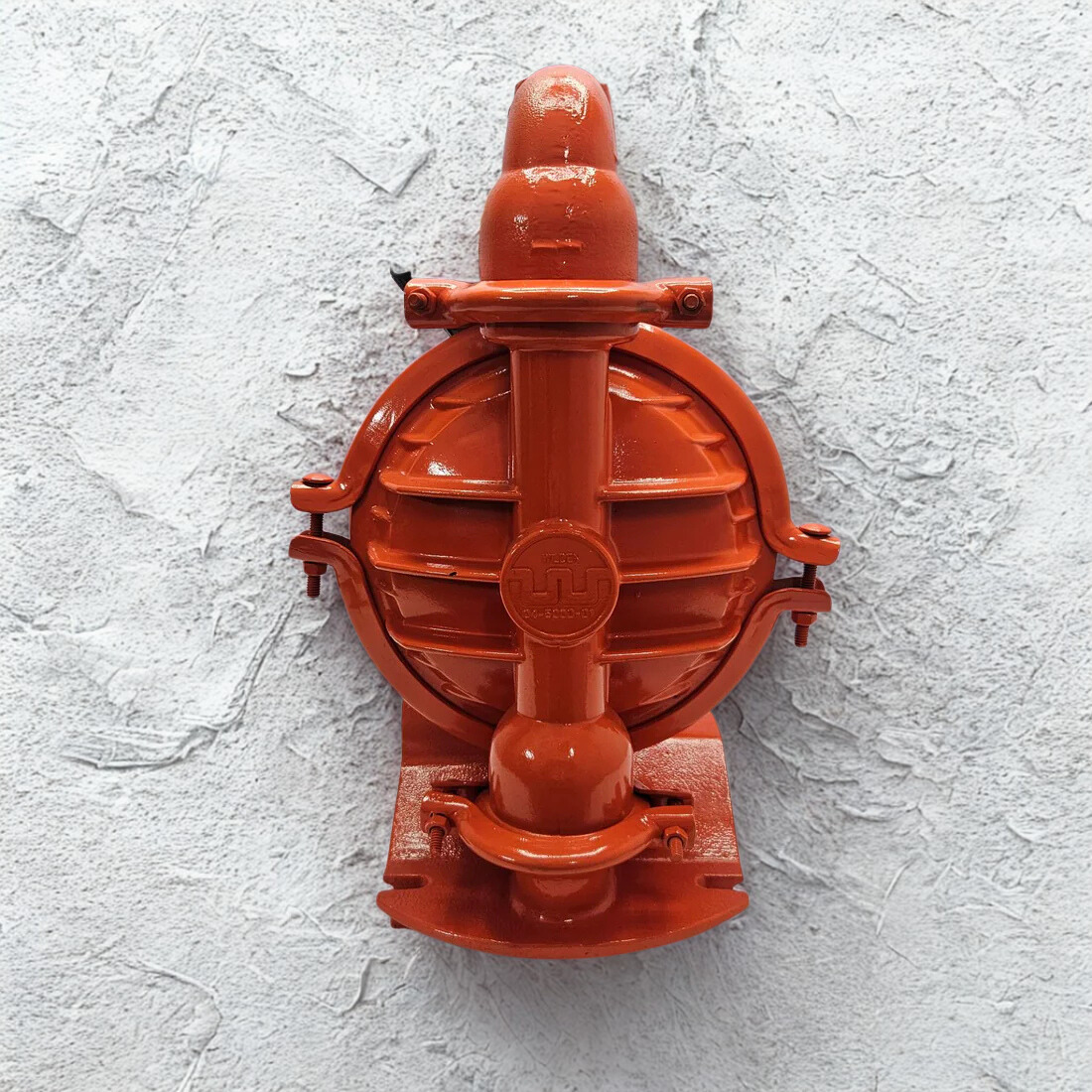

Wilden M4 Diaphragm Pump Details:
The Wilden M4 (T4 series) is a clamped metal utility pump with aluminium wetted parts, Neoprene diaphragms, balls, and seats that make it chemical-resistant and long-lasting. It has a Turbo-Flo air distribution system and a brass air valve, so it can self-prime quickly without any parts that could wear out. Perfect for moving chemicals, paints, slurries, and wastes that are rough at 288 lpm (76 gpm) at 8.6 bar (125 psi). The 0014 setup has 38 mm (1-1/2″) BSPT ports that can be used in many different industrial settings. It weighs only 17.5 kg, so it’s easy to install and keep up using ordinary repair supplies.
| Specification | Details |
|---|---|
| Model | T4/AAMAB/NES/NE/NE/0014 ​ |
| Port Size (Inlet/Outlet) | 38 mm (1-1/2″) BSPT inlet, 32 mm (1-1/4″) outlet |
| Max Flow Rate | 288–307 lpm (76–81 gpm) |
| Max Operating Pressure | 8.6 bar (125 psi)Â |
| Max Solids Size | 4.8 mm (3/16″) ​ |
| Displacement per Stroke | 1.02–1.17 L (0.27–0.31 gal) |
| Suction Lift | 5.49 m (18′) dry / 8.53 m (28′) wet |
| Wetted Parts | Aluminum ​ |
| Diaphragms/Balls/Seats | Neoprene ​ |
| Air Valve | Brass ​ |
| Weight | 17.5 kg (38.6 lbs) |
Advantages:
- Turbo-Flo air distribution keeps everything running smoothly without needing lubrication.
- It can self-prime up to 8.5m of wetness and handle dry suction lifts up to 5.5m for flexible installation.
- Ability to dead-head without causing damage, perfect for relieving pressure and protecting the system.
- Shear-sensitive fluid handling with a delicate touch that keeps chemicals or paints from breaking down.
- Standard repair kits make it easy to keep up with; bolted structure makes it easy to take apart.
Industry Applications
- Using chemicals and moving them around
- Glues, paints, and fillers​
- Dealing with wastewater and slurry​
- Food and drinks (with the right elastomers)​
- Mining, building and making pottery
