45RM4-1000 Flame Scanner IR Flame Detector

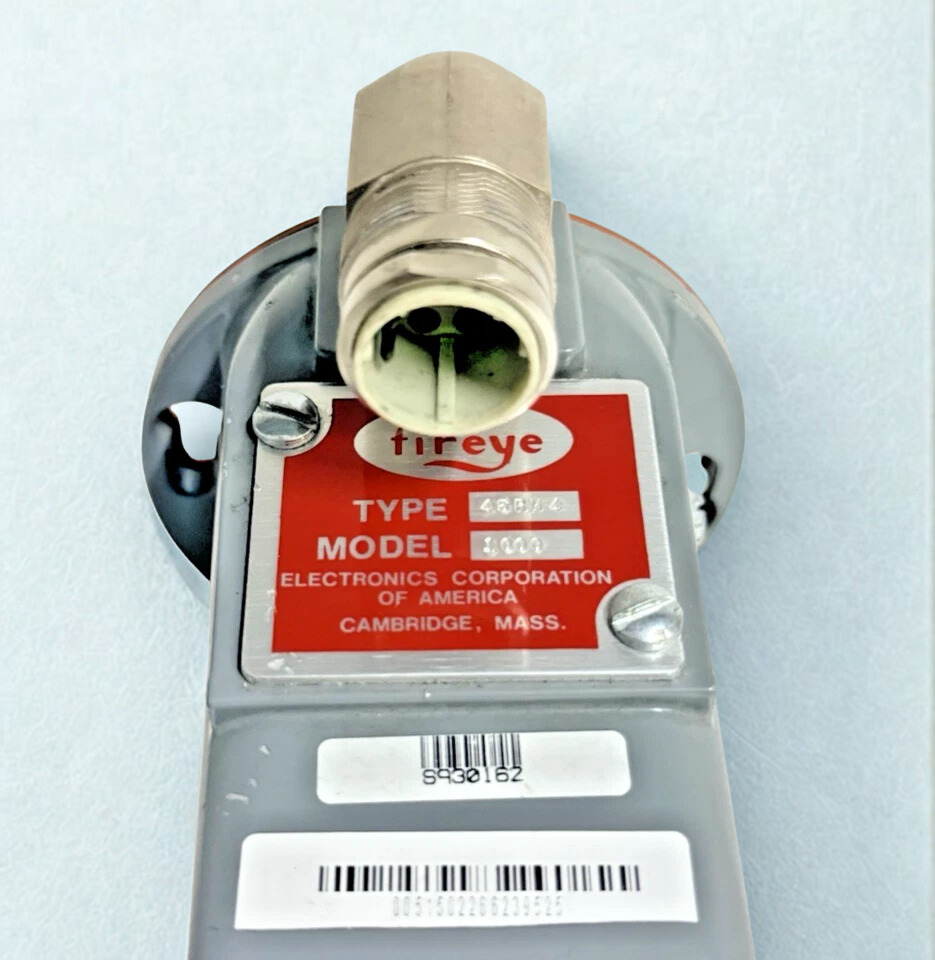

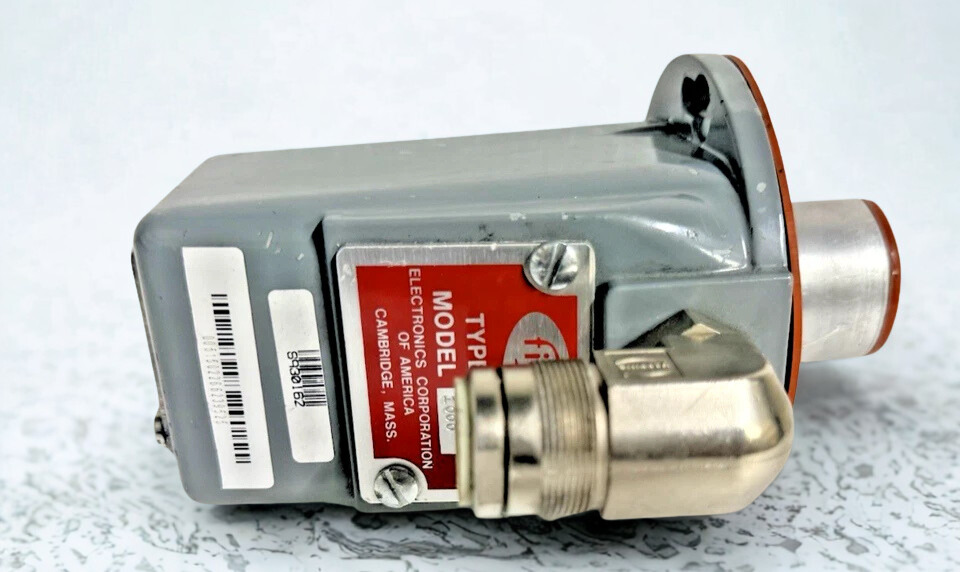

The Fireye 45RM4-1000 Flame Scanner is an infrared flame detector that checks itself. It is made to keep an eye on gas, oil, and coal-fired burners in industrial ovens and boilers all the time. It has a die-cast aluminum body with a lens, a solid-state lead sulfide IR detector, and frequency-tuned circuitry that correctly detects flames and tells the target flame from background radiation.

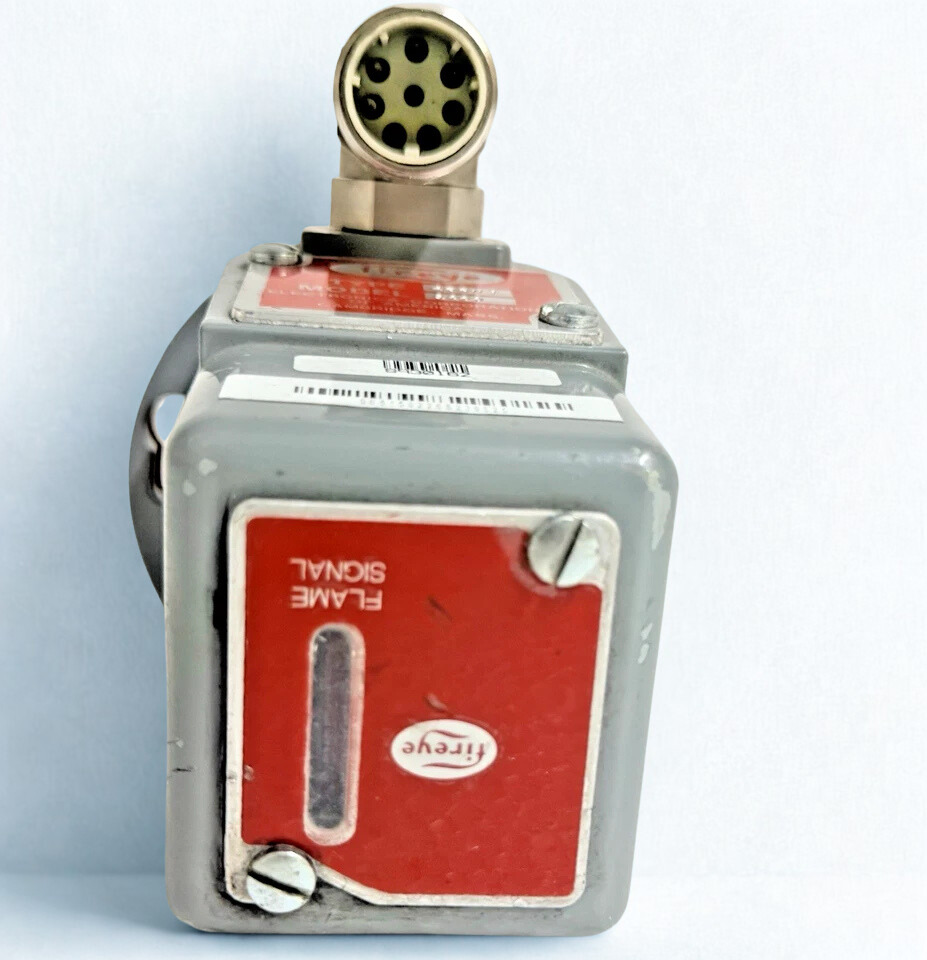

You can tune the scanner to the flame’s “flicker” frequency with a 16-position frequency selection. This makes it easier to find low-NOx, pulverized coal, and natural gas burners. The built-in 10-segment LED bargraph shows the strength of the flame signal in real time, which makes sighting, alignment, and commissioning easier.

The 45RM4-1000 works with Fireye flame safeguard controls that are compatible with it to provide automatic ignition supervision and flame failure protection for setups with one or more burners. An internal electronic shutter does constant self-checking, making sure that the scanner and signal circuits are checked while they are working and allowing for fail-safe shutdown in case of a problem.

Where to Use?

• Boilers and utility furnaces that make power and use gas, oil, or coal burners.
• Industrial process heaters, kilns, and furnaces that need constant flame monitoring.
• On big industrial boilers, there are multi-burner burner-management systems.
• Low-NOx and high-turbulence burners where it is very important to be able to tell the difference between flames based on their frequency.
• Hazardous or demanding settings when used with EX/CEX housings and ATEX-type versions.

Advantages:

1. The electronic shutter allows for continuous inspection of the detector and signal path, ensuring safety integrity during self-checking operation.
2. The use of frequency-tuned infrared sensing and adjustable flame flicker bands allows for high discrimination between background radiation and the target flame.
3. Diverse burner designs can be used with a wide range of fuels, including oil, pulverized coal, natural gas, and natural gas.
4. Quickly align, set up, and troubleshoot using the included 10-LED flame strength bar graph.
5. Built to withstand the rigors of industrial settings, this device’s die-cast aluminum body is both sturdy and versatile.
6. For burner management systems that use Fireye 25SU and similar flame safety controls, it works.
