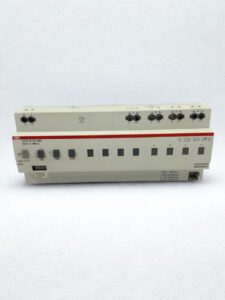

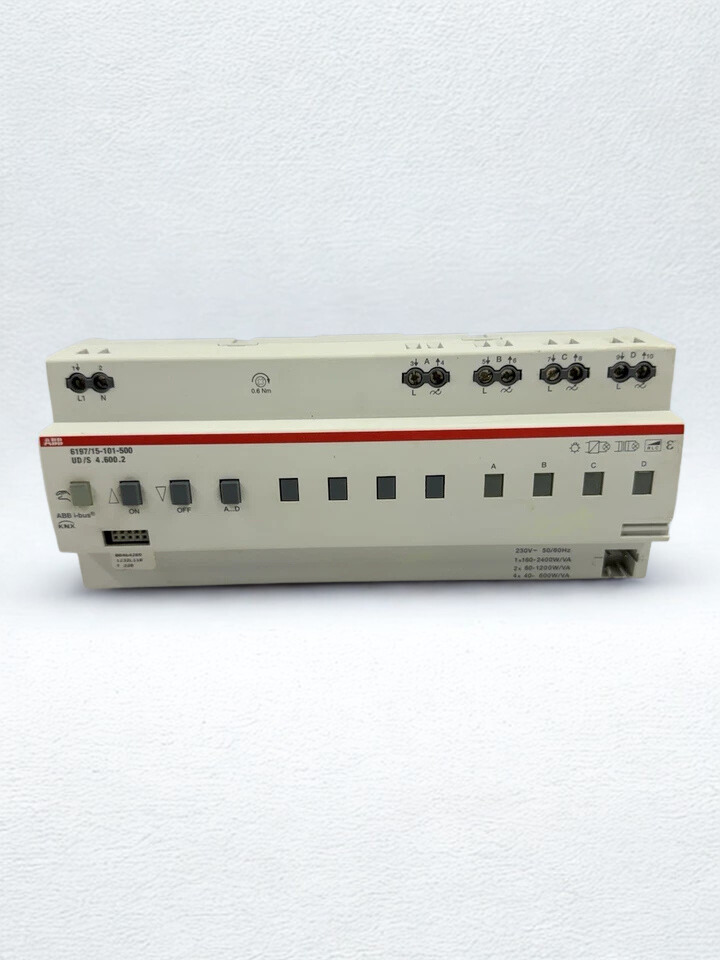

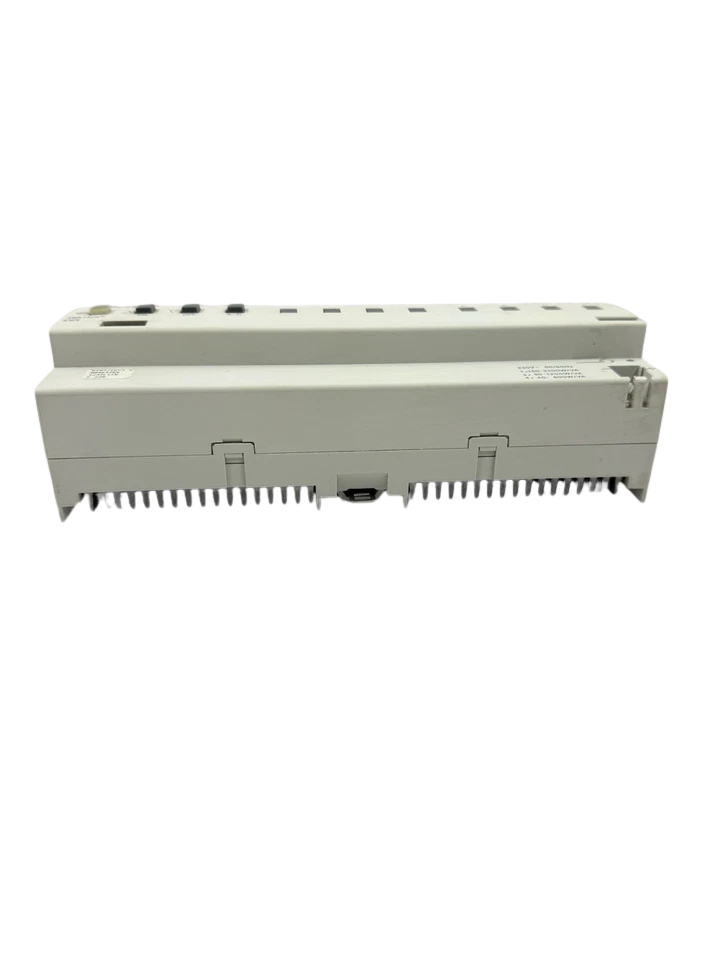

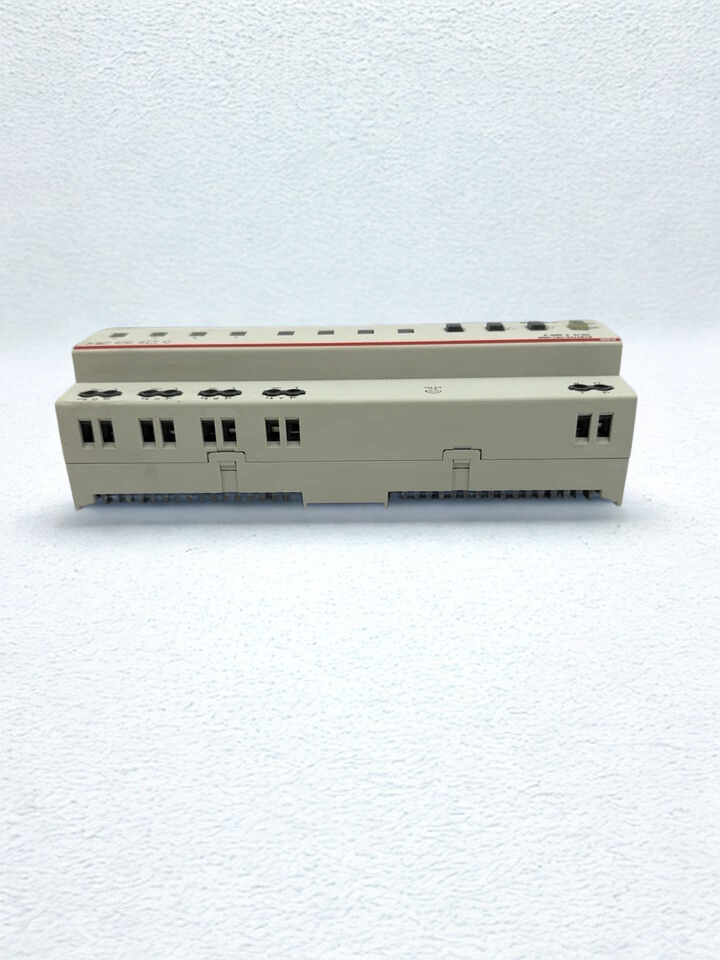

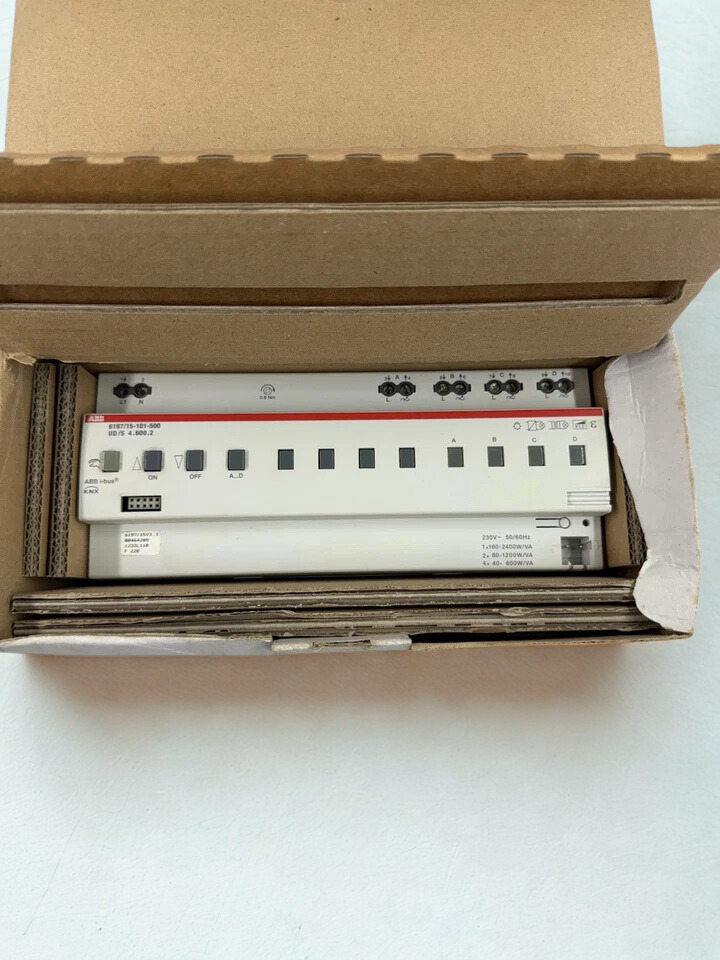

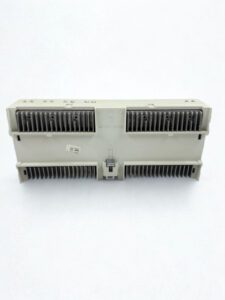

ABB 6197/15-101-500 Universal Dimmer Actuator KNX 2CDG006197R0039

The ABB 6197/15-101-500 universal dimmer actuator will make your KNX smart home or building automation even better. This 4-channel powerhouse gives you fine control over lighting loads, making sure that everything works together smoothly and uses less energy.

The ABB 6197/15-101-500, sometimes called 2CDG006197R0039 or UD/S 4.600.2, is a multichannel KNX universal dimming actuator that may be mounted on DIN rails in both home and industrial automation systems. It works with incandescent bulbs, 230V halogen bulbs, low-voltage halogen bulbs with regular or electronic transformers, and Philips retrofit LEDs with optimum dimming. It also has channel bridging for heavier loads. It is an MDRC device that can automatically detect loads, has 10 built-in logic channels for advanced features like light scenes and gates, and can be used manually even when there is no KNX bus voltage. This actuator is great for marine boats, industrial panels, and smart buildings. It makes lighting control more reliable while using less energy.

Technical Specifications

• Model: ABB 6197/15-101-500 (2CDG006197R0039, UD/S 4.600.2)

• Channels: 4 independent channels, each 40–600 W/VA (bridgeable up to 1 x 2400 W)​

• Load Types: Incandescent, 230V halogen, LV halogen (conv./elec. transformers), Philips LEDi retrofit​

• Switching Voltage: 230 V AC ±10%, 50/60 Hz​

• Power Consumption: Standby 1.0–1.5 W, bus <10 mA

• Dimensions: 216 x 90 x 64 mm (12 modules wide)​

• Mounting: DIN rail EN 50022, IP20 rating​

• Operating Temperature: -5°C to +45°C​

• Connections: Screw terminals 1–6 mm² (power/loads), screwless KNX bus

• Protections: Electronic overload/short-circuit, excess temperature

• Weight: 0.649 kg​

6197/15-101-500 Key Features:

1) Automatic load recognition across channels makes setup easy and performs best with different types of lighting.

2) Channel bridging lets you connect up to 2400 W of total load, which is great for industrial or maritime applications that need a lot of power.

3) Integrated 10 logic channels provide light scenes, sequences, gates, and more for advanced automation without needing external hardware.

4) You can test and use the device on its own before programming it with KNX by using manual push buttons and LED status lights.

5) Firmware upgrades that run on the bus over a 10-pole interface make sure that the device will work with new features for a long time.

Compatibility and Applications

Compatible with KNX ETS3+, ideal for ABB i-bus systems in commercial buildings, ships (marine tech), factories, and hotels. Supports polyphase/single-phase operation, staircase lighting, flashing, and PWM inversion via parameters.

How to use?

-> Put the mount on the DIN rail in the control cabinet, connect the L/N power and loads to channels A–D, then connect the KNX bus using a screwless connector.

-> Turn on the power to start automated load detection. For initial testing, utilize the manual buttons (ON/OFF, dim brighter/darker per channel).

-> Use ETS software to program KNX integration and set up group formations if you need to bridge channels to boost capacity.

-> Check the status and errors of the LEDs (for example, 1 flash means too much heat, and 3 flashes means no load). After 30 seconds, turn the power back on to reset.
