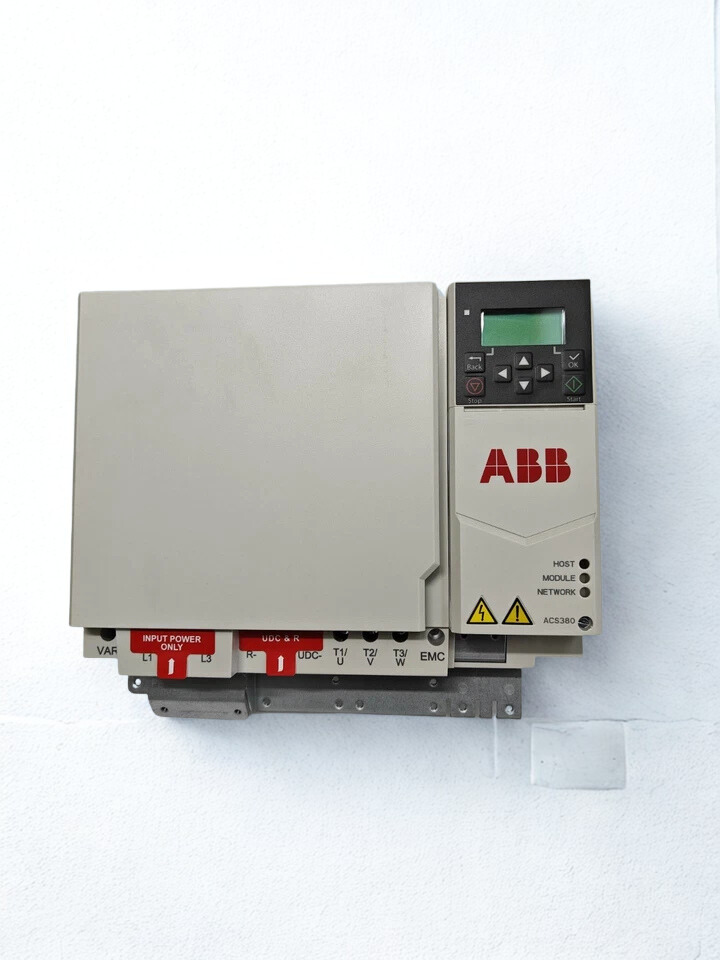

ABB ACS380-040N-032A-2 7.5kW VFD Drive

Product Description

The ABB ACS380-040N-032A-2 is a small, strong machine drive that may be easily added to industrial applications that need accurate speed and torque control customization. This 3-phase 200-240 V drive has a nominal output current of 32 A and can handle minor overloads of 5.5 kW or heavy-duty loads of 7.5 kW. It works well in hard situations up to 50°C without losing power. It has built-in Modbus RTU, adaptive programming, and Safe Torque Off (STO) for better safety and customization, so you don’t need as many PLCs or other hardware.

This is great for machine builders because it works with both induction and permanent magnet motors and has scalar or vector control. It also makes sure that the machine starts with a lot of torque and runs smoothly even when the load changes.

Model Details

• ACS380: ABB machinery drive series for OEMs.

• 04: IP20 module construction.

• 0N: Specific variant (likely standard I/O with C3/C4 EMC filter).

• 032A: 32 A nominal output current.

• 2: 3-phase 200-240 V input supply.

Technical Specifications

Industry Applications:

• Smooth material management and speed regulation are achieved through the use of conveyors.
• Mixers and extruders necessitate precise torque under varying pressures.
• Winders, cranes, and hoists that are equipped with STO safety and incorporated brake control.
• Energy-efficient textile machinery and compressors.
• General OEM machinery necessitates compact, dependable VFD performance.
