ABB DSQC663 3HAC029818-001 IRC5 Drive Unit HV MDU

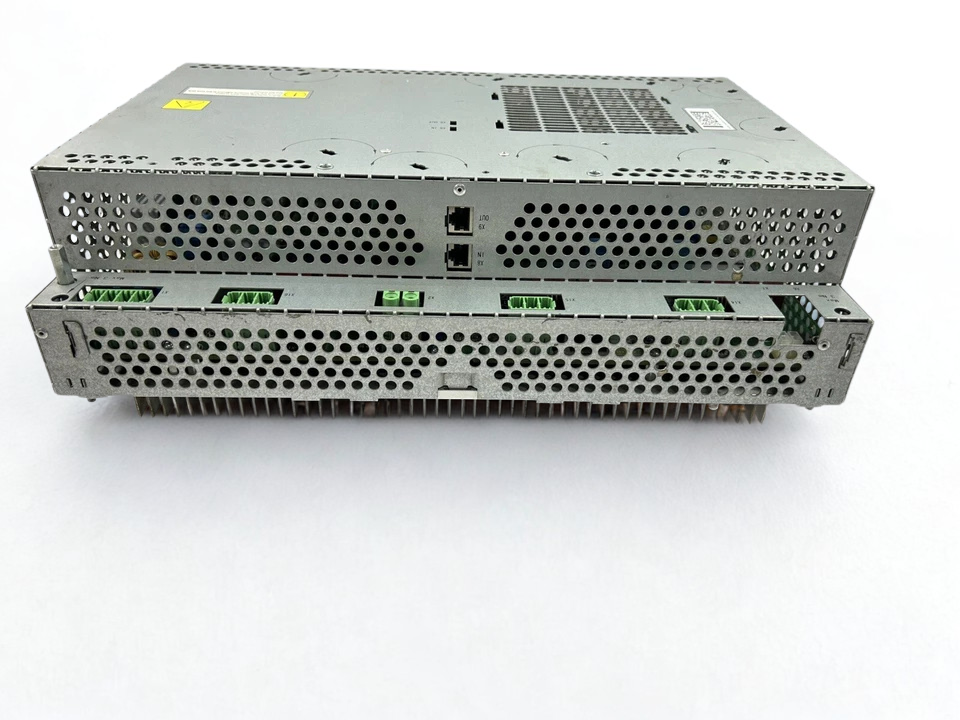

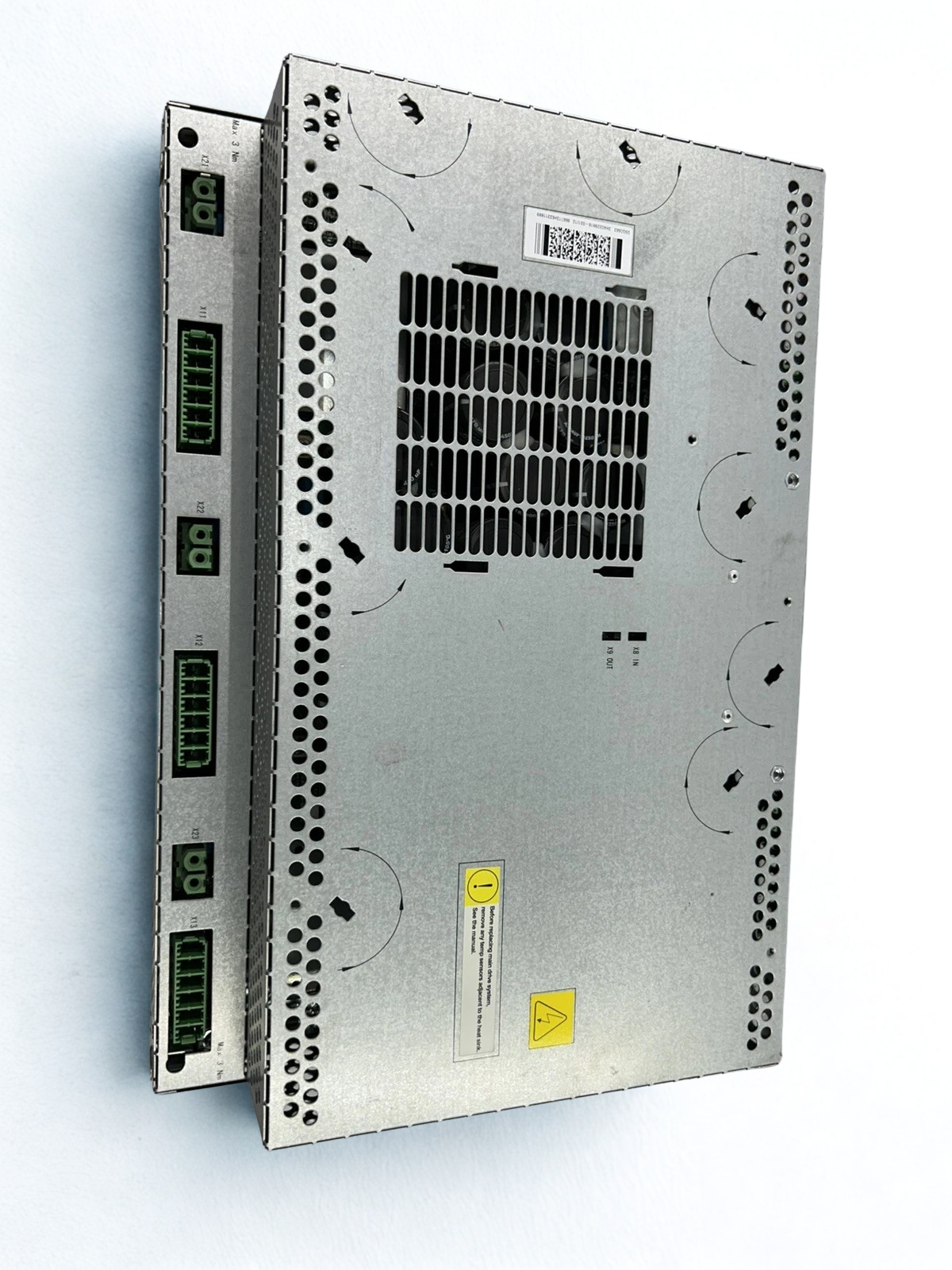

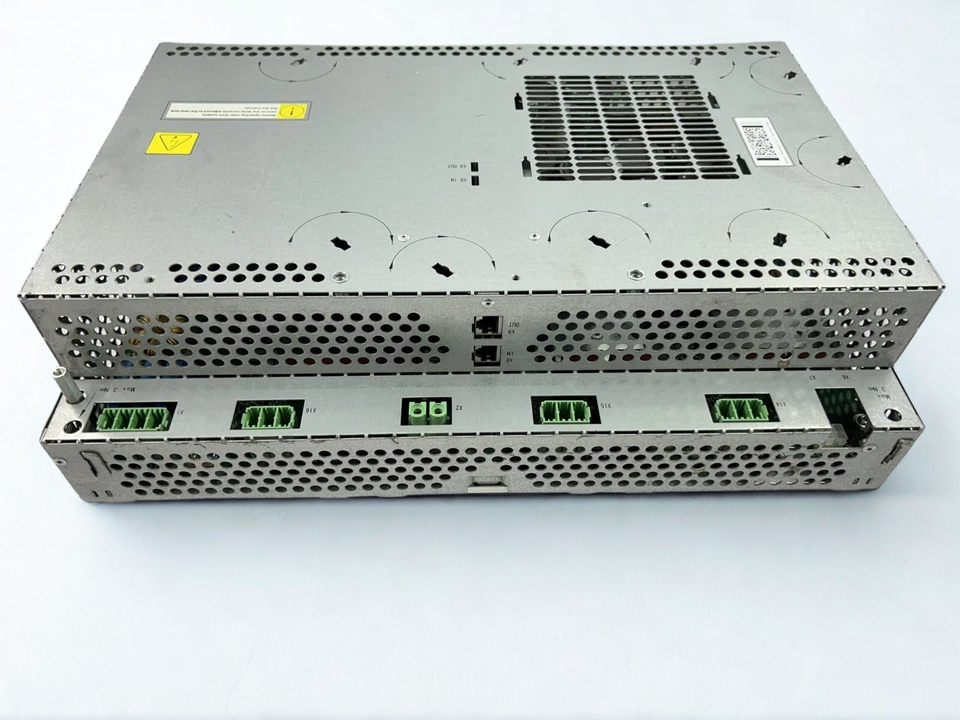

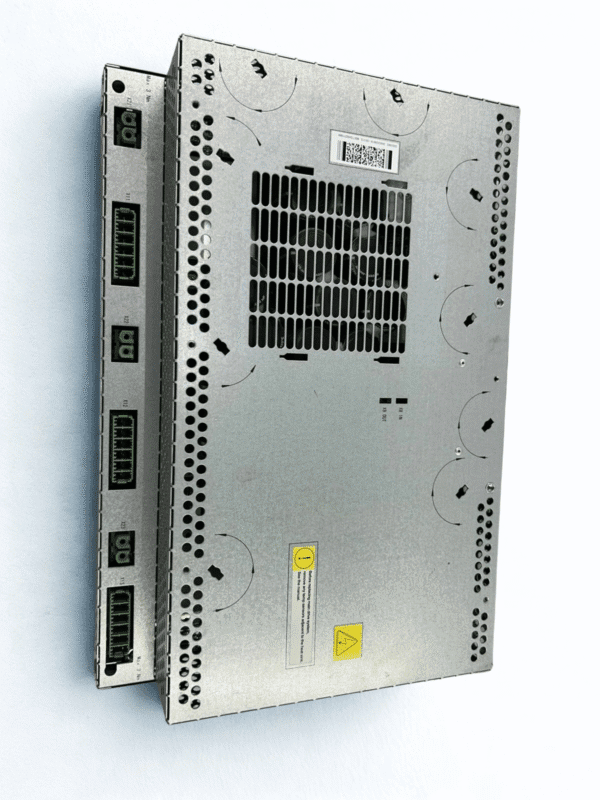

ABB DSQC663 3HAC029818-001 IRC5 High Voltage Main Drive Unit (MDU)

The ABB DSQC663 (MPN: 3HAC029818-001/12) is a High Voltage Main Drive Unit (HV MDU) specifically built for the ABB IRC5 robot controller generation. It’s a high-performance unit. The DSQC663 is an industrial manipulator servo motor control for closed loop operation in the multi-axis drive system. It encompasses complex power electronics such as insulated-gate bipolar transistors (IGBTs), internal heat monitoring circuits and DC-link stabilizing capacitors for coping with the demanding dynamic acceleration profiles of heavy-duty robotic applications.

Specifications: ABB DSQC663

Terminal and Interface Allocations

• X1 – X6 Motor Power Outputs: Heavy-duty, vibration-resistant pluggable terminal blocks for UVW phase outputs to manipulator axes.
• DC Link Bus Bars: Direct low-impedance copper connections for DC+ and DC- input from the main rectifier module.
• Signal Interface (AxBus): RJ45/Fiber optic connection matrix for high-speed synchronous position and current loop parameters from the main CPU/Axis Computer.
• 24V Auxiliary Supply: Dedicated 2-pin connector supplying internal logic circuits and gate-driver boards.

Compatibility:

The DSQC663 3HAC029818-001 drive unit is fully compatible with the following ABB Robotics hardware configurations:

Controllers: ABB IRC5 Single Cabinet, IRC5 Dual Cabinet, and IRC5 Panel Mounted Controllers.

Manipulator Models: Optimized for medium-to-high payload ABB articulated robots, including but not limited to:

• IRB 2400, IRB 4400, IRB 4600
• IRB 6600, IRB 6620, IRB 6640 Series
• IRB 7600 Heavy-Payload Series

Part Number Cross-References

• 3HAC029818-001
• 3HAC029818-001/12
• 3HAC029818-001/09
• DSQC 663

Application and Function

-> The DSQC663 is a main drive power supply and axis drive unit that is used in IRC5 control cabinets to power and control the robot’s servo motors. It can usually support up to four primary robot axes and more external axes, depending on how it is set up. ​

-> It changes incoming three-phase mains power into regulated DC link voltage and sends it to each motor driving channel. This lets ABB IRB robot families control their movements, stop, and use energy in a coordinated way. ​

-> This module is a new ABB spare part that is needed to keep IRC5 systems running and to add new features. It can be used for welding, moving materials, machining, palletizing, and other automated production operations. ​

Technical Features

The unit is called an HV MDU‑790A drive unit, and it was made to work with the IRC5 and M2004 robot control systems. ​

It has power electronics for numerous servo axes, as well as braking chopper circuits and internal protection. This helps make sure that the robot can stop safely and adjust its speed and torque accurately. ​

The normal physical data for this part shows that it weighs about 12.3 kg and has dimensions of about 430 mm (depth) × 335 mm (width) × 179 mm (height), which makes it easy to fit inside typical ABB IRC5 cabinets. ​

Diagnostics by NDMarineTech Engineer:

CRITICAL ELECTRICAL HAZARD: The DC-link capacitors on the DSQC663 retain lethal voltages > 500 DC long after main line power is disconnected. Always wait a minimum of 10 minutes after powering down the IRC5 cabinet before removing the module cover or disconnecting terminal links. Verify zero potential with a calibrated digital multimeter across the DC link test points before handling.
