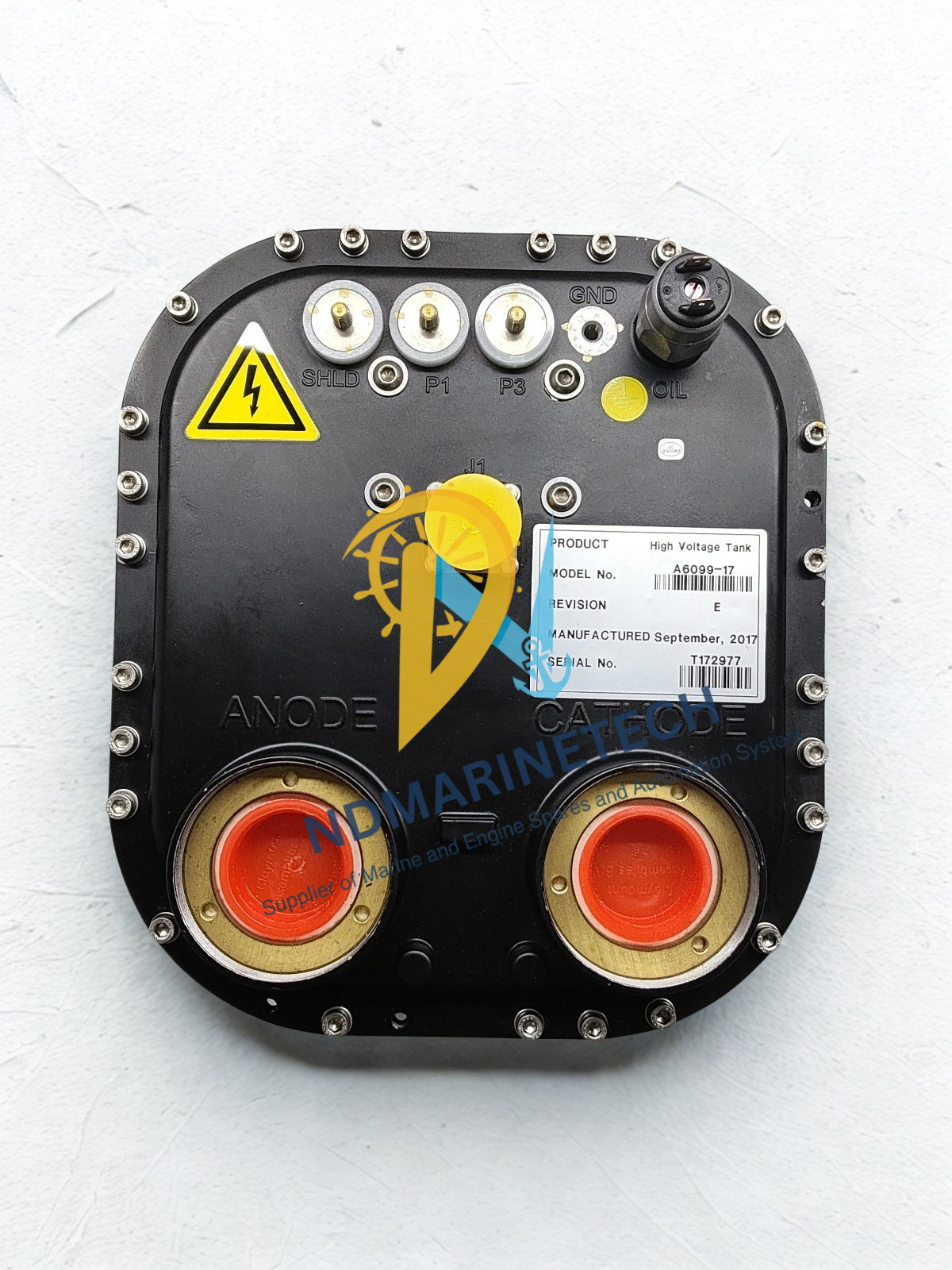

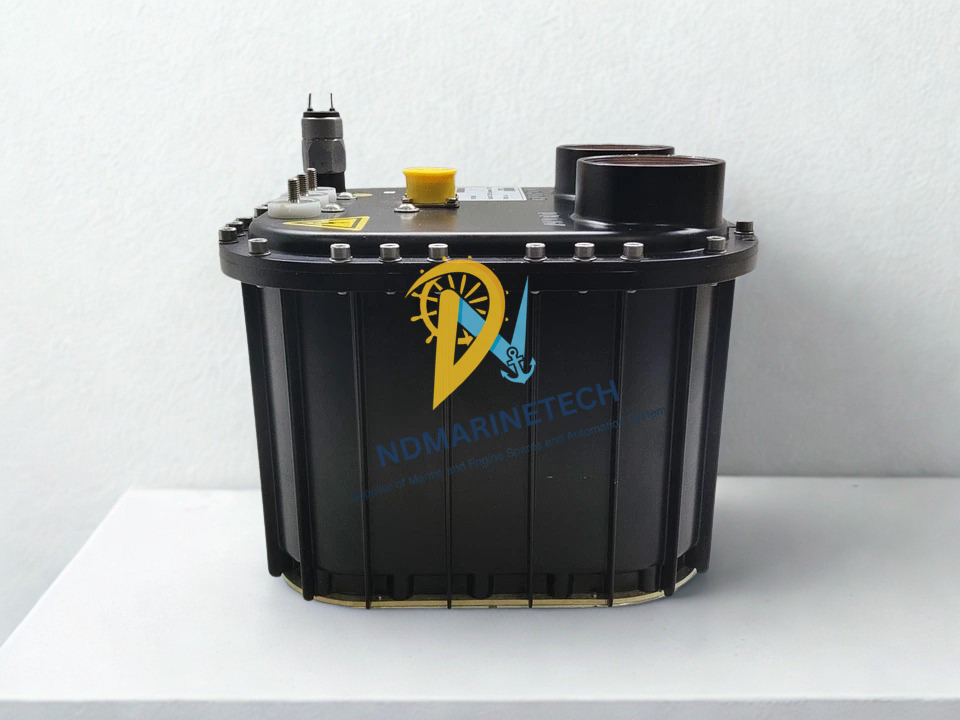

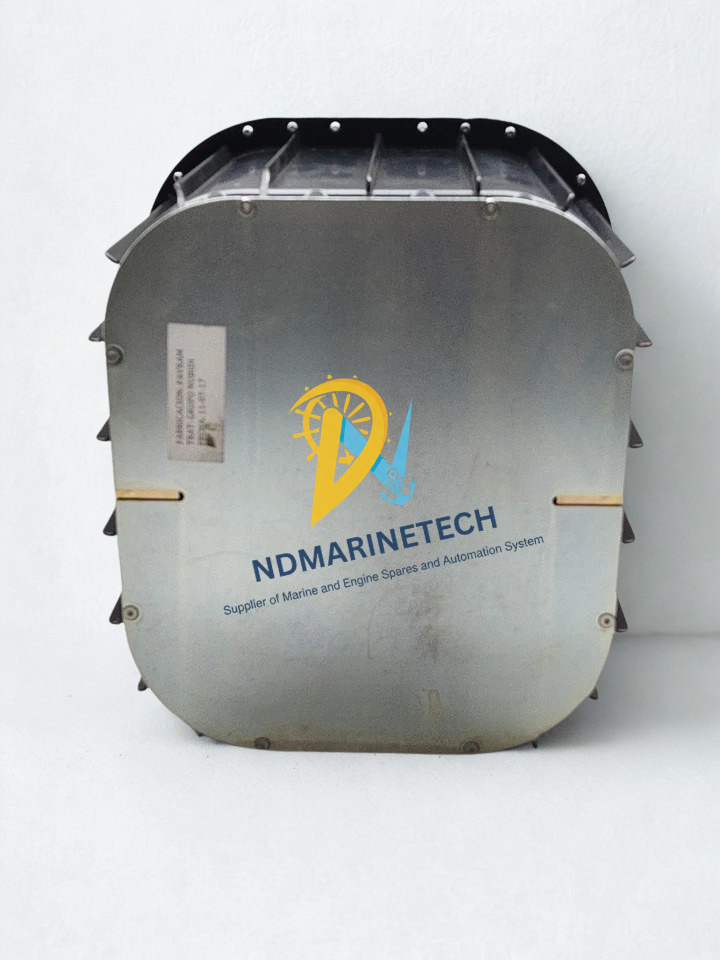

A6099-17 High Voltage Anode & Cathode Assembly Industrial HV Unit

High Voltage Tank A6099-17: Anode & Cathode Assembly Industrial HV Unit

The A6099-17 Anode & Cathode Assembly is the epitome of high-voltage engineering for critical industrial applications. This unit is meant to directly replace or improve specialist HV tank systems, which will ensure strong dielectric integrity and steady electron emission. The A6099-17 gives you the accuracy you need to keep the beam quality the same and stop catastrophic dielectric breakdown, no matter if you’re working in a high-power lab, an industrial X-ray environment, or a medical imaging setting.

This assembly uses high-purity materials and vacuum-sealed compatibility to reduce partial discharge and lengthen the life of your high-voltage power supply (HVPS).

Technical Specifications

Key Features:

1. Improved Dielectric Stability: Designed with a particular shape to lower the concentration of the electric field, which stops internal arcing.
2. Better thermal management: Uses high-quality OFHC copper parts to quickly get rid of heat over long duty cycles.
3. Precision Alignment: The factory-calibrated distance between the anode and cathode makes sure that the focus spot characteristics and output stay the same.
4. Vacuum-Grade Integrity: The materials are treated to reduce outgassing, which makes the unit perfect for enclosed HV tank applications.
5. Universal Compatibility: Made to fit the footprint of most industrial X-ray and high-voltage power systems.

Applications

• Industrial NDT (Non-Destructive Testing): Using high-energy X-rays to check the casting of cars and planes.
• Medical Diagnostic Systems: Replace parts for CT and high-output radiographic equipment.
• Particle Research: Can be used in tiny accelerators and for electron beam welding.
• HV Tank Maintenance: Necessary for fixing up old industrial power supply that are at risk of insulation breakdown.

Guide From Our Chief Engineer:

When putting the A6099-17 into a high-voltage tank, your main goal is to keep it clean. Based on my work on offshore power platforms and in heavy industry, I can say that 90% of HV failures are caused by tiny particles that get in during installation.

Before putting this assembly in dielectric oil, make sure the tank has been vacuum-dried. Even a tiny bit of moisture can make a carbon track over the ceramic insulators, which makes the A6099-17 unusable. Always tighten the mounting nuts to the required 12 Nm to keep the electrical connection without putting too much stress on the ceramic seals.
