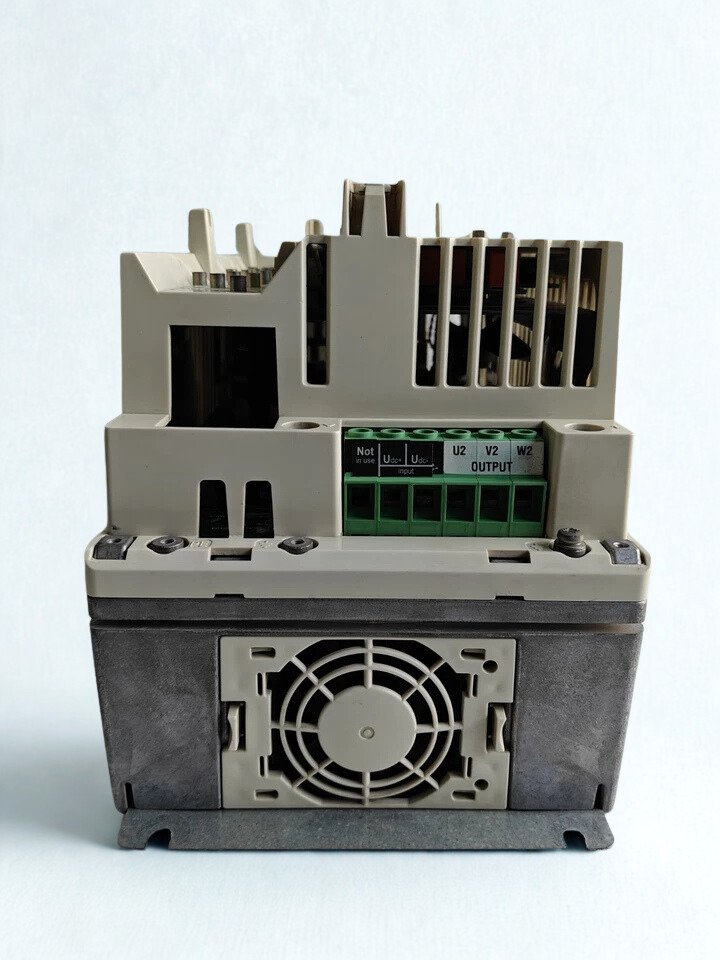

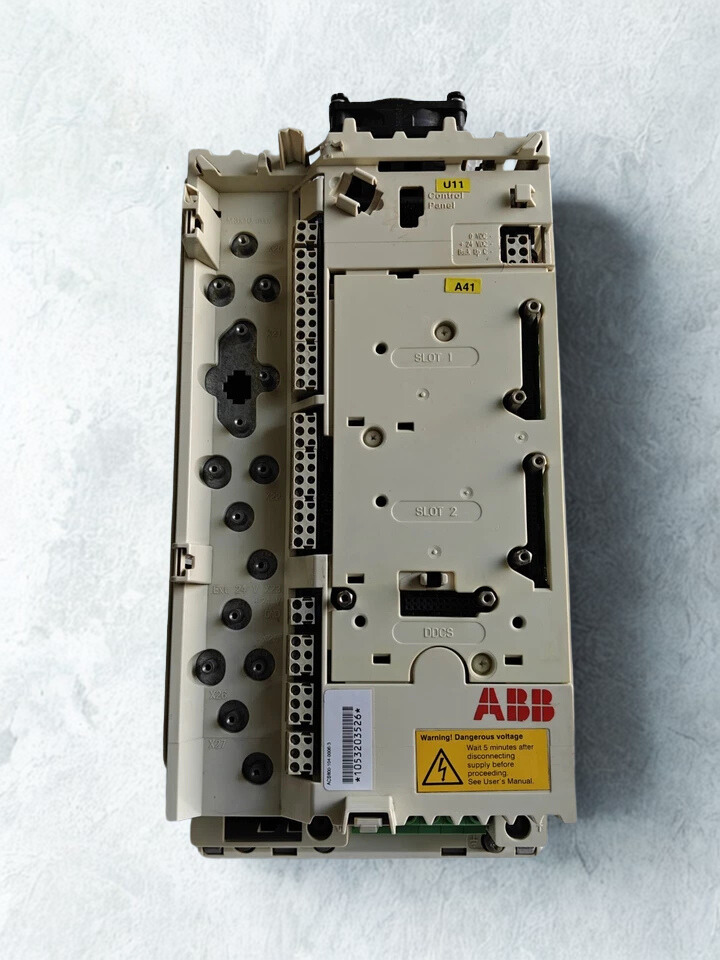

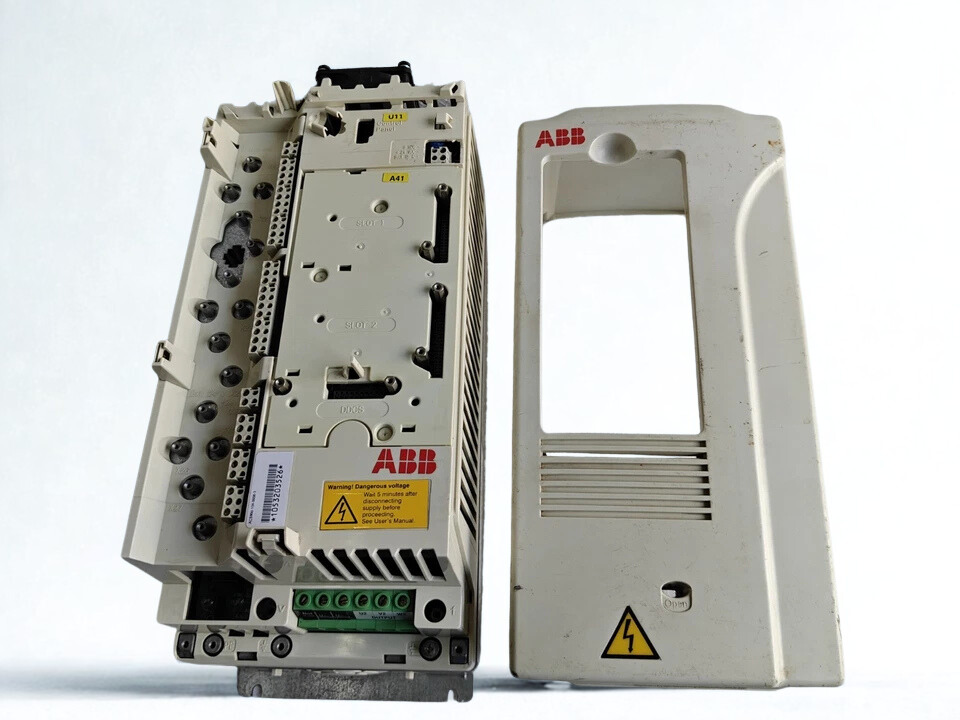

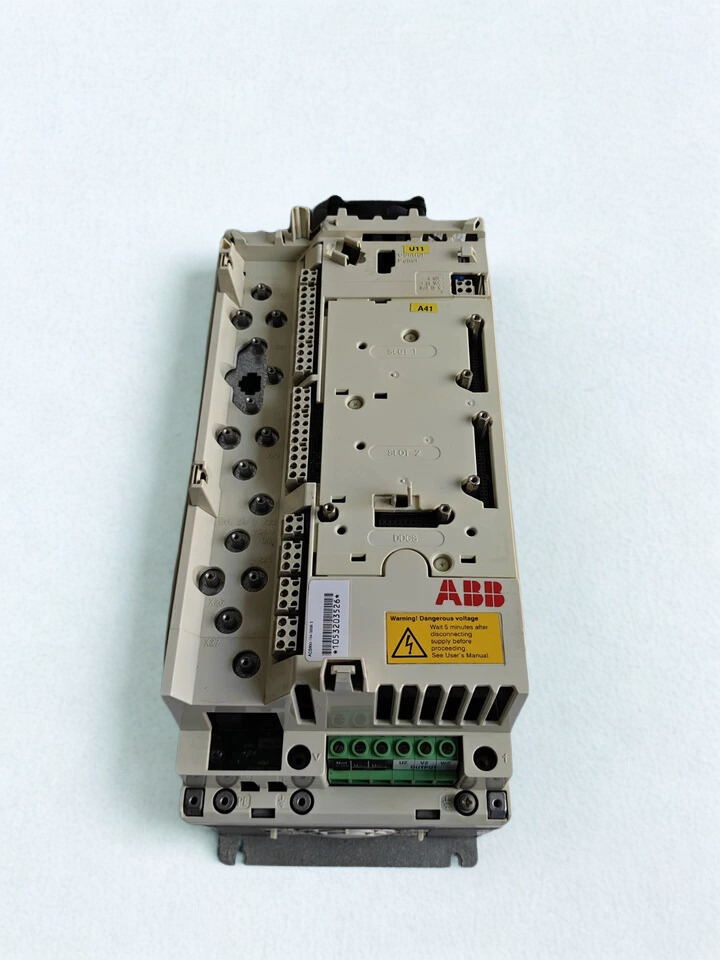

ABB ACS800-104-0006-3 Drive Module with RDCO-01C
Country of Origin: Finland
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions
The ABB ACS800-104-0006-3 is a small, powerful single drive module that is best for use in cabinets in industrial settings. With the RDCO-01C DDCS communication module, it lets drives talk to each other without any problems in multidrive installations.
This ABB ACS800 drive module uses Direct Torque Control (DTC) technology to give you precise motor control. It does this without encoders, so you get better static and dynamic speed/torque accuracy. It is made for a three-phase supply of 380–415V and can handle both light-overload (7.5 kW) and heavy-duty (5.5 kW) activities with an efficiency of over 98%. It has built-in harmonic filtering, programmable I/O, and long-lasting parts that make it perfect for tough industrial settings.

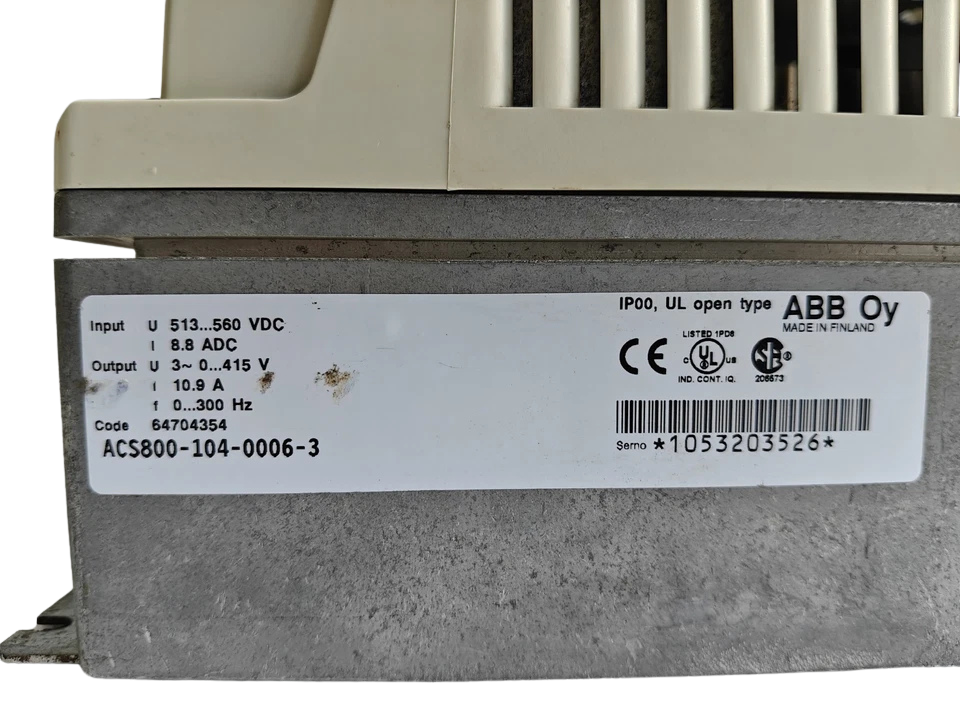

ABB ACS800-104-0006-3
-
Type: Single drive inverter module (ACS800-04 series, frame size R2, IP20 enclosure).
-
Nominal Ratings (400V): Icont max 10.9A, Imax 13.8A; Light overload IN 10.2A (7.5 kW); Heavy-duty Ihd 7.5A (5.5 kW).
-
Voltage Range: 380-415V ±10% (U3IN), 48-63 Hz supply.
-
Key Tech: DTC motor control, torque rise <5 ms, speed accuracy ±0.3-0.4% open loop.
-
With RDCO-01C: Adds fiber-optic DDCS for master/follower multidrive coordination.
ABB ACS800 Manual
Technical Specifications
| Specification | Details |
|---|---|
| Supply Voltage | 3-phase 380-415V ±10% ​ |
| Output Current (Light OL) | 10.2 A (7.5 kW) ​ |
| Output Current (Heavy Duty) | 7.5 A (5.5 kW) ​ |
| Efficiency | >98% at nominal power ​ |
| Frequency Range | 0 to 300 Hz ​ |
| Power Factor | cos ϕ1 = 0.98 (fundamental) ​ |
| Ambient Temp (Op.) | -15 to +50°C (derate 1%/°C above 40°C) ​ |
| Protection Class | IP20 ​ |
| Dimensions (HxWxD) | 370 x 165 x 193 mm ​ |
| Weight | 8 kg ​ |
| Control Method | DTC (Direct Torque Control) |
Industrial Applications:
1) Material handling: Frequent starts and pauses of the conveyor, with precise speed control.
2) Packaging machinery: Rapid dynamic response and tension control.
3) Energy savings in process industries: PID-optimized pumps and fans.
4) Machine tools: Consistent spindle operation across a broad spectrum of speeds.
5) High torque at low velocities is achieved through the use of DTC in extruders and cranes.
