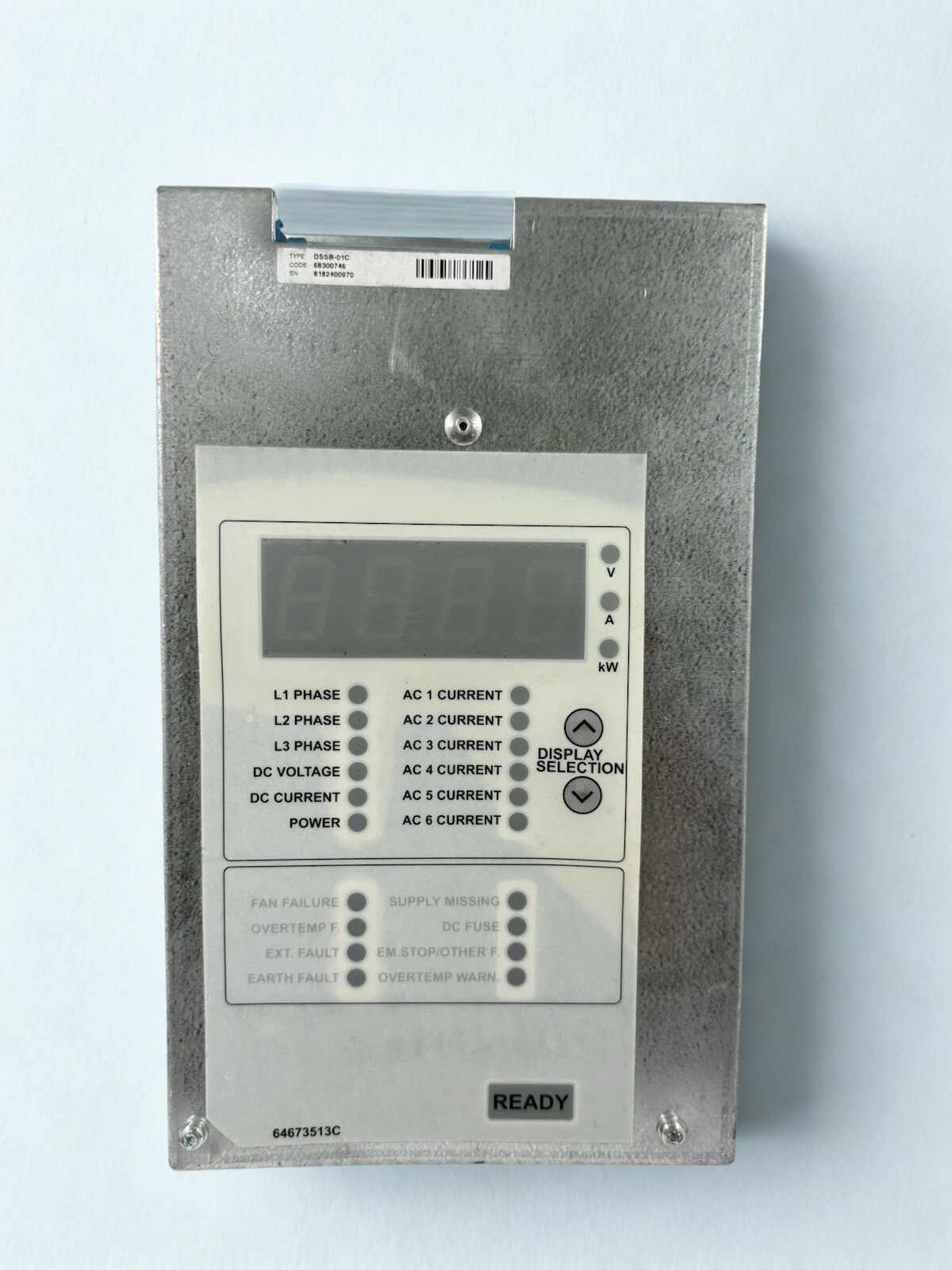

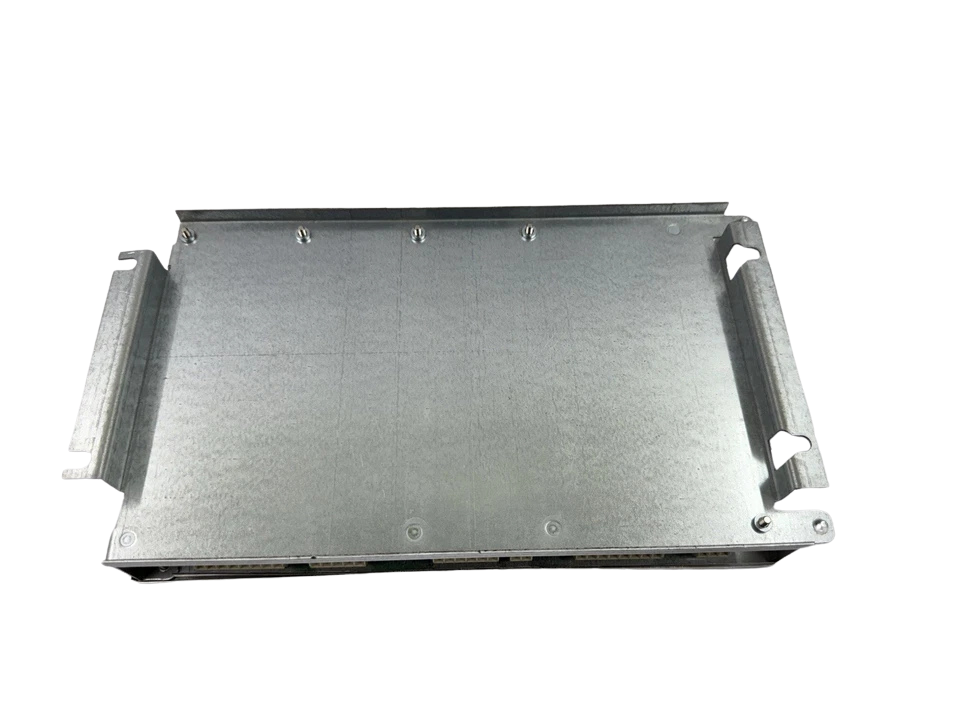

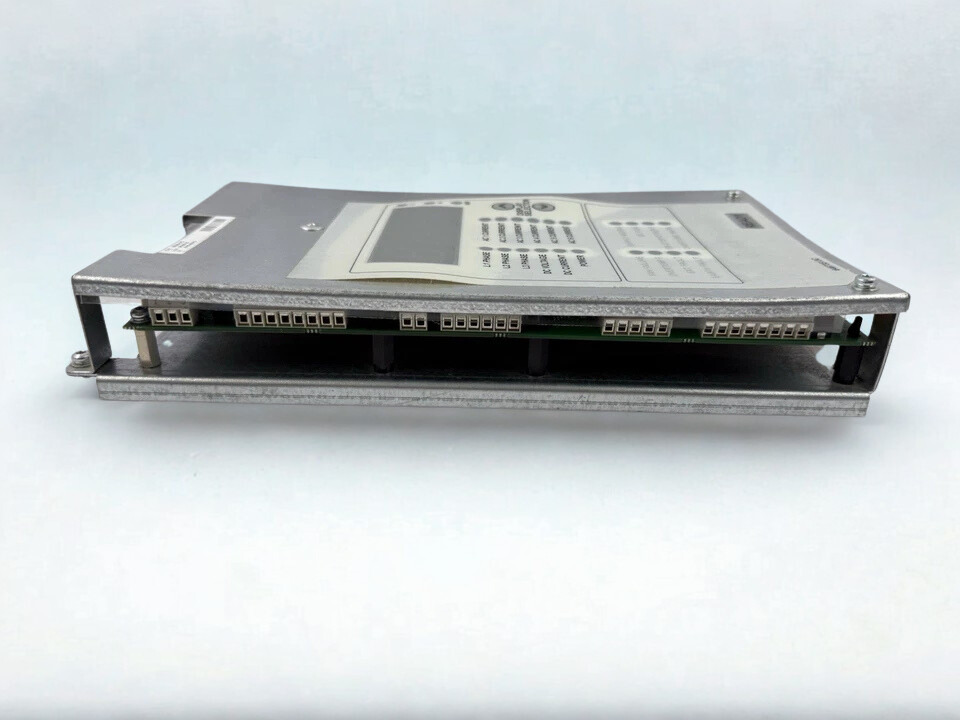

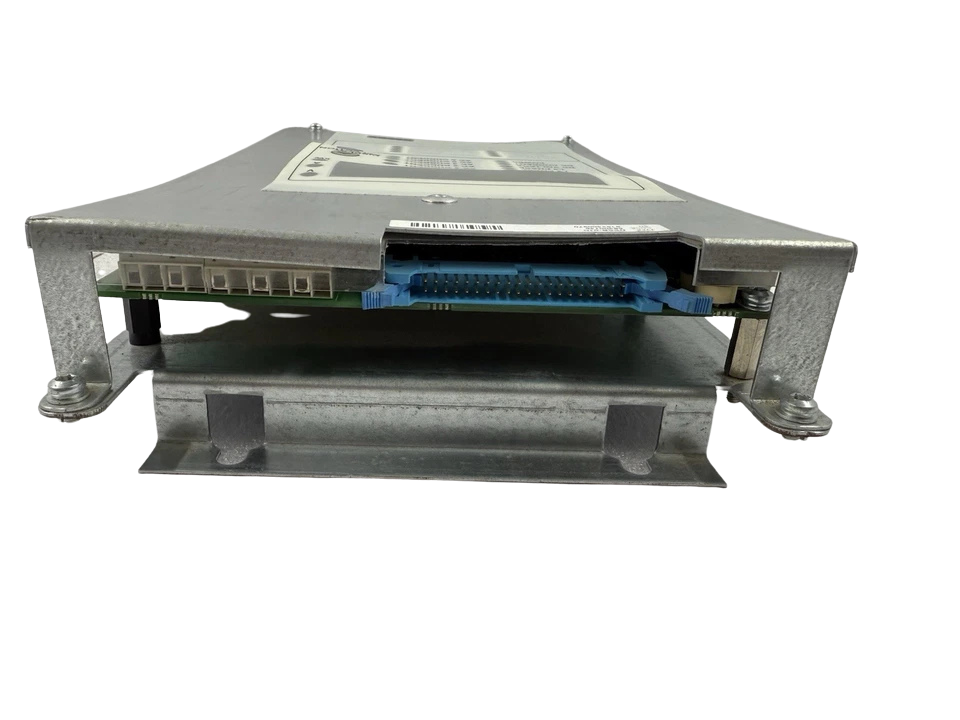

ABB DSSB-01C 68300746 MD DSU Main Control Board
Condition: New – Open Box
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions
The ABB DSSB-01C (68300746) is the main control board for DSU units in ACS800-07 cabinet-built AC drives. This PC board package makes sure that high-power industrial drives up to 3490 kW work reliably, with accurate rectifier control and stable DC links. This part is great for heavy-duty jobs and is a must-have for OEM maintenance and upgrades.
Technical Specifications – ABB DSSB-01C 68300746
| Parameter | Value / Description |
|---|---|
| ABB Type Designation | DSSB-01CÂ |
| Part Number | 68300746Â |
| Description | Main control board for DSU unit (PC board kit)Â |
| Replaced Part ID (OLD) | 64703919 ​ |
| Product Category | Drive / Boards, Control Units, Power Auxiliary Control Unit Supplies (ACU) ​ |
| UNSPSC Code | 39120000 ​ |
| Customs Tariff Number | 85049099 ​ |
| Country of Origin | Finland (FI) / Estonia (EE) ​ |
| Gross Weight | 1.8 kg |
| Product Net Weight | 1.8 kg ​ |
| Minimum Order Quantity | 1 piece ​ |
| Selling Unit of Measure | Piece ​ |
| Input Voltage Range | 0 to 24 V DCÂ |
| Output Voltage Range | 0 to 24 V DCÂ |
| Number of Channels | 16Â |
| Accuracy | ±0.1% |
| Resolution | 12-bit |
| Operating Temperature | -10°C to +50°C / -10°C to +60°C |
| Storage Temperature | -40°C to +85°C ​ |
| Dimensions (approx.) | 110 x 90 x 60 mm / 50.6 x 22.6 x 5.6 cm (packaging)Â |
| Memory | 128 KB microcontroller ​ |
| Compatible Drive Series | ACS800-07 cabinet-built 6/12-pulse AC drives (up to 3490 kW)Â |
| Sample Compatible Models | ACS800-07-0610-3 to ACS800-07-3490-6 ​ |
| Applications | Rectifier control, DC link management in industrial AC drives |
Key Features of DSSB-01C:
-> High-reliability construction for tough settings, replacing the previous part 64703919 with one that is more stable.
-> This compact PC board kit is designed to be easy to install in drive cabinets and works with models from ACS800-07-0610-3 to ACS800-07-3490-6.
-> Advanced control capabilities that keep the drive running smoothly by managing rectifier operations, DC bus voltage, and auxiliary power sources.
-> You can order as few as one piece, and they are kept in warehouses all around the world, such FIPSEEXPU and SGIND002EXPU.
Applications in Industrial Drives
Use the DSSB-01C in big AC drive systems for cranes, mills, pumps, compressors, and boats. It does a great job of keeping the DC link stable in high-power setups, which stops problems in continuous processes.
Compatible ACS800-07 Models
-
Lower power: ACS800-07-0610-3 to ACS800-07-1230-3​
-
Mid-range: ACS800-07-1500-6 to ACS800-07-2120-6​
-
High power: ACS800-07-2310-5 to ACS800-07-3490-6
ABB DSSB 01C Manual
Usage in Industry:
- Rectifier control in ACS800-07 drives makes sure that power conversion is done correctly for 6/12-pulse setups up to 3490 kW.
- DC link stabilisation keeps the voltage stable during high-load operations like cranes, mills, and pumps.
- Auxiliary power management in ACU systems, making sure that drive components in cabinet-built installations get a steady supply of power.
- Monitoring rectifier and DC bus parameters to stop faults in ongoing processes like compressors and marine propulsion.
- OEM maintenance as a plug-and-play replacement for part 64703919, which cuts down on downtime when upgrading industrial AC drives.
- Heavy-duty uses including steel rolling mills, big fans, and extruders that need control boards that are very reliable.
