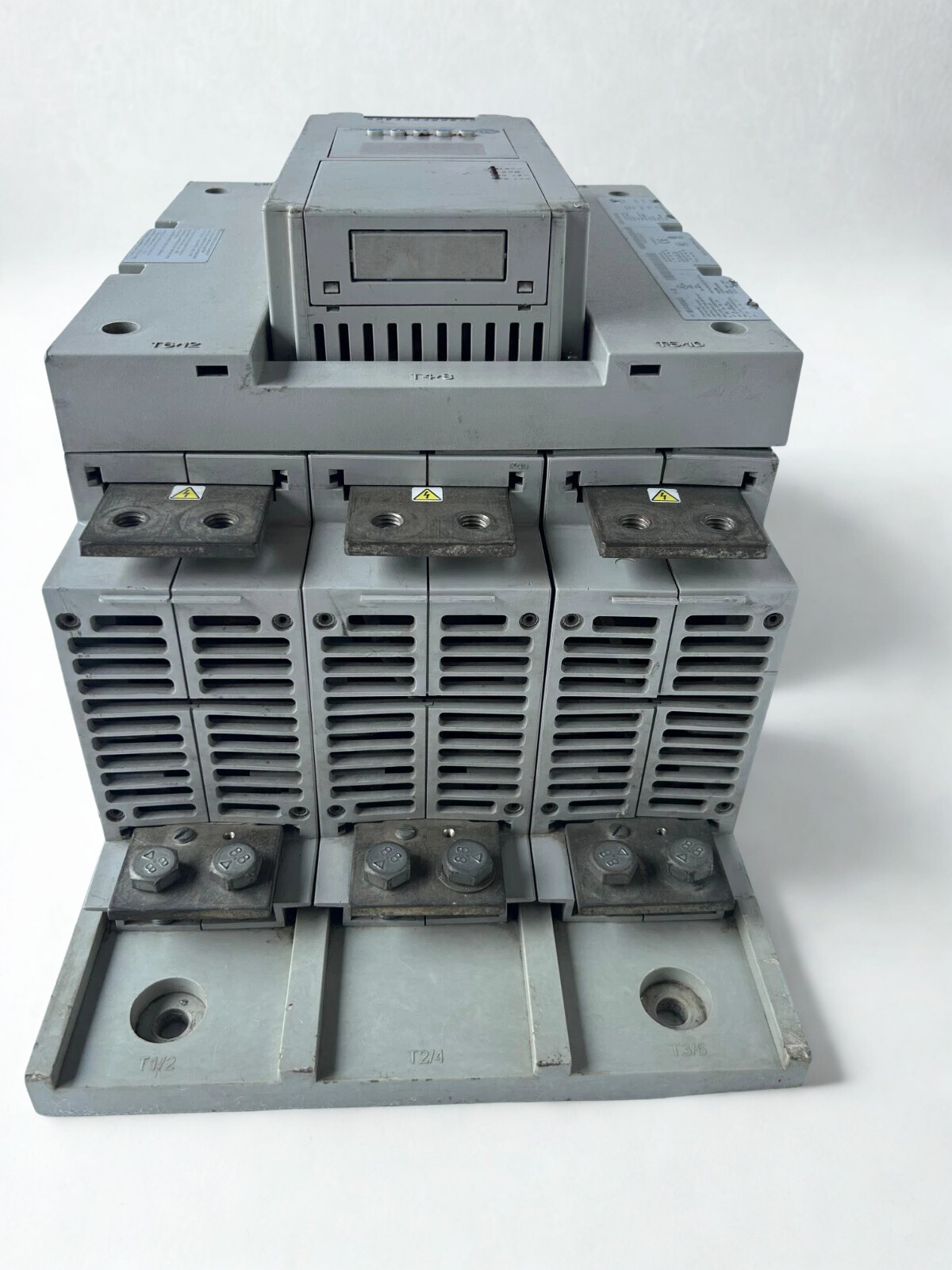

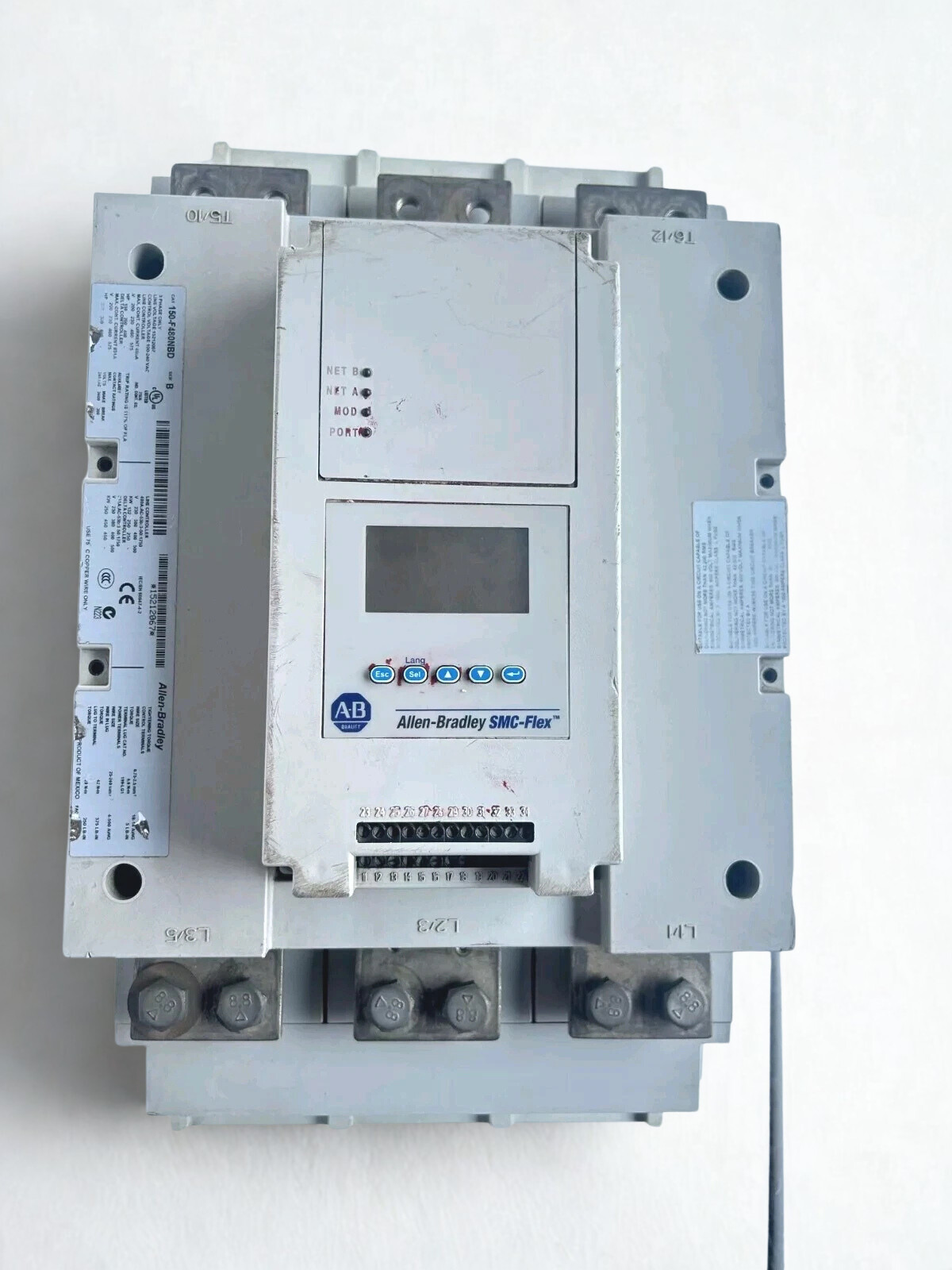

Allen Bradley 150-F480NBD SMC Flex 480A 200–400HP Smart Motor Controller

Allen Bradley 150-F480 NBD SMC Flex 480A 200–400HP Smart Motor Controller

Designed to offer reliable starting and stopping for big three-phase induction motors up to 400 HP at 460 V AC, the Allen Bradley 150-F480NBD is a high-capacity SMC-Flex smart motor controller. It aids in the reduction of mechanical stress, inrush current, and downtime in demanding industrial applications with its 480 A rating, open-type structure, and integrated electronic protection. Simplifying panel design and improving motor system efficiency, the SMC-Flex platform integrates diagnostic capabilities, variable control inputs, and innovative soft-start algorithms.

Model Details (150-F480NBD)

• Series: Allen‑Bradley Bulletin 150 SMC‑Flex smart motor controller.

• Catalog number: 150-F480NBD, open type, non‑bypass version with AC control supply.

• Rated current: 480 A continuous, suitable for large motors within specified FLA range.

• Motor power range: Approx. 200-400 HP at 460 V AC, ~280 kW at 400 V AC (inline connection).

• Line voltage: 200-480 V AC, 3‑phase, 50/60 Hz input supply.

• Control voltage: 100-240 V AC control power for logic, interface, and fan supply.

Applications:

• An excellent way to avoid water hammer when using big centrifugal pumps for irrigation and water treatment purposes.
• In HVAC and process ventilation systems, these fans and blowers are ideal for high-power industrial use.
• Compressors and chillers that require controlled beginnings to prevent pressure surges are ideal candidates for this.
• The mining and material handling industries find these conveyors and crushers to be of exceptional quality.
• Ideal for use in general production motors that must have protection against inrush current.
