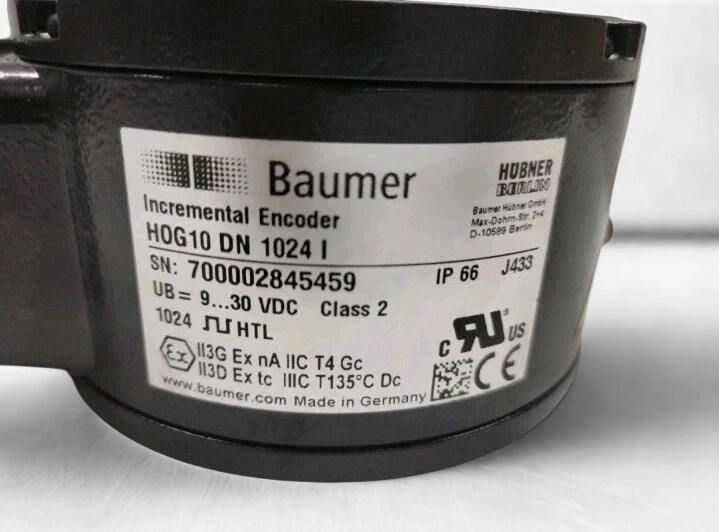

Baumer HOG10 DN 1024 I Incremental Encoder 9-30VDC IP66 | Made in Germany
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions

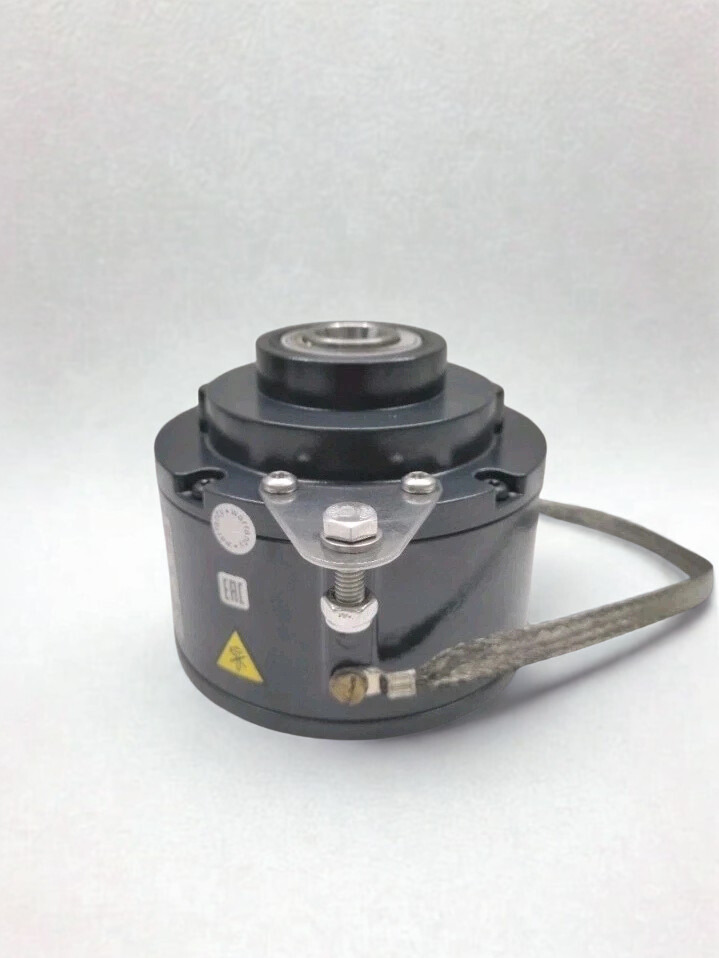

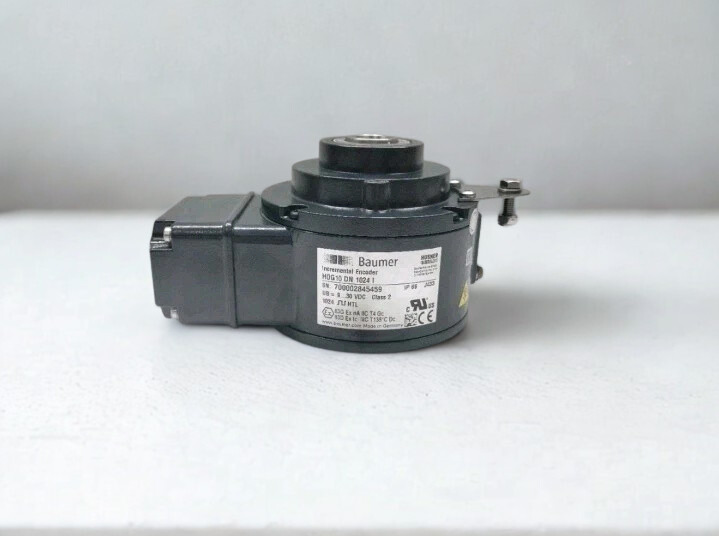

The Baumer HOG10 DN 1024 I Incremental Encoder 9-30VDC IP66, made in Germany, is a top-of-the-line heavy-duty encoder that can control motion accurately in tough industrial settings. The Baumer HOG10 is designed for reliability and sends 1024 pulses per revolution through its blind hollow shaft design. It works with HTL outputs and has a wide 9–30VDC power input, making it easy to add to automation systems. This German-made device is great for 24/7 use because it has hybrid bearings and IP66 sealing that protect it from dust, vibrations, and corrosion in tough situations like marine drives and factory machinery.
Technical Specifications
| Parameter | Specification |
|---|---|
| Supply Voltage | 9…30 VDC ​ |
| Pulses per Revolution | 1024 ​ |
| Output Type | HTL (push-pull), inverted signals option ​ |
| Max Output Frequency | ≤120 kHz ​ |
| Protection Rating | IP66 ​ |
| Shaft Diameter | 16 mm (blind hollow, H7 tolerance) ​ |
| Max Shaft Load | Axial ≤450 N, Radial ≤600 N ​ |
| Operating Speed | ≤6000 rpm mechanical ​ |
| Operating Temperature | -20…+85 °C ​ |
| Vibration/Shock Resistance | 5g/10-2000 Hz; 50g/6 ms ​ |
| Shaft Insulation | Up to 2.8 kV ​ |
| Weight | Approx. 2.3 kg ​ |
| Housing Material | Aluminum die-cast |
HOG10 Features:
-> Optical Sensing Technology: With HTL push-pull outputs and optional inverted signals, it sends out 1024 pulses per revolution, which is very accurate.
-> The Blind Hollow Shaft Design can hold 16 mm shafts (H7 tolerance), so you can mount the motor or shaft directly without any adapters.
-> Wide Voltage Range: Works with a 9–30 VDC supply and can run cables up to 350 meters without losing signal quality.
-> IP66 protection means that it is completely sealed against dust, water jets, and oil. It also has C4 corrosion resistance for tough factory floors.
-> Hybrid double bearings last longer when they are under axial and radial loads of up to 450/600 N and speeds of up to 6000 rpm.
-> High Vibration Resistance: Can handle 5g across 10–2000 Hz and 50g shocks, making it perfect for 24/7 use.
-> Integrated Speed Switch Option: Checks thresholds directly on the encoder so that the PLC can respond faster.

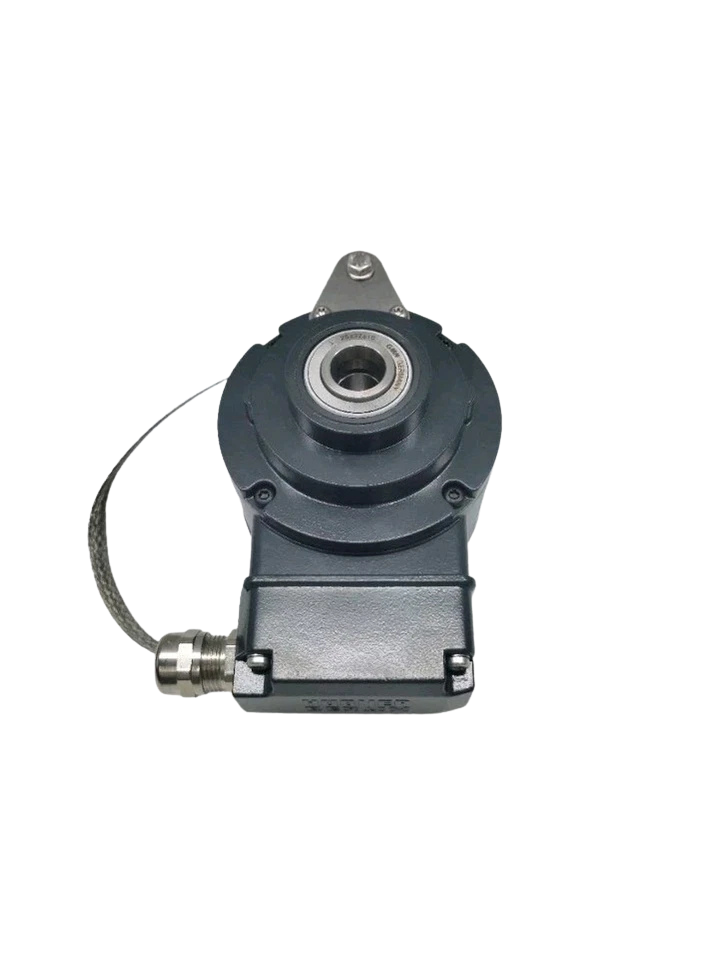

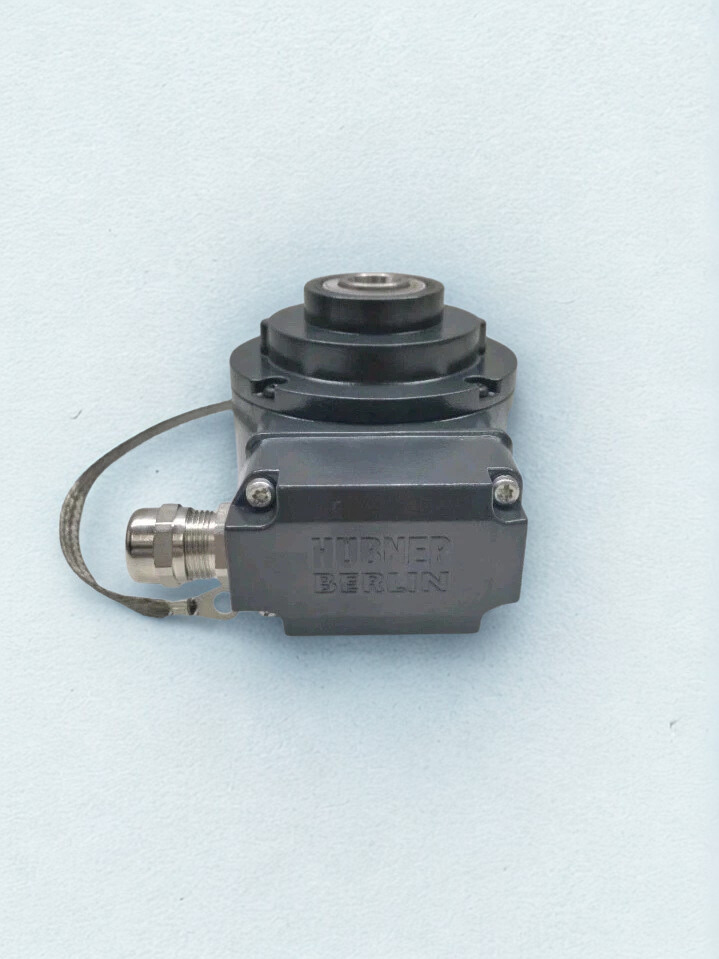

-> Rotatable Terminal Box: Makes wiring easier in tight spaces with M23 or cable gland connections.
Usage in Industry:
- Marine Engine Automation: Monitors the speed and position of the propeller shaft to control the throttle and keep an eye on efficiency.
- Industrial Conveyors: Sends pulse data to make sure the belts are in sync and to find overloads.
- Cranes and Hoists: Makes sure that the hoist is in the right place with a zero-pulse reference in places with a lot of vibration.
- Wind Turbines: Accurately measures yaw and pitch angles even in harsh offshore conditions.
- Steel Mills and Rolling Lines: Gives feedback on speed for tension control in the face of dust, heat, and impacts.
