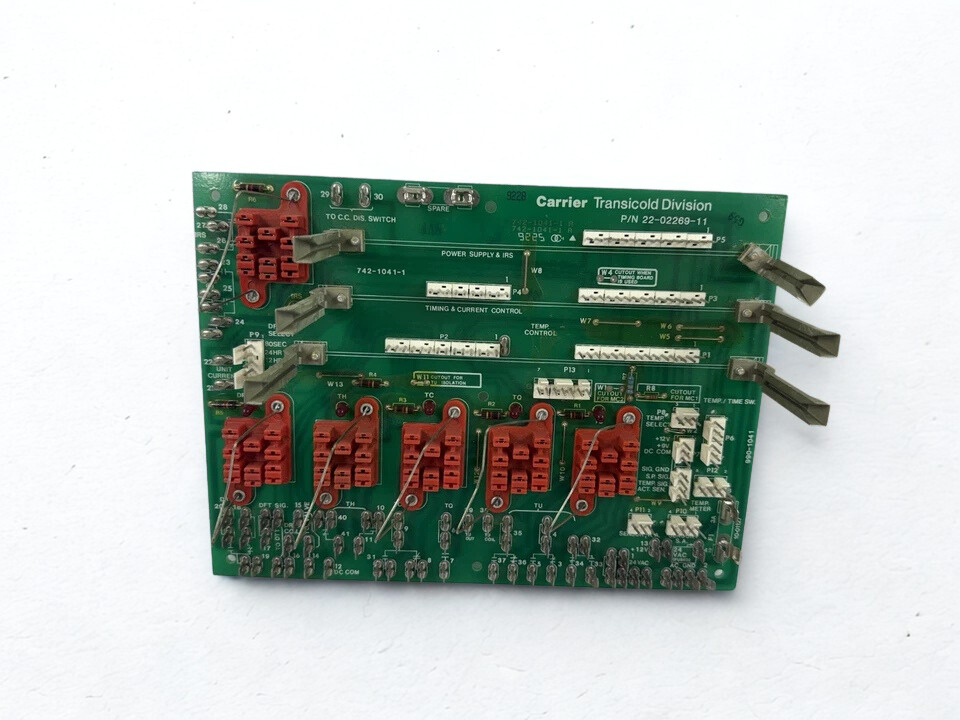

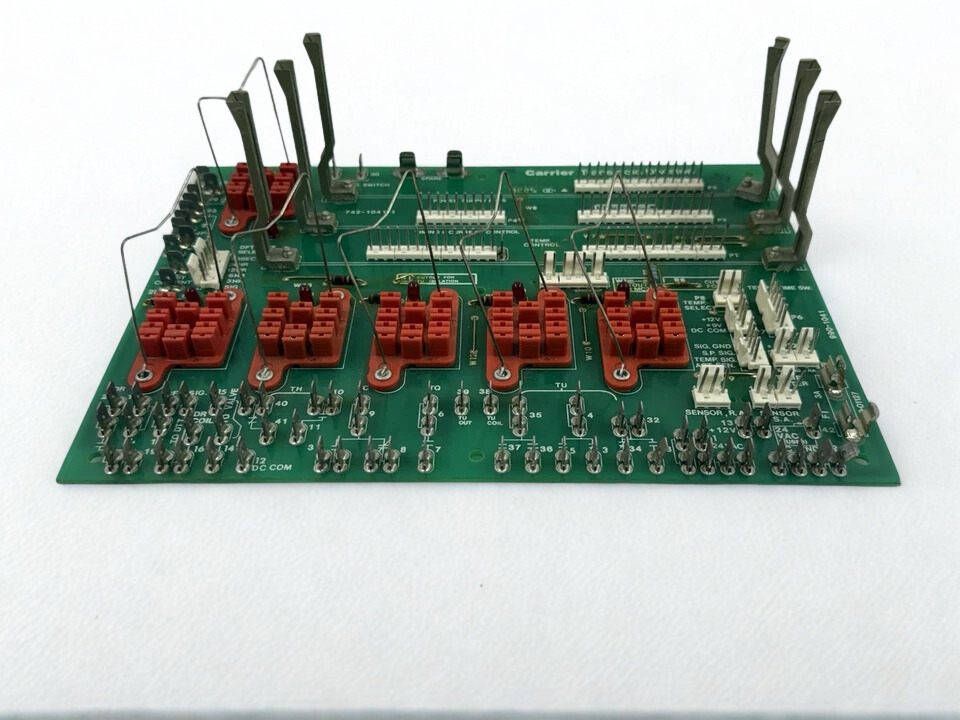

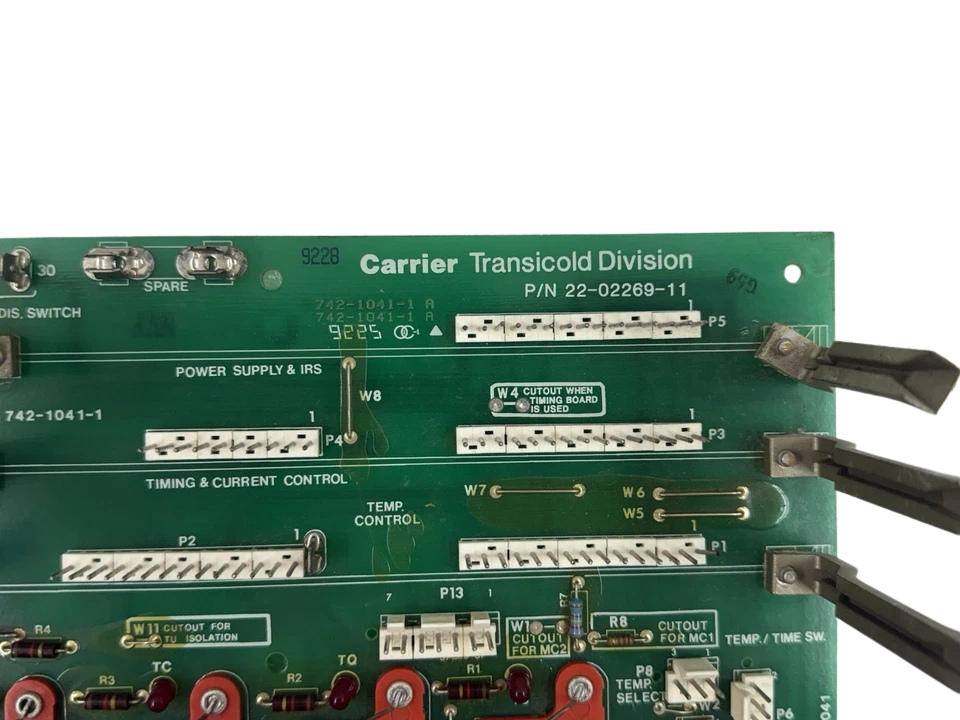

Carrier Transicold 22-02269-11 Motherboard PCB

The Carrier Transicold 22-02269-11 motherboard is the main PCB for electronic controls in Carrier refrigeration units. It controls the temperature, the compressor, and system diagnostics in transport refrigeration systems. Marked with numbers like PCC1V0 9843, 742-1041-2A/2B, and 990-1041, this strong board works well in tough marine, trucking, and container settings. Engineered for easy integration, it supports preventive maintenance and quick replacements to keep fleet operators and technicians from having to stop working.

The Carrier Transicold Division’s 22-02269-11 motherboard, also known as PCC1V0 9843, is the main control PCB. It takes inputs from sensors, thermostats, and user interfaces to manage the refrigeration cycles in reefer trailers, containers, and truck units. It is made with strong parts from Carrier’s Huntington, IN facility, so it fits perfectly with models that need UT Electronic Controls CTD Reman requirements. This PCB comes in new, remanufactured, or Rev 5 versions. It makes the system work better, find faults faster, and meet the standards for transport refrigeration.

The board weighs about 510 grammes and has several connectors for electricity, sensors, and actuators. This lets you keep a close eye on the compressor relays, evaporator fans, and defrost cycles. Technicians like that it works with parts like 22-02269-11RP and 0138-00306 right out of the box, which cuts down on repair times in the field.

Technical Specifications:

Main Features:

-> This is the main motherboard PCB (PCC1V0 9843) for Carrier Transicold refrigeration units. It processes sensor inputs to control the compressor, fans, and defrost cycles accurately.

-> Features strong construction with several connectors that make it easy to add to reefer trailers, containers, and truck systems. This makes sure that it works well even while it is vibrating.

-> It has advanced diagnostics through LEDs and fault logging, which makes it easy to fix problems quickly and undertake preventive maintenance to keep the fleet running smoothly.

-> Works with cross-referenced parts like 742-1041-2A/2B and Rev 5 versions, making it perfect for new installations or remanufactured replacements.

-> The Carrier engineering from Huntington, IN, makes it light (510g) and reliable, and it optimises temperature regulation for perishable cargo in marine and over-the-road settings.

Applications guide:

The Carrier Transicold 22-02269-11 motherboard PCB controls the temperature in reefer trailers and truck refrigeration units very precisely. This keeps food and medicines, which are perishable items, within the best ranges throughout long-haul travel. In maritime container systems, it controls compressors, evaporator fans, and defrost cycles to keep cargo safe on long sea trips in rough offshore conditions. Fleet operators use its diagnostic features for regular maintenance, which cuts down on downtime and improves fuel efficiency in tough logistical operations around the world.
