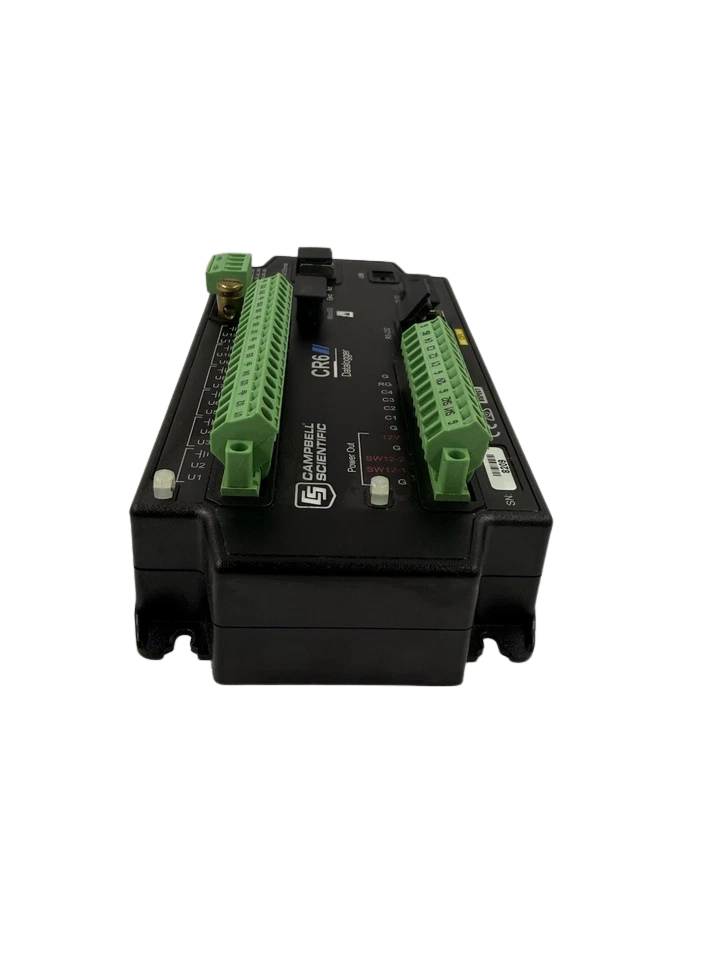

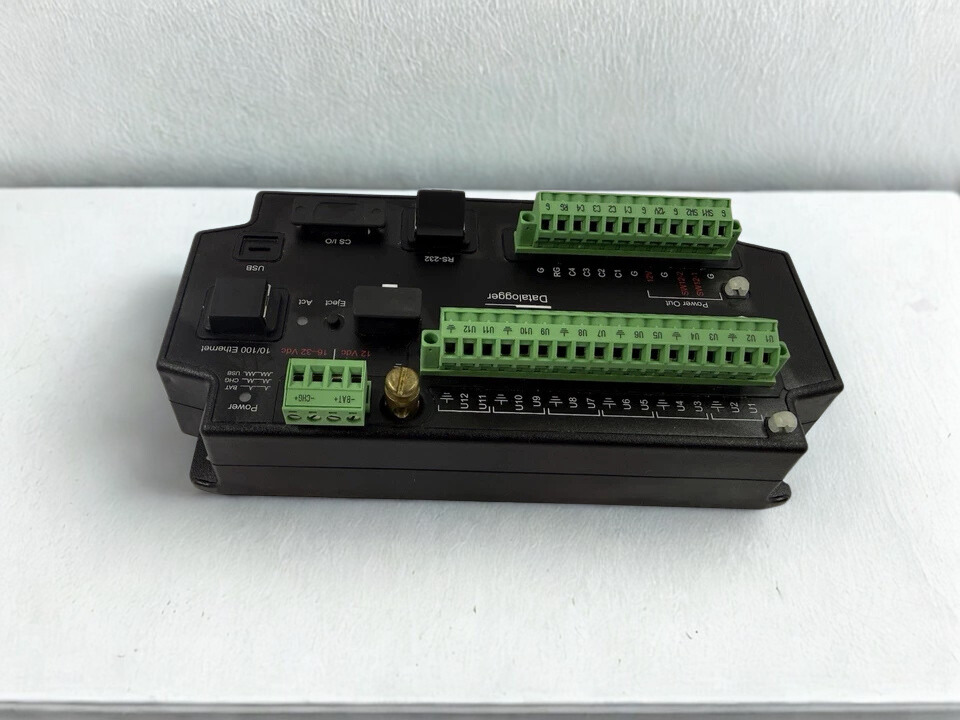

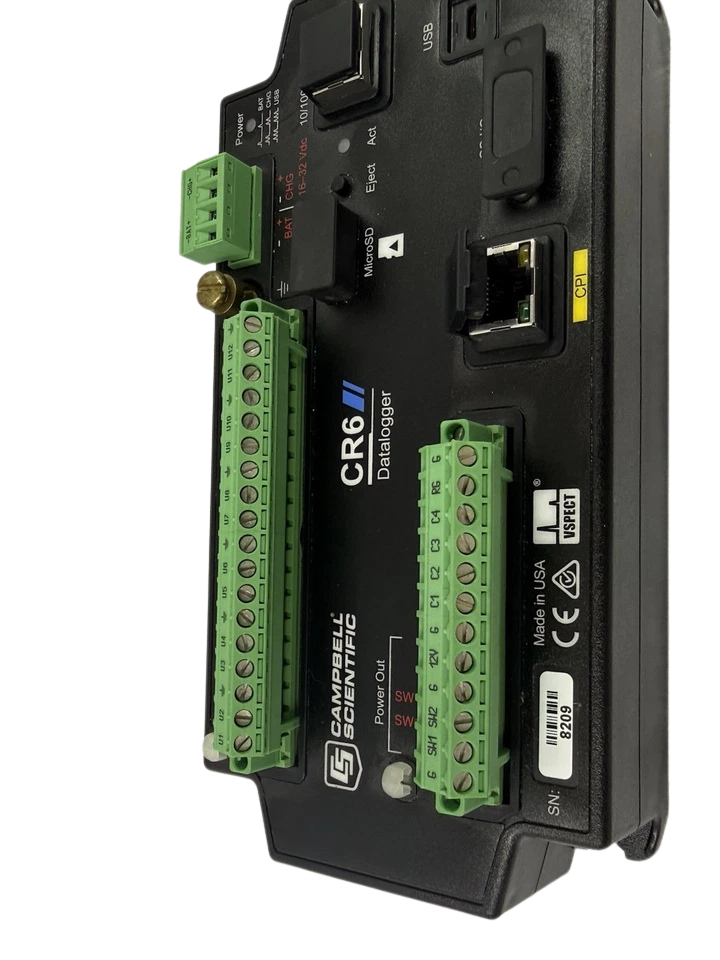

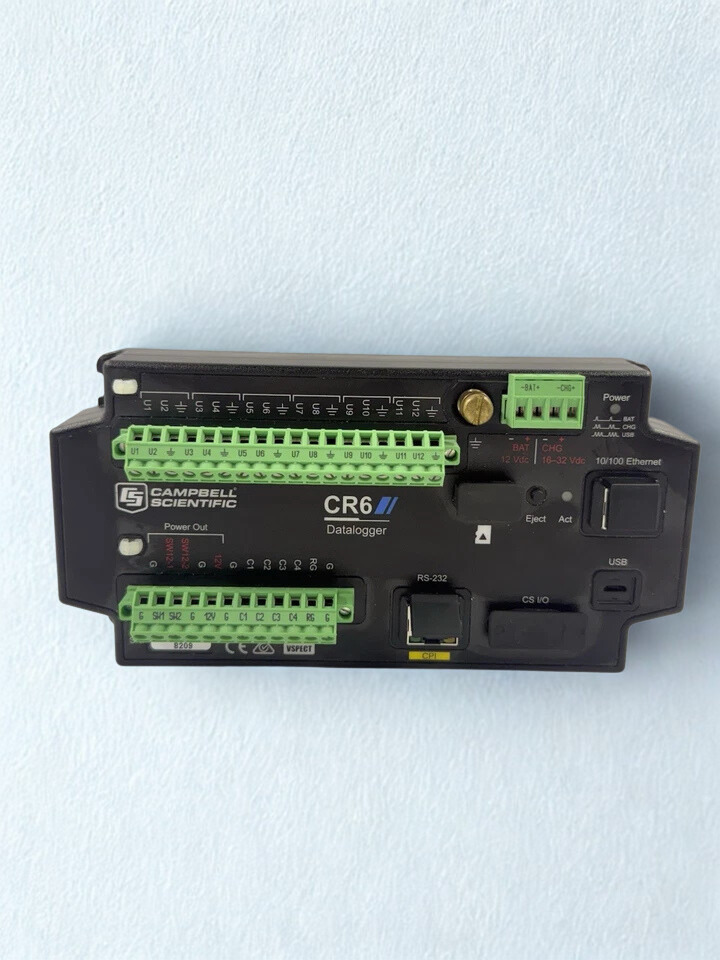

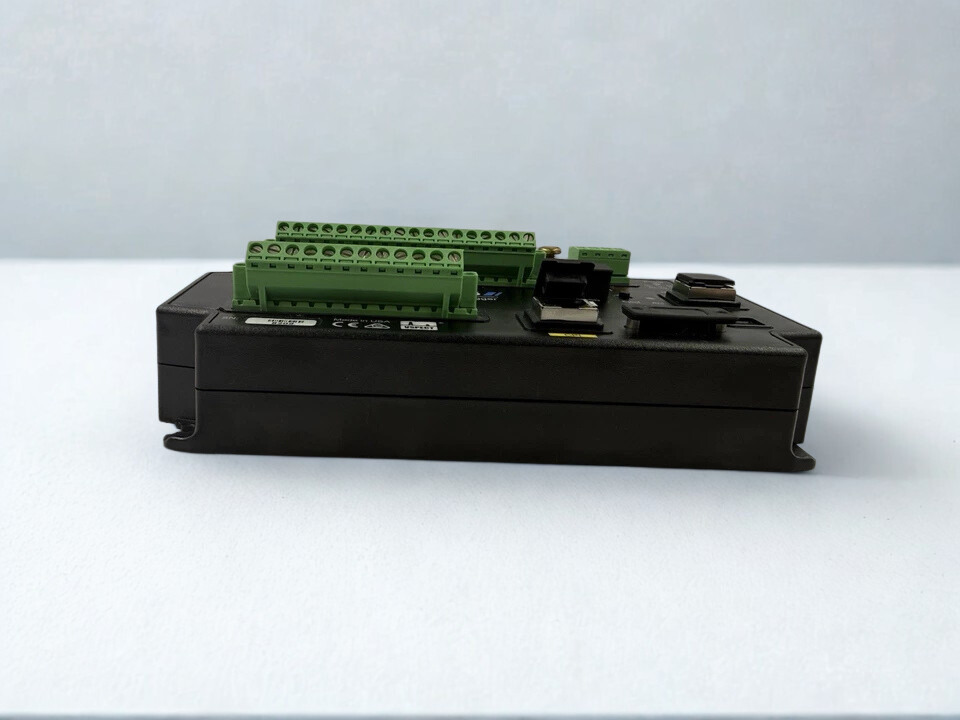

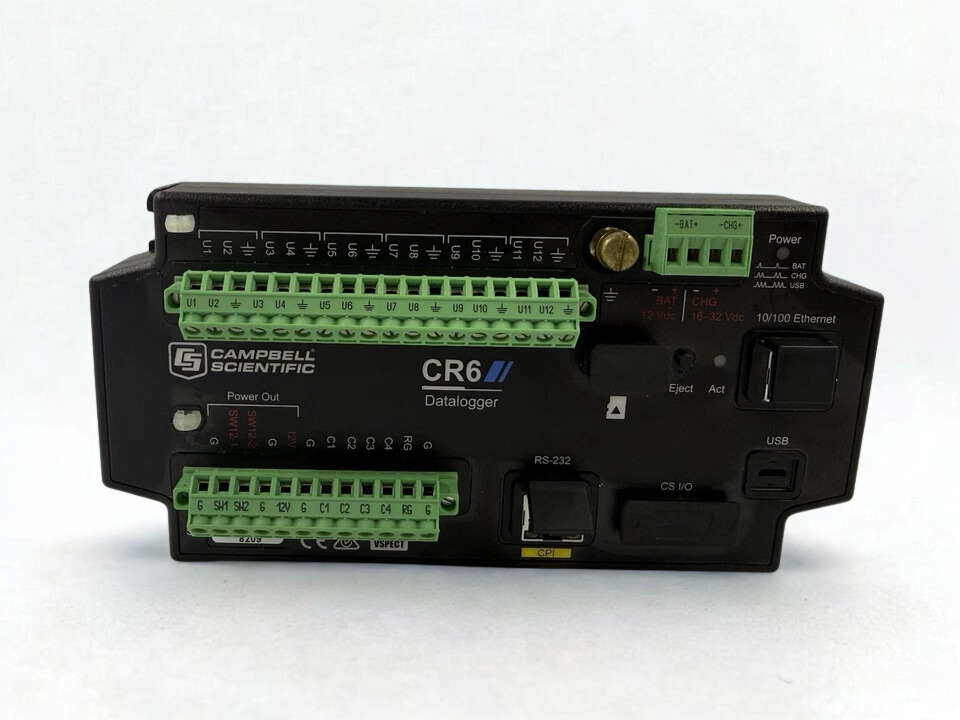

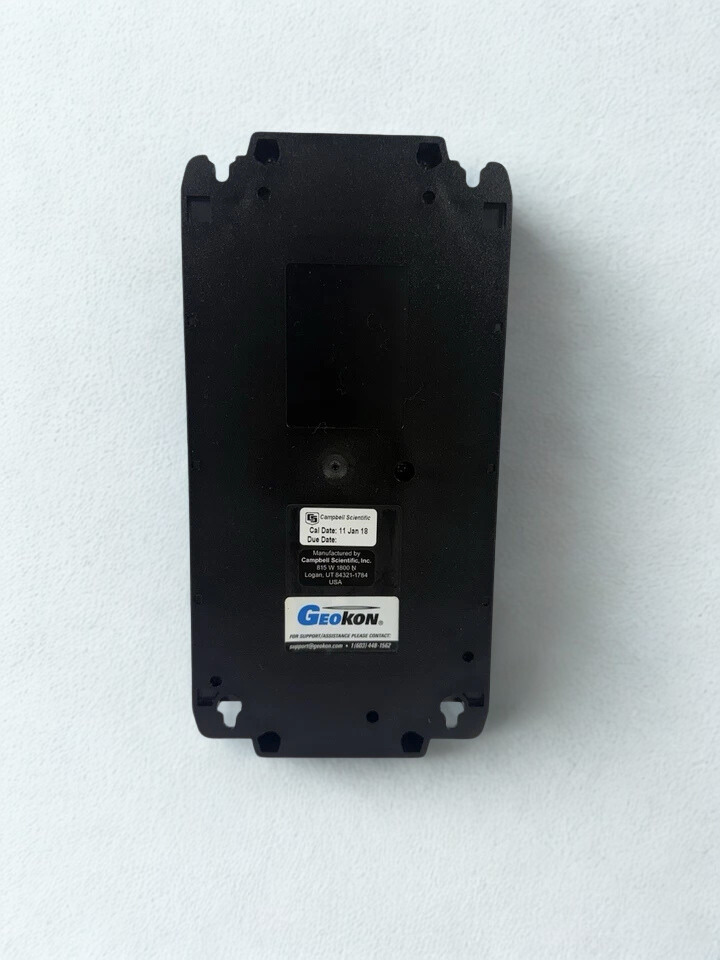

CR6 Campbell Scientific High-Capacity Data Acquisition System

Check out the CR6 Campbell Scientific High-Capacity Data-Acquisition System, a powerful tool made for tough research, industrial, and environmental settings. This high-cap DAQ is very flexible since it has 12 universal inputs that can handle analog voltage, thermocouples, vibrating wires using the new VSPECT® technology, and digital signals. It processes all of these signals through a 24-bit ADC at scan rates of up to 1000 Hz. It has a tough IP50 case and uses very little power, so it’s perfect for use in hard circumstances from -40°C to +70°C without anyone being there.

The CR6 has a 100 MHz Renesas processor, 4 MB of SRAM, and microSD storage that can be expanded to 16 GB. It can handle processing data on board, sending alerts, and converting protocols including MQTT and DNP3. Ethernet, Wi-Fi, and SDI-12 make it easy to connect to modern networks. Its 557-year MTBF and three-year warranty (which may be extended to seven) make sure that it will perform reliably for a long time for marine tech, hydrological, and structural monitoring.

Campbell Scientific CR6 Technical Specifications

Advanced Sensor Compatibility

• Measures nearly any sensor: analog, digital, SDI-12, vibrating wire (static/dynamic), period averages, and low-level AC pulses.

• VSPECT® filters noise for superior vibrating wire accuracy, providing diagnostics regardless of sensor manufacturer.

• Supports multiplexers, CDMs, and peripherals for expanded channels in hydrology, meteorology, and infrastructure monitoring.

Connectivity and Power Efficiency

• Options include Wi-Fi (802.11 b/g/n), FHSS radios (e.g., RF407 902-928 MHz up to 250 mW), Ethernet, and cellular modems.

• Intelligent power management with built-in charger for 12 VDC batteries or solar, idle drain <1 mA at 12 VDC.

• Rugged IP50 polycarbonate enclosure withstands extreme temperatures (-40°C to +70°C) and MIL-STD-810G shock/vibration.

cr6 campbell scientific Key Features:

-> 12 universal inputs can be set up to work with analogue voltage, thermocouples, vibrating wires (using patented VSPECT® technology), digital I/O, and more, making them compatible with a wide range of sensors.

-> High-Resolution Measurements: A 24-bit ADC with scan rates of up to 1000 Hz and an accuracy of ±0.04% (0–40°C) for getting accurate data.

-> Advanced Connectivity: It has built-in Ethernet (10/100), optional Wi-Fi (802.11 b/g/n), RS-232/485, and SDI-12 compatibility (8 ports). It also supports protocols including Modbus, MQTT, and DNP3.

-> The Renesas RX63N 32-bit CPU (100 MHz), 4 MB SRAM, and 72 MB flash memory can be expanded to 16 GB microSD for processing and storage on the edge.

-> Low-Power Efficiency: Less than 1 mA of idle current at 12 VDC; smart battery charging for solar and distant sites; works with 12 VDC batteries.

-> Rugged Design: The IP50 polycarbonate shell can handle temperatures from -40°C to +70°C and is MIL-STD-810G compatible for shock and vibration in tough conditions.

-> Pulse and Speciality Inputs: 16 counters (up to 1 MHz), period averaging, and VSPECT® noise filtering for better readings of vibrating wire.

-> Extended Reliability: 557-year MTBF, real-time clock with a ±3 min/year accuracy (GPS sync to ±10 µs), and a 3-year guarantee that can be extended to 7 years.

Industrial Application

1. Structural Health Monitoring: This system checks the strain gauges, inclinometers, and piezometers in bridges, dams, and buildings to find out whether they are bending and make sure they are still safe.
2. Geotechnical Engineering: Uses VSPECT® vibrating wire measurements to keep an eye on slope stability, excavations, and dams in rough terrain.
3. Environmental Monitoring: Keeps track of weather stations, water quality (pH, conductivity), and hydrology sensors so that data can be collected over a lengthy period of time without anyone having to be there.
4. Industrial Automation: Works with SCADA through Modbus/DNP3 to regulate processes, measure temperature, pressure, and flow in factories.
5. Infrastructure Assessment: Uses multi-channel vibrating wire rosettes to check pipelines, tunnels, and overpasses for stress and corrosion.
6. Energy Sector: Manages solar farms, wind turbines, and substations with low-power remote logging and Ethernet connections for asset management.
7. Water Resource Management: Uses SDI-12 smart sensors in reservoirs and wastewater systems to check levels and quality.

CR6 Maintenance Details:

Regular maintenance makes sure that the Campbell Scientific CR6 High-Capacity Data-Acquisition System works well in tough conditions. To keep downtime to a minimum, pay attention to power systems, firmware, and physical inspections.

• Check the batteries every month for voltage (more than 12.6 V when fully charged) and clean the terminals. Replace them every 2–3 years or when the capacity drops below 80%.
• Firmware Updates: Use the Device Configuration Utility to get the most recent version. You should upgrade every three months to get bug fixes, new protocols, and performance improvements.
• Enclosure Inspection: Every three months, clean the IP50 polycarbonate housing with mild soap, inspect the seals and vents for debris, and make sure the working temperature is between -40°C and +70°C.
• Sensor Verification: Use recognised standards to calibrate analogue inputs once a year; use LoggerNet software to test VSPECT® vibrating wires with diagnostic tables.
• Storage and Wiring: Check the integrity of the microSD card (up to 16 GB) once a month by offloading data. Make sure all CPI terminals are secure and don’t over-tighten them to avoid damage.
• Cleaning the Power Supply: Twice a year, clean the solar panels or chargers. Check the charge regulator LEDs for problems and make sure the idle drain stays below 1 mA.
