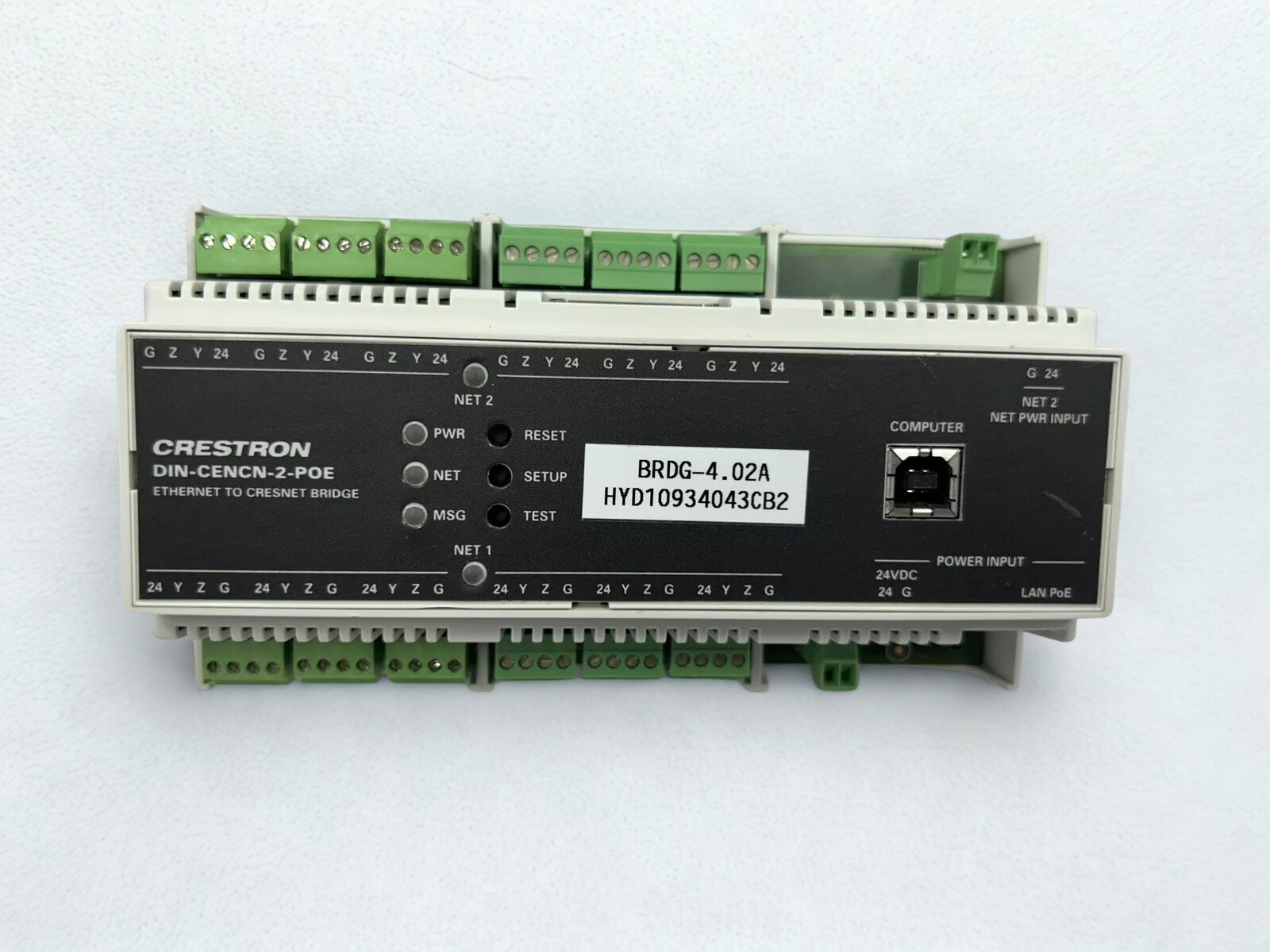

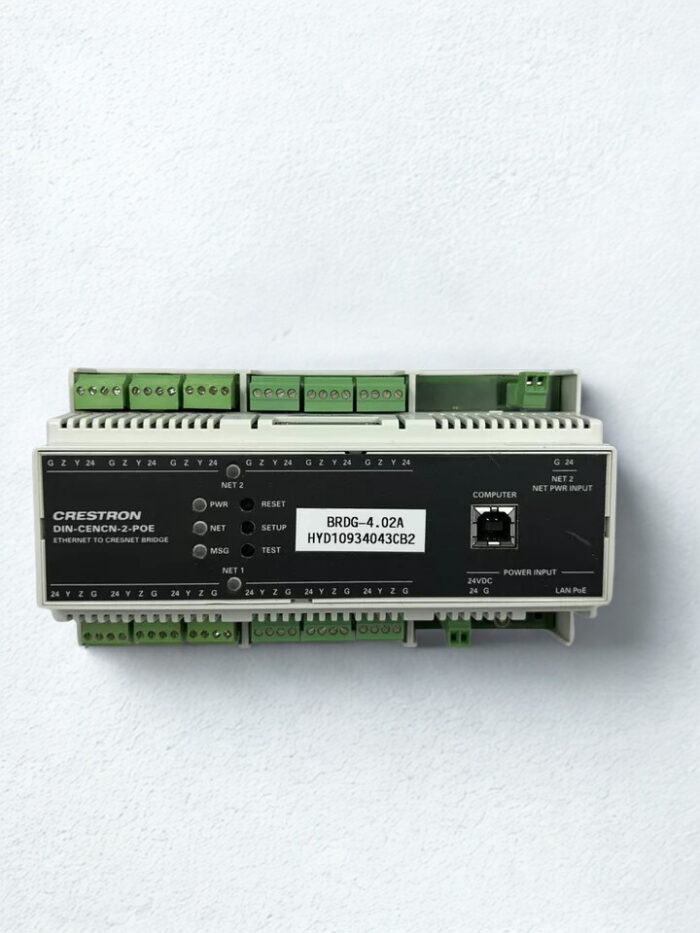

DIN-CENCN-2-POE Ethernet to Cresnet Bridge with PoE
Consition: Used, Tested and Fully Functional
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions

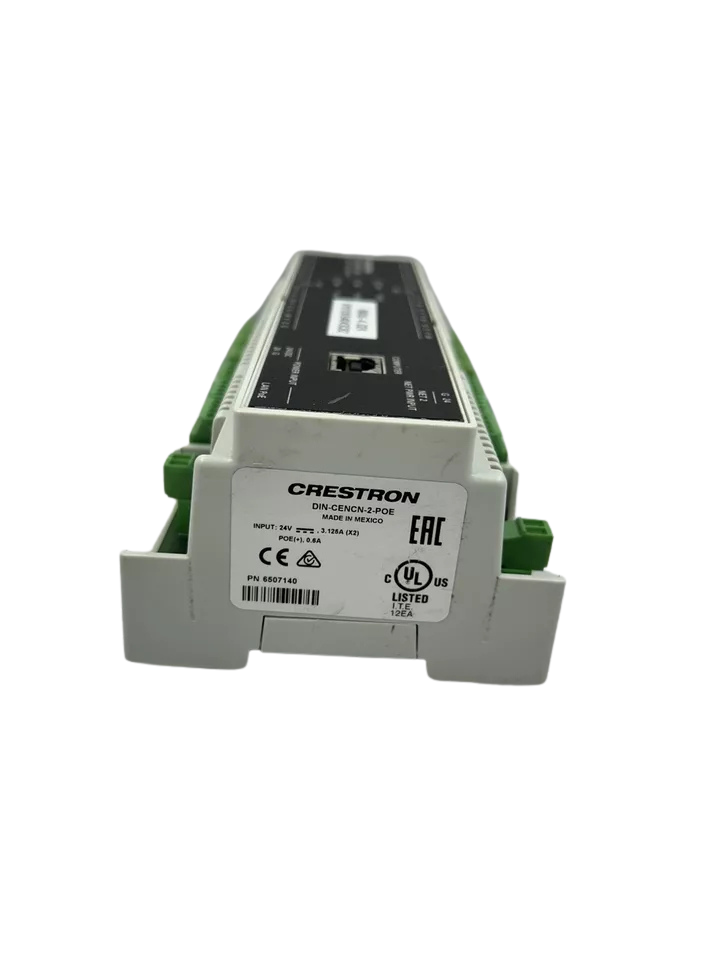

The Crestron DIN-CENCN-2-POE Ethernet to Cresnet Network Bridge changes the game for AV control systems by connecting high-speed Ethernet networks to the strong Cresnet protocol without any problems. It can power up to 40 devices across two separate subnets with PoE ease. This bridge (part 6507140) is made to be mounted on DIN rails in commercial enclosures. It provides fault-tolerant networking, comprehensive diagnostics, and variable power options to keep things running smoothly under tough conditions. The DIN-CENCN-2-POE is designed to work best with Crestron 3-Series processors. It makes wiring easier and more scalable for current automation systems.
Technical Specifications
| Category | Specification | Details ​ |
|---|---|---|
| Communications | Ethernet | 100 Mbps, auto-switching, auto-negotiating, IEEE 802.3af/at Type 1 |
| Cresnet | Server mode, two subnets, 20 devices/subnet max | |
| USB | Type-B for computer console | |

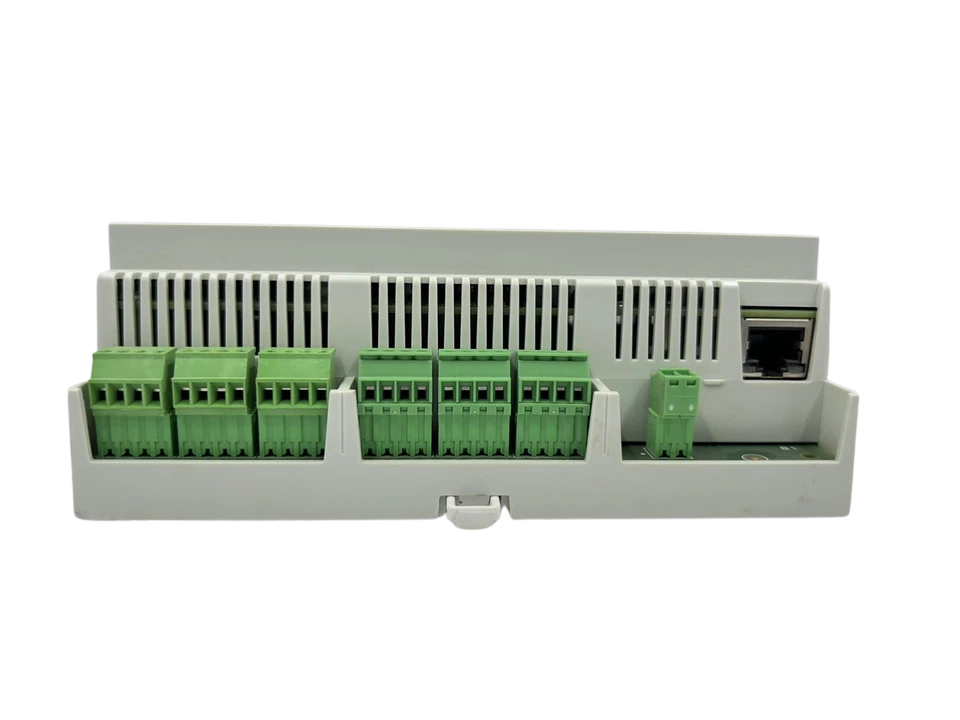

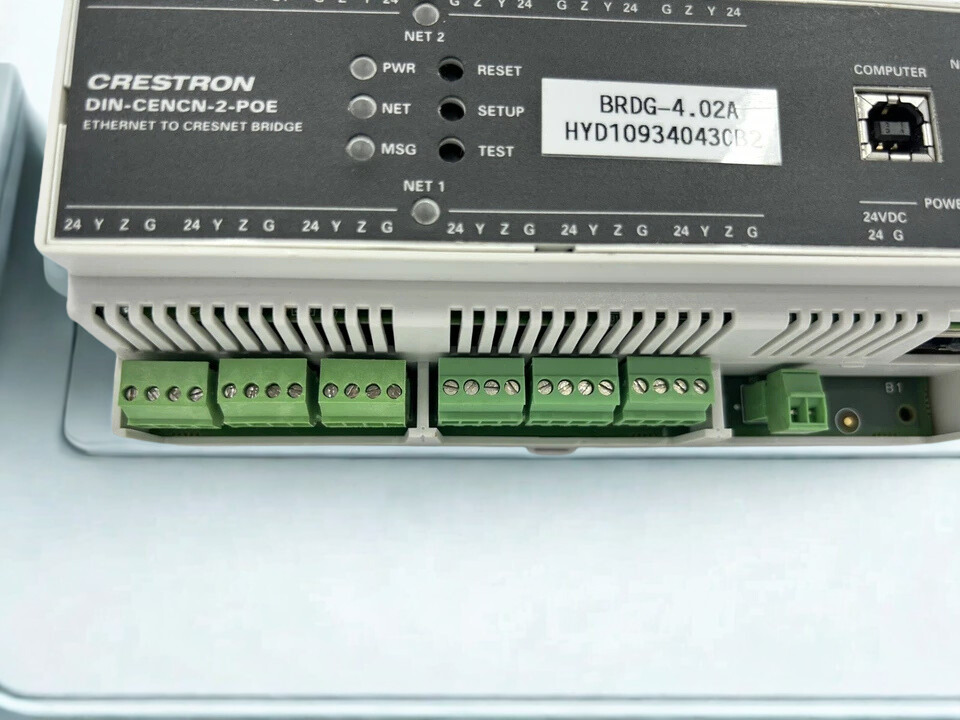

| Connectors | NET 1 & NET 2 | 6x 4-pin 3.5mm blocks each (paralleled) |
| Power Input (24VDC) | 2-pin 3.5mm blocks | |
| LAN PoE | RJ-45 Ethernet port | |
| Power | Sources | PoE (10W total), PoE+ (20W total), 24VDC up to 75W/subnet |
| Cresnet Output | Up to 75W max per config | |
| Environmental | Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 10% to 95% RH (non-condensing) | |
| Physical | Dimensions (H x W x D) | 3.61″ x 6.33″ x 2.30″ (92 x 161 x 59 mm) |
| Weight | 9.8 oz (277 g) | |
| Mounting | 35mm DIN rail, 9M width (162 mm) | |
| Compliance | Certifications | FCC Class B, CAN ICES-3(B)/NMB-3(B) |
Key features of DIN-CENCN-2-POE:
- Dual Independent Cresnet Subnets: This feature gives you two distinct networks, each of which can support up to 20 Cresnet devices. Each subnet has six parallel connectors, making it easy to set up daisy-chain or home-run wiring.
- Intelligent Power Management: Automatically sets up power delivery from PoE, PoE+, or external 24VDC sources, providing up to 75W per subnet and isolating failures to stop them from spreading across networks.
- Advanced Built-in Diagnostics: This includes LED indicators on the front panel for quick status checks, web-based error analysis, real-time warnings sent straight to control systems, and SD card logging to quickly capture and fix problems that happen only sometimes.
Advantages:
1) Dual Cresnet Subnets: This device can handle two networks on its own, each of which can support 20 Cresnet devices including keypads, dimmers, shades, and sensors. It has paralleled connectors that make it easy to daisy-chain or run home runs.
2) Power over Ethernet (PoE) Flexibility: It can get power from IEEE 802.3af/at (10–20W total) or an external 24VDC source, up to 75W per subnet, and it automatically sets itself up for the best distribution and fault isolation.
3) Comprehensive Diagnostics: Includes front-panel LEDs, a web interface, real-time warnings to Crestron Home/CP4 processors, and SD card logging to quickly find problems without shutting down the system.
4) Compact DIN Design: Fits standard 35mm rails in panels or enclosures and has a strong metal case that can handle vibrations in industrial situations.
Usage:
-> Enterprise AV solutions in conference centers connect Ethernet backbones to Cresnet controls that are spread out over the room to handle lighting, AV switching, and room automation.
-> Long-distance building management systems that combine thermostats, occupancy sensors, and motorized blinds.
-> Scalable setups in hotels, universities, or companies that connect numerous floors using Ethernet and keep defects from spreading to other floors.
