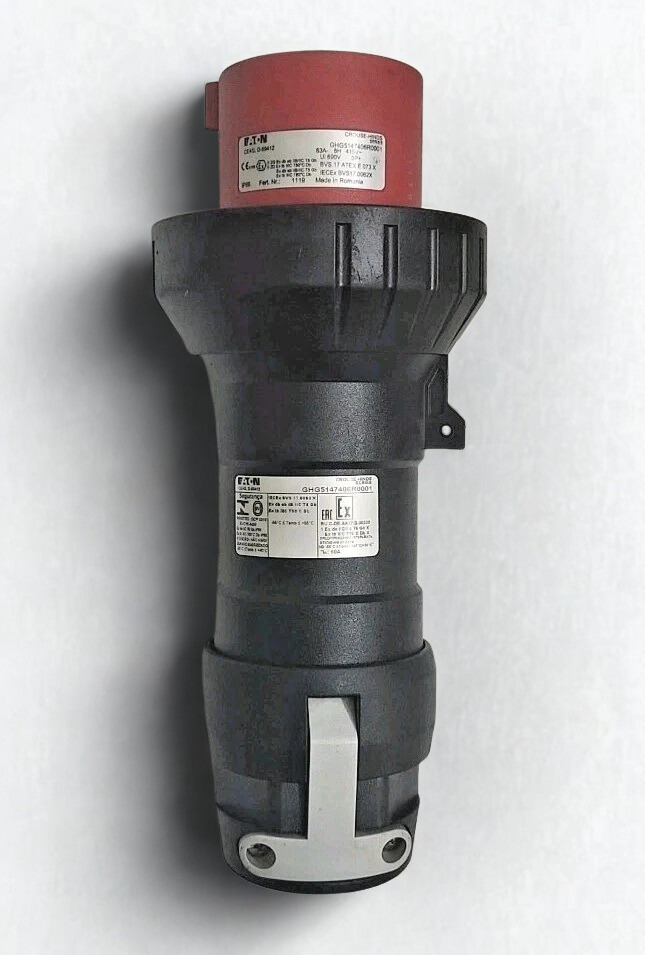

EATON GHG5147406R0001 63A Hazardous Area Plug

EATON GHG5147406R0001 63A Hazardous Area Plug Overview:

The EATON GHG5147406R0001 is a high-quality IEC 60309 plug made for dangerous places that provides stable 63A power at 380–415 Vac. This four-pole gadget is made of nylon and makes sure that connections are safe in explosive environments like oil refineries and ships.

The GHG5147406R0001 hazardous area plug, made by Eaton Crouse-Hinds, fulfills strict IECEx/ATEX regulations for activities in Zones 1 and 2. Its strong three-wire, four-pole design makes it great for high-demand tasks in petrochemical plants, offshore platforms, and industrial processing facilities. It has an IP66 ingress protection rating and an M40 cable entry, so it can handle tough conditions without letting arcs or sparks through.

Applications

1) In petrochemical plants and refineries, hazardous gasses are used to power portable or stationary equipment.

2) Marine and offshore rigs for pumps, motors, and heavy gear in corrosive, wet conditions.

3) Mining and drilling operations are subject to dust, vibration, and explosive hazards.

4) Chemical processing plants require connections that are washdown resistant and IP66 protected.

5) Oil and gas platforms, steel mills, and grain/flour mills require dependable Zone 1/2 power delivery.

Technical Specifications: GHG5147406R0001

Eaton GHG5147406R0001 Key Functions:

• Delivers safe 63A power in explosive Zone 1/2 environments.​

• Prevents ignition via Ex ed IIC explosion-proof design.​

• Ensures IP66 sealing against dust and water ingress.​

• Provides secure bayonet lock for vibration resistance.​

• Supports IEC 60309 standard for mismatch prevention.

Usage Guide:

-> Install in certified enclosures with M40 cable glands and torque connections according to Eaton standards to ensure integrity.

-> Connect only when de-energized, and verify phase alignment (6h position for PE/PA) before powering up.

-> Connect with compatible GHG series sockets for easy plug-and-play in hazardous environments such as refineries.

-> To sustain the IP66 seal, do routine wear inspections and cleaning of contacts without disassembling the unit.
