Eaton HMDL3800 3 Pole 800A Circuit Breaker 600VAC 65kA Series C

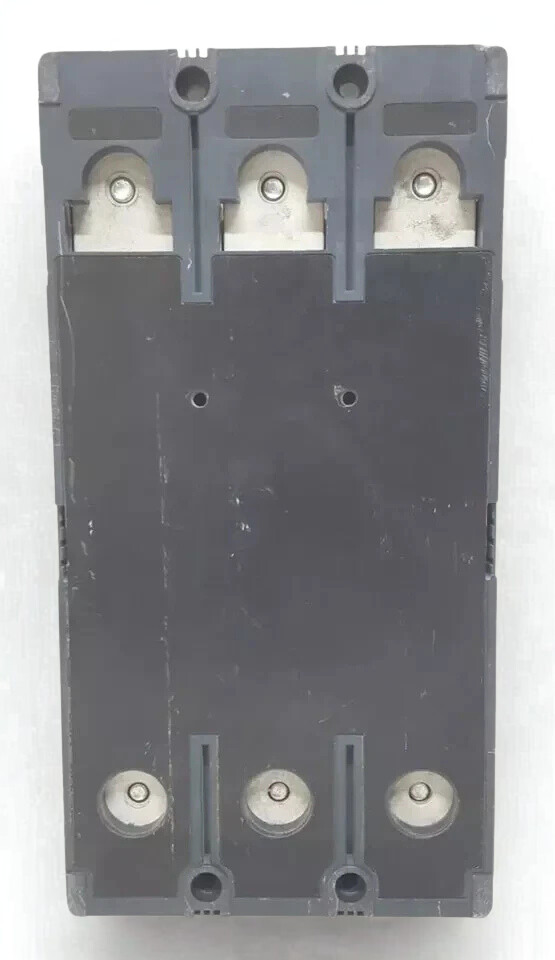

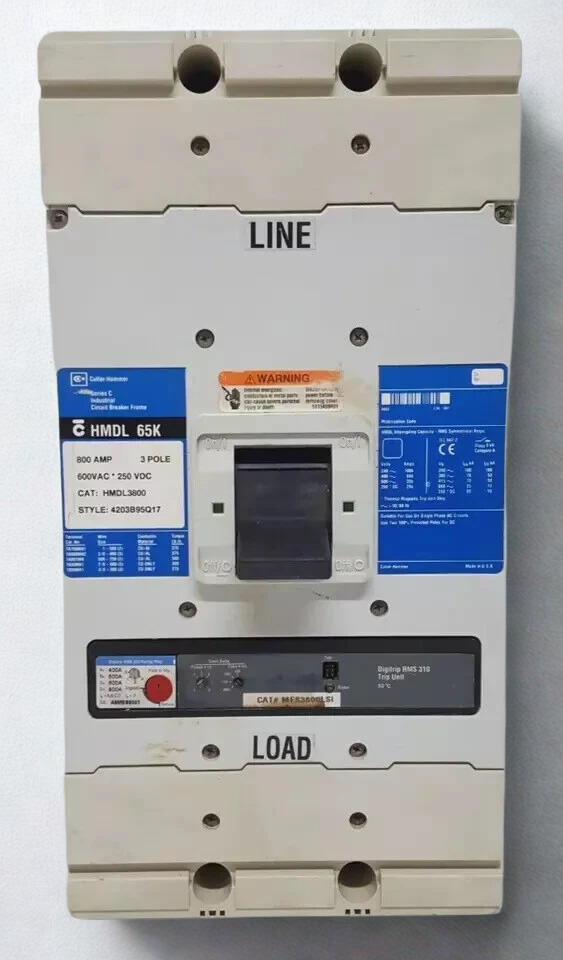

The Eaton HMDL3800 is a three-pole, 800-amp molded case circuit breaker from Eaton’s Series C series. It is meant for use in industrial and commercial power distribution. People often call this circuit breaker the Cutler Hammer HMDL3800 because it is based on the MDL-frame architecture and has a long history with the Cutler Hammer brand. The HMDL3800 can handle up to 600VAC and has a high interrupting capacity of 65 kA at 480 VAC; thus, it can handle tough electrical situations.

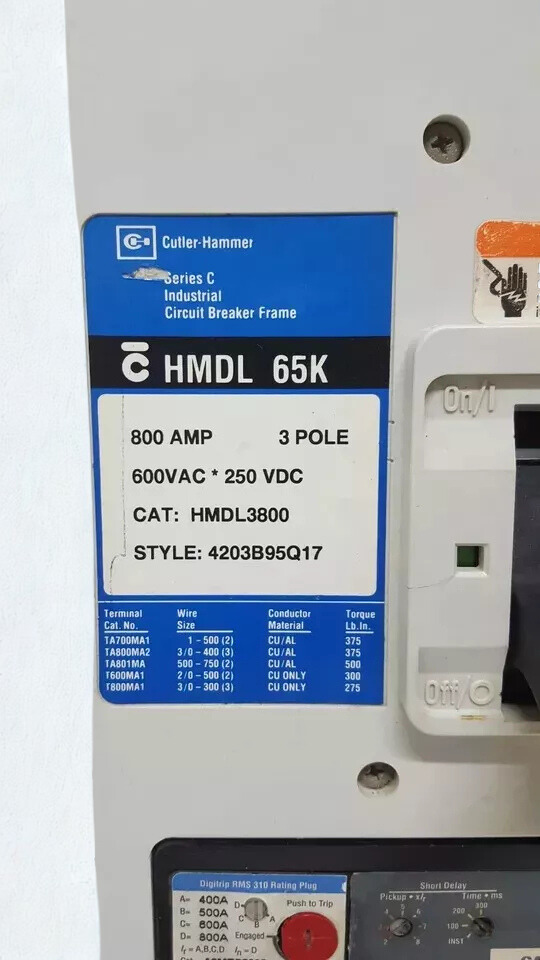

Eaton HMDL3800 Specifications:

Series: C

Type of Frame: MDL

Poles: 3

Rating for Amperage: 800A

600 VAC is the voltage rating

Interrupting Capacity: 100kA at 240VAC and 65kA at 480VAC

Trip Type: Fixed thermal and fixed magnetic (T186), with Long-Time and Instantaneous (LI) protection

Type of Connection: Feed-Thru

Mounting: Can be mounted in a feed-thru or normal way

UL Listed Certification

Size: 18.25″ long, 10.75″ wide, and 8″ high

Weight: 30.4 pounds

One year from installation or 18 months from shipment is the warranty. ​

Functions and Features

• The HMDL3800 provides reliable thermal-magnetic protection against overcurrents and short circuits.
• It belongs to the Series C family, which is noted for being strong and working with both new and old installations.
• The breaker has line and load side lug terminals that let you wire it in different ways, and it can use different trip units.
• Because of its M-frame architecture, it can be used in heating, air conditioning, and refrigeration (HACR) systems. ​

Common Uses

-> Panels for distributing power in factories

-> Electrical systems in commercial buildings

-> Protection for HVAC equipment

-> Retrofit projects that need a circuit breaker with a lot of power and dependability
