EUROTHERM 3208 Single-Loop Temperature Controller 2A

EUROTHERM 3208 Single-Loop Temperature Controller 2A | Precision PID Control

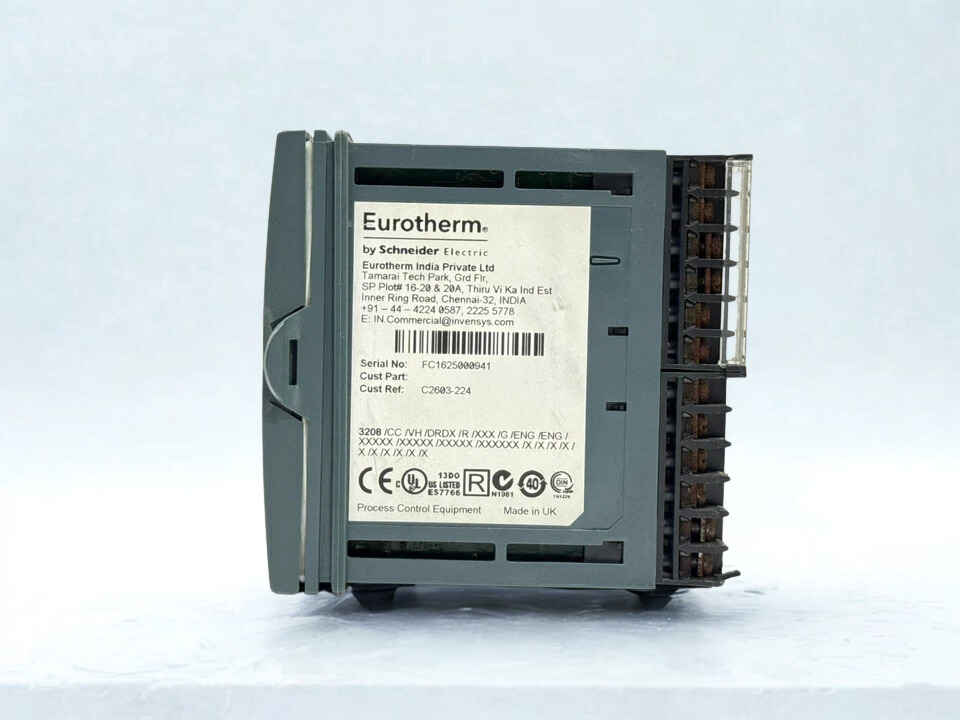

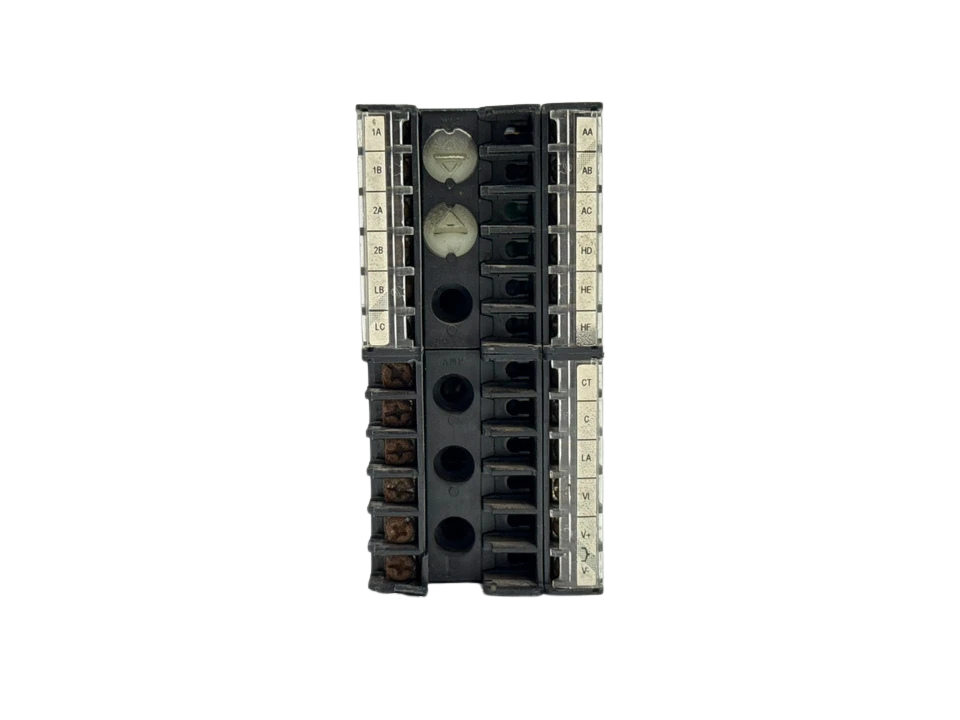

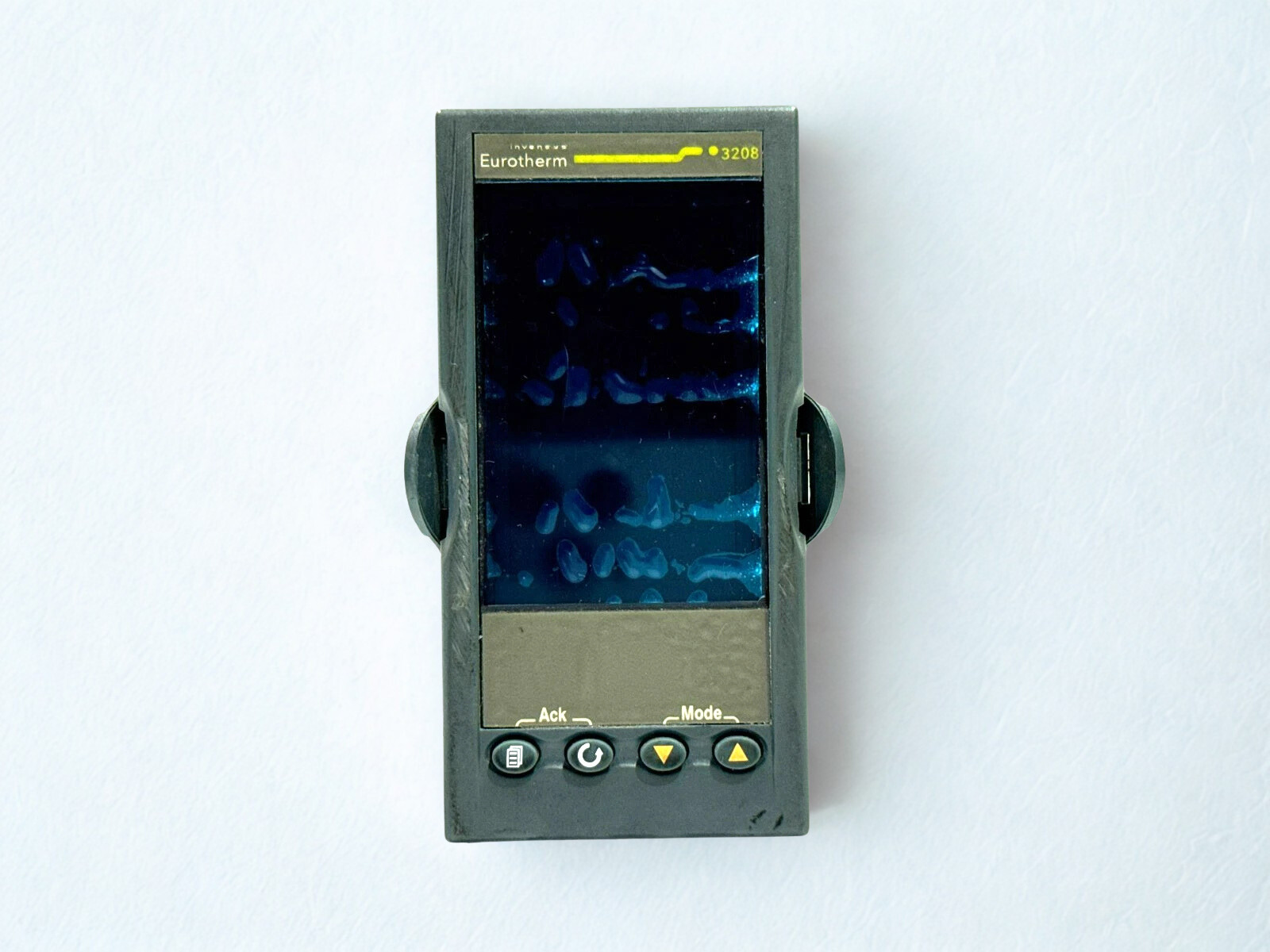

The EUROTHERM 3208 is a small, 1/8 DIN single-loop temperature and process controller developed for precision control in industrial settings. It has advanced PID, ON/OFF, and VP control, as well as features like heater failure monitoring and an 8-segment programmer to make processes run more efficiently. This 48x96mm device is perfect for tough situations since it works reliably with universal inputs that work with thermocouples, RTDs, and linear signals.

Specifications: EUROTHERM 3208

Main Features:

1. Precision auto-tuning PID control with a 250ms loop update and excess prevention keeps the temperature stable.
2. The built-in heater current monitoring via CT input (10-100A scaling) finds partial failures and SSR problems and shows load amps on the front panel ammeter.
3. It has an 8-segment setpoint coder, event output, holdback/guaranteed soak, and recipe support for up to 5 profiles through iTools.
4. Custom moving text messages (15×127 characters) and multilingual help make it easy for operators to get feedback and see alarms.
5. Modbus communications, analogue resend, digital I/O, and remote setpoint input make it easy to connect multiple zones.

EUROTHERM 3208 Manual

Download Manual PDF File

Usage:

• Hot runner systems for plastic extrusion and molding that let you regulate the exact zone.
• Furnaces and ovens that need programmer and heater diagnostics for heat treatment.
• Processes for thermal forming and alleviating tension that can be changed according on the recipe.
• Ovens, chillers, and industrial heating with many zones keep the temperature stable.
