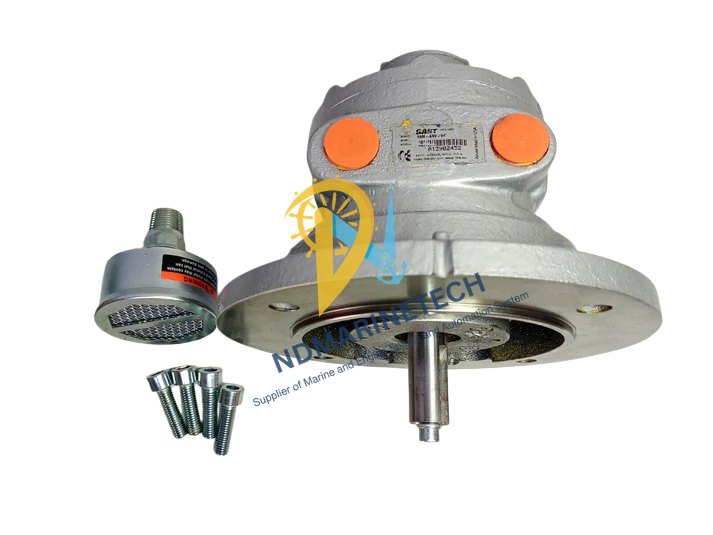

Gast 6AM-ARV-54 Rotary Vane Air Motor – New

The Gast 6AM-ARV-54 serves as a critical pneumatic prime mover within marine and industrial fluid control assemblies. Unlike electric motors, this rotary vane unit is utilized for high-torque actuation in hazardous environments where spark-suppression is a regulatory requirement. In marine ecosystems, it is frequently integrated with automated valve control loops, acting as the mechanical driver for large-scale ballast manifolds or fuel-transfer pump skids. It interfaces seamlessly with pneumatic positioners and is often paired with Schneider Acti9 control circuits for remote solenoid pilot triggering.

Operational reliability in an engine room environment requires hardware that ignores the standard stressors of a 60Hz high-vibration grid. The 6AM-ARV-54 is engineered to withstand the continuous low-frequency harmonics produced by medium-speed diesel engines. Because it operates on compressed air rather than localized electrical windings, the unit is immune to the insulation breakdown typically caused by 95% humidity and ambient temperatures exceeding 45°C. This makes it a preferred component for deck-level machinery where salt spray and thermal cycling cause frequent failure in traditional IP-rated electric motors.

Technical Specifications

Key Features

• Self-Cooling Expansion: The motor cools itself while it runs by letting air inside it expand. This makes it possible to use it in engine rooms with high ambient temperatures.
• Variable Speed Control: You may change the inlet air pressure to change the speed and torque without having to buy expensive VFDs.
• Explosion-Proof Safety: Naturally spark-free and meets ATEX standards for dangerous fluid areas and pump rooms.
• Reversible Rotation: Designed to work in both directions, perfect for winches and bi-directional valve actuators.
• High Vibration Resistance: The hardened mechanical parts are made to withstand the seismic-level frequencies of maritime hulls.

Applications

• Ballast System Actuation: Opening and closing valves that are operated from a distance in compartments that are underwater or have a lot of moisture.
• Fuel and lube oil transfer: powering pump heads in Class 1 Div 1 areas.
• Marine Winch Systems: Giving deck-side tensioning equipment a lot of power to start up.
• Mixing and agitation: used in chemical dosing tanks for systems that clean exhaust gas.

Pro-Engineer Tip:

A common but overlooked failure in marine pneumatic systems is Internal Icing or Vane Stiction caused by adiabatic cooling. When high-pressure air expands rapidly inside the 6AM-ARV-54, the internal temperature can drop below freezing. If the vessel’s air dryers are underperforming, moisture entrained in the lines will flash-freeze, causing the vanes to stick in the rotor slots. This presents as a motor that stalls despite having full line pressure. Always check the dew point of your service air before assuming a mechanical failure within the motor itself.
