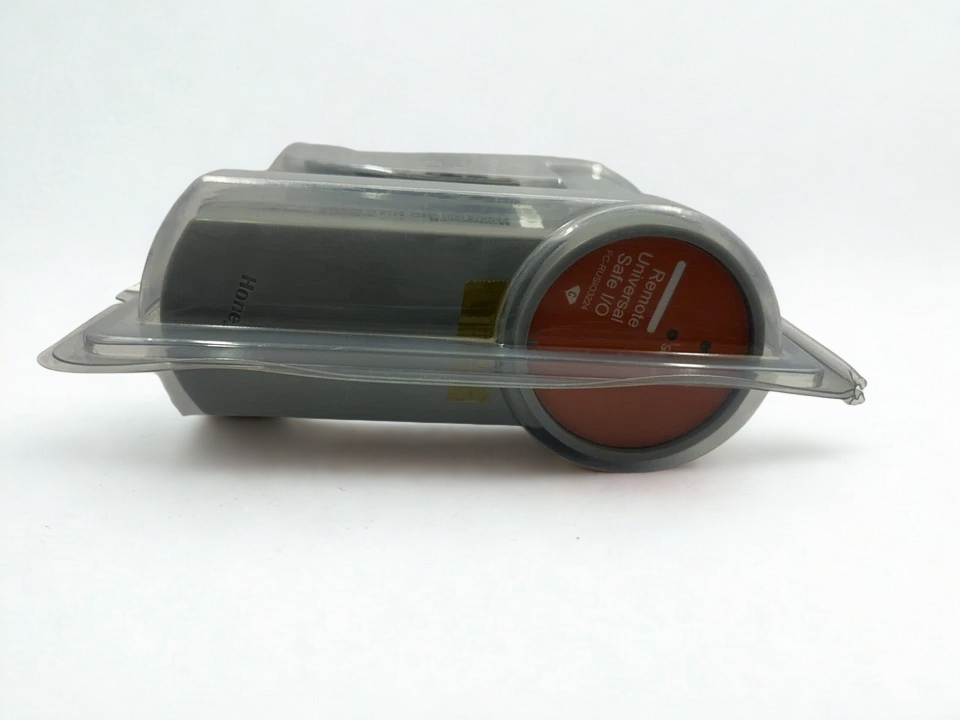

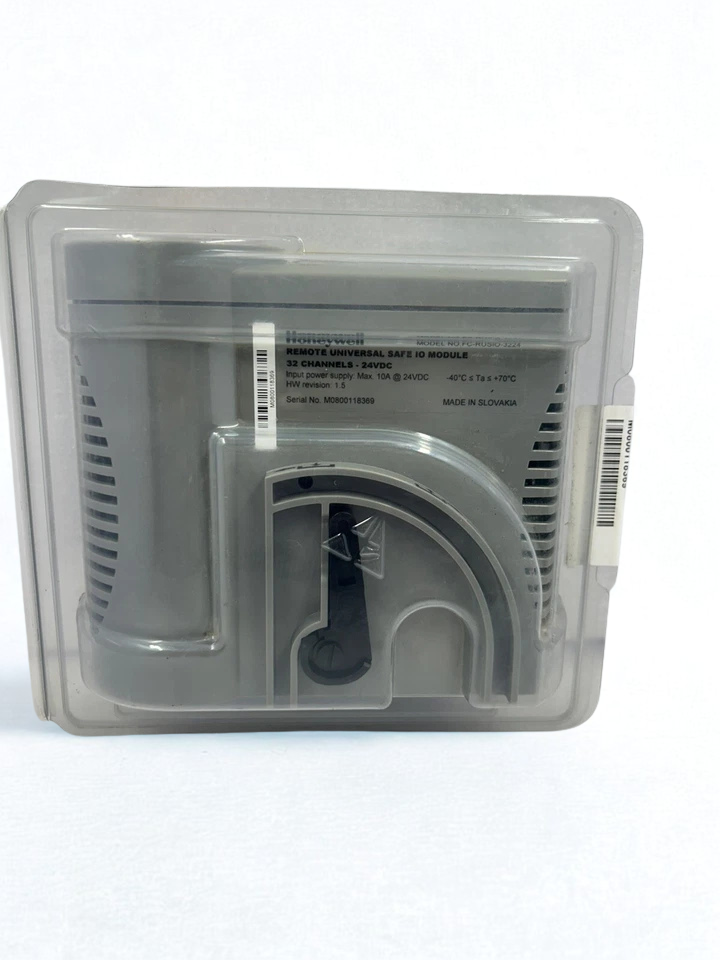

New Sealed Honeywell FC‑RUSIO‑3224 Remote Universal Safe I/O Module

The Honeywell FC-RUSIO-3224 is a Remote Universal Safe I/O module made for industrial automation that is crucial to safety. It provides flexible, software-configurable I/O for process and safety systems that require up to SIL 3 applications.

Honeywell FC-RUSIO-3224 Function and Design

• The FC-RUSIO-3224 is a universal safe I/O device with 32 channels that runs on 24 V DC. Each channel may be set up as a digital input, digital output, analog input, or analog output, depending on what the application needs. ​
• Honeywell Safety Builder software and Safety Manager take care of configuration and safety logic, so the module can be utilized in safety instrumented functions that meet IEC 61508/61511 standards up to SIL 3. ​
• The module is part of Honeywell’s Series C hardware family. It is installed on a separate I/O Termination Assembly (IOTA) that makes the field wiring connections and gives you extra communication routes. ​

Mechanical Properties and Uses

• The usual size is about 145 × 165 × 72 mm (H × W × D) and the weight is about 0.5–0.7 kg, depending on the source. It can be mounted in control cabinets with Series C hardware. ​
• The FC-RUSIO-3224 is used a lot in industries that need remote, safety-rated I/O to keep an eye on field devices and operate final elements like valves, motors, and safety interlocks. These include process automation, oil and gas, chemical plants, power production, and more.

Capabilities for I/O

• All 32 channels are “universal safe,” which means that each one can be set up as a digital input (with or without line monitoring), a digital output (with line monitoring), an analog input (0–20mA or 4–20mA active), or an analog output (0–20mA or 4–20mA active). ​
• The module can handle up to 32 digital inputs and outputs, 32 analog inputs and outputs, and a total of around 9 A on the outputs. ​
• You can set up Channel 32 as an Emergency Shutdown (ESD) function channel for safety-related trips in important situations. ​

Safety, Communication, and Diagnostics

• The FC-RUSIO-3224 meets SIL 3 criteria even when just one channel is used. This is possible because it has a redundant processor, internal watchdogs, and temperature monitoring. Pairing two modules adds even more redundancy. ​
• The module talks to the Safety Manager controller over two 100 Mbit Ethernet-based Safety Manager Universal I/O lines that go through dedicated switches. This makes sure that the communication is reliable and error-free. ​
• Self-diagnostics, line and loop monitoring, a real-time clock for sequence-of-events (SOE) time-stamping with 1 ms resolution, and front-panel LEDs for power and health make maintenance and discovering faults easier. ​

Data on the environment and electricity

• Power supply: 24 V DC (usually between −15% and +30%), with a module supply current of up to 300 mA without a field load. ​
• The module’s outside temperature range is usually between −40 °C and +70 °C, but the electronics within can handle greater temperatures. The storage temperature range is about −40 °C to +85 °C. ​
• The device is safe for use in industrial settings (Pollution Degree 2 or higher) and has CE and other safety approvals. It can work in relative humidity levels of 10–95% without condensation. ​
