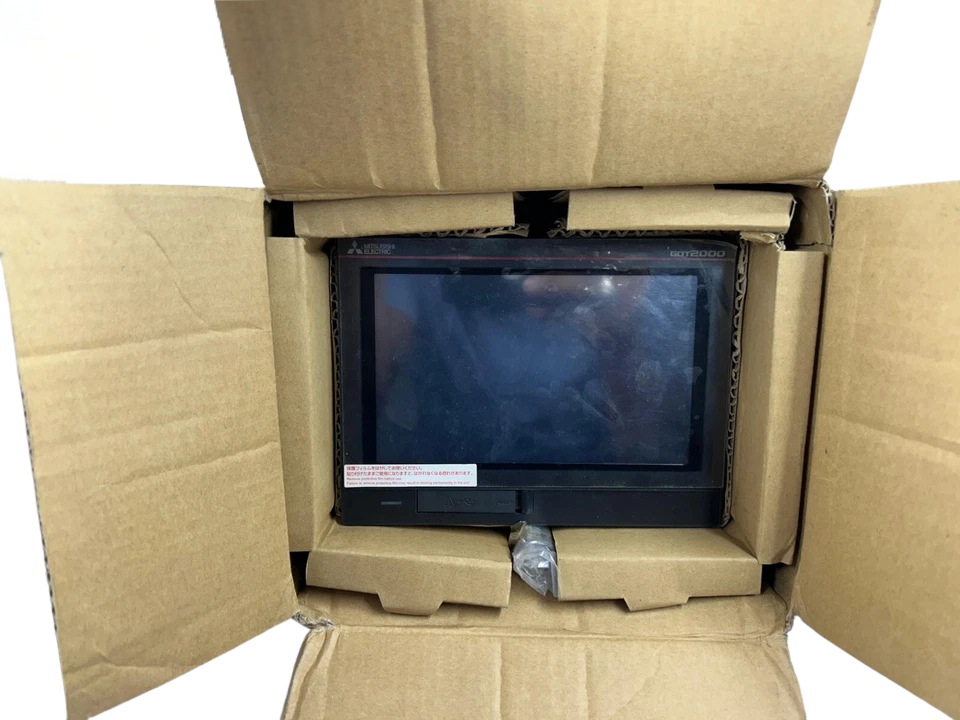

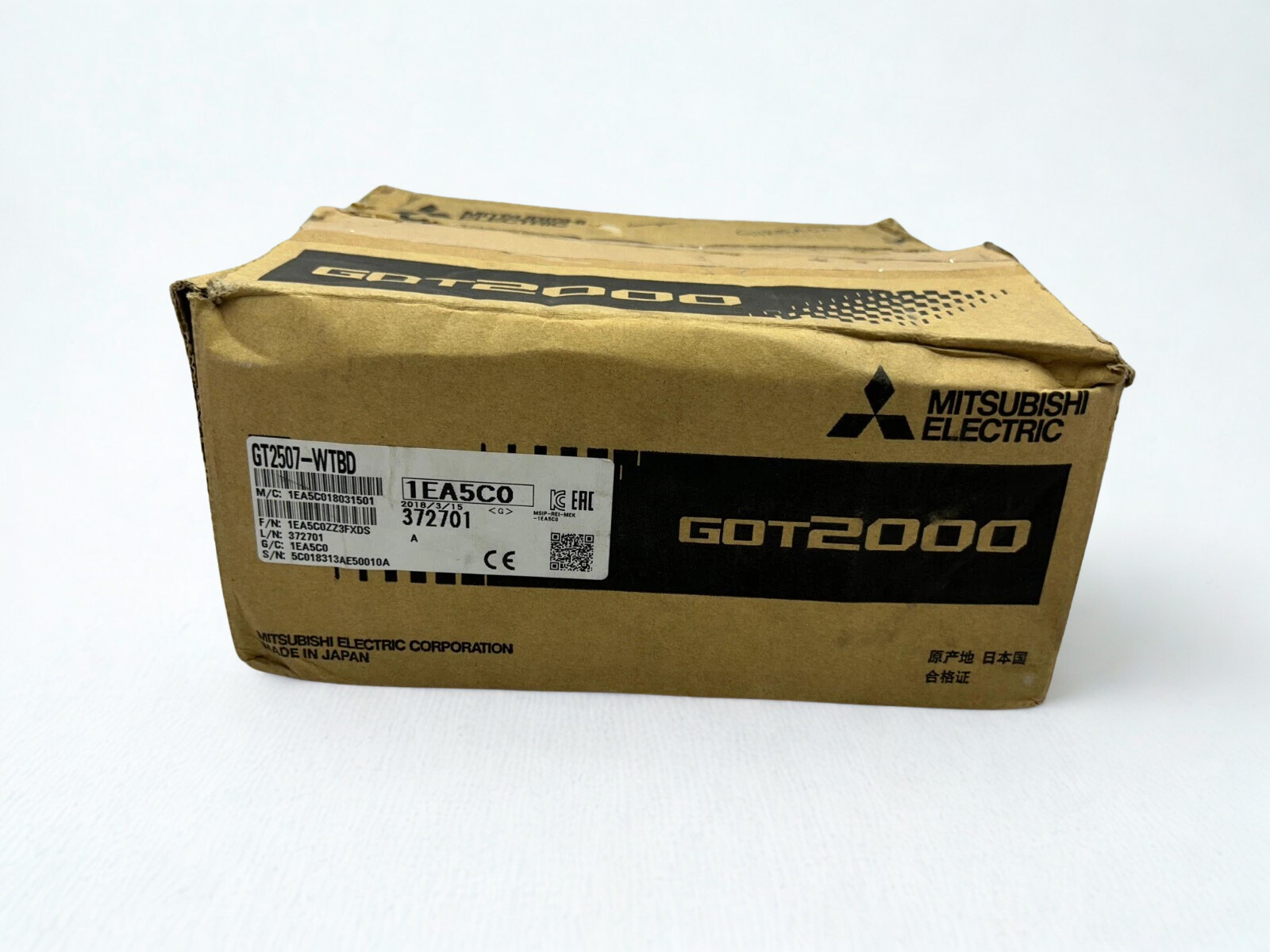

Mitsubishi Electric GT2507-WTBD 7″ Wide HMI Touchscreen Panel

The Mitsubishi Electric GT2507-WTBD is a high-performance 7-inch wide touchscreen HMI from the GOT2000 series. It is made for easy monitoring and control of industrial automation. This visual operating terminal has a clear WVGA resolution and strong connectivity, making it perfect for tough manufacturing settings including marine tech and industrial sets. Designed to be reliable, it can handle 24VDC power and has an IP67F front panel that protects it from dust and grease.

GT2507 WTBD Features:

-> The 7″ Wide TFT Display has a resolution of 800×480 WVGA and 65,536 colors. You can change the brightness to 32 levels so you can see it clearly in different lighting. The LED backlight lasts about 50,000 hours at 25°C.

-> Durable Analog Touch Panel: Can handle more than 1 million touches with a minimum key size of 2×2 dots. It uses resistive film that works with styluses to work accurately in tough settings.

-> A number of ways to connect: two Ethernet ports (100BASE-TX/10BASE-T), RS-232/RS-422/485 serial interfaces, USB host/device (480 Mbps), and an SDHC card slot (up to 32GB) for flexible networking and data processing.

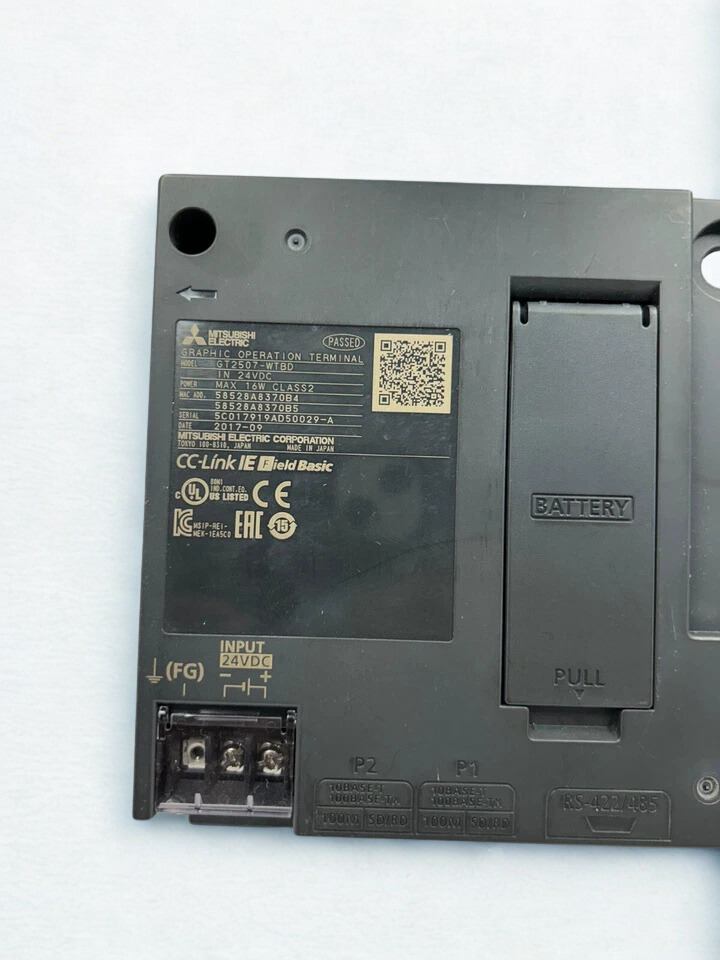

-> Lots of memory and backup: 32MB of ROM storage, 128MB of RAM for running programs, and a lithium battery that can back up SRAM, the clock, and logs for nearly five years at 25°C.

-> Multimedia Support: It has a built-in sound output for WAV audio and an adjustable buzzer. An optional wireless LAN interface makes it easier to monitor from a distance.

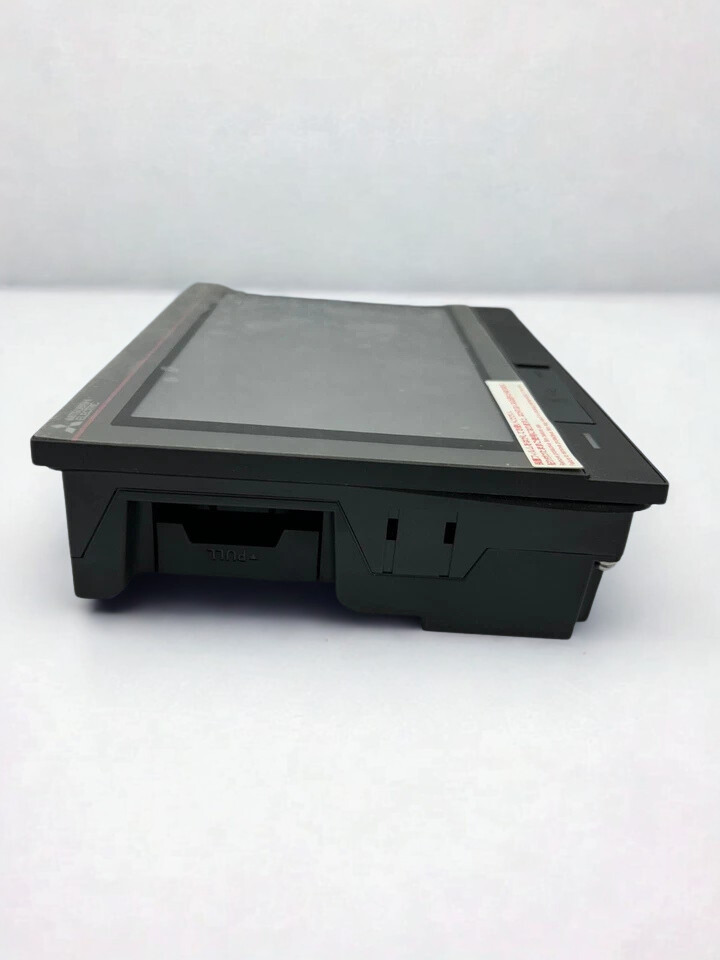

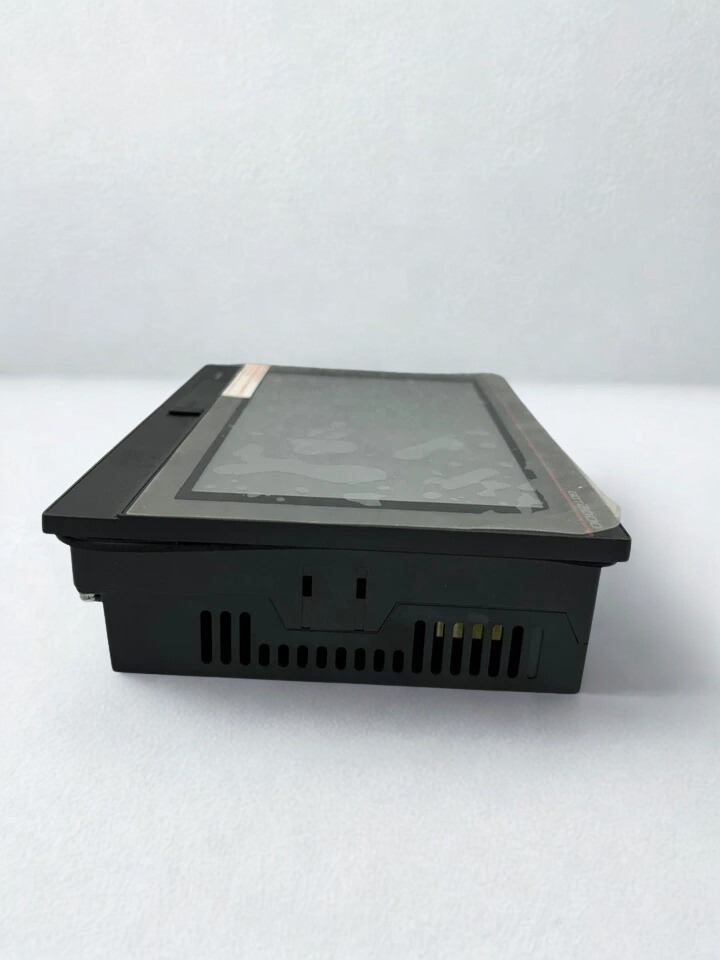

-> Rugged Build: The front is IP67F (oil-resistant), the back is IP2X, and the dimensions are 189x142x48mm with a weight of 0.75kg for easy flush panel attachment.

Technical Specifications

Usage Guidelines:

Installation

Embed into panels via 180.5×133.5mm cutout using standard fittings; ensure USB cover is closed for full IP67F rating and avoid oil/chemical immersion.​

Operation

Use GT Works3 software for screen design (up to 4096 screens); connect to PLCs via Ethernet/CC-Link for real-time monitoring; single-point touch only to prevent errors.

Maintenance Tips

Enable screen saver to extend backlight life; replace battery every 5 years; stylus tip must be ≥0.8mm polyacetal for touch panel longevity.
