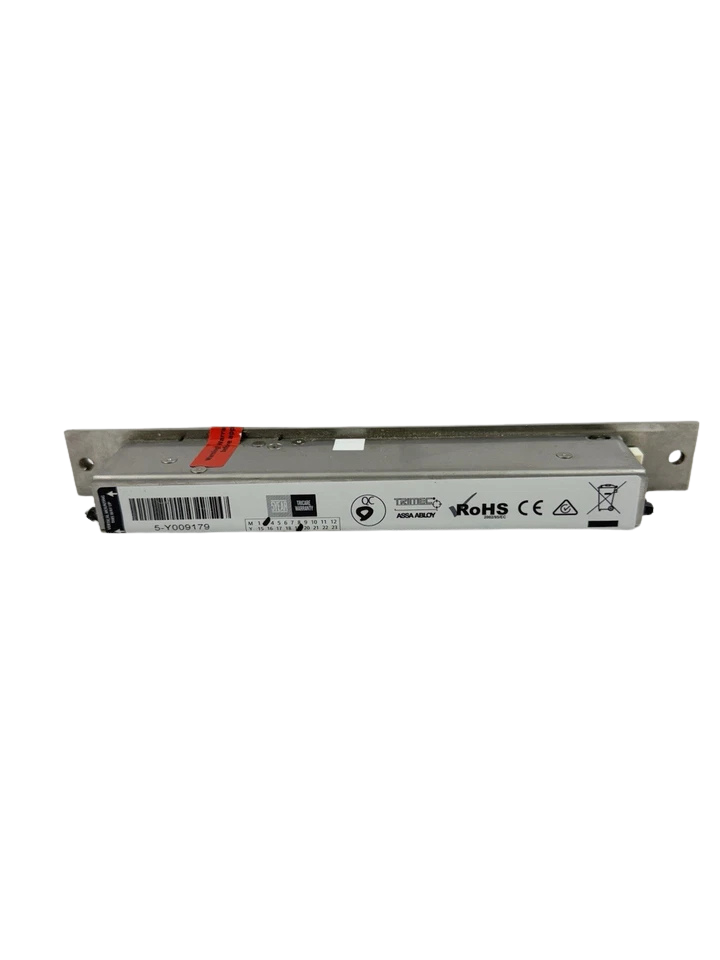

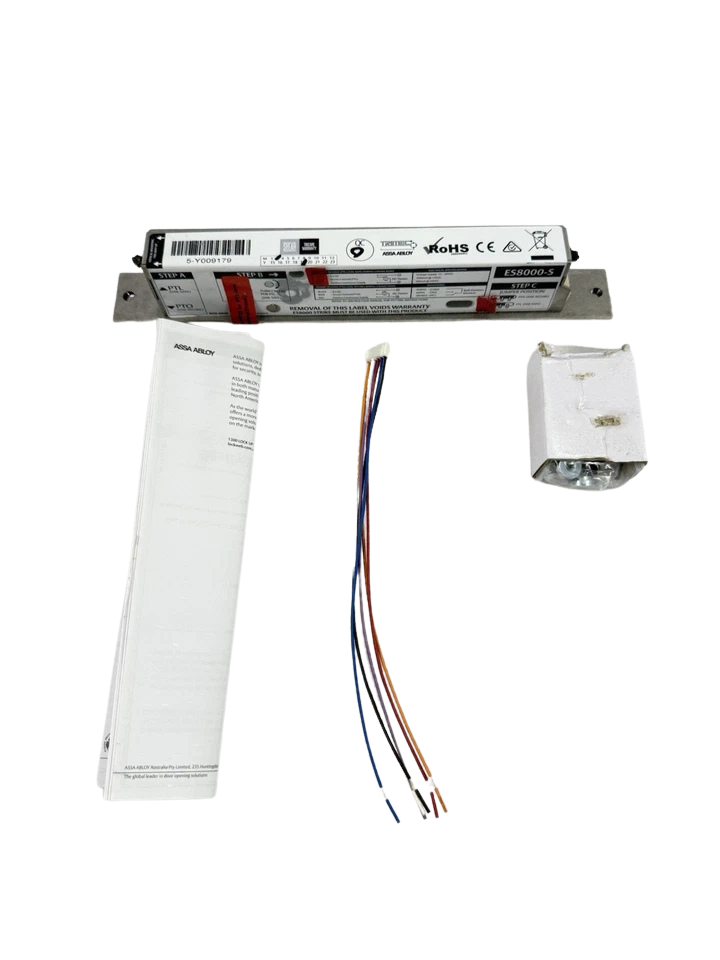

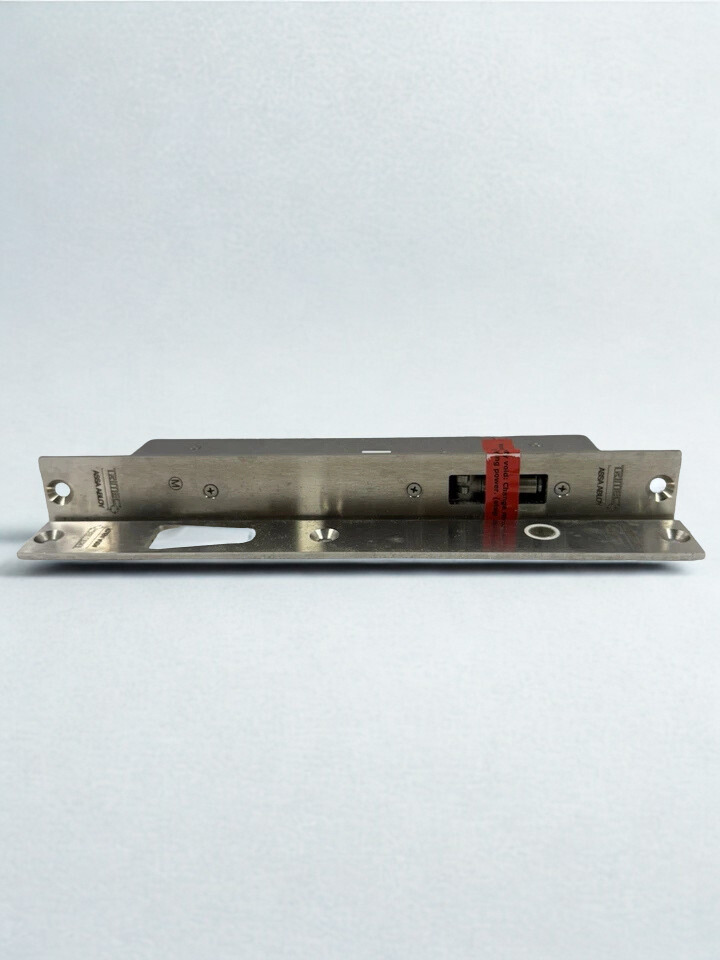

Nouveau Trimec Assa Abloy ES8000-S Electrique Strike | V-Lock 1000kg High Security

The Nouveau Trimec Assa Abloy ES8000-S V-Lock electric strike has a revolutionary high-torque motorised locking system that works with swing doors that can handle up to 15 kg of side preload and 1000 kg of holding force. The fail-open design makes sure that access control works without key overrides, which is great for doors that aren’t lined up in commercial and security settings. Shipping is quick so you may use it right away.

With fail-open reliability, multi-voltage 12-24VDC compatibility, and rapid expedition, it’s the ideal Assa Abloy electric strike for offices, retail, and secure facilities requiring AS4145.2 S3 security compliance.

ES8000-S Key Features:

This ES8000-S strike can manage door misalignment of up to 6mm thanks to its V-shaped strike plate. It unlocks in 1 second and relocks in 3 seconds. It works with access control, intercoms, and keypads without any problems because it can run on many voltages (12–24VDC) and has reverse polarity protection.

-> Field-selectable modes providing fail-secure or fail-safe flexibility, such as power-to-lock (PTO) or power-to-open (PTL).

-> Rated 30VDC/100mA, these contacts may check the lock state (NO/NC) and the door position without any voltage.

-> The body and faceplate are made of stainless steel and are IP53 weatherproof, so they may be used inside and outside in temperatures between -10°C and +50°C.

Technical Specifications

Engineered by Assa Abloy under Trimec branding, the ES8000-S delivers S3 security compliance per AS4145.2 with 300,000+ cycle endurance.

Application:

Great for single or double swing doors, glass doors, and entrances that get a lot of traffic and are likely to get side loads or become out of alignment in offices, stores, and secure buildings. You may place it on the surface or in a mortise, and the wiring is easy. It works perfectly when triggered by a magnet.

Installation and maintenance

Use the accompanying frame marks to install the door seal either horizontally or vertically (not on the floor). There should be a 1-2mm gap between the door and the frame. Connect three wires for the most preload. You don’t need to calibrate it because it has a built-in diagnostics LED. For best performance, clean the contacts from time to time.
