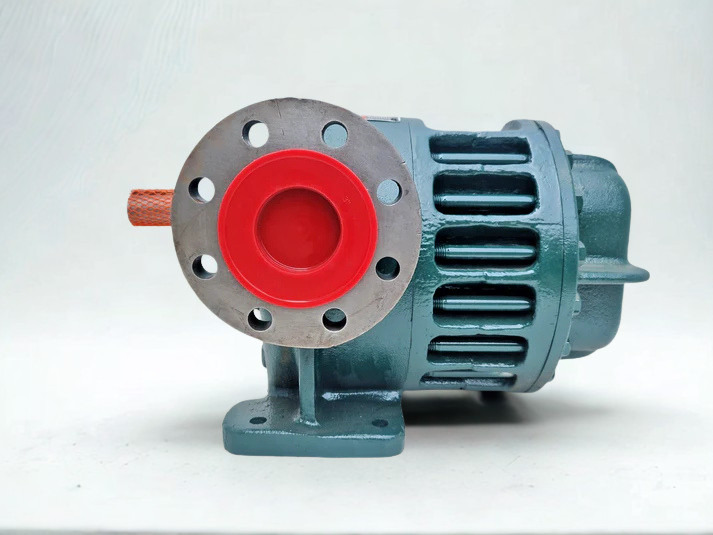

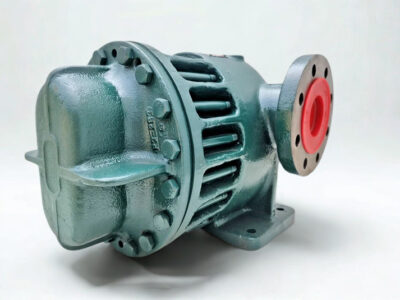

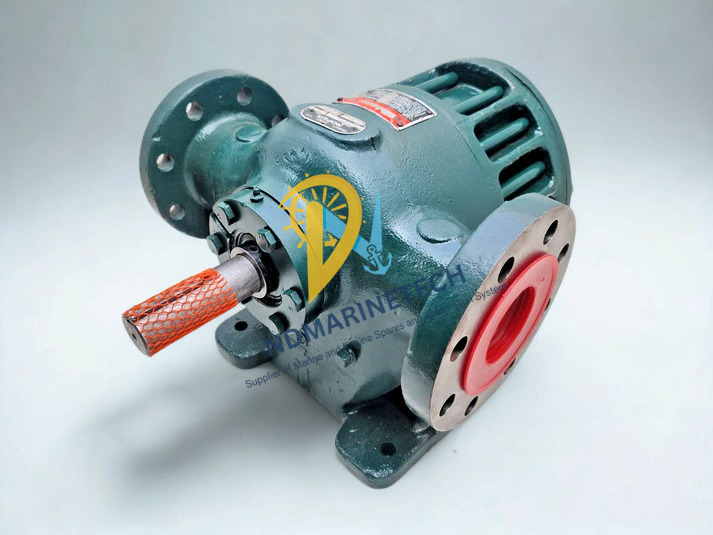

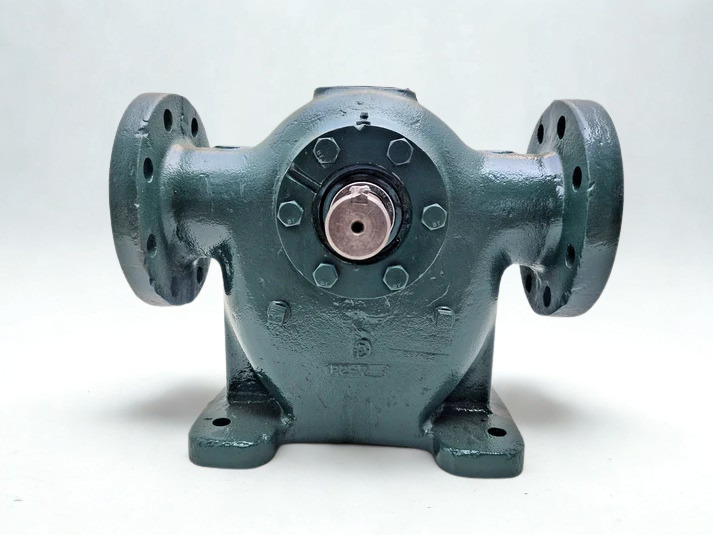

Roper 1F-150 Type 27 Hydraulic Gear Pump – 3″ Flanged Ports
| Model Number | 1F-150 |
| Type Number | 27 |
| Series | F Series (Helical Gear Pump) |
| MPN (Manufacturer Part Number) | 1F150-27 |
| Mounting Configuration | Foot Mounted |
| Relief Valve | No (Without Built-in Relief Valve) |
| Rotation | Clockwise (CW) — Standard, viewed from drive shaft end |
| Shaft Seal | Buna-N Mechanical Seal |
| Port Configuration | 3″ Flanged Ports (Spec 17) |
| Condition | New — Open Box |
-
Genuine OEM Surplus Stock
-
Worldwide Express Delivery
-
Risk-Free Purchase
-
Secure B2B Transactions
Technical Specifications
| Specification | Value |
|---|---|
| Displacement | 0.186 GPR (704.1 cc/rev) |
| Maximum Pressure | 300 PSI (20 bar) — Standard Construction |
| Maximum Pressure (with bearing mod) | 425 PSI |
| Port Size | 3″ (76 mm) — Flanged Ports |
| Housing Material | Cast Iron |
| Gear Material | Steel (Helical Cut) |
| Bushing Material | Bronze |
| Shaft Seal Type | Buna-N Mechanical Seal |
| Temperature Rating | Up to 250°F (121°C) with material options |
| Drive Type | High Drive |
| Mounting Type | Foot Mounted |
| Piping Arrangements | Up to 8 configurations available |
| Weight (approx.) | ~400 lbs |
| Dimensions (approx.) | 48 × 36 × 20 in |
| Type Number | 27 |
| Series | F Series |
Roper Pump Company is a well-known name in the world of precision fluid transfer technology. They have been making gear pumps for more than 100 years. The Roper Pump 1F-150 Type 27 is a strong hydraulic gear pump that can move a lot of fluid in tough commercial and industrial settings. This pump is part of Roper Pump Company’s well-known F Series line. The small, strong cast iron body and precision-machined helical gears work together to make it work with a wide range of liquids in a consistent, efficient, and almost silent way.
The 1F-150 has a foot-mounted design (no built-in relief valve) and big 3-inch flanged ports, which make it great for high-flow applications where you need to get the most flow with the least amount of restriction. The F150 has a theoretical displacement of 0.186 gallons per revolution (704.1 cc/rev), which is one of the biggest in the F Series. This pump is made to move a lot of water.
Applications:
-> Circulation of hydraulic fluid in industrial machines and power units
-> Moving petroleum and fuel oil, like diesel, heating oil, and lubricating oils
-> Industrial lubrication systems that use pressure to lubricate bearings and machines
-> Handling large amounts of liquid in tanker trucks, storage facilities, and fluid distribution systems
-> Chemical processing means moving process fluids that are compatible and won’t corrode.
-> Fluid systems for marine and offshore use that need dependable high-volume pumping
-> Moving agricultural chemicals, such as liquid fertilizers and agri-chemicals that work well together
Documents
Instructions Operating Manual: Download PDF
